Description
I. Overall Product Overview
Complete Set Part Numbers
Main Excitation Regulation Control Board: 707973-10T (Revision REV.03)
Excitation Power Supply Board: 0-58719-32 (abbreviated as 058719-32)
Brand & Compatibility
Manufacturer: Reliance Electric. This paired assembly is fully compatible with the entire FlexPak 3000 series digital DC variable-speed drives. The original manufacturer has permanently discontinued this product line and marked it End-of-Life (EOL). Only secondhand refurbished units and surplus inventory spare parts are available on the market. It serves as a core wear-prone spare part for DC motor speed control systems used in metallurgical rolling mills, papermaking production lines, hoisting transmission equipment and power plant auxiliary machinery.
System Definition
The 707973-10T functions as the closed-loop excitation current master control board, responsible for setpoint signal calculation, PID voltage and current stabilization regulation, and fault logic judgment.The 058719-32 acts as the excitation power output board, which receives power from the preceding rectifier circuit and supplies high-power DC excitation power. These two boards must be installed and used as a matched set. Together they form the drive and closed-loop speed control unit for DC motor field windings. By adjusting the magnetic field intensity, the DC motor can operate under constant-torque speed regulation at low speeds and field-weakening speed increase at high speeds. A failure of either board will directly cause motor field loss and runaway, out-of-control speed regulation, or drive shutdown triggered by an excitation fault alarm.
II. Hardware Functions of Each Module

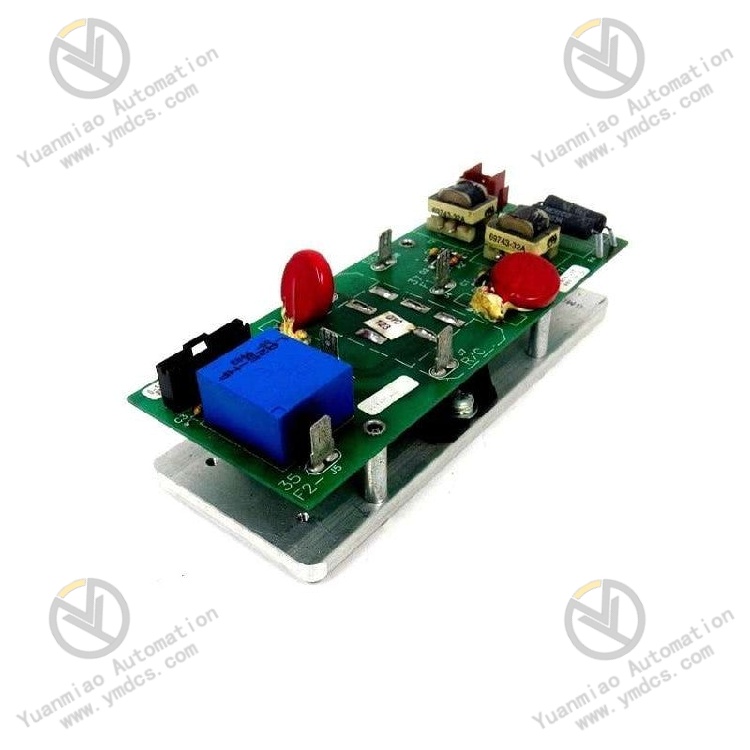

(1) 707973-10T Excitation Regulation Control Board
1. Setpoint Acquisition & PID Closed-Loop Calculation Unit
It receives the excitation current reference value issued by the drive mainboard, samples the actual feedback current of the excitation circuit, and applies a built-in analog PID algorithm to dynamically output voltage adjustment control signals. This precisely stabilizes the excitation output current, suppresses magnetic field drift caused by grid voltage fluctuation and load disturbance, and enables automatic switching between constant excitation and field-weakening speed regulation modes. A precision potentiometer is onboard for on-site fine-tuning of the excitation zero offset reference and maximum output limit parameters.
2. Drive Pulse & Power Coupling Unit
Equipped with dual isolated pulse transformers and varistor surge suppression circuits, it amplifies weak control signals to drive the thyristor rectifier circuit on the downstream 058719-32 power board. An integrated RC snubber network absorbs switching voltage spikes to prevent thyristor overvoltage breakdown and damage to the power board.
3. Fault Detection & Interlock Reporting Unit
It continuously monitors faults including excitation overcurrent, undercurrent, open circuit and no output from the power board. Upon fault detection, it latches the alarm signal and transmits it to the main drive controller to initiate drive protective shutdown. Meanwhile, it locks the control output to avoid reverse high-voltage backfeeding that could burn out the upstream mainboard.
4. Structure & Interface Unit
The PCB is fixed to a metal mounting base via standoffs. It is fitted with 5 groups of pluggable quick-disconnect terminals plus a vertical multi-pin header for direct cable connection to the 058719-32 board without extra wiring. The entire PCB is coated with three-proof conformal coating to adapt to dusty and vibration-prone environments inside control cabinets.
(2) 058719-32 Excitation Power Supply Board
1. High-Power Rectification Excitation Output Unit
It delivers a rated continuous DC output current of 15A. Accepting single-phase or three-phase industrial mains AC input, it converts AC into adjustable DC excitation voltage via thyristor phase-controlled rectification, which is directly fed to the DC motor field winding. By altering the thyristor conduction angle to adjust output voltage, it works with the upstream control board to achieve stepless magnetic field intensity adjustment, serving as the core power execution component of the entire excitation system.
2. Hardware Current Limiting & Fuse Protection Unit
An overcurrent fuse and transient suppression components are integrated on the main power circuit. In the event of field winding short circuit or inter-turn breakdown, the fuse blows instantly to cut off the power loop, confine the fault scope, and prevent inrush current from damaging the drive’s main power bridge and front-end control board.
3. Status Indication & Hardware Reinforcement Unit
Two red LED fault indicator lamps on the front panel provide visual indication of power readiness and overcurrent faults. A reinforced metal backplate is installed on the rear side to improve vibration resistance and heat dissipation. Heat sink mounting positions are reserved for power devices to keep temperature rise within a safe range under long-term full-load operation.
4. Bus Interaction Unit
It receives phase-shift trigger signals sent from the 707973-10T board and executes rectification conduction logic synchronously. No independent configuration program is required; all operations are fully governed by the paired regulation board.
III. Complete Set Technical Specifications
1. Parameters of 707973-10T Control Board
| Item | Technical Specification |
|---|---|
| Part Number | 707973-10T REV.03 |
| Compatible System | All models of FlexPak 3000 DC Variable-Speed Drives |
| Control Signal Mode | Analog reference + closed-loop current feedback |
| External Interfaces | Plug-in terminal block + multi-pin plug cable port |
| Core Components | Dual pulse transformers, adjustable potentiometer, TVS surge suppressors, operational amplifier chips |
| Net Weight | Approx. 0.9 kg |
| Mounting Method | Bolted onto metal base, embedded installation inside drive cabinet |
2. Parameters of 058719-32 Power Board
| Item | Technical Specification |
|---|---|
| Part Number | 0-58719-32 (commonly abbreviated as 058719-32) |
| Rated Output Current | 15A DC excitation output |
| Input Power Supply | Industrial frequency AC mains power |
| Core Topology | Thyristor phase-controlled rectification for voltage regulation |
| Protection Features | Main circuit fuse, overvoltage clamping circuit |
| Panel Indicators | 2 red LED status indicators |
| Net Weight | Approx. 0.23 kg |
3. General Environmental & Safety Specifications
- Operating Temperature: -20℃ ~ +65℃
- Storage & Transportation Temperature: -40℃ ~ +85℃
- Relative Humidity: 5%~95% RH, non-condensing, free of corrosive gases
IV. Key Advantages of the Matched Assembly
- The two boards are designed as a matched hardware and software set with fully consistent communication protocol, trigger timing and power parameters. Replacing only a single board will very likely lead to unsynchronized triggering, overcurrent burnout and unstable excitation. The matched spare set supports direct on-site replacement without parameter modification.
- Highly accurate field-weakening speed regulation via closed-loop excitation control enables DC motors to operate across a wide speed range: constant torque at low speed and field-weakening speed boosting at high speed, perfectly suited for processes requiring wide-range speed adjustment such as steel rolling, material winding and hoisting.
- Multi-layer hierarchical fault protection: software interlock from the control board plus hardware fuse protection on the power board. In case of short circuit or open circuit on the excitation side, output is locked in stages to prevent large-scale damage to the drive’s main power modules and reduce equipment overhaul costs.
- Excellent backward compatibility with legacy installed systems. The FlexPak 3000 series was a mainstream DC drive platform widely deployed on older production lines. This paired board set is the exclusive standard excitation accessory for the series with no universal alternative parts.
- Plug-and-play terminal design eliminates soldering during on-site disassembly and installation, shortening maintenance downtime and minimizing unplanned production line outage duration.
V. Application Scenarios
- Metallurgical Industry: DC drive units for hot and cold rolling production lines and sheet metal winding/unwinding equipment, controlling excitation and speed regulation of main rolling mill and coiler DC motors.
- Papermaking Industry: Sectional drives and rewinder DC drive systems for paper machines, utilizing excitation adjustment to maintain constant tension control.
- Hoisting & Mining Equipment: DC speed control systems for mine winders and overhead cranes, relying on the excitation circuit to realize heavy-load startup and speed limit protection.
- Power Plant Auxiliary Systems: DC drive devices for boiler coal feeders and coal conveyors, serving as core spare parts for speed control drives.
- Retrofit & Maintenance of Legacy Production Lines: Direct full-set replacement for aged, burnt-out or speed-jittering excitation boards to fully restore the excitation control functionality of the drive unit.
