Description
1. Product Overview

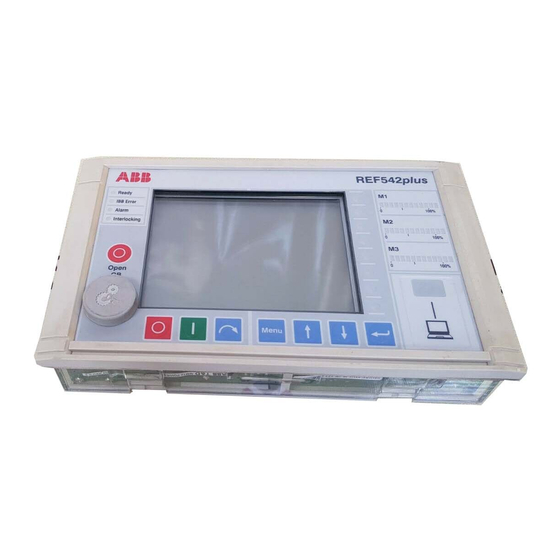

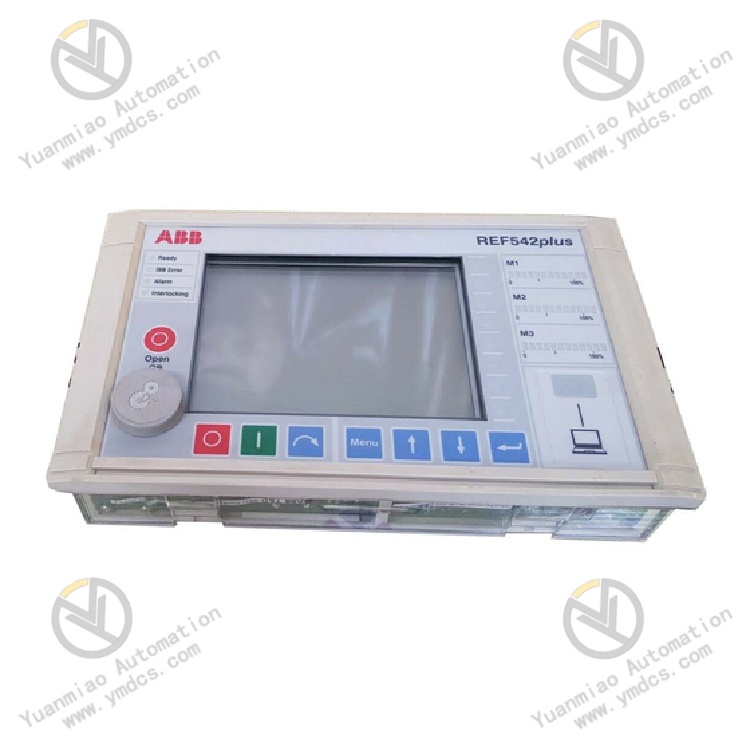

Model: REF542plus 76E1BBBB361WB31
Manufacturer: ABB . REF542plus is a classic integrated protection and bay control terminal for medium voltage switchgear. This specific part number is a fully configured factory order version with IEC 61508 SIL 3 certification, widely used as critical spare parts in power distribution systems, designed for 6~36kV MV switchgear applications.Application Scope: It integrates feeder line protection, distribution transformer protection, large motor protection and bay local monitoring & control in one single device, compatible with AIS air-insulated switchgear and GIS gas-insulated switchgear, deployed in industrial power distribution, municipal grid, auxiliary power of thermal power plants, chemical and metallurgy power systems.Product Definition: Modular programmable bay protection and switchbay control unit, consisting of two independent parts: main base unit + detachable LCD HMI front operation panel. It integrates analog input sampling, multi-set protection algorithms, binary DI/DO loops, fault waveform recording, SOE sequence of event logging, multi-protocol communication and local breaker close/trip control. Custom logic can be programmed via FUPLA functional block diagram, with expandable I/O, communication and analog output modules, serving as the core primary-secondary fusion measurement & protection device for MV distribution bays.2. Six Core Hardware Functional Units
2.1 Main Control & Programmable Logic Unit
Equipped with industrial real-time processing core, embedded standard protection algorithm library, and open FUPLA visual programming for custom AND/OR/XOR logic, timers and counters. Dual-channel hardware self-test locks trip output loops automatically upon program crash or hardware failure, meeting SIL3 safety integrity level to eliminate maloperation or failure to trip caused by single-point fault.
2.2 Multi-Channel Analog Sampling Unit
Supports CT current input (0.2A/1A/5A), PT voltage input (100~125VAC), sampling three-phase current, residual current, line/phase voltage and system frequency with 0.5 measurement accuracy. It calculates active/reactive power, power factor and bidirectional energy metering; optional 4~20mA AI/AO modules accept external transmitter signals for temperature and pressure monitoring.
2.3 Integrated Multi-Type Protection Unit
Preloaded configurable protection functions including distance protection, instantaneous/definite time overcurrent, residual earth fault, over/under voltage, frequency deviation, thermal overload, motor locked rotor, restricted starting times, phase unbalance and transformer differential protection. All protection enable status, trip setpoints and time delays can be modified locally via HMI or remotely via configuration software, with timestamped fault value recording upon protection activation.
2.4 Binary I/O & Local Switch Control Unit
Expandable passive digital inputs collect breaker position, spring charged status, cabinet door interlock and local/remote switch signal; relay digital outputs execute trip, close, alarm and remote signal transmission. Three control modes (Local / Remote / Inhibit) prevent unauthorized operation; local panel buttons enable direct breaker operation only under permitted mode.
2.5 Fault Recorder & Event Storage Unit
Non-volatile flash memory permanently stores minimum 30 SOE event records with millisecond timestamp. The fault recorder captures up to 8 analog channels + 32 binary signals during fault events, data retained after power loss. Waveforms and logs can be retrieved via local HMI, upper software or embedded WebREF web interface for post-fault analysis.
2.6 Multi-Port Communication & Power Supply Unit
Standard RS485 electrical port, optional dual ST fiber optic communication; native protocols include Modbus RTU, DNP3.0 and IEC 61850. Auxiliary power supply is wide-range compatible with DC24V, equipped with EMI filter, reverse polarity and surge protection. The backplane supports hot-swap replacement of communication and I/O submodules without main unit power-off.
3. Technical Specifications
3.1 Electrical Basic Parameters
| Item | Specification |
|---|---|
| Applicable System Voltage | 6kV ~ 36kV Medium Voltage Distribution |
| CT Secondary Rated Input | 0.2A / 1A / 5A Selectable |
| PT Secondary Rated Input | 100V ~ 125V AC |
| Nominal Frequency | 50Hz / 60Hz Auto Adaptation |
| Auxiliary Operating Power | DC 24V Wide Tolerance |
| Measurement Accuracy | I/U: Class 0.5; Power: Class 1; Frequency: 0.02Hz |
| Protection Timing Error | ≤ ±15ms |
| Short-Term Withstand Capacity | 4×In continuous long-term, 100×In for 1 second peak current |
3.2 Communication & Data Storage
- Wired Interface: RS485 (Modbus RTU); Optional Dual ST Fiber Port
- Supported Protocols: Modbus RTU, DNP3, IEC61850, Embedded Web Server
- Event Log: ≥30 SOE records with millisecond time stamp
- Fault Recording: 8 analog + 32 binary signal waveform capture
3.3 Environmental & Mechanical Parameters
- Operating Temperature: -20℃ ~ +60℃; Storage & Transport: -40℃ ~ +85℃
- Ingress Rating: Main unit IP20 (cabinet mounting); Front HMI Panel IP65
- Vibration & Shock Compliance: IEC 60068-2 standard for switchgear long-term vibration resistance
- Mounting: Main unit DIN rail mounting; HMI panel cabinet cutout flush mounting
- Dimension: Base unit 225×110×50mm; Net Weight ~ 2kg
4. Product Advantages
- Single hardware platform supports feeder, transformer and motor protection modes via software switching, minimizing spare part types and inventory cost.
- Detachable HMI design allows main unit installed inside cabinet while operation panel embedded on cabinet door, simplifying wiring and fitting compact GIS cabinets.
- SIL 3 safety certification plus dual hardware self-test with trip interlock logic, eliminating spurious tripping induced by stray potential and electromagnetic interference.
- Built-in web page service enables parameter checking, waveform downloading and setting modification directly via browser without dedicated configuration software, improving on-site commissioning efficiency.
- Modular hot-swappable extension for communication, analog output and extra I/O modules, maintenance without full device shutdown.
- Full EMC compliance per IEC 61000-4 standards, robust against EMI from switch closing coils and variable frequency drives inside switchgear rooms.
5. Application Scenarios
- Municipal & industrial MV distribution switchgear: Protection and three-remote monitoring for 10kV/20kV ring main units, incoming and sectioning bays.
- Power plant auxiliary power system: Protection and supervision for 6kV high-voltage motors, station service transformers and standby power supply feeders.
- Petrochemical and metallurgy plant power distribution: Overload, locked rotor and startup protection for large pumps and fans; ATEX certified version available for explosive hazardous areas.
- Legacy distribution system retrofitting: Direct in-situ replacement for retired protection relays with configuration file import compatibility to avoid reprogramming.
- Offshore marine & offshore platform power network: DNV marine certified version available for ship and offshore power distribution control.
