ABB CI626A 3BSE005029R1

1. Basic Information

ABB CI626A (Part No. 3BSE005029R1) is a dedicated AF100 fieldbus communication interface module for ABB Advant OCS / AC400 / AC450 DCS systems, serving as the core bus bridging unit of the control system. It is mainly responsible for data interaction between the DCS main control unit and the AF100 fieldbus network, completing bus protocol conversion, data forwarding, node management and communication link maintenance. It acts as a key communication hub connecting ABB main control systems with field remote I/O, smart instruments and sub-station equipment.

Designed for industrial process control scenarios, the CI626A supports standard ABB AF100 Fieldbus protocol, featuring high communication stability, strong anti-interference capability, large bus node capacity and low data transmission delay. With hot-swap support, bus fault diagnosis, link fault tolerance and signal filtering functions, it adapts to 24-hour uninterrupted production conditions in power plants, chemical industry, water treatment and metallurgy. It is widely used for aging communication module replacement, AF100 bus segment expansion and on-site communication stability upgrading of old DCS systems.

2. Technical Specifications

2.1 Core Communication Specifications

Device Positioning: AF100 fieldbus communication interface module for data interaction between DCS main control and AF100 fieldbus devices
Bus Protocol: Native support for ABB exclusive AF100 Fieldbus protocol, fully compatible with all AF100 bus slave devices
Communication Rate: Standard AF100 bus transmission rate with high stability and ultra-low delay, meeting real-time control requirements of process industry
Bus Topology: Supports linear and tree-type fieldbus networking, adapting to distributed equipment layout in factories
Node Capacity: Supports mounting of multiple AF100 slave devices to meet measurement point expansion requirements of medium and large DCS systems
Data Mechanism: Combined cyclic data polling and event-triggered transmission to ensure synchronous conventional data and instant abnormal signal reporting

2.2 Electrical Performance Specifications

Power Supply: Powered by DCS backplane bus, no external power required for simple installation and less wiring
Working Voltage: Adapted to standard backplane voltage of ABB AC400/AC450 systems, compatible with native system power supply
Electrical Isolation: Electrical isolation between bus port and system backplane to isolate on-site ground potential difference, high-frequency interference and surge signals
Anti-interference: Built-in multi-stage hardware filter circuit to resist on-site frequency conversion interference, electromagnetic radiation and crosstalk
Transmission Performance: Extremely low packet loss rate, no data deviation or communication stutter during long-term continuous operation

2.3 Functional Specifications

Protocol Conversion: Realizes bidirectional protocol parsing and conversion between main control backplane bus and AF100 fieldbus, connecting upper and lower system data links
Bus Management: Automatically scans bus nodes, identifies slave devices and allocates communication timing to avoid bus conflicts
Hot-swap Support: Supports online hot-swap replacement without shutdown or power-off, no impact on overall system operation
Data Preprocessing: Supports data verification, error frame elimination and signal anti-shake to improve bus data reliability
System Compatibility: Fully compatible with ABB AC400, AC450 and Advant OCS DCS systems

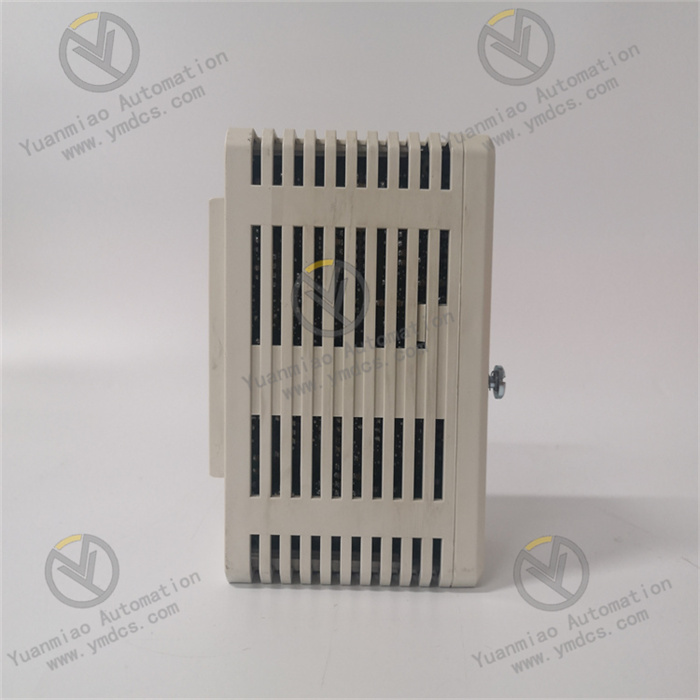

CI626A 3BSE005029R1.png

2.4 Diagnosis & Protection Specifications

Power-on Self-test: Automatically completes full-dimensional self-inspection of chip, communication port, bus link and data storage after power-on
Real-time Diagnosis: Continuously monitors bus disconnection, slave offline, data verification error, link interference and module abnormality
Fault Alarm: Uploads abnormal status to the main control system in real time to accurately locate faulty network segments and nodes
Fault Tolerance: Automatically reconnects and recovers from transient communication abnormalities; locks links for permanent faults to avoid wrong data transmission
Status Indication: Built-in running, communication and fault LEDs for intuitive on-site operation and maintenance

2.5 Environmental & Physical Specifications

Operating Temperature: -20℃～+60℃ industrial wide temperature range, adapting to closed high-temperature and alternating temperature cabinet conditions
Storage Temperature: -40℃～+85℃ with excellent temperature resistance and anti-aging performance
Humidity Range: 5%～95%RH (non-condensing), dust-proof and moisture-proof for industrial high-humidity environments
EMC Performance: Compliant with industrial EMC standards, adapting to harsh working conditions with strong electromagnetic interference in power plants and chemical industries
Installation Mode: Standard DCS slot board installation, compatible with ABB original cabinet card slots, vibration-proof and stable
Structural Features: Compact board design with small space occupation, suitable for dense cabinet layout

3. Working Principle

Power-on Initialization & Self-test: The module obtains working power through the DCS backplane. After power-on, it automatically completes hardware self-test, firmware initialization, bus protocol loading and system handshake, and enters normal communication standby state after passing verification.
AF100 Bus Node Scanning & Networking: After startup, it actively scans the entire AF100 fieldbus network segment, automatically identifies all mounted remote I/O modules, smart instruments and field substations, completes device registration, address matching and communication binding, and establishes a stable bus topology.
Bidirectional Protocol Conversion & Data Forwarding: As a communication transfer hub, it parses control commands issued by the DCS main control in real time and forwards them to corresponding fieldbus devices. Meanwhile, it collects process data and device status signals uploaded by field equipment, and uploads them to the main control system after verification, filtering and preprocessing.
Bus Timing Scheduling & Conflict Avoidance: It automatically allocates communication timing according to AF100 bus standards, polls each slave node, and completes data interaction in order to avoid bus congestion and data conflicts caused by simultaneous transmission of multiple devices.
Real-time Fault Monitoring & Fault Tolerant Repair: It continuously monitors bus link quality, node online status and data transmission quality. It automatically reconnects and recovers from transient interference and short-term disconnection; immediately uploads alarm information and locks abnormal links for permanent faults to ensure normal operation of other network segments.
Online Hot-swap Fault Tolerant Operation: Supports module plugging and replacement during system operation. The system temporarily caches data and maintains uninterrupted bus links automatically, and re-networks automatically after replacement, realizing non-stop maintenance.

4. Application Scenarios

4.1 ABB AC400/AC450 DCS Main Control System

As the standard AF100 bus communication interface for AC400 and AC450 DCS systems, it undertakes all data interaction tasks between the main control system and field bus equipment, serving as the communication core of the entire distributed control system, widely used in main control system networking of power plants, chemical industry and water treatment plants.

4.2 AF100 Fieldbus Distributed Control System

Adapted to plant-wide AF100 bus architecture, it connects remote I/O cabinets, field smart instruments, regulating valves and transmitters, realizing centralized collection of scattered process measurement points and unified management of remote equipment, simplifying on-site wiring and improving system automation integration.

4.3 Key Continuous Process Control Units

Relying on high stability, low delay and strong fault tolerance, it is applied in uninterrupted production units such as chemical reactions, power plant units and water treatment processes, ensuring real-time transmission of process data and accurate issuance of control commands, and avoiding process fluctuation and production shutdown caused by communication abnormalities.

4.4 Industrial System Online Expansion & Renovation

Used for node expansion of existing AF100 bus systems to add new field measurement points and intelligent equipment. It quickly completes automatic system upgrade and expansion without modifying main control programs and system architecture, meeting expansion requirements of production line renovation and process optimization.

4.5 Compatible Replacement of Old Communication Modules

Perfectly compatible to replace aging ABB AF100 communication modules, solving common problems such as frequent communication disconnection, data drift, severe bus interference and repeated errors. It supports online replacement without shutdown, realizing low-cost upgrade of DCS system communication stability.
