I. Basic Information

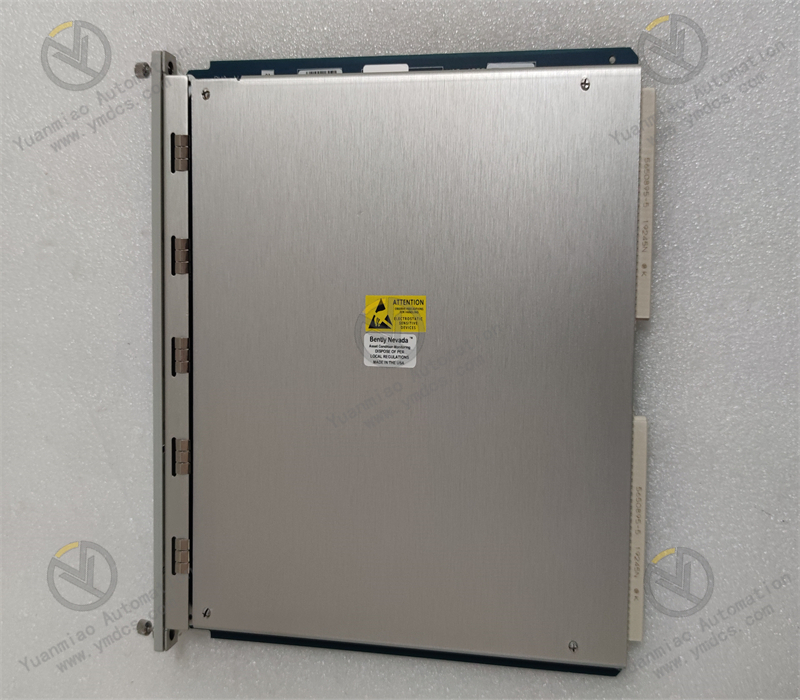

Full Model：3500/94 145988-01
Brand & Origin：Bently Nevada (USA)
Product Positioning
As an exclusive VGA display routing module for Bently 3500 machinery protection systems, it serves as the core unit for human-computer interaction and data forwarding of the whole unit vibration, displacement, temperature and speed monitoring system. Designed for critical rotating equipment such as steam turbines, centrifugal compressors, fans, pumps and gas turbines, it is mainly responsible for full rack data acquisition, status summary, local visual display, remote communication forwarding and system parameter configuration of the 3500 system. It can real-timely display core process data such as unit vibration amplitude, shaft displacement, key phase, temperature, speed, alarm status, fault event logs and module operating status. It also supports multi-rack data aggregation, protocol conversion and upper system docking, which is a key core board for unit condition monitoring, fault diagnosis, operation and maintenance management and interlock parameter debugging. Widely used in complete set of new equipment, old system upgrading, faulty module replacement and monitoring system capacity expansion transformation in power, petrochemical, metallurgical and coal chemical industries.
Hardware Architecture
Adopting industrial embedded high-speed processing architecture, it integrates independent data analysis core, VGA video drive unit, high-speed backplane bus interface, Ethernet communication module, serial protocol processing unit and full-domain hardware self-diagnosis system. Composed of mainboard core operation unit, I/O signal processing unit and display drive unit, it reads real-time data and status information of all monitoring modules in the 3500 rack at high speed through the system backplane bus. Adopting military-grade multi-layer PCB technology and strong and weak current partition isolation wiring with full-domain electromagnetic shielding design, it is equipped with multiple hardware protections including overvoltage, overcurrent, static electricity and surge, featuring extremely low data delay, high communication stability and zero long-term operation drift. It supports multi-rack data aggregation and analysis, and can dock multiple sets of 3500 monitoring racks simultaneously to unify and summarize unit operating parameters, with high hardware integration and strong anti-interference ability to adapt to complex industrial electromagnetic working conditions.
Mounting Specification
It adopts embedded installation in standard 3500 series 19-inch racks, perfectly matching the standard slots, backplane bus contacts and overall power supply architecture of the 3500 system. The snap-on anti-vibration locking structure ensures stable installation and anti-loosening, which can withstand long-term unit vibration, equipment start-stop impact and working condition disturbance. It supports external mounting of standard VGA color displays, with a maximum remote installation distance of 8 meters through standard cables, adapting to the layout requirements of external console and central control room remote display. The front panel is equipped with status indicator lights to intuitively display module power-on operation, bus communication, network connection, system alarm and fault abnormality, supporting rapid on-site inspection, parameter verification and fault location, fully complying with Bently original installation, wiring and operation and maintenance specifications.
Compatible Systems
Natively and exclusively compatible with Bently 3500 full-series machinery protection monitoring systems, it can seamlessly dock with 3500/22, 3500/25 frame interface modules and various vibration, displacement and temperature monitoring cards. It supports multi-rack networking linkage, and a single module can aggregate data from up to 4 independent sets of 3500 racks to realize unified display and centralized management of multi-unit monitoring data. It natively supports Modbus TCP, Modbus RTU and Bently exclusive API protocols, enabling seamless connection with PLC, DCS and upper configuration software and fault diagnosis platforms. It can complete data upload, remote configuration, parameter reading and writing and event query without additional adapter equipment, with strong system compatibility and scalability.
Product Characteristics
As an original industrial high-reliability display routing module, it has passed strict full-item tests including full-function aging, bus communication test, protocol compatibility verification, high and low temperature impact and EMC electromagnetic compatibility before delivery, with high hardware consistency, stable long-term operation, no data packet loss and no communication drift. Integrating dual functions of visual display and data routing, it meets the dual requirements of local human-computer interaction and remote data transmission, supporting custom display interface, preset working condition screen and event log storage and query. It has passed IEC 61508 SIL2 functional safety certification and API 670 industry standard certification, meeting the stringent standards for safety monitoring and interlock protection of major units. With no mechanical loss parts, low power consumption and low heat generation, it adapts to 7×24-hour uninterrupted continuous operation of units, greatly reducing system operation and maintenance costs and fault shutdown probability.
II. Technical Specifications
1. Data Processing & Display Parameters
Data Aggregation Capacity: Supports simultaneous access to up to 4 independent 3500 monitoring racks, fully aggregating all monitoring data such as unit vibration, shaft displacement, key phase, speed, temperature, alarm and module status with high data synchronization and no time sequence deviation. Display Configuration: Compatible with standard VGA color displays, supporting multiple preset working condition screens and 9 groups of custom display interfaces, which can intuitively display real-time values, trend status, alarm lists, fault events and module information, and can be quickly put into use without complex programming configuration. Data Refresh Speed: High-speed bus synchronous acquisition with real-time data refresh without delay, accurately responding to dynamic changes of unit working conditions and meeting the requirements of high-precision monitoring and real-time management of major units. Event Storage: Supports local storage of system alarm events, fault records and operation logs, which can be queried and traced at any time to provide complete data support for unit fault diagnosis, process analysis and operation and maintenance review.
2. Communication Interface & Protocol Parameters
Network Port Configuration: Equipped with 10/100Mbps adaptive industrial Ethernet interface, supporting Modbus TCP high-speed communication with stable transmission and extremely low delay, adapting to data interaction of remote upper systems. Serial Port Configuration: Integrated RS-232 and RS-422 serial communication interfaces, supporting Modbus RTU protocol, compatible with traditional serial networking equipment, adapting to the transformation scenario of old system docking. Bus Communication: Natively adapted to 3500 system backplane high-speed bus, realizing real-time handshake and synchronization with rack main control and monitoring modules, ensuring zero packet loss and zero disorder of internal rack data transmission. Protocol Adaptation: Compatible with Bently original exclusive API communication protocol, supporting upper software parameter configuration, remote calibration, status monitoring and fault reading, fully meeting the intelligent operation and maintenance needs of unit systems.
3. Electrical Performance Parameters
Power Supply Specification: Adapted to standard 3500 system rack power supply with wide voltage adaptive design, resisting small-scale industrial grid fluctuations and instantaneous voltage disturbances, operating with low power consumption and low heat generation for long-term continuous working conditions. Electrical Isolation: Full-domain electrical isolation of communication interface, bus interface and power supply loop with high insulation and voltage resistance, eliminating module faults and data abnormalities caused by high voltage series connection, signal crosstalk and electrostatic impact. Circuit Protection: Integrated full-range hardware protections including overvoltage, undervoltage, overcurrent, short circuit, surge and static electricity. Single-point faults are automatically locked without affecting the normal operation of the whole rack and other modules, ensuring extremely high system safety.
4. Environmental Working Condition Parameters
Operating Temperature：0℃～+60℃ (derated for continuous operation above 50℃)
Storage Temperature：-55℃～+105℃
Operating Humidity：5%~95% RH, non-condensing
Protection Grade：IP20 (for indoor cabinet clean working conditions)
The whole machine has passed authoritative certifications including IEC 61508 SIL2 functional safety, API 670 industrial unit monitoring, EMC electromagnetic compatibility, high and low temperature cycle and vibration and impact resistance. It can long-term withstand harsh working conditions such as closed high temperature of industrial cabinets, slight dust, continuous equipment vibration and complex electromagnetic interference, ensuring stable and reliable multi-rack data aggregation, display and communication without performance attenuation.
5. Mechanical Structure Parameters
Overall Dimension: 175mm×42mm×260mm (W×H×D), compact size of standard 3500 rack, adapting to dense cabinet layout. Weight: Approx. 1.1kg, lightweight design with no load pressure for rack installation, firm and stable by buckle locking. Structural Material: Industrial flame-retardant high-strength PCB and metal reinforced frame, anti-deformation, anti-aging and impact-resistant, adapting to long-term industrial operation conditions. External Display Distance: The standard cable supports a maximum external installation distance of 8 meters for the display, flexibly adapting to the layout requirements of central control operation desks.
III. Key Features
1. Multi-Rack Data Aggregation & Centralized Visual Management
A single module supports synchronous data aggregation of four sets of 3500 monitoring racks, realizing centralized display of all monitoring parameters of multiple rotating units and thoroughly solving the pain points of decentralized monitoring, isolated data and cumbersome management of multiple racks. Through the standard VGA color display interface, it real-timely presents core process data such as unit vibration, displacement, temperature and speed, and synchronously displays alarm status, fault codes, module operating conditions and system event logs, making the unit operating status clear at a glance. It supports pre-built standard working condition screens and custom interface editing, which can flexibly arrange monitoring parameters according to unit process requirements, adapt to the visual management needs of different equipment and working conditions, and greatly improve on-site operation and maintenance efficiency.
2. Dual-Link Communication Forwarding for New & Old System Adaptation
Integrating Ethernet and serial port dual communication links, it is compatible with Modbus TCP, Modbus RTU and original exclusive API protocols, meeting the docking needs of new networked upper systems and traditional serial industrial control equipment. The high-speed Ethernet ensures high-volume and high-frequency real-time data upload without delay or packet loss, adapting to data collection of intelligent central control systems and fault diagnosis platforms; the serial port communication adapts to the transformation scenario of old DCS and PLC systems, enabling system compatible upgrading without replacing the whole set of hardware equipment. It also supports remote parameter configuration, threshold modification, event retrieval and module status reading, realizing remote intelligent operation and maintenance of unit monitoring systems.
3. Safety-Level Data Processing to Ensure Unit Stable Operation
With SIL2 functional safety and API 670 authoritative industrial certification, the data processing, status judgment and alarm forwarding logic strictly comply with the safety standards of major industrial units. The module real-timely self-checks bus communication, data link and hardware operating status throughout the operation, which can accurately identify problems such as communication interruption, data abnormality, module fault and link failure. In case of abnormality, it locks the fault in time, retains logs and actively alarms, eliminating data disorder, status misjudgment and false alarm triggering. The accurate and reliable data output and status feedback provide authoritative data support for unit start-stop regulation, variable load operation, fault interlock protection and shutdown maintenance, avoiding equipment damage and production accidents caused by unit false interlock and missing protection.
4. Flexible External Display Layout for On-Site Maintenance
It supports long-distance external installation of VGA displays with a maximum wiring distance of 8 meters, which can extend the unit monitoring screen to the external cabinet operation desk and central control station. It enables real-time viewing of all unit working conditions without close cabinet operation, adapting to the on-site industrial scenarios with dense equipment, closed cabinets and limited operating space. The interface operation is simple and intuitive, supporting real-time value viewing, trend browsing, alarm query and historical event traceability. On-site operation and maintenance personnel can quickly grasp the unit operating status, accurately locate and eliminate abnormal hidden dangers, shorten fault disposal time, and ensure continuous and stable unit operation.
5. Maintenance-Free & High-Reliability Long-Term Operation
Adopting pure circuit integrated architecture without mechanical moving parts and consumable parts, it features low power consumption, low heat generation, zero long-term parameter drift and no performance attenuation. The full-domain electrical isolation and multi-layer protection design resist electromagnetic interference, voltage fluctuation and working condition vibration, adapting to long-term complex and harsh industrial working conditions. It is perfectly matched with standard 3500 rack slots, requiring no cabinet transformation, rewiring or complex debugging. It can directly replace old faulty modules with abnormal communication, failed display and data disorder, and can be stably put into operation after installation, greatly reducing system operation and maintenance costs and unplanned shutdown risks.
IV. Working Principle
As the core display routing module of the 3500 machinery protection system, Bently 3500/94 145988-01 undertakes the core functions of full rack data aggregation, analysis, visual display and remote communication forwarding, serving as a key hub connecting the 3500 monitoring rack, on-site operation and maintenance personnel and upper management system. Embedded in the 3500 standard rack slot, it realizes real-time linkage communication with frame interface modules and various monitoring cards through the backplane high-speed bus.
After power-on, the module automatically completes hardware self-inspection, bus handshake, protocol initialization and rack equipment scanning, and enters the normalized data processing operating state after successful self-inspection. During operation, the module continuously collects real-time working condition data, alarm threshold status and hardware operating parameters of all vibration, displacement, temperature and speed monitoring modules in the rack through the backplane bus, and can aggregate data from up to 4 independent 3500 systems across racks to complete data integration, analysis, verification and time sequence synchronization.
The processed standardized data is output in two paths: one path drives the external VGA display to realize local real-time visual display, including real-time parameters, trend curves, alarm lists, fault logs and module working conditions for on-site personnel's intuitive inspection and maintenance; the other path forwards data to upper DCS, PLC, configuration platform and fault diagnosis system in real time through Ethernet and serial communication links according to standard protocols, and receives configuration instructions and parameter modification instructions from the upper system to complete remote debugging and management. The built-in fault self-diagnosis mechanism monitors communication links and hardware status in real time throughout the operation, retaining fault records, triggering alarms and isolating abnormal data in case of abnormalities, ensuring accurate, stable and safe operation of the whole unit monitoring system.
V. Application Scenarios
1. Critical Rotating Equipment Condition Monitoring: Suitable for key dynamic equipment such as steam turbines, centrifugal compressors, gas turbines, large fans and pumps in thermal power, petrochemical and coal chemical industries, realizing centralized display, data summary and real-time monitoring of unit vibration, shaft displacement, temperature, speed and other parameters.
2. Unit Safety Interlock & Fault Diagnosis: Providing accurate data support for unit start-stop control, variable load regulation, over-limit alarm and interlock shutdown, while retaining complete operation and fault logs to support equipment fault traceability, process optimization and predictive maintenance.
3. Multi-Rack Centralized Management Transformation: Applied to multi-unit and multi-3500 rack networking scenarios, realizing unified data aggregation, centralized display and unified upload of multiple monitoring systems, solving the problems of decentralized management and cumbersome operation and maintenance of multiple equipment.
4. Old Monitoring System Upgrade & Replacement: In-situ replacement of old 3500/94 display modules with failed display, communication faults, data drift and outdated protocols that cannot be connected to upper systems, quickly restoring the full functions of the system without transforming racks and wiring.
5. Industrial Intelligent Operation & Maintenance Supporting: Adapted to factory intelligent transformation and unit unattended upgrading scenarios, realizing remote parameter configuration, data monitoring and event query through two-way communication functions, improving the intelligence and automation level of unit operation and maintenance.
