Description

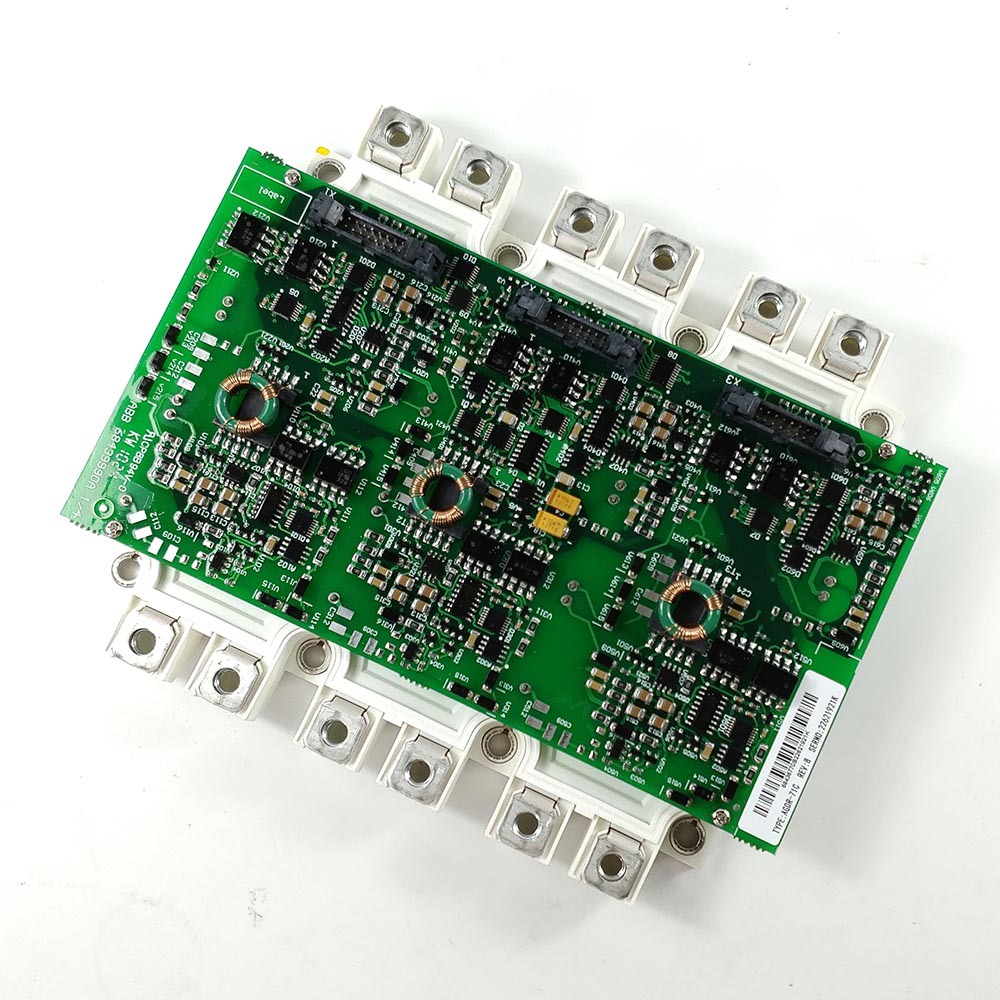

ABB FS450R17KE3/AGDR-71C
I. Overview
Component Model: FS450R17KE3 (IGBT Power Module) + AGDR-71C (Gate Drive Board)
Brand: ABB
Component Positioning: Core power drive assembly for medium and high-voltage frequency conversion and industrial transmission equipment. As a standard matching combination of ABB, it requires no parameter debugging and is plug-and-play. The FS450R17KE3 is a high-frequency low-loss IGBT power module responsible for main circuit power switching and conversion. The AGDR-71C is a dedicated gate drive board, performing signal isolation, pulse amplification, fault detection and equipment protection. It is widely applied in ABB medium/high-voltage inverters, medium-voltage variable frequency drives and high-power industrial rectifier and inverter devices, serving as the core power unit to ensure stable operation of industrial variable frequency systems.
Matching Specification: The AGDR-71C drive board is exclusively designed for the FS450R17KE3 module with fully matched hardware pins, drive voltage and protection thresholds. Matched assembly maximizes module performance and avoids failures such as waveform distortion, overheating and module burnout caused by mismatched driving parameters.
II. Detailed Single Product Parameters
2.1 FS450R17KE3 IGBT Power Module Parameters
Adopting new-generation low-loss chip technology, this high-power single-tube IGBT module features fast switching speed, low conduction loss and strong impact resistance, suitable for long-term full-load continuous operation in medium and high-voltage industrial variable frequency working conditions.
- Rated Collector Voltage (Vces): 1700V
- Rated Collector Current (Ic@25℃): 450A
- Maximum Pulse Current: 900A
- Gate Drive Voltage: ±15V (standard for AGDR series drive boards)
- Conduction Loss (Vce(sat)): Typical 1.9V@25℃
- Switching Frequency: Adaptable to 0～2kHz industrial high-frequency variable frequency conditions
- Operating Junction Temperature: -40℃ ～ +150℃
- Storage Temperature: -55℃ ～ +150℃
- Package Type: Standard high-voltage IGBT module package, matching ABB standard power unit mounting position
- Core Features: Built-in freewheeling diode, low switching loss, short-circuit impact resistance and excellent thermal stability, suitable for high-power continuous load conditions
2.2 AGDR-71C Gate Drive Board Parameters
The AGDR-71C is a specially designed isolated drive board for 1700V/450A grade IGBT modules, integrating pulse driving, electrical isolation, self-checking, over-current protection and under-voltage locking functions, optimized for harsh industrial high-voltage frequency conversion conditions.
- Compatible Module: Perfectly matched with FS450R17KE3 full series modules
- Drive Output Voltage: +15V positive voltage, -15V negative voltage (standard IGBT drive voltage)
- Electrical Isolation Level: High-voltage complete isolation between strong and weak current systems to prevent high-voltage crosstalk damage to the main control system
- Protection Functions: Module short-circuit protection, over-current protection, drive under-voltage protection, over-temperature linkage protection and pulse abnormality detection
- Fault Feedback: Real-time fault signal feedback to the main control system for rapid fault location of power units
- Operating Temperature: -30℃ ～ +85℃
- Compatible Systems: ABB medium and high-voltage inverters, ACS5000/ACS6000 medium-voltage drive equipment, industrial high-power inverter power supplies
- Anti-interference Design: Onboard filter circuit and anti-electromagnetic interference structure, adapting to strong electromagnetic interference in industrial sites
III. Core Functions
- Precise Power Conversion: The drive board receives main control pulse signals, amplifies and isolates them to drive high-speed switching of IGBT modules, realizing bidirectional rectification and inversion of AC and DC power, and outputting adjustable voltage and frequency to meet speed regulation requirements of high-power equipment such as fans and pumps.
- Full-range Fault Protection: Real-time monitoring of IGBT module current, voltage and temperature during operation. Instantly blocks drive pulses and cuts off the power loop in case of short circuit, over-current, under-voltage and over-temperature abnormalities to avoid module burnout and equipment explosion.
- High-voltage Isolation Protection: Completely isolates the weak-current main control system from the strong-current power main loop, blocking high-voltage impact and electromagnetic crosstalk to ensure stable operation of the low-voltage main control system.
- Stable High-frequency Operation: Low-loss IGBT module matched with high-precision drive waveform control features low switching loss and low heat generation, enabling long-term stable operation in industrial high-frequency speed regulation conditions with high energy efficiency and low operating noise.
- Fault Self-checking and Tracing: Real-time fault detection and signal feedback accurately report power unit fault types, facilitating rapid troubleshooting and shortening equipment maintenance downtime.
IV. Working Principle
The assembly consists of two layers: the weak-current drive control layer (AGDR-71C) and the strong-current power conversion layer (FS450R17KE3), cooperating to complete variable frequency power conversion.
The equipment main control system outputs low-voltage PWM speed regulation pulse signals to the AGDR-71C drive board. The drive board first electrically isolates the weak signals to avoid high-voltage crosstalk risks, then amplifies the signal power and outputs stable ±15V standard drive voltage to precisely control the turn-on and turn-off of the FS450R17KE3 IGBT module.
The FS450R17KE3 module performs high-speed switching according to drive pulse commands, completes rectification and inversion of main loop power, and converts power frequency AC power into adjustable frequency and voltage variable frequency power to drive high-power load equipment.
During full operation, the AGDR-71C drive board collects real-time working current, drive voltage and status signals of the IGBT module. Once faults such as short circuit, over-current, under-voltage and abnormal overheating are detected, it instantly blocks output pulses, forcibly turns off the IGBT, uploads fault codes to the main control system, and triggers system alarm or interlock shutdown to realize overload protection of power units and the whole equipment.
V. Application Scenarios
- Power Industry: Medium and high-voltage variable frequency speed regulation systems for large fans, water pumps and induced draft fans in thermal and hydropower plants
- Metallurgical Industry: Medium-voltage variable frequency drive devices for rolling mills, blast furnace fans, sintering main exhaust fans and heavy-duty conveying equipment
- Petrochemical Industry: High-power compressors, booster pumps and process heavy-duty equipment high-voltage variable frequency energy-saving systems
- General Industrial Field: Large-scale water plants, sewage treatment plants, building materials industry high-power fan and pump frequency conversion equipment
- Equipment Maintenance and Technical Renovation: In-situ replacement and maintenance of faulty modules and drive boards for ABB ACS5000, ACS6000 series medium-voltage inverters
