Description

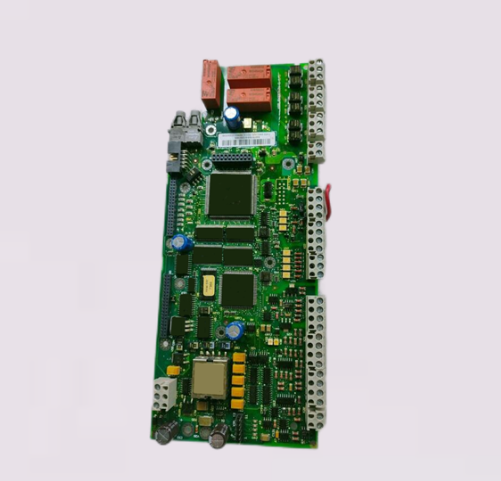

ABB RMIO-02C

I. Basic Information

Model: RMIO-02C

Material Code: 64379160

Brand: ABB

Applicable System: ABB ACS800 series single-drive and multi-drive inverters, compatible with full power range standalone and common DC bus drive units. It serves as the core signal interaction board connecting the RDCU main CPU board, power drive units, field terminal signals, operation panels and various fieldbus adapters.

Product Type: Embedded high-performance main I/O interface control board, integrating multi-channel isolated analog/digital signal acquisition & output, encoder speed measurement interface, DDCS fiber communication circuit, hardware fault detection and multi-protocol bus expansion interface. Equipped with a 32-bit industrial processor, it executes DTC direct torque control algorithms, external logic interlock, equipment status collection and full-system protection logic processing, acting as the signal hub of the ACS800 drive system.

Product Positioning

RMIO-02C is the core external signal interaction hardware of the ACS800 drive system, acting as the peripheral interface expansion unit of the RDCU main control board. It receives field start/stop, fault feedback, pressure and flow switch and analog reference signals, outputs relay interlock and regulating valve drive instructions, and collects encoder speed feedback to realize high-precision closed-loop vector speed regulation. Equipped with multi-stage galvanic isolation circuits, it eliminates interference from field ground loops, inverter high-frequency switching harmonics and electrostatic surges to ensure stable control signals under heavy-duty operating conditions. Compared with the previous generation RMIO-01C, it expands I/O channels and optimizes computing capability, supporting networking of various industrial fieldbuses. It is widely applied in spare part replacement, control system technical renovation and multi-drive synchronous control transformation of high-power drive equipment in metallurgy, mining, port, thermal power and chemical industries.

Hardware Architecture

High-density Multi-channel I/O Signal Processing Unit: 16 isolated digital inputs, 16 relay digital outputs, 4 differential analog inputs, 4 isolated analog outputs and 2 incremental encoder pulse input channels. Each channel is equipped with RC hardware filter, overvoltage and reverse connection protection circuits, directly compatible with field proximity switches, valve position feedback, 4~20mA transmitters and incremental encoders to realize integrated local control and status collection.
High-speed Control & DDCS Fiber Communication Unit: A 32-bit high-performance processor runs DTC direct torque, PID closed-loop and multi-speed control algorithms. High-speed data interaction with AINT communication boards and power drive boards is realized via DDCS fiber links to transmit PWM drive commands and collect real-time operating parameters of power units, achieving galvanically isolated signal transmission between control and power sides.
Multi-protocol Bus Expansion & HMI Unit: RS232 and RS485 interfaces reserve expansion for PROFIBUS-DP, CANopen, Modbus and other fieldbuses; compatible with CDP-312R operation panels for local parameter debugging, status monitoring and offline parameter backup & restoration.
Full-range Hardware Fault Diagnosis & Safety Protection Unit: Real-time monitoring of I/O loop short circuit, signal over-range, encoder disconnection, fiber communication interruption and undervoltage faults. Once a fault is triggered, PWM pulses are immediately blocked, fault codes are latched and uploaded via local indicators and fieldbus to prevent catastrophic equipment damage such as motor runaway and power module breakdown.
Embedded Rack Mounting Unit: Compact long PCB structure with anti-misplug lock connectors, directly installed in the dedicated slot of the ACS800 inverter control chamber, adopting spring anti-loose terminals to adapt to dense cabinet layout and facilitate maintenance.

Mounting Specifications

Control Power Supply: DC 24V (20.4V~28.8V), typical power consumption ≤4.8W

I/O Configuration: 16DI+16DO+4AI+4AO+2 encoder pulse input channels

Analog Signal Range: 4~20mA, 0~10VDC, measurement accuracy ±0.1%FS

Encoder Interface: Compatible with 5V incremental quadrature encoders, max input frequency 100kHz

Communication: DDCS fiber bus, RS232, RS485, expandable to mainstream fieldbuses

Mounting: Locked embedded installation inside ACS800 inverter control cabinet

Dimension: 242mm(L) × 100mm(W) × 17mm(D)

Net Weight: 0.21kg

Protection Class: IP20, installed in sealed forced-air-cooled inverter control cabinet

Supporting Equipment: RDCU main CPU board, AINT fiber communication board, AGDR IGBT drive board, CDP-312R operation panel, fieldbus adapter, 24VDC power supply, shielded signal cable

Commissioning Tools: ABB DriveWindow software, process calibrator, insulation tester, encoder simulator, anti-static wristband

Supporting System

Supporting Hardware

ACS800 single/multi-drive inverter, regenerative rectifier unit, IGBT power module, DDCS fiber cable, incremental encoder, valve positioner, field relay and limit switch.

Commissioning Tools

DriveWindow parameter debugging software, multi-function process calibrator, hipot tester, infrared thermometer, pulse signal generator.

Upper-level System

800xA automation platform, power plant DCS and industrial SCADA system for remote parameter reading, fault sequence recording and equipment predictive maintenance.

Typical Application Industries

Metallurgical hot rolling production line multi-drive synchronous control system, mine hoist and belt conveyor high-frequency variable frequency equipment, port crane four-quadrant drive system, thermal power plant auxiliary machine high-voltage frequency conversion device, chemical and cement large compressor variable frequency drive project.

Product Features

Integrated High-density I/O Design: Integrates digital, analog and encoder signal interfaces, eliminating the need for additional expansion modules to meet local start-stop, closed-loop speed regulation and safety interlock requirements, reducing cabinet hardware quantity and wiring failure points.
Dual Isolation Anti-interference Architecture: DDCS fiber isolation between control and power sides plus independent galvanic isolation for each I/O channel effectively suppresses high-frequency harmonics and ground potential difference interference of high-power inverters to avoid signal drift and accidental equipment action.
High-precision DTC Direct Torque Control: Millisecond-level torque response adapts to heavy-duty frequent start-stop and high-dynamic speed regulation scenarios, with steady-state speed control accuracy up to ±0.01%.
Flexible Fieldbus Networking & Remote O&M: Accessible to distributed PLC control systems for multi-drive synchronous linkage, remote parameter modification and centralized fault alarm, greatly reducing on-site maintenance workload.
Wide-temperature Industrial EMC Design: Compliant with EN 61800-3 standards, stable 24/7 continuous operation under dusty, vibrating and high-temperature cabinet conditions, MTBF ≥175000 hours.
Full Compatibility for Upgrade & In-situ Replacement: Directly replaces the legacy RMIO-01C without modification to existing wiring and parameters, suitable for equipment performance upgrading and emergency spare part replacement to minimize production downtime.

II. Technical Specifications

2.1 Electrical Parameters

Model: RMIO-02C, Material Code: 64379160

Power Supply: DC24V ±20%, power consumption ≤4.8W

Digital Input: 16 isolated channels, compatible with dry contact / 24VDC active wet contact, software configurable filter time

Digital Output: 16 relay channels, contact rating 250VAC/5A with surge absorption protection

Analog Input: 4 differential isolated channels, range 4~20mA / 0~10V, accuracy ±0.1%FS

Analog Output: 4 isolated channels, max load 750Ω

Encoder: 2-channel 5V quadrature input, max 100kHz

Dielectric Withstand Voltage: 500VAC for I/O to ground, 2500VAC for DDCS fiber side

Communication: DDCS, RS232, RS485, expandable to PROFIBUS, CANopen, Modbus

Protection Functions: Per-channel overvoltage/overcurrent, reverse polarity, encoder disconnection, communication timeout, over-temperature fault latch protection

Control Algorithms: DTC direct torque control, vector control, V/F control, PID closed-loop regulation

2.2 Mechanical Parameters

Mounting: Locked embedded installation inside inverter cabinet

Dimension: 242 × 100 × 17mm

Net Weight: 0.21kg

Terminals: Spring anti-loose terminals for 0.5~2.5mm² shielded cables

Indicators: LED status lights for power, run, bus and multi-channel faults

Heat Dissipation: Cabinet forced air cooling + PCB copper foil heat conduction

2.3 Environmental Specifications

Operating Temperature: -20℃ ~ +60℃ (forced air cooling)

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust

III. Key Features

Centralized Field Signal Acquisition & Control Output: Collects local equipment status, process analog and encoder speed signals, outputs interlock and regulating instructions to realize variable frequency speed regulation and safety logic control.
High-precision Closed-loop Speed Regulation via DTC Algorithm: Realizes fast dynamic torque response for four-quadrant heavy-duty transmission equipment such as cranes and rolling mills to suppress load-induced speed oscillation.
Distributed Fieldbus Centralized Control: Enables multi-inverter synchronous linkage, remote parameter management and centralized fault monitoring through industrial bus networking.
Full-loop Fault Diagnosis & Event Sequence Recording: Latches fault time, code and channel information for rapid troubleshooting and accident traceability.
Local HMI Parameter Configuration & Batch Management: Supports on-site parameter setting, multi-group process parameter switching and offline parameter backup to adapt to multi-working-condition production lines.
Legacy Drive System Upgrade & Spare Part Compatibility: Serves as an upgraded alternative to RMIO-01C for hardware renovation and faulty board replacement of aging ACS800 drive systems to maximize reuse of existing field resources.

IV. Working Principle

After 24VDC power-on, the board completes self-test of power supply, fiber communication and all I/O/encoder circuits, then establishes data interaction with the RDCU main controller to load configuration parameters. Field signals are filtered and isolated before being processed by the on-board processor. The DTC algorithm calculates PWM commands and transmits them to the IGBT drive board via DDCS fiber to realize motor variable frequency speed regulation. Once a hardware fault is detected, all drive pulses are blocked with fault information latched and uploaded; normal operation can be restored after troubleshooting and system reset.

V. Application Scenarios

Hardware upgrade and faulty I/O board replacement for metallurgical ACS800 multi-drive rolling mill control systems.
Technical renovation and maintenance of mine hoist and belt conveyor high-power frequency conversion equipment.
Preventive spare part replacement and bus control transformation for port crane variable frequency drive systems.
Auxiliary fan and water pump high-voltage frequency conversion system maintenance in thermal power plants.
Spare part reserve and automation networking renovation for large compressor and rotary kiln variable frequency projects in chemical and cement industries.

ABB RMIO-02C Main I/O Interface Control Board
