Description
1. Product Overview

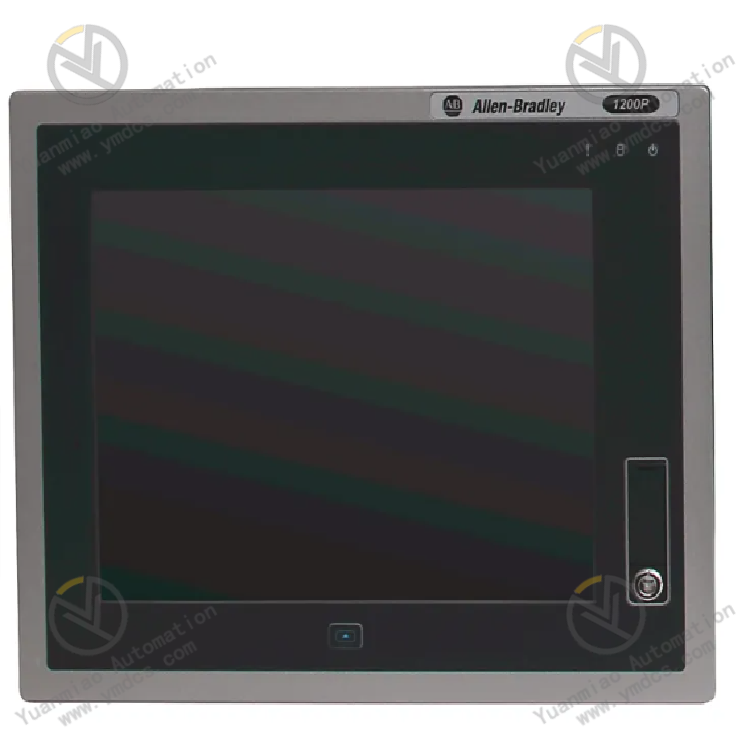

Part Number: 6181P‑17A3MWX1DC
Manufacturer: Rockwell Automation Allen‑Bradley. It belongs to the 6181P series high‑performance integrated display industrial computer. Compatible System: Natively fully compatible with Rockwell FactoryTalk View SE/ME and Logix5000 PLC families, applied for HMI supervision, graphic configuration and equipment operation interaction. Widely deployed in automotive production lines, metallurgy workshops, water treatment plants, power plant auxiliary control rooms and warehouse automation with cabinet panel mounting installation.Product Definition: 17‑inch aluminum bezel all‑in‑one industrial touchscreen IPC, equipped with 4th Gen Intel Core i7 industrial low‑power CPU, onboard SSD, DVD optical drive and bootable CFast card slot. It adopts projected capacitive multi‑touch screen, integrates serial ports, Ethernet, USB and audio/video expansion interfaces, supports wide‑range DC power input. The front panel reaches IP66 ingress protection under standard installation, resisting water splash, oil contamination and dust accumulation for keyboard‑free mouse‑free HMI operation in industrial sites.2. Six Core Hardware Functional Units
2.1 Main Processing Unit
Equipped with Intel Core i7‑4700EQ quad‑core 2.4GHz industrial processor with QM87 chipset, stable under long‑term full load high temperature operation. Dual DDR3 memory slots with factory 8GB preinstalled RAM, expandable up to 16GB maximum. Integrated Intel HD4600 graphics core to run configuration software, database archiving and virtualization programs smoothly.
2.2 Storage & Removable Media Unit
Standard 256GB 2.5” SATA MLC industrial SSD without mechanical moving parts, shock and vibration resistant for harsh workshop environments. Built‑in DVD‑RW drive, front external Type2 CFast card slot supporting system boot from memory card for on‑site system recovery, image backup and program quick duplication.
2.3 17” Touch Display Unit
17” 5:4 industrial LCD panel with native resolution 1920×1200, PCT projected capacitive multi‑touch with better anti‑interference and wear resistance than resistive touch. Integrated aluminum front bezel with front panel IP66 rating to block liquid, oil and dust intrusion into the display module under proper cabinet mounting.
2.4 Full‑Spec I/O Peripheral Interface Unit
Rear integrated industrial standard interfaces:
- 2×RS232 DB9 serial ports for inverters, instruments and third‑party control devices;
- Dual 10/100/1000Mbps Gigabit Ethernet ports for isolated PLC control network and factory MES office network;
- 5×USB3.0, 1×PS/2 keyboard/mouse combo port, audio in/out terminals;
- 1×DisplayPort + 1×DVI‑I video output for secondary monitor extended display;
- Reserved PCIe expansion slots for data acquisition and communication add‑on cards.
2.5 Power Supply & Circuit Protection Unit
This variant supports 18~32VDC wide‑range DC input, compatible with vehicle industrial control, power plant DC panel and equipment 24V power supply. The power inlet is equipped with surge suppression, reverse polarity prevention and overcurrent fuse protection to avoid system crash caused by power line noise fluctuation. Max power consumption 180W.
2.6 Industrial Reinforced Mechanical & Environmental Unit
Integrated aluminum alloy chassis with conformal coating on the main PCB to resist moisture, corrosion and salt fog. Passive fanless heat dissipation reduces dust failure points, complying with IEC 60068 vibration and shock standards to support 24/7 non‑stop continuous operation in sealed high‑temperature control cabinets.
3. Detailed Technical Specifications
3.1 Hardware Configuration
| Item | Specification |
|---|---|
| Model | 6181P‑17A3MWX1DC 17” All‑in‑One Industrial Touch IPC |
| CPU | Intel i7‑4700EQ Quad‑Core 2.4GHz, QM87 Chipset |
| RAM | 8GB DDR3 1600 SO‑DIMM preinstalled, max 16GB dual channel |
| System Storage | 256GB SATA MLC Industrial SSD |
| Preloaded OS | Windows 7 Professional 64‑bit |
| Display | 17” 5:4, 1920×1200, PCT Capacitive Multi‑Touch |
| Front Ingress Rating | IP66 (only with standard flush cabinet mounting) |
| Bezel Material | Integrated stamping aviation aluminum |
| Optical Drive | Internal DVD±RW Rewritable Drive |
| External Storage | Front Type2 CFast slot with boot support |
| Power Input | DC 18~32V, Max Power Draw 180W |
| Net Weight | Approx. 2.27kg |
3.2 Rear Interface List
- Serial Communication: 2 × RS232 DB9
- Network: 2 × 10/100/1000Mbps Gigabit Ethernet
- Peripherals: 5 × USB3.0, 1 × PS/2 Combo Port
- Audio & Video: Mic In, Line In/Out; DP + DVI‑I Dual Video Output
- Expansion: Onboard PCIe slots for optional add‑on cards
3.3 Environmental Parameters
- Operating Temperature: 0℃ ~ +55℃; ≤45℃ recommended with full expansion cards
- Storage & Transport Temp: ‑20℃ ~ +60℃
- Humidity: 10%~90%RH non‑condensing, no corrosive acid/alkali gas
- Mounting: Standard cabinet cutout panel mounting with OEM locking fasteners
4. Product Advantages
- Native Rockwell Ecosystem Compatibility: Pre‑tuned drivers for FactoryTalk HMI and Logix PLCs with zero configuration adaptation for project migration and graphic reuse.
- Capacitive Touch Operation Without Peripherals: Supports pinch zoom and drag control with stable touch performance under oily workshop conditions, eliminating wired mouse/keyboard wiring and failure points.
- SSD Solid State Primary Storage: No mechanical hard disk structure to avoid bad sectors and system corruption caused by equipment vibration and transportation shock.
- Dual Ethernet Physical Network Isolation: Separates PLC control internal network and factory MES office network to prevent virus intrusion into critical industrial control systems.
- Wide DC Input Compatibility: Fits mobile vehicle control, power plant DC panels and sites without standard AC mains power supply with broader application scope than AC‑only IPCs.
- Front Bootable CFast Slot: System reinstallation and project batch import without chassis disassembly to shorten on‑site maintenance downtime.
5. Application Scenarios
- Automotive assembly line HMI monitoring, robot linkage visualization and production data logging.
- Auxiliary equipment supervision in thermal power, water treatment and metallurgy plants for long‑term unattended cabinet operation.
- Warehouse automated stereoscopic rack scheduling, AGV path monitoring and inventory data recording.
- Retrofit replacement for aging 6181P series IPCs with direct cutout compatibility and unchanged configuration projects.
- Custom automation machinery main HMI terminal for packaging, injection molding and inspection test equipment.
