Description

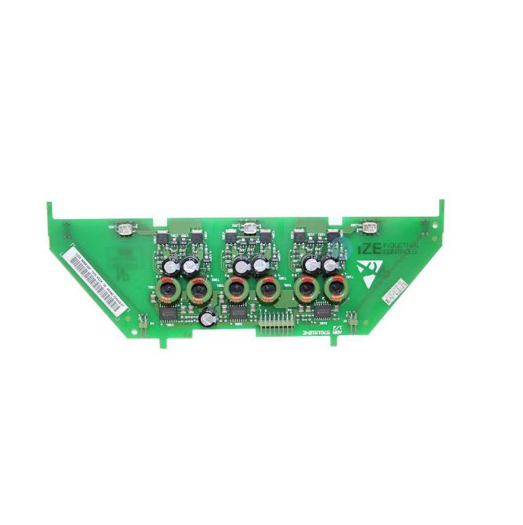

ABB NGDR-03C 61353364D

I. Basic Information

Model: NGDR-03C

Material Code: 61353364D (Original Factory No.: 58976539)

Brand: ABB

Applicable System: ABB ACS600 single drive & MultiDrive multi-drive inverters, compatible with R4I and above power frames, NDPE/NXPE power modules, power range 1.5kW~2000kW, serving as the core trigger drive component of power units.

Product Type: IGBT gate isolated drive trigger board, integrating PWM pulse isolated amplification, IGBT desaturation fault detection, drive undervoltage lockout, hardware short-circuit overcurrent protection and fault feedback circuit, the core safety drive hardware of inverter power conversion unit.

Product Positioning

NGDR-03C 61353364D is the standard three-phase IGBT gate drive unit for ABB ACS600 drive systems. It receives PWM modulation pulses from the main control board, amplifies signals via galvanic isolation to drive three-phase inverter bridge IGBTs, realizing frequency conversion from DC bus to three-phase AC power. Equipped with multi-level hardware protection, it monitors IGBT short-circuit, drive undervoltage and over-temperature faults, blocks drive pulses within microseconds and uploads fault codes to avoid power module burnout. Adopting strong/weak electrical isolation architecture, it resists high-frequency switching harmonics and voltage spikes inside inverters, widely used in spare part replacement and power unit maintenance for high-power drive equipment in metallurgy, mining, port, thermal power and chemical industries.

Hardware Architecture

PWM Signal Isolation Receiving Unit: High-speed optocoupler isolation circuit receives six-channel PWM pulses, realizing complete electrical isolation between control weak current and power strong current to suppress common-mode interference and surge voltage.
Three-phase IGBT Gate Power Amplification Drive Unit: Six independent drive channels with ±8A peak output current, compatible with 600V~1700V IGBT modules, maximum switching frequency up to 16kHz to ensure reliable switching of power devices under high-frequency modulation.
DESAT Desaturation Fault Detection & Protection Unit: Independent per-phase IGBT conduction voltage drop monitoring circuit, which can block drive pulses within microseconds when bridge arm shoot-through or load short-circuit occurs, cooperating with UVLO undervoltage lockout to prevent overcurrent damage of power devices.
Isolated Drive Power Supply & Fault Feedback Unit: Multi-channel isolated DC-DC power supply provides stable ±15V gate drive voltage; fault signals such as power supply abnormality and IGBT overcurrent are encoded and uploaded to the main controller with onboard fault LED indicators.
Embedded Card Installation Unit: Compact PCB structure with anti-misplug connector, directly inserted into ACS600 power unit slots for easy maintenance and dense cabinet layout adaptation.

Mounting Specifications

Logic Power Supply: +5VDC, typical current 30mA; Isolated Drive Power: ±15VDC, typical 50mA per channel

Drive Channels: 3-phase 6-channel isolated gate drive

Peak Drive Current: ±8A

Max PWM Switching Frequency: 16kHz

Compatible IGBT Voltage Grade: 600V, 1200V, 1700V

Mounting: Connector plug-in installation inside ACS600 power unit slot

Dimension: 340mm(L) × 120mm(W) × 25mm(D)

Net Weight: 0.21kg

Protection Class: IP20, installed inside sealed inverter power cabinet

Supporting Equipment: ACS600 main control board, IGBT power module, DC bus capacitor, shielded drive cable, cooling fan

Commissioning Tools: Oscilloscope, hipot tester, IGBT tester, anti-static wristband

Supporting System

Supporting Hardware

ACS600 main control unit, rectifier & inverter power modules, DU control board, fiber pulse transmission components, forced air cooling assembly.

Commissioning Tools

ABB DriveWindow software, high-voltage oscilloscope, portable IGBT characteristic detector, DC signal generator.

Upper-level System

800xA automation platform, power plant DCS, industrial SCADA for remote fault diagnosis and protection event tracing via inverter fault code reading.

Typical Application Industries

Metallurgical hot rolling production line main drive, mine hoist frequency control system, port crane transmission equipment, thermal power plant auxiliary machine high-voltage inverter, chemical compressor variable frequency speed regulation system.

Product Features

6-channel Isolated High-power Drive Design: Complete galvanic isolation between control and power sides restrains EMI interference, ensures accurate IGBT switching timing and reduces switching loss for high-efficiency high-power operation.
Microsecond Multi-layer Hardware Safety Protection: DESAT short-circuit protection, UVLO undervoltage lockout and overcurrent clamping realize rapid fault interception to avoid catastrophic damage of IGBT modules.
Wide Frequency Adaptability: Supports up to 16kHz switching frequency, applicable to both energy-saving fan/pump drives and high-dynamic precision rolling & crane transmission control.
Closed-loop Fault Feedback for Accurate Troubleshooting: Encoded fault information uploaded to the main controller enables precise location of faulty phase and channel, greatly shortening maintenance downtime.
Industrial Wide-temperature EMC Design: Compliant with EN 61800-3 standards, stable 7×24-hour operation under dusty, vibrating and high-temperature cabinet conditions, MTBF ≥180000 hours.
Full ACS600 Series Pin-to-pin Compatibility: Direct in-situ replacement of faulty drive boards without parameter modification or wiring reconstruction to minimize equipment outage duration.

II. Technical Specifications

2.1 Electrical Parameters

Model: NGDR-03C, Material Code: 61353364D

Channels: 3-phase 6 opto-isolated IGBT gate drive channels

Logic Supply: +5VDC, 30mA typical

Gate Drive Supply: Isolated ±15VDC, 50mA typical per channel

Peak Output Current: ±8A

Max Switching Frequency: 16kHz

Compatible IGBT Voltage: 600V / 1200V / 1700V

Dielectric Withstand Voltage: 2500VAC between control and power side

Protection Functions: DESAT short-circuit, UVLO undervoltage, overcurrent, reverse surge clamping, fault latch & upload

Fault Response Time: ≤2μs

2.2 Mechanical Parameters

Mounting: Anti-misplug connector embedded installation inside power unit

Dimension: 340mm × 120mm × 25mm

Net Weight: 0.21kg

Interfaces: Double-row connector, onboard power & fault LED indicators

Heat Dissipation: Forced air cooling via cabinet fan, PCB copper foil heat dissipation

2.3 Environmental Specifications

Operating Temperature: -20℃ ~ +60℃ (forced air cooling)

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust

III. Key Features

PWM Pulse Isolation Amplification & Precise IGBT Driving: Converts DC bus power to variable-frequency three-phase AC to realize stepless speed regulation of industrial motors.
Comprehensive Hardware Over-protection for Power Devices: Instantly blocks drive pulses under short-circuit/undervoltage faults to prevent permanent breakdown of IGBT modules.
Remote Fault Diagnosis & Encoded Alarm Upload: Fault codes uploaded to upper software for rapid fault location and maintenance tracing.
Galvanic Isolation to Eliminate EMI Risks: Isolation design avoids control loop mis-triggering caused by ground loop and high-frequency interference.
Universal Compatibility for Multi-voltage IGBT Modules: Covers full-range ACS600 power modules to reduce spare part inventory types.
Retrofit & Spare Part Compatibility for Legacy ACS600 Drives: Standard replacement component for power unit overhaul and equipment technical renovation of aging frequency conversion systems.

IV. Working Principle

The main control unit outputs six complementary SPWM pulses transmitted to the drive board. After optocoupler isolation and power amplification, ±15V gate driving voltage is output to control the on/off of three-phase IGBTs for DC-AC inversion. During operation, the DESAT circuit monitors IGBT conduction voltage in real time; once a short-circuit fault is detected, all drive pulses are immediately blocked, the fault status is latched and uploaded to the main controller, and the inverter executes safety shutdown. Fault lock can be cleared by power cycle after troubleshooting.

V. Application Scenarios

Drive board replacement for metallurgical hot rolling & coiling mill ACS600 multi-drive systems.
Overhaul spare parts for mine hoist and belt conveyor high-power inverters.
Preventive replacement of transmission drive components for port container cranes.
Power unit maintenance of thermal power plant fan & water pump high-voltage frequency conversion equipment.
Spare part reserve and fault repair for chemical, cement large fan and ball mill variable frequency drive systems.
