Description
I. Basic Information

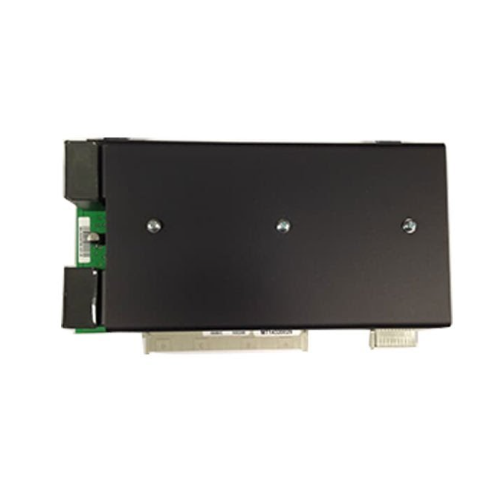

Part No.：3BUS208796-501
Origin：Switzerland, Original ABB Import
Product Type：Industrial Multi-protocol Redundant Communication Module
Applicable Platform：ABB S800 I/O System, AC800M PLC, Symphony Plus DCS System, Industrial Drive & Process Automation System
Product Positioning：As the core communication expansion unit of industrial control system, it undertakes multi-protocol data parsing, cross-device data interaction, redundant link hot standby switching and fieldbus networking tasks. It realizes seamless data connection between controllers, remote I/O stations, third-party intelligent equipment and upper monitoring systems, and is widely used in network expansion, communication redundant renovation and faulty spare parts replacement of industrial automation systems.
Typical Application Industries：Thermal power, hydropower and new energy power plant automation systems; petrochemical and coal chemical process DCS systems; metallurgy, building materials and papermaking industrial PLC systems; municipal water treatment and environmental protection automation projects; upgrading and renovation of old industrial control system communication architecture.
Hardware Architecture
1. Independent High-performance Communication Processing Unit
Equipped with a dedicated industrial communication coprocessor, it independently runs communication scheduling and protocol parsing programs without occupying main controller CPU resources. It autonomously completes packaging, verification, forwarding and caching of large-capacity and high-frequency industrial data, avoiding communication stuttering and data delay caused by excessive main controller load, and improving the data transmission efficiency and real-time performance of the whole control system.
2. Dual-network Redundant + Serial Composite Communication Unit
Integrates two independent gigabit Ethernet interfaces and RS-485/RS-232 serial communication interfaces to form a composite communication architecture. Dual network ports support hot standby redundant operation with millisecond-level seamless switching for link faults; serial interfaces adapt to traditional serial device communication, taking into account the networking requirements of new industrial Ethernet and old serial devices.
3. Multi-protocol Compatible Parsing Unit
Natively compatible with mainstream industrial communication protocols such as Modbus TCP/IP, PROFINET, EtherNet/IP and Modbus RTU, supporting bidirectional protocol conversion and data interconnection. It realizes seamless docking between ABB native equipment and third-party instruments, inverters and upper configuration systems, solving the problem of incompatible communication of heterogeneous equipment.
4. Multi-redundant Self-healing and Fault-tolerant Unit
Supports triple fault tolerance mechanisms of Ethernet link redundancy, fieldbus communication redundancy and dual power supply redundancy. Abnormality of any single link or power supply will trigger automatic self-healing switching without data loss and communication interruption, ensuring continuous and stable data interaction of the control system and meeting the high-reliability operation requirements of continuous industrial production.
5. Full-dimensional Self-diagnosis and Event Storage Unit
Real-time self-inspection of communication links, interface status, power supply voltage, hardware operating conditions and protocol matching status accurately locates various communication and hardware faults. Automatically stores fault logs and operation records with high-precision timestamps, supporting offline export for fault traceability and operation and maintenance audit. Panel LED indicators intuitively display equipment operating status for convenient on-site maintenance.
6. Industrial-grade Protection and Wide-temperature Operation Unit
Adopts industrial three-proof PCB coating technology, with multi-level hardware protection such as reverse power protection, overvoltage/overcurrent protection, surge impact and ESD static protection. It passes strict industrial EMC tests, resisting high-frequency electromagnetic interference generated by frequency converters and high-voltage equipment. The ultra-wide temperature design adapts to harsh working conditions of industrial control rooms.
7. Standard Rack-mounted Installation Architecture
Adopts embedded card slot installation of ABB standard system rack, with compact structure and vibration resistance. The fanless passive heat dissipation design has no mechanical loss and low failure rate, supporting non-stop hot-swap replacement, greatly shortening the maintenance downtime.
Product Features
1. Independent Coprocessing Optimizes System Performance
The independent communication processor fully undertakes all bus data interaction and protocol parsing tasks, completely reducing the communication operation load of the main controller, avoiding system scanning delay and logic stuttering caused by large data transmission, and comprehensively improving the operation stability and response speed of the industrial control system.
2. Multi-protocol Compatibility Adapts to Heterogeneous Equipment Networking
One-stop compatibility with multiple mainstream industrial Ethernet and serial communication protocols supports bidirectional cross-protocol data conversion, perfectly solving the communication compatibility problems of new and old equipment and different brand equipment, with strong system scalability and wide application scenarios.
3. Triple Redundancy Architecture Ensures Zero Communication Interruption
Equipped with triple fault-tolerant design of power supply redundancy, Ethernet link redundancy and bus communication redundancy, single power supply or single link fault can realize 10ms-level seamless switching without data loss and system disturbance, meeting the ultra-high reliability requirements of continuous production and unattended working conditions.
4. High-throughput and High-concurrency Adapts to Large-scale Networking
Dual gigabit Ethernet with high-speed serial ports supports 256 concurrent communication connections, capable of carrying real-time transmission of tens of thousands of process measuring points, with low transmission delay and high data consistency, adapting to large-scale I/O networking and multi-equipment cooperative control scenarios of large and medium-sized industrial control systems.
5. Full-dimensional Fault Self-diagnosis Improves Operation Efficiency
Full coverage self-inspection of hardware, power supply, links, protocols and data transmission accurately locates various communication faults. Timestamp-based logs are permanently stored and support offline export analysis, reducing fault troubleshooting difficulty and meeting industrial operation and maintenance compliance filing requirements.
6. Industrial-grade High-reliability Design Adapts to Harsh Working Conditions
Ultra-wide temperature operation, three-proof technology and multi-level electromagnetic protection ensure long-term stable operation in industrial control rooms with strong electromagnetic interference and fluctuating temperature and humidity. The standardized hot-swap design enables convenient spare parts replacement and low operation and maintenance cost.
II. Technical Specifications
2.1 Electrical Parameters
- Model: 3BUS208796-501
- Power Supply: DC24V (±15%), supporting dual redundant power input
- Power Consumption: Typical ≤5W, Full load ≤15W
- Communication Interfaces: 2×Gigabit Ethernet (10/100/1000M adaptive), RS-485/RS-232 Serial Port
- Communication Rate: Ethernet adaptive rate, Serial port max 115.2kbps
- Communication Protocols: Modbus TCP/IP, PROFINET, EtherNet/IP, Modbus RTU
- Concurrent Connections: Max 256 communication concurrent connections
- Redundancy Performance: Link switching time ≤10ms, supporting power, link and bus triple redundancy
- Hardware Protection: Reverse power, overvoltage/overcurrent, surge impact, ESD static, port short-circuit current limiting protection
- Core Functions: Multi-protocol data transceiving, bidirectional protocol conversion, redundant communication scheduling, link self-healing, fault self-diagnosis, event log storage, system network expansion
2.2 Mechanical Parameters
- Installation Mode: ABB standard rack embedded card slot installation, supporting hot-swap
- Shell Material: Flame-retardant industrial shell + reinforced anti-vibration structure
- Status Indication: Multi-channel LED indicators for operation, communication, fault and redundancy status
- Protection Class: IP20 (indoor control cabinet only)
- Structural Features: Compact lightweight design, passive heat dissipation without mechanical loss
2.3 Environmental Parameters
- Operating Temperature: -25℃ ~ +65℃
- Storage Temperature: -40℃ ~ +85℃
- Working Humidity: 5%~95%RH, non-condensing, no corrosive gas and conductive dust
III. Key Features
1. Multi-protocol Bidirectional Conversion and Heterogeneous Networking
Compatible with multiple mainstream industrial protocols of Ethernet and serial ports, realizing data interconnection and protocol conversion between equipment of different brands and communication systems, breaking equipment communication barriers, and adapting to scenarios such as new and old system compatibility, multi-equipment integrated networking and field equipment upgrading.
2. Triple Redundancy Fault Tolerance and Millisecond-level Self-healing
Adopting triple redundant architecture of dual power supply, dual Ethernet link and dual bus communication, it realizes all-round fault tolerance. After single-point fault triggering, the module completes seamless switching within 10ms without interrupting data transmission and system control logic, avoiding system communication paralysis and production shutdown risks caused by single-point faults.
3. Independent Communication Operation Optimizes System Load
The independent coprocessing unit fully undertakes communication scheduling, data parsing and message verification, completely releasing the main controller computing resources, ensuring the main control focuses on core tasks such as logic operation, process regulation and interlock protection, and improving the response speed and operation stability of the whole control system.
4. High-concurrency and High-throughput Real-time Data Transmission
Dual gigabit network ports combined with high-speed serial ports support multi-channel concurrent communication, capable of carrying real-time data interaction of large-scale I/O measuring points and multiple field equipment, with low transmission delay and high data consistency, meeting the high-precision process control requirements.
5. Full-scene Fault Diagnosis and Traceability Filing
Real-time monitoring of hardware, power supply, links, protocol matching and data transmission status accurately locates all kinds of communication abnormalities and hardware faults. Automatically store timestamp-based event logs and fault records, support local alarm and remote background push, which is convenient for operation and maintenance troubleshooting, accident traceability and compliance filing.
6. Hot-swap Operation and Maintenance & Rapid Spare Parts Replacement
Supports non-stop hot-swap disassembly and assembly of the system. Faulty modules can be replaced online without power-off shutdown and modification of system wiring and configuration parameters, greatly shortening equipment maintenance and fault disposal time and reducing unplanned shutdown losses.
IV. Working Principle
After the module is powered by DC24V redundant power supply, it automatically completes hardware self-inspection, communication port initialization, protocol firmware loading and bus link detection, and enters standby operation state after passing self-inspection. The module independently takes over the system communication tasks, and establishes bidirectional data links with the main controller, remote I/O stations, field intelligent equipment and upper monitoring system through dual gigabit Ethernet interfaces and serial interfaces.
During operation, the module collects process data, operating status and fault information of field equipment according to a preset cycle, completes data verification, protocol parsing and packet forwarding, and synchronously uploads real-time data and equipment status to the upper system. At the same time, it receives control commands and parameter configuration commands from the upper system and main controller, and accurately issues them to corresponding field equipment to realize system closed-loop control and remote monitoring.
Under the redundant architecture, dual power supplies and dual Ethernet links operate in hot standby and synchronize data in real time. The module continuously monitors power supply status and link communication quality. When single-circuit power supply abnormality, link disconnection, data packet loss or protocol abnormality is detected, it immediately triggers millisecond-level self-healing switching to seamlessly switch to standby power supply and standby link to ensure continuous and stable communication. Meanwhile, it automatically latches fault events and triggers local and remote alarms, and automatically restores dual redundant synchronous operation after faults are eliminated.
V. Application Scenarios
1. Redundant communication networking of DCS/PLC control systems in thermal power, hydropower and new energy power stations, realizing stable data interaction between power station auxiliary equipment, remote I/O stations and main control systems.
2. Networking of petrochemical and coal chemical process industrial control systems, solving the problems of communication congestion and protocol incompatibility of multi-equipment and multi-measuring points, and improving system communication stability and data transmission efficiency.
3. Renovation of automatic production line control systems in metallurgy, building materials and papermaking industries, adapting to heterogeneous networking of new and old equipment, replacing old communication modules, and repairing faults such as intermittent communication and data delay.
4. Capacity expansion of municipal water treatment, environmental protection desulfurization and denitrification, waste incineration and other environmental protection industrial control systems, adding communication nodes of measuring points and equipment, building redundant communication architecture and improving system reliability.
5. Technical upgrading of old industrial automation systems, transforming single communication link into redundant communication architecture, eliminating single-point fault hidden dangers and meeting high-reliability operation standards of safe production.
6. Preventive spare parts reserve of industrial control systems, used for emergency replacement of faulty communication modules, quickly restoring system communication functions and shortening unplanned shutdown maintenance time.
