Description
I. Product Overview

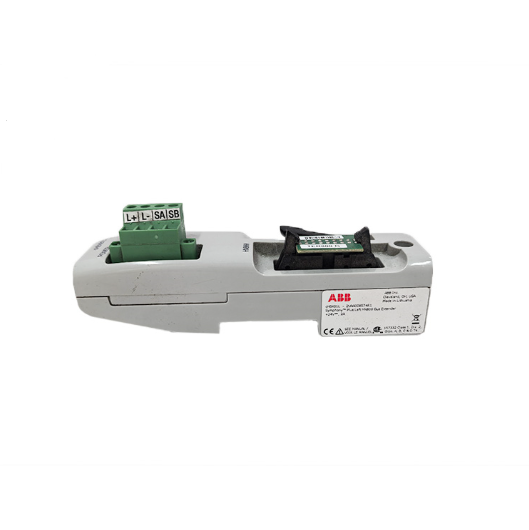

ABB CHBX01L (Order Code: 2VAA008574R1) is a left-side compact system bus extender for ABB Symphony Plus / HN800 DCS systems. It is a dedicated relay extension accessory for cabinet internal rack bus, horizontally mounted on the left side of controller and I/O equipment racks. It realizes signal relay, extension and link expansion of HN800 system bus between multi-row modules in the same cabinet and remote cabinets, breaking the physical installation limit of native rack bus. It supports high-speed data interaction between distributed I/O racks and redundant controller units across positions and cabinets, ensuring real-time and stable transmission of control commands and process collected data between the main controller and field I/O modules, and natively adapts to dual-link redundant bus architecture. It serves as a critical spare part for cabinet capacity expansion, hardware layout optimization and redundant control architecture upgrading of DCS systems in process industries such as thermal power, hydropower, nuclear power, chemical industry and metallurgy.
Without local process I/O acquisition channels, the module only realizes transparent forwarding of system bus. Adopting flame-retardant industrial housing and full-line shielded wiring design, it is equipped with multiple hardware status LED indicators and can be deployed in pairs with RMU610 redundant communication base. Featuring wide-voltage power supply, vibration resistance and wide-temperature stable operation, it has passed CE, UL industrial safety certification and Class I Div2 hazardous area explosion-proof certification, enabling 24/7 stable continuous operation in closed control cabinets with high temperature, dust, strong electromagnetic interference and long-term continuous equipment vibration in power plants and chemical plants.
II. Hardware Structure and Composition
1. Bus Transparent Forwarding Signal Processing Unit
It is equipped with dedicated differential bus signal shaping, impedance matching and noise reduction filtering circuits, which can repair waveform and compensate amplitude for HN800 bus signals transmitted over long distances, effectively solving signal attenuation, waveform distortion and electromagnetic interference bit errors caused by long-distance wiring. It realizes bidirectional transparent data forwarding of the bus without tampering with control data packets and process collected data. The millisecond-level forwarding delay guarantees the real-time response performance of unit closed-loop regulation and safety interlock protection loops, and avoids faults such as intermittent bus communication disconnection, data packet loss and I/O module offline in cross-cabinet bus communication.
2. DB25 Shielded Bus Communication Interface
The standard DB25 high-density gold-plated shielded connector is used as the input and output port of the system bus, matched with twisted-pair shielded special bus cables. The integrated shell grounding design can suppress spatial electromagnetic interference generated by frequency converters and high-voltage electrical equipment. It supports two wiring modes of single bus link and dual redundant bus, which can not only complete horizontal expansion of single rack bus, but also build fault-tolerant redundant bus network, and single link fault will not cause the paralysis of the whole control system bus.
3. Status Diagnosis LED Indicator Unit
Six independent LED status indicators are integrated on the panel, corresponding to six operating states: power supply, two groups of main bus links, two groups of backup bus links and system fault alarm respectively. Operation and maintenance personnel can quickly locate on-site faults such as power supply abnormality, bus disconnection, redundant synchronization failure and bus short-circuit according to the indicator status, and complete preliminary on-site fault positioning without relying on upper configuration software, greatly shortening the maintenance and troubleshooting time of system communication faults.
4. Isolated Voltage-stabilized Power Supply and Multi-level Hardware Protection Circuit
It adopts 18~30VDC wide-range DC power input, with built-in isolated voltage regulation and current limiting loop, and integrates multi-level hardware protection functions such as overvoltage, undervoltage, overcurrent, reverse power connection and surge impact. The built-in automatic bus short-circuit isolation protection mechanism will instantaneously isolate the faulty branch circuit when the external bus line is short-circuited, preventing the fault from spreading upstream and breaking through the main control rack bus, so as to fully guarantee the hardware safety of the whole DCS system bus.
5. Standard DIN Rail Modular Installation Structure
The compact industrial shell is equipped with a 35mm standard DIN rail buckle on the back, which can be directly clamped on the standard installation rail of the control cabinet. It can realize fixed installation of dual-module redundancy with RMU610 redundant base, featuring convenient disassembly and small cabinet space occupation. It adapts to the standardized left-side layout installation of the rack, and can be flexibly applied to various standard and non-standard cabinet hardware layout optimization and I/O capacity expansion renovation scenarios.
III. Technical Specifications
(1) Electrical Parameters
Rated Input Voltage: 24VDC, allowable fluctuation range: 18～30VDCMax Bus Communication Rate: 12Mbps differential HN800 system busCommunication Physical Interface: DB25 shielded gold-plated bus connectorTypical Power Consumption: ≤4.5WData Transmission Mode: Bidirectional differential signal transparent relay forwardingRedundancy Deployment Capability: Support dual bus link hot standby redundant architectureHardware Protection Type: Multi-level protection including overvoltage, undervoltage, overcurrent, reverse power connection, surge impact and bus short-circuit isolation
(2) Environmental Parameters
Operating Temperature: -20℃～+60℃, derating is required above an altitude of 1000m in accordance with industrial specificationsStorage & Transportation Temperature: -40℃～+105℃Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dustVibration & Shock Resistance Grade: 10～2000Hz, 15g shock protection, compliant with IEC 60068 industrial equipment environmental standard
(3) Mechanical Parameters
Mounting Method: 35mm standard DIN rail left horizontal installation of rack, compatible with RMU610 redundant mounting baseOverall Dimensions: 127mm×31mm×30mmNet Weight: Approx. 0.094kgFixing Method: Rail buckle locking, auxiliary screw reinforcement is supported, with independent cabinet protective grounding terminal
IV. Product Functions and Features
Lossless Horizontal Bus Expansion to Flexibly Optimize Cabinet Hardware LayoutThe module only forwards bus signals through relays without occupying system I/O address resources, breaking the limit of native HN800 rack bus wiring points. It realizes the interconnection of system buses between multi-row control modules in the same cabinet and remote I/O cabinets in different places. The hardware layout of the control cabinet can be flexibly arranged according to the on-site cabinet space, and the bus extension and capacity expansion can be completed without transforming the rack backplane of the old DCS system, adapting to automatic renovation projects such as cabinet hardware layout optimization and measurement point capacity expansion.
Native Dual-link Redundancy Supports High Safety Level Control Scenarios
It supports hot standby redundant deployment of two bus links. When the main bus link fails due to cable damage or interface fault, the system can seamlessly switch to the backup link within milliseconds without interrupting bus communication and disturbing unit control logic. It fully meets the SIL safety level requirements of key process control industries such as thermal power, nuclear power and fine chemical industry, and avoids the risk of unplanned unit shutdown caused by single-point faults from the underlying communication link.Differential Signal Shaping Compensation Ensures Stable Anti-interference Long-distance Bus Transmission
With built-in impedance matching and signal amplification shaping circuits, it can compensate for signal attenuation and waveform distortion caused by long-distance transmission of shielded twisted-pair cables, effectively restrain bus bit errors and intermittent communication flicker faults caused by strong industrial electromagnetic interference, and guarantee the bidirectional accurate transmission of massive process parameters and safety interlock instructions between the main controller and distributed remote I/O, adapting to large-scale deployment scenarios of multi-cabinet decentralized I/O.Hardware Visual Fault Diagnosis Reduces On-site Operation and Maintenance Technical Threshold
Six groups of full-coverage status indicators can intuitively feed back key operating information such as power supply, redundant links and bus faults. On-site operation and maintenance personnel can quickly distinguish common fault types such as power failure, bus disconnection, line short-circuit and redundancy asynchronization without professional configuration and debugging operations, greatly shortening the unit shutdown maintenance time caused by DCS communication anomalies and reducing the difficulty of on-site equipment operation and maintenance.Full-series Software and Hardware Compatibility Enables Plug-and-play Spare Part Replacement
As the original supporting bus expansion component of ABB Symphony Plus and HN800 control systems, the bus communication protocol, electrical specifications and installation dimensions are fully standardized, which can directly replace faulty and aging modules of the same specification. The equipment can be automatically identified by the system after power-on, no need to re-download control logic and process parameters, and bus communication can be restored immediately after power-on, adapting to annual overhaul of old DCS, faulty spare part replacement and control system upgrading and renovation scenarios.V. Application Scenarios
- Left-side system bus horizontal expansion of racks in ABB Symphony Plus DCS control cabinets of thermal power, combined cycle gas power, hydropower and nuclear power plants, realizing hardware deployment for high-speed interconnection of multi-row controllers and I/O modules in the same cabinet.
- Hardware renovation projects for remote I/O cabinet bus extension and construction of dual redundant fault-tolerant bus networks in petrochemical, oil & gas long-distance pipeline and fine chemical process control systems.
- Cabinet hardware layout optimization and supporting bus renovation for I/O monitoring point capacity expansion of HN800 PLC/DCS in metallurgy, papermaking, cement and sewage treatment industries.
- Hardware upgrading and replacement scenarios for aging old ABB distributed control systems with problems such as attenuated bus communication signals, non-redundant single links and insufficient rack points during annual overhauls.
- Automatic technical renovation projects for adding redundant controllers and remote I/O racks in control cabinets that require expanding HN800 system buses across cabinets and installation positions.
