Description

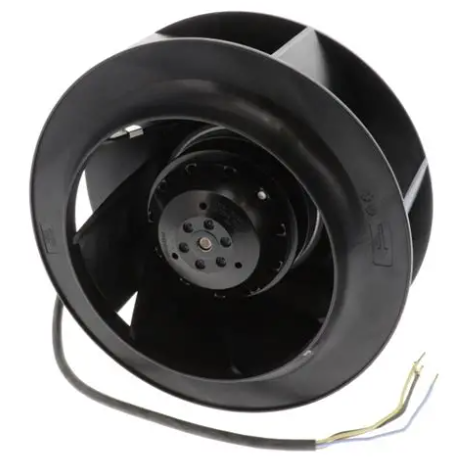

ABB R2E225-BD92-09

1 Basic Parameters

1.1 Core Performance and Functional Parameters

1. Product Type: Industrial‑grade centrifugal fan, dedicated matching model for ABB equipment (manufactured by ebmpapst).

   It belongs to the industrial cooling fan series, mainly used for forced cooling and ventilation of ABB inverters, industrial control cabinets, automated production lines, power equipment, etc.

   It quickly dissipates internal heat to prevent equipment failure due to overheating and ensure operational stability.

   Compatible with all types of ABB inverters and third‑party industrial equipment, adapting to cooling requirements of equipment with different power ratings.

   Can also be used as a standard original cooling spare part for replacement.


2. Core Performance:

   Adopts aerodynamically optimized blade channel design for high cooling efficiency, rapidly removing internal heat;

   Equipped with maintenance‑free bearings, requiring no additional lubrication and reducing maintenance costs;

   Insulated bearing system effectively avoids bearing current damage to equipment and improves operational safety;

   Continuous service life up to 40,000 hours with high stability, meeting 24/7 uninterrupted operation demands in industrial sites;

   Supports stepless speed regulation, allowing flexible speed adjustment according to cooling requirements under different working conditions.


3. Control and Signal Processing:

   Supports 0–10V DC control signal and network communication protocols, enabling precise speed adjustment and remote control;

   Integrated PID controller automatically adapts to cooling demands, optimizing efficiency while reducing energy consumption;

   Provides complete operating status feedback, transmitting fan parameters and fault information to the control system for centralized monitoring and troubleshooting;

   Compatible with 50/60Hz mains frequency and can be used under different voltage levels with strong versatility.


4. Communication and Integration:

   Standardized wiring design with clearly separated terminals for power, alarm relay, control, and communication interfaces, enabling easy and error‑proof wiring;

   Equipped with environment‑resistant cable glands for excellent protection in harsh industrial environments;

   Simple commissioning without professional tools, allowing quick integration into ABB systems and various industrial cooling circuits without major modifications, reducing integration costs.

1.2 Electrical and Operating Parameters

1.3 Mechanical and Installation Parameters

1. Structure Type: Compact centrifugal structure made of high‑temperature reinforced fiberglass, resistant to high temperature, impact, and corrosion;

   Impeller diameter 225 mm, electric impeller width 99.00 mm; rational design with low wind resistance and high cooling efficiency;

   Industrial‑grade protective housing effectively resists dust and slight vibration, extending service life.
2. Installation: Standardized mounting interface suitable for ABB inverters and industrial control cabinets;

   Easy installation without special tools; mounting angle can be flexibly adjusted to match different equipment layouts;

   Rational terminal layout with clear markings for on‑site wiring, commissioning, and maintenance.


3. Mechanical Dimensions: Impeller diameter 225 mm; overall dimensions fit standard ABB equipment mounting positions (subject to original drawings);

   Compact size saves installation space and is suitable for installation inside various control cabinets and equipment.
4. Packing: Original pallet packaging effectively protects the fan during transport and storage;

   Complies with industrial equipment transportation standards, suitable for long‑distance delivery and bulk storage.



1.4 Environmental and Reliability Parameters

1. Environmental Adaptability:

   Operating temperature: -25℃ to +60℃ (-25℃ to +55℃ for some versions);

   Storage temperature: -40℃ to +85℃;

   Relative humidity: 5%–95% (non‑condensing);

   Capable of long‑term stable operation in dusty, slightly humid, and strong electromagnetic interference environments, adapting to harsh conditions in power, metallurgy, and petrochemical industries.


2. Reliability Index:

   Made in Germany with high‑quality components and precision manufacturing;

   Strict quality screening and aging tests ensure high operational stability;

   Continuous service life up to 40,000 hours with low failure rate, reducing downtime and maintenance costs;

   Complies with international industrial cooling equipment standards.
3. Maintenance Convenience:

   Maintenance‑free bearing design eliminates regular lubrication and reduces workload;

   Clear operation status indicators for intuitive monitoring;

   Modular design allows easy disassembly and replacement without specialized technicians;

   Supports online fault diagnosis for quick troubleshooting and improved efficiency.

2 Structural and Functional Features

2.1 Structural Design

1. Compact and Efficient Structure:

   Centrifugal design with aerodynamically optimized blade channels for low resistance and high cooling efficiency;

   Compact size fits ABB equipment and control cabinets, saving space for dense installation.
2. Industrial‑Grade Protection:

   High‑temperature reinforced fiberglass housing; protection class IP44 against dust and moisture;

   Insulated bearing system prevents current damage; optimized internal circuit layout for strong EMC performance.
3. Easy Installation and Maintenance:

   Standard mounting and wiring for fast on‑site setup;

   Maintenance‑free bearings; modular construction for quick replacement;

   Clearly marked terminals to prevent wiring errors.

2.2 Core Functions

1. High‑Efficiency Cooling:

   High airflow and pressure rapidly remove heat from inverters and control cabinets, stabilizing operating temperature and preventing overheating failures.
2. Intelligent Regulation and Control:

   Stepless speed adjustment and PID control optimize cooling and save energy;

   0–10V control and communication support remote monitoring and adjustment.


3. Multiple Safety Protections:

   Locked‑rotor and over‑temperature protection; insulated bearings; active PFC for stable and safe electrical performance.
4. Strong Compatibility:

   Perfectly matched with ABB inverters and industrial equipment;

   Universal for different voltages and frequencies worldwide;

   Can be used as cooling spares for third‑party industrial devices.
5. High Reliability and Low Life‑Cycle Cost:

   German manufacturing, long service life, low failure rate;

   Maintenance‑free design reduces long‑term operating costs.

3 Application Areas

1. ABB Equipment Matching: Mainly used for forced cooling of ABB inverters, ensuring stable long‑term operation; also applied to ABB control cabinets and automation modules.
2. Power Industry: Cooling for power equipment in power plants and substations, including switch cabinets, control panels, and auxiliary cooling for transformers.


3. Metallurgy and Petrochemical Industry: Cooling for metallurgical production lines, petrochemical reactors, compressors, etc., under high‑temperature and dusty conditions.
4. Intelligent Manufacturing and General Industry: Cooling for automotive production lines, 3C electronics, robotics, and automation equipment;

   Also used in cement, paper, wastewater treatment, and other general industrial scenarios as original or replacement spare parts.
