I. Product Overview
ABB PP826 belongs to ABB Panel 800 series industrial HMI, perfectly compatible with AC800M, Freelance DCS and PLC control systems. As the core human-machine interaction unit for on-site process monitoring, parameter setting, equipment operation and fault alarm query, it adopts an integrated design of 7-inch TFT color touch screen and backlit physical function keys. Equipped with embedded industrial processor, large-capacity memory and local storage, it supports real-time display of process parameters, screen configuration, permission management, event recording and data archiving.Certified by CE, UL, cULus and IEC EMC standards, the front panel reaches IP65 protection rating. With wide-temperature operation, dust-proof, moisture-proof and anti-vibration performance, it can run continuously in harsh control cabinet environments of power, chemical, metallurgy and water treatment industries. It is widely used for faulty HMI replacement, local operation station expansion and automation system upgrading projects.
II. Hardware Structure and Composition
1. Touch Display & Key Operation Unit
Equipped with 7-inch 800×480 TFT LCD resistive touch screen and backlit programmable function keys, it supports multi-language switching and multi-level access control to prevent unauthorized parameter modification. The front panel is equipped with sealed silicone gaskets to block dust, oil and moisture, adapting to harsh industrial workshop working conditions.
2. Embedded Main Control & Local Storage Unit
Built-in industrial embedded CPU, 128MB DDR memory and on-board electronic disk, supporting program backup and project download via SD card and USB external storage. Historical alarms, operation logs and process data can be stored locally without backup battery, realizing permanent data power-off retention, which supports fault traceability and production compliance audit.
3. Isolated Multi-channel Communication Unit
Equipped with RJ45 Ethernet, RS232, RS485 and dual USB2.0 isolated communication interfaces, supporting Modbus, Profibus DP and ABB dedicated industrial protocols. It can realize multi-device centralized data collection and remote parameter interaction, and channel isolation effectively avoids communication failure caused by industrial electromagnetic interference.
4. Wide-range Isolated Power Supply Unit
Designed for 24VDC wide-range input (18～30VDC), the built-in isolated DC-DC power supply provides multi-level protections against overvoltage, undervoltage, reverse connection and surge. With low power consumption below 20W, it effectively reduces cabinet heat risk and ensures long-term stable operation.

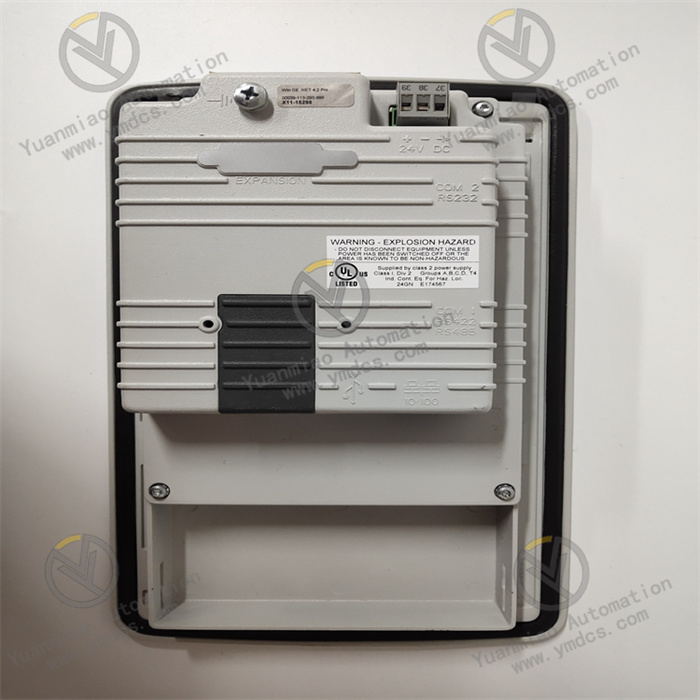

5. Industrial Protected Embedded Mounting Structure
Standard cabinet embedded installation with IP65 front panel protection and IP20 rear interface protection. The flame-retardant plastic shell and three-proof coated PCB feature excellent anti-vibration and anti-aging performance, and unified opening size supports plug-and-play replacement of same-series HMI equipment.
III. Technical Specifications
(1) Electrical Parameters
- Power Supply: 24VDC (18～30VDC wide range), typical power consumption ＜20W
- Display: 7-inch TFT LCD, 800×480 resolution, resistive touch + backlit physical keys
- Hardware: 128MB DDR RAM, on-board flash storage, SD/USB expandable storage
- Communication: RJ45, RS232, RS485, dual USB2.0 with channel isolation
- Supported Protocols: Modbus RTU/TCP, Profibus DP, ABB Freelance/AC800M proprietary protocol
- Operating System: Windows CE, configured via ABB Panel Builder software
- Functions: Multi-level permission, historical data logging, event alarm storage, multi-language support
(2) Environmental Parameters
- Operating Temperature: -20℃～+60℃; Storage Temperature: -40℃～+85℃
- Relative Humidity: 5%～95%RH, non-condensing, no corrosive gas or conductive dust
- Ingress Protection: Front IP65, rear IP20
(3) Mechanical Parameters
- Mounting: Cabinet embedded installation
- Overall Dimension: 226mm×144mm×58mm
- Net Weight: Approx. 0.8kg
- Housing: Flame-retardant engineering plastic, three-proof conformal coated PCB
IV. Product Functions and Features
1. Dual Touch & Key Operation Adapts Harsh Industrial Sites
The oil/dust-resistant resistive touch screen cooperates with physical backlit keys to realize flexible on-site operation. Multi-level access management effectively prevents misoperation, meeting high safety standard requirements of chemical and power industries.
2. Redundant Multi-channel Communication Realizes Multi-device Centralized Acquisition
Physically isolated communication networks separate control and debugging links, avoiding overall monitoring failure caused by single-link fault. It supports centralized data collection of PLC, inverters and intelligent instruments, simplifying on-site wiring and operation and maintenance workload.
3. Complete Data Storage Ensures Accurate Fault Traceability
Time-stamped operation logs, alarm records and historical trend curves support offline retrieval and export, which provides reliable data support for accident review, process optimization and industrial safety compliance audit.
4. Standardized Configuration Enables Fast Engineering Migration & Replacement
Visual drag programming via official Panel Builder shortens project development cycle; unified hardware specifications allow direct on-site replacement of old panels, only project downloading and communication parameter configuration are required for commissioning, greatly shortening production downtime.
5. Fanless Wide-temperature Industrial Design Reduces Maintenance Frequency
IP65 sealed protection eliminates dust and moisture intrusion risks, and fanless embedded architecture avoids fan aging failure points. With three-proof circuit design, the device features long MTBF and low daily maintenance workload for long-term unattended operation.
V. Application Scenarios
- Local process monitoring, equipment operation and alarm HMI for auxiliary systems and water treatment DCS in thermal, hydropower and gas power plants.
- On-site operation station deployment and spare part replacement for automation control systems of chemical reactors and compressor units in petrochemical and fine chemical industries.
- Local parameter monitoring, equipment startup control and production data archiving for PLC production lines in metallurgy, cement, papermaking and pharmaceutical industries.
- Distributed control system field HMI terminals for oil & gas pipelines and LNG pump stations, realizing dual local & remote unattended monitoring.
- Hardware upgrading project for aging, offline and screen-fault HMI equipment of legacy ABB AC800M and Freelance automation control systems.
