Description
1. Overview

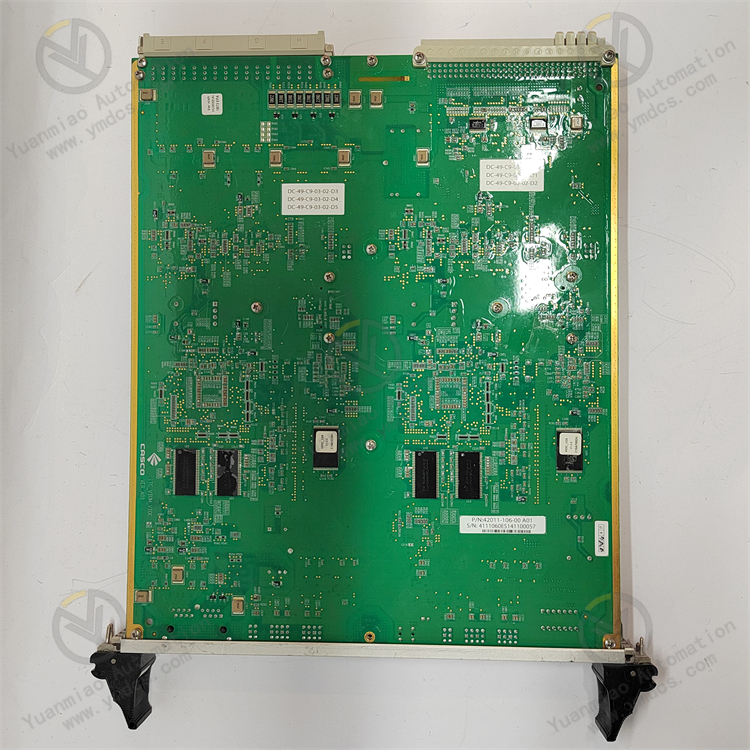

ALSTOM 42011-106-00 A01 (marked ITC_VIOM_VIOC VER.A01) is an ITC integrated video/analog hybrid input & output interface module developed by ALSTOM for high-end industrial automation, power turbine control, rail transit and large power equipment control systems.
VIOM and VIOC stand for Video Input/Output & Analog Signal composite processing units. This board integrates multiple functions including video signal acquisition, picture encoding & transmission, analog sampling, digital discrete input logic, operating condition threshold judgment and fault alarm output. It serves as the core front-end acquisition and visual interface card for ALSTOM ITC integrated control systems, DCS systems and turbine monitoring systems.
VER.A01 is a mature revised iteration. It is optimized in terms of video signal gain, linearity of analog sampling and high-frequency interference suppression. The module supports real-time multi-channel video capture & transmission, as well as synchronous sampling of analog and digital signals. It can precisely measure key operating parameters such as equipment vibration, rotational speed, temperature, pressure, current and voltage, meanwhile realizing encoded uploading and linked output of on-site visual monitoring video signals.
The product has undergone stringent industrial tests covering high & low temperature cycling, vibration shock and EMC electromagnetic compatibility. It is suitable for harsh working environments with high humidity, heavy dust, intense electromagnetic interference and 24/7 uninterrupted continuous operation in power plants, rail transit and heavy industry facilities. Natively compatible with the full range of ALSTOM ITC control system architectures, it enables non-destructive in-situ replacement of legacy boards of the same series. It is widely adopted for upgrading unit monitoring loops, renovating signal acquisition systems, optimizing visual monitoring links and maintaining & replacing outdated industrial control modules.
2. Technical Features
2.1 Multi-Signal Composite Acquisition of Video, Analog and Digital Signals with High Integration
Adopting the exclusive VIOM/VIOC composite architecture, the board integrates industrial video I/O processing, analog AI sampling and digital DI logic input simultaneously, breaking the limitations of traditional single-function circuit cards.
It can receive, encode, shape, upload and display on-site monitoring videos, while acquiring 4–20 mA analog sensor signals and passive switch status signals with high precision. It realizes the integration of equipment visual monitoring and process parameter collection, greatly simplifying cabinet wiring and hardware configuration.
2.2 High-Precision Analog Sampling for Authentic Restoration of Operating Data
Equipped with industrial high-linearity AD sampling chips, it supports accurate acquisition of standard 4～20 mA industrial analog signals. The sampling algorithm is optimized for critical unit parameters including vibration, rotational speed, temperature, pressure and flow rate, featuring high linearity, ultra-low temperature drift and zero signal distortion.
Users can customize threshold judgment logic to support over-limit alarming, interlock prediction and abrupt condition identification. It effectively eliminates system misjudgments caused by parameter drift and sampling deviation, ensuring accurate and reliable monitoring of unit operating parameters.
2.3 Industrial-Grade Video Signal Processing for Stable Distortion-Free Transmission
Dedicated circuits for video filtering, gain adjustment and impedance matching are embedded to adapt to access and output of multi-channel high-definition/standard-definition industrial video signals on site.
It effectively resolves screen stuttering, distortion, flickering and frame dropping induced by high-frequency harmonics, electromagnetic crosstalk and line attenuation in industrial environments. Clear, real-time monitoring footage of field equipment can be steadily uploaded to the main control platform, meeting the demand for unattended visual monitoring of power units.
2.4 Independent Isolation for All Channels with Excellent Anti-Interference and Fault Tolerance
All video channels, analog channels and digital channels adopt independent circuit design and electrical isolation architecture without mutual interference. A fault or abnormal signal on one channel will not affect other channels or the overall operation of the module.
Multi-stage electromagnetic shielding and surge protection circuits are integrated to strongly resist industrial disturbances such as interference from frequency converters in power plants, pulses generated by frequent equipment startup/shutdown, line induced voltage and power frequency noise, adapting to complex industrial control environments with strong electromagnetic fields.
2.5 Hardware Upgrades on VER.A01 for Enhanced Operational Stability
Compared with earlier revisions, Version A01 optimizes the selection of core signal processing chips, PCB layout and heat dissipation structure, reducing signal attenuation and component failure rate under high-temperature conditions.
Adaptive dynamic gain for video signals and temperature compensation for analog sampling are improved, resolving common drawbacks of old boards such as sampling drift at high temperature, unstable video transmission and insufficient channel sensitivity. The reliability of long-term continuous operation is significantly enhanced.
2.6 Standardized Modular Design Enabling Non-Destructive In-Situ Replacement
Designed as a standard ALSTOM plug-in industrial control card, its physical dimensions, slot definitions, pin logic, communication protocols and electrical parameters are fully compliant with original ALSTOM ITC control systems and DCS cabinets. Legacy modules of the same series can be directly replaced on site.
No cabinet wiring modification, program reconfiguration or sampling parameter adjustment is required; the module will work normally once self-check is passed after power-on, drastically cutting maintenance downtime and renovation costs.
2.7 Intelligent Self-Diagnosis for Easy Maintenance Adapted to Unattended Operation
The module integrates hardware self-test, channel status monitoring, signal quality diagnosis and link fault identification functions. A full-channel verification is automatically executed upon power-up. During operation, it continuously detects hidden risks such as abnormal video signals, broken analog loops, faulty digital channels and fluctuating communication links. Fault codes and abnormal status can be uploaded actively, allowing maintenance personnel to quickly locate fault points and shorten overhaul time, fitting the long-cycle unattended operation mode of power units.
2.8 Rugged Industrial Construction for Long-Term Maintenance-Free Operation
Manufactured with military-grade components, thickened flame-retardant PCBs and moisture-proof, dust-proof, anti-corrosion & anti-aging conformal coating, the board withstands enclosed high temperature, humid condensation, dust accumulation, high-frequency vibration and long-term live operation inside cabinets.
Free of vulnerable mechanical parts, it maintains stable parameters without drift over time. No regular calibration or tuning is needed, resulting in extremely low daily maintenance costs.
3. Specification Parameters
3.1 Basic Parameters
- Model: 42011-106-00 A01
- Board Marking: ITC_VIOM_VIOC VER.A01
- Manufacturer: ALSTOM
- Device Type: ITC Integrated Video + Analog + Digital Composite I/O Interface Module
- Core Functions: Industrial video signal acquisition, encoding & transmission, video output, 4-20mA analog sampling, digital discrete input, condition threshold judgment, fault alarming, status data uploading
- Compatible Systems: ALSTOM ITC integrated control system, power plant DCS system, turbine monitoring system, power equipment sequence control system, rail transit industrial control system
- Application Scenarios: Upgrade of unit visual monitoring, optimization of process parameter acquisition systems, replacement of legacy I/O modules, rectification of industrial control signal links, maintenance renovation of equipment condition monitoring systems
3.2 Electrical & Signal Performance Parameters
- Operating Power Supply: 24VDC wide-range industrial power supply, compliant with standard power specifications for power plant cabinets
- Rated Operating Current: 2A, low power consumption for stable and energy-saving long-term operation
- Analog Channels: Multiple channels of 4～20mA standard industrial analog input, compatible with vibration, temperature, pressure, rotational speed and other sensor signals
- Digital Channels: Multiple programmable discrete inputs for collection of equipment status, start-stop feedback and alarm contact signals
- Video Channels: Multiple industrial VIOM/VIOC video input & output channels, supporting encoding, transmission and display output of industrial-format video signals
- Sampling Precision: High-linearity AD sampling with low temperature drift and negligible parameter offset after long-term operation
- Signal Characteristics: Adaptive signal gain, automatic impedance matching, low distortion and low frame loss rate, suitable for long cable transmission
- Protection Mechanism: Multi-level protection against overvoltage, overcurrent, short circuit, surge, electrostatic discharge and overheating with automatic channel locking upon faults
- Communication Protocol: Exclusive ALSTOM ITC bus protocol supporting data interaction and configuration logic with upper-level systems
3.3 Environmental Operating Parameters
- Operating Temperature: -20℃ ~ +70℃, suitable for long-term enclosed high-temperature cabinet operation
- Storage Temperature: -40℃ ~ +85℃
- Operating Humidity: 5% ~ 95%RH (non-condensing), moisture resistant to prevent short circuits caused by dew formation
- Environmental Resistance: Dust-proof, moisture-proof, anti-corrosion, vibration-resistant, anti-aging, anti-electromagnetic interference
- EMC Compliance: Meets high-grade EMC standards for power and heavy industry, applicable to complex environments with intense electromagnetic fields
3.4 Structural & Maintenance Parameters
- Structure Form: Standard ALSTOM plug-in modular card for original factory cabinet slots
- Mounting Method: Hot-swappable plug-in installation with precise alignment, reliable contact and excellent vibration resistance
- Version Compatibility: VER.A01 is interchangeable with older revisions of the same model for in-situ upgraded replacement
- Maintenance Features: Full-channel self-test on power-up, fault self-diagnosis, no routine calibration or complex configuration required
- Operational Advantages: Independent channel fault tolerance, low failure rate, no parameter drift, supports 24-hour continuous operation
4. Working Principle
After being powered on, the ALSTOM 42011-106-00 A01 ITC_VIOM_VIOC module firstly completes hardware initialization, video channel self-inspection, analog/digital loop verification, bus handshake and parameter calibration. It enters normal comprehensive signal acquisition and processing mode once all self-check items are passed.
On-site industrial monitoring video signals are fed into the VIOM/VIOC video processing unit of the module. After front-end filtering, impedance matching, adaptive gain adjustment and picture error correction encoding, signals are converted into standard digital video streams, uploaded to the main control monitoring platform via the system bus, and can be output for linked display to realize real-time visual monitoring of field equipment.
Various 4-20mA analog sensor signals and passive discrete status signals from the site enter isolated channels respectively. After signal shaping, noise reduction filtering, high-precision AD conversion and logic verification, key operating data including unit vibration, rotational speed, temperature, pressure, equipment start-stop status and alarm status are collected accurately. Built-in threshold comparison logic continuously checks real-time parameters against preset limits, automatically identifies hidden hazards such as parameter overrun, abnormal conditions and equipment faults, and generates alarm signals and fault logs synchronously.
Throughout operation, the module monitors signal quality of each channel, link status, power supply condition and board temperature in real time. Once signal distortion, line break, overload, short circuit or communication abnormality is detected, channel locking protection will be triggered immediately to isolate faulty loops and avoid impacts on the whole system, meanwhile fault codes are uploaded to the upper system. Channels can be automatically reset to resume functions after faults are eliminated. It comprehensively guarantees stable and reliable operation of unit condition monitoring, video surveillance and signal acquisition loops.
5. Application Scenarios
5.1 Comprehensive Condition Monitoring for Power Plant Turbine Units
As the core acquisition interface unit for ALSTOM turbine control systems, it synchronously collects process parameters and on-site video footage of turbine equipment. It precisely monitors key operating parameters such as unit vibration and rotational speed, and uploads real-time equipment images to realize digitalized and visual management of turbine operation, preventing unit failures induced by parameter anomalies and hidden equipment defects.
5.2 Multi-Signal Acquisition Expansion for Power Plant DCS Systems
Widely deployed in DCS systems of thermal power, cogeneration and combined-cycle units, it undertakes integrated collection and transmission of analog, digital and video monitoring signals. It solves pain points of traditional single-function cards including cumbersome wiring, excessive hardware redundancy and poor signal compatibility, streamlining cabinet hardware architecture and improving system acquisition efficiency and integration level.
5.3 Supporting Hardware for Industrial Equipment Visual Monitoring Systems
Applied to large-scale industrial automation scenarios such as heavy industry, energy facilities and rail transit, it links process parameter collection with on-site video surveillance to build a dual-dimensional monitoring system combining data and images, meeting the requirements of unattended automatic continuous industrial production.
5.4 Maintenance, Replacement and Upgrade of Legacy Industrial Control Systems
For aged boards suffering from sampling drift, stuttering video transmission, channel failure, poor anti-interference performance and frequent false alarms, direct in-situ replacement is available without system configuration or cabinet wiring modification. It achieves low-cost hardware iteration, restores the precision of system signal collection and the stability of visual monitoring.
