Description
1. Overview

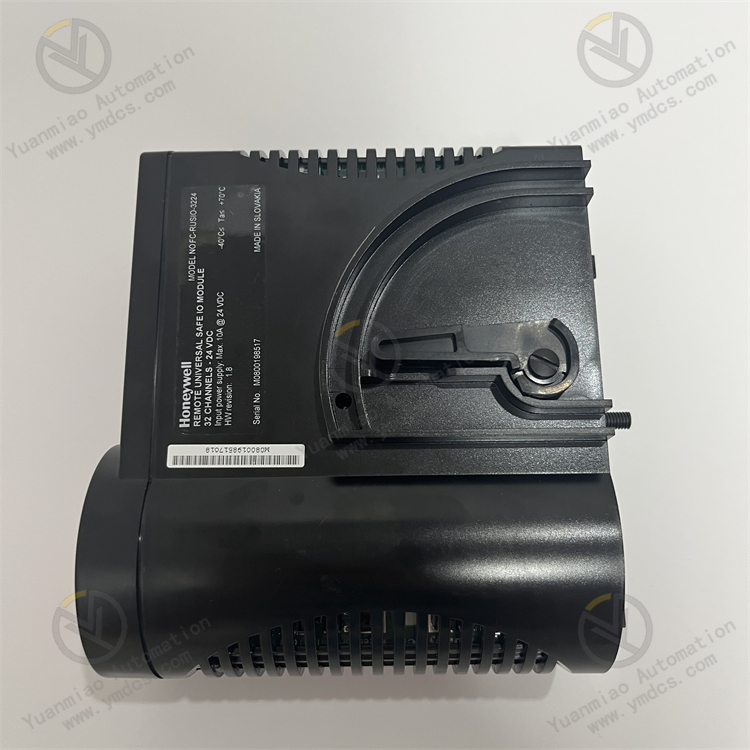

The Honeywell FC-RUSIO-3224 is an industrial high-density remote IO module developed by Honeywell. Designed for process control, factory automation, DCS distributed control systems and PLC redundant control systems, it acts as the core unit for on-site remote signal acquisition and output driving. Integrated with multiple digital input and digital output channels, the module enables local connection to field primary equipment including sensors, pushbuttons, limit switches, solenoid valves and relays. It realizes remote collection of field signals, logic output drive and bus data upload, resolving common industry pain points of conventional centralized IO such as cumbersome wiring, severe signal attenuation, high construction cost and difficult fault troubleshooting.
Adopting a high-density integrated channel architecture, the FC-RUSIO-3224 supports large-scale IO point expansion on a single module, applicable to complex industrial scenarios with massive measuring and control points, including large & medium-sized chemical, power, metallurgy, water treatment, oil & gas, and HVAC automation. Supported by high-speed industrial bus communication, it features hardware electrical isolation, anti-interference performance, fault self-diagnosis and independent channel protection. The module supports centralized cabinet mounting and local field installation, delivering stable 7×24-hour non-stop operation. As a standard matching remote IO unit for Honeywell industrial control systems, it is widely deployed for supporting new projects as well as retrofitting, replacement and capacity expansion of legacy IO systems.
2. Technical Features
2.1 High-Density IO Integration with Large Point Capacity & Strong Expandability
Equipped with multiple compact digital input and output channels, the module collects massive field discrete signals and drives actuators with one unit, greatly cutting cabinet occupation and field wiring workload. Compared with split-type IO modules, it boasts higher integration, more streamlined architecture and lower system failure rate, enabling fast IO capacity expansion for large and medium automation systems.
2.2 Electrically Isolated Channels with Outstanding Anti-Interference Performance
All IO channels adopt independent electrical isolation. Input and output circuits are mutually isolated with zero crosstalk between channels, effectively blocking industrial field interference including inverter harmonics, power surges, electrostatic discharge and electromagnetic radiation. It eliminates sampling misjudgment, false output and system logic disorder caused by high voltage feedthrough and signal crosstalk, ensuring accurate signal collection and reliable output actuation under complex electromagnetic environments.
2.3 High-Speed Bus Communication with Superior Real-Time Performance & Synchronization
Compatible with Honeywell proprietary industrial control bus protocols, it enables high-speed real-time data interaction. The module rapidly uploads field IO status and receives control commands issued by upper-level controllers, featuring fast data refresh and high timing synchronization precision. Multiple modules can be cascaded and networked to realize centralized management and unified timing of all-site IO signals, catering to high-precision, high-real-time process control applications.
2.4 Full-Channel Fault Self-Diagnosis for Easy & Efficient Maintenance
The module conducts automatic full hardware self-test upon power-on. During operation, it continuously monitors faults including channel open circuit, short circuit, overload, signal abnormality, bus disconnection and abnormal power supply. It pinpoints faulty channels and fault types precisely; panel status LEDs intuitively display operation, communication, channel and alarm status, while fault codes can be uploaded to upper systems. This drastically shortens fault diagnosis time and reduces maintenance difficulty.
2.5 Adaptable to Harsh Industrial Conditions for Long-Term Stable Operation
Built with industrial-grade components and anti-aging PCB technology, the module passes rigorous EMC electromagnetic compatibility tests with vibration resistance, dust resistance, moisture resistance and wide-temperature adaptability. It fits harsh environments with drastic temperature & humidity fluctuations, heavy electromagnetic interference and dense dust, such as industrial workshops, outdoor cabinets, oil & gas stations and power rooms, supporting maintenance-free continuous 7×24-hour operation.
2.6 Standard Rack Mount with Wide Adaptability & High Compatibility
With standard industrial rack DIN rail mounting, it is fully compatible with all Honeywell DCS/PLC control systems and seamlessly connects to existing main control units, bus structures and configuration logic. Legacy IO modules can be directly replaced on-site without modifying system programs or wiring layouts, facilitating rapid system expansion, equipment renovation and spare part replacement with excellent versatility and compatibility.
2.7 Multi-Layer Hardware Protection Ensuring Safe & Reliable Operation
It integrates comprehensive protection mechanisms: channel overcurrent protection, short-circuit self-locking, surge suppression, reverse polarity protection and overtemperature protection. When field circuits suffer short circuits, overload, wiring errors or voltage anomalies, the affected channel locks independently without disrupting other channels or the whole module. It effectively protects downstream loads and upstream control systems to prevent equipment damage and process safety incidents.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: FC-RUSIO-3224
- Manufacturer: Honeywell
- Device Type: Industrial high-density remote digital IO module
- Channel Configuration: Integrated high-density digital input (DI) + digital output (DO) channels
- Mounting Method: Standard industrial DIN rail rack mounting
- Core Functions: Field discrete signal acquisition, remote logic output, bus data communication, channel fault self-diagnosis, electrical isolation protection
- Compatible Systems: Honeywell DCS/PLC industrial process control systems
- Operating Characteristics: 7×24 continuous operation, independent single-channel fault tolerance, electrical isolation, maintenance-free, high noise immunity
3.2 Input & Output Channel Parameters
- Channel Type: Industrial standard digital DI input, digital DO output
- Signal Standard: Compliant with industrial DC discrete signal specifications
- Channel Isolation: Independent galvanic isolation per channel; mutual isolation between input and output circuits
- Input Performance: Signal debounce filtering, error code suppression, stable status free of fluctuation
- Output Performance: Strong driving capacity, fast response; compatible with common industrial loads such as solenoid valves, relays and indicator lamps
3.3 Communication Parameters
- Communication Protocol: Honeywell exclusive industrial control bus protocol
- Communication Rate: High-speed real-time communication with low data refresh latency
- Networking Mode: Multi-module cascading networking, remote IO substation expansion
- Data Functions: Real-time IO status upload, remote command reception, fault reporting, online parameter verification
3.4 Protection & Self-Diagnosis Parameters
- Self-Diagnosis Functions: Power-on full system self-test, channel open/short detection, communication fault detection, abnormal power monitoring
- Hardware Protection: Channel overcurrent protection, short-circuit self-locking, reverse wiring protection, surge suppression, overtemperature protection
- Alarm Feedback: Onboard LED alarm + fault code upload to upper computer
- Fault Tolerance: Independent lockout of faulty single channels with no impact on the whole unit or other channels
3.5 Electrical Power Parameters
- Supply Voltage: Standard industrial DC power supply, matching regulated power supplies for control cabinets
- Power Features: Wide voltage tolerance, reverse polarity prevention, surge resistance, low power consumption
- Power Protection: Built-in power filtering and voltage regulation circuits to resist grid fluctuation and power interference
3.6 Environmental & Mechanical Parameters
- Operating Temperature: 0℃ ~ +60℃ for long-term continuous cabinet operation
- Storage & Transit Temperature: -20℃ ~ +70℃ to meet transportation and long-term storage requirements
- Operating Humidity: 5%~95% RH (non-condensing)
4. Operating Principle
After power-on, the Honeywell FC-RUSIO-3224 remote IO module completes full hardware self-test, channel initialization, communication protocol handshake and system parameter loading. It enters normal IO operation after passing self-inspection.
Digital input channels collect real-time status of field sensors, switches and limit devices. After signal filtering, debounce calibration and electrical isolation, stable and reliable point status data is uploaded to the host DCS/PLC via industrial buses, providing accurate field data for system logic calculation, interlock judgment and status monitoring.
Meanwhile, the module receives discrete output commands sent by upper controllers in real time. Following internal logic verification and isolated drive amplification, digital output channels actuate field loads including solenoid valves, relays and actuators to realize remote automatic control.
Full-time real-time diagnostic monitoring runs throughout operation, continuously tracking channel wiring conditions, communication links, power status and hardware temperature. Once faults such as circuit short circuit, overload, signal abnormality or communication dropout occur, the faulty channel locks automatically. The module triggers local alarms and uploads fault information to avoid fault propagation. Channels resume normal operation automatically after faults are cleared, guaranteeing stable, continuous and safe operation of the entire automatic control system.
