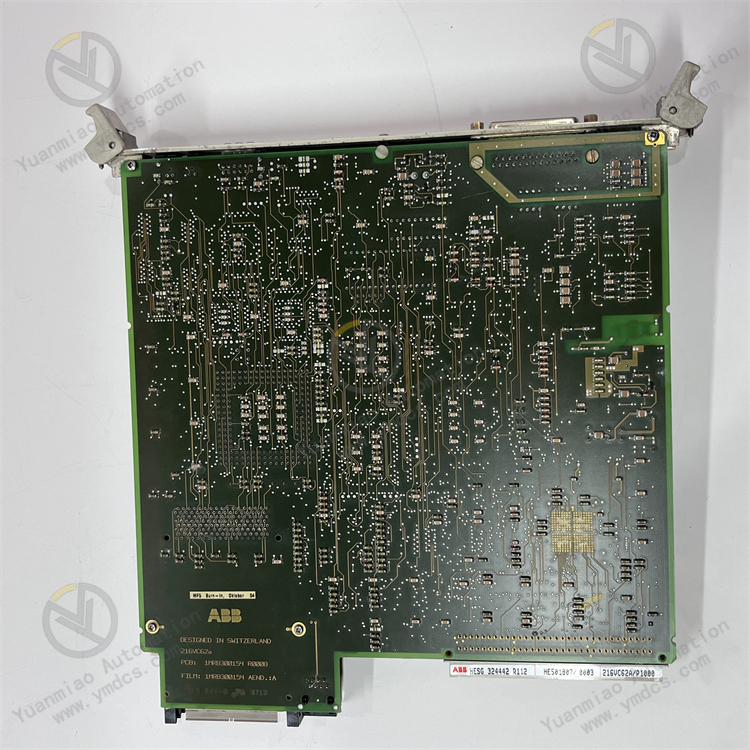

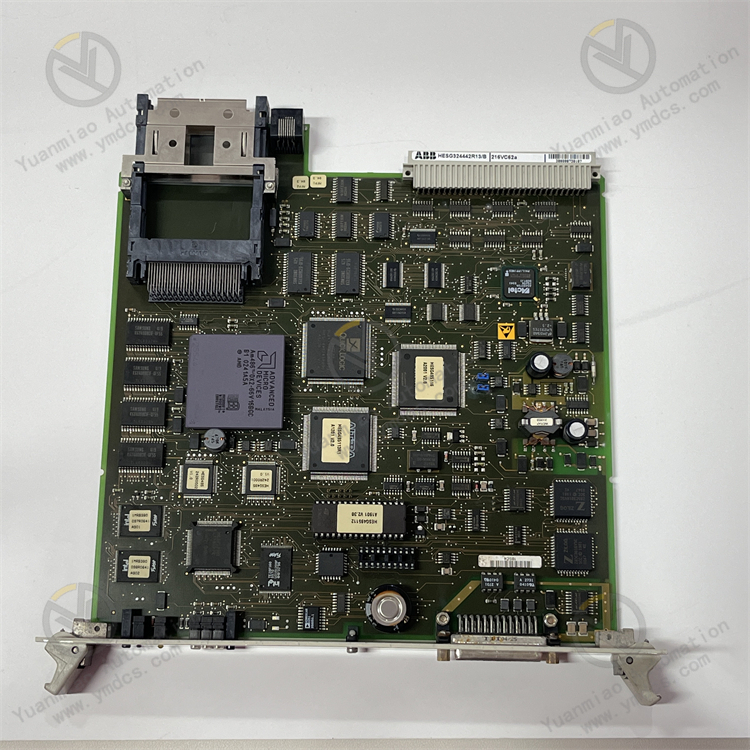

ABB 216VC62a-P1000 HESG324442R112 CPU control board for generator set protection

Description

1. Product Overview

Full Model: 216VC62a-P1000

Part Number: HESG324442R112

Manufacturer: ABB

Product Name: REG216 System High-Precision Main Control Processing Unit / Generator Protection CPU Master Card (P1000 High-Performance Version)

Product Description ABB 216VC62a-P1000 (HESG324442R112) is the P1000 high-performance upgraded main control CPU unit of the ABB REG216 series digital generator protection and control system. It is compatible with the ABB Symphony Plus DCS platform and developed for scenarios requiring high-precision protection, high-speed data computation and complex process interlock regulation in large-scale thermal power, hydropower, cogeneration and new energy generating units. Compared with the standard 216VC62a, this version adopts a high-performance DSP computing chip with comprehensively improved computing capacity, data sampling rate and fault response speed. It serves as the core hardware for precise protection and stable control of generating units.

The module undertakes core tasks including overall data computing coordination, bus scheduling, protection logic judgment, interlock management, event recording and communication interaction with upper systems. It coordinates all data exchange and logic control of AI/AO analog modules, DI/DO digital modules and signal acquisition modules inside the rack. It supports dual main control hot-standby redundant deployment within a single rack, and integrates advanced digital filtering, harmonic suppression, millisecond-level fault snapshot and system-wide self-diagnosis mechanisms to accurately identify various unit fault conditions and prevent unwanted operation and failure-to-trip of protection functions. This customized hardware is specially designed for power stations. Only genuine identical replacement is permitted; general industrial control CPU modules or lower-version master cards shall not be used as substitutes to ensure long-term continuous, safe and stable operation of generating units.

2. Core Functions

1. High-performance overall operation scheduling. Equipped with a 1.2 GHz high-speed DSP processor, it coordinates the B448C parallel bus at high speed, centrally processes all types of unit process data such as temperature, pressure, flow, rotating speed, valve position and electrical parameters, and realizes high-precision filtering and noise reduction, engineering unit conversion and complex logic operation to adapt to high-concurrency data processing scenarios.




2. Upgraded dedicated protection algorithms for generating units optimized for complex operating conditions of large units. It can accurately identify various faults including overvoltage, undervoltage, overcurrent, overload, harmonic abnormality, parameter over-limit and process disturbance, and rapidly trigger local alarms, remote data upload, interlock blocking and unit trip protection actions with faster response and more accurate judgment.




3. Redundancy fault-tolerant hot standby capability. It perfectly adapts to single/dual main control redundant architecture of the rack. Two modules realize real-time data synchronization, parallel computation and hot standby monitoring. Bumpless automatic switchover will be activated when the active module fails, completely eliminating risks of system outage and protection failure caused by single-point faults of the main controller.




4. High-speed multi-protocol communication. Compatible with mainstream industrial protocols including PROFIBUS DP/V1, Industrial Ethernet and Modbus RTU. It seamlessly connects with Symphony Plus DCS, upper configuration systems, local monitoring terminals and remote operation & maintenance platforms, supporting remote parameter configuration, high-speed real-time data upload and online system diagnosis.




5. Comprehensive intelligent system-level self-diagnosis. Continuously monitors module hardware status, bus link conditions, operation status of IO subcards, power supply quality and communication stability. It accurately locates card faults, communication interruptions, configuration errors and parameter abnormalities, actively uploads alarms and greatly reduces troubleshooting workload for maintenance staff.




6. Large-capacity high-precision data storage. Supports full recording of millisecond-level sequence-of-event logs, fault snapshots, interlock action logs and parameter modification trails, fully restoring the whole process of unit abnormalities to meet requirements of fault tracing, maintenance analysis, unit performance optimization and compliance archiving.




7. Supports online maintenance without unit shutdown. Parameter calibration, protection threshold adjustment, logic optimization, firmware upgrade and configuration update can be completed online. System commissioning and function iteration can be implemented without shutting down the unit, adapting to the production and operation mode of long-term continuous operation in power plants.

3. Technical Features

1. P1000 high-performance computing architecture: Equipped with a 1.2 GHz industrial high-speed DSP chip and dedicated operation firmware, it delivers far stronger computing power than standard versions. It supports synchronous high-frequency multi-channel data processing and parallel computation of complex protection logic without delay, packet loss or logic disorder, satisfying high-precision and fast-response protection & control requirements of large generating units.




2. High-reliability redundant fault-tolerant design: Natively compatible with dual hot-standby main control architecture with automatic bumpless switchover upon faults. Single-point hardware failure will not affect the operation of the whole protection and control system. The underlying architecture avoids unwanted operation and failure-to-trip of protection, suitable for high-risk uninterrupted operation scenarios of power stations.




3. Advanced high-precision signal processing capability: Integrated multi-stage digital filtering, DC component removal and multi-frequency harmonic suppression algorithms. It effectively eliminates strong electromagnetic interference and clutter disturbances on industrial sites, significantly improving signal sampling accuracy and stability of protection logic judgment for operation under complex interference environments.




4. Integrated system-wide coordination & management: Uniformly controls all IO subcards of the REG216 rack to realize centralized data computation, unified management of protection logic and standardized communication output. The system architecture is concise with consistent logic for convenient daily operation and fault troubleshooting.




5. High compatibility and expandability: Natively compatible with ABB Symphony Plus automation platform and Control Builder Plus V3.0 and later programming software. It supports subsequent protection logic upgrade, function expansion and channel expansion, perfectly matching renovation, system upgrade and capacity expansion projects of new and existing generating units.




6. Fast non-destructive maintenance replacement: Standard 6U 19-inch rack-mounted plug-in design. Interfaces, bus protocols and hardware pins are fully compatible with systems of the same series. After replacement, no modification to unit protection logic and interlock circuits is required. Rapid commissioning can be achieved merely by synchronizing configurations and parameters, effectively shortening maintenance downtime and reducing operation costs.

4. Specification Parameters

5. Working Principle

After power-on, the module automatically performs hardware self-test, DSP firmware initialization, B448C bus activation, full scanning of rack IO subcards and loading of system configuration parameters. It verifies power supply circuits, bus links, subcard operating status and external communication links item by item, and enters high-performance main control operation mode after passing self-test.

During normal system operation, relying on the computing capability of the 1.2 GHz high-speed DSP, 216VC62a-P1000 conducts high-frequency polling to collect raw monitoring data from all analog and digital subcards in the rack via the dedicated parallel bus. With advanced digital filtering, harmonic suppression and signal shaping algorithms, it completes data noise reduction, DC component removal, accurate engineering unit conversion and high-speed logic operation. In strict accordance with preset protection thresholds, delay logics and interlock strategies, the module carries out real-time high-precision evaluation on operating conditions of generators and auxiliary equipment. Under normal operating conditions, real-time data is steadily uploaded and trend curves & operation logs are updated continuously. Once risks such as parameter over-limit, equipment abnormality, circuit fault or process disturbance are detected, local audible & visual alarms and remote platform alarms will be triggered immediately, together with unit interlock blocking and trip protection actions to prevent further expansion of equipment faults.

Under dual redundant architecture, two sets of 216VC62a-P1000 modules synchronize operation data, configuration parameters and fault logs in real time and maintain hot standby monitoring status. When the active module suffers operation abnormality, communication failure or hardware fault, millisecond-level bumpless switchover is implemented, and the standby module seamlessly takes over all control, computation and communication tasks without monitoring interruption, data loss or accidental protection activation. Meanwhile, the module continuously executes system-wide self-diagnosis and data storage functions, completely saving sequence-of-event records, fault snapshots and parameter modification logs to accurately locate fault points and realize full-process traceability of unit operation, ensuring long-term high-precision and stable operation of the entire protection and control system.

6. Common Faults and Solutions

1. Main controller offline, no communication with upper system, overall system disconnection

Causes: High-speed DSP program freeze or abnormal firmware operation; loose, aged or broken B448C bus; incorrect communication baud rate, device address and protocol parameters; damage or loss of core firmware.

Solutions: Reset the main controller via local or remote restart; verify and correct PROFIBUS and Ethernet communication parameters; inspect and fasten bus wiring and backplane contacts; re-flash original P1000-compatible firmware; replace the module if the fault persists.

2. Incomplete IO subcard scanning, partial channels offline, data stop updating

Causes: Abnormal bus scheduling under high computing load and high-frequency polling congestion; poor contact or oxidation aging of backplane bus; missing or corrupted system hardware configuration; abnormal DSP computing threads leading to subcard identification failure.

Solutions: Refresh system hardware configuration and re-scan all rack IO devices globally; clean and fasten backplane bus contacts and wiring; restart the module to restore high-speed bus scheduling; organize and repair system configuration files; replace original module directly in case of underlying hardware failure.

3. Erroneous protection logic judgment, frequent false alarms, disordered interlock actions

Causes: Abnormal firmware operation and incorrect high-frequency data parsing; improperly configured protection thresholds, delay parameters and interlock logic; hardware aging and data drift after long-term operation; program anomaly induced by severe on-site electromagnetic interference.

Solutions: Verify and calibrate generator protection thresholds, delay logics and interlock strategies item by item; optimize cabinet grounding and shielding to suppress on-site electromagnetic interference; back up valid configurations, restore factory settings and reload matching parameters; replace the module when hardware aging results in invalid logic judgment.

4. Self-test error after power-on, abnormal indicator lights, failure of normal initialization and startup

Causes: Unstable rack power supply with undervoltage/overvoltage fluctuation; dust accumulation and moisture leading to reduced circuit insulation of the module; damaged DSP computing chip; corrupted or lost firmware.

Solutions: Inspect and stabilize rack power supply voltage and troubleshoot faults in power supply loops; clean dust on module gold fingers and circuit boards and dry damp circuits; re-flash matching original firmware; confirm hardware damage and replace the module directly if multiple recovery attempts fail.

5. Abnormal redundant switchover, asynchronous data between dual main controllers, offline standby unit

Causes: Inconsistent firmware versions and mismatched computing parameters of two modules; faulty redundant synchronization bus links; unsynchronized configuration parameters and protection logic; address conflict between active and standby controllers.

Solutions: Unify P1000 firmware versions and system operating parameters of both main controllers; troubleshoot and repair faults of redundant synchronization bus; synchronously import identical configuration files and protection logic; reinitialize redundant architecture and complete precise synchronization calibration between active and standby units.

6. System unrecognition, mismatched parameters and abnormal protection functions after module replacement

Causes: Firmware version of the new module incompatible with Symphony Plus and REG216 system; historical backup configuration parameters not imported; uncalibrated bus address and redundancy parameters; system hardware configuration not updated.

Solutions: Flash original dedicated P1000 firmware compatible with the system; import backup configuration and calibrate protection thresholds, zero points and logic parameters channel by channel; correct bus address and redundancy settings; refresh system hardware configuration and restart the whole system for initialization before commissioning.
