Description
1. Overview

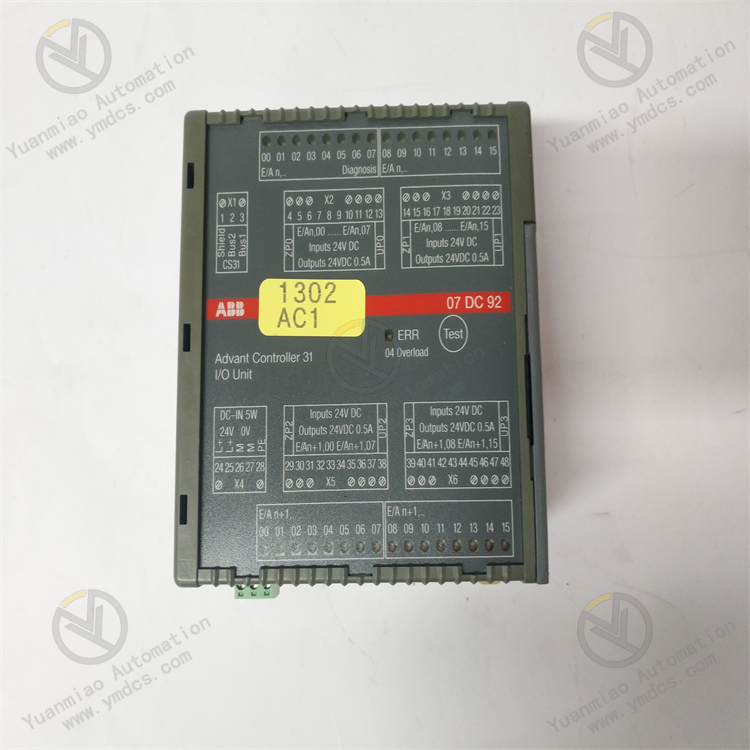

ABB 07DC92 (part number GJR5252200R0101) is a 32‑channel programmable digital input/output mixed module for ABB Advant Controller 40/50 series and AC500 control systems. It belongs to ABB original high‑performance distributed I/O hardware portfolio. Supporting independent per‑channel programming, it allows flexible switching between digital input (DI) and digital output (DO) modes. Designed for field discrete‑signal acquisition, valve on‑off control, relay driving, equipment interlocking and switch‑status monitoring, it serves as a core I/O unit for discrete control, equipment logic interlocking and electrical point monitoring in process industries.
07DC92 GJR5252200R0101 operates on standard 24 VDC industrial power supply with 0.5 A rated output current per channel. It features galvanic isolation between logic side and field output side, hardware self‑diagnosis, over‑current & over‑temperature protection and independent channel configuration, suitable for 24‑hour non‑stop industrial production. With compact form factor and high integration, it reduces cabinet I/O footprint significantly. It is widely used for I/O expansion, faulty‑module replacement and automation‑system retrofitting on legacy ABB systems. Fully compatible with matching controllers and back‑plane bus, it can be put into service directly without extensive commissioning after replacement.
2. Functions and Features
2.1 Core Functions
32‑Channel Programmable Mixed I/O Configuration: Equipped with 32 independent channels. Each channel can be programmatically switched between digital input (DI) and digital output (DO). It meets signal‑acquisition and device‑driving requirements for different points without hardware modification, balancing flexibility and versatility.
Standard 24 VDC Discrete‑Signal Processing: Compatible with industrial 24 VDC discrete signals. It acquires passive/active switch signals from proximity switches, limit switches, push‑buttons and relay contacts, and drives low‑voltage field devices such as small relays, indicator lamps and solenoid valves.
Per‑Channel Independent Protection and Control: Each channel implements independent over‑current, overload and short‑circuit protection. Fault on one channel will not affect operation of other channels, preventing full‑module point failure caused by single‑point fault and ensuring system control stability.
Comprehensive Hardware Self‑diagnosis and Alarm: Continuously monitors channel short‑circuit, overload, open‑circuit, output abnormality, module power‑supply fault and bus communication error. It pinpoints faulty channel and fault type, and uploads fault codes and alarm messages to ease on‑site maintenance troubleshooting.
Galvanically Isolated Anti‑interference Signal Transmission: Galvanic isolation between internal logic circuit and field output circuit suppresses electromagnetic interference, ground‑potential difference and surge disturbance, avoiding false triggering, intermittent signal dropout and logic disorder induced by field noise.
High‑speed Bus Data Exchange: Compliant with ABB proprietary back‑plane bus protocol. It uploads 32‑channel status data and downloads control commands at high speed with low latency and good synchronisation, satisfying real‑time logic control and interlock response requirements of industrial applications.
Compatibility with System Redundancy and Fault‑tolerant Architecture: Natively supports redundant operation logic of ABB control systems. It enables bumpless data synchronisation and link switchover for redundant control of critical process equipment and guarantees uninterrupted discrete interlock logic.
2.2 Product Features
High Integration for Cabinet Space Saving: One module accommodates 32 high‑density I/O channels, replacing multiple conventional 16‑channel modules. It simplifies cabinet hardware layout, reduces wiring workload and lowers cabinet occupation and procurement cost.
Flexible Programmability for Multiple Scenarios: Channel mode is user‑programmable with free DI/DO switching. It adapts to various process‑point requirements without rewiring, ideal for equipment retrofitting, process modification and point expansion.
Industrial‑grade Reliable Protection Design: Built with rugged industrial components, ageing‑resistant PCB and multi‑stage circuit protection. It withstands dust, humidity, minor vibration and temperature fluctuation in industrial sites and achieves low failure rate during long‑term continuous operation.
Robust Anti‑interference Performance: Multi‑layer protection combining galvanic isolation, power‑supply filtering and surge suppression mitigates radiation from frequency‑conversion devices, line noise and ground‑loop interference to prevent discrete‑signal mis‑operation and point jitter.
Original Plug‑and‑play Compatibility with Minimal Commissioning: Fully compatible with ABB Advant Controller 40/50 and AC500 series. Back‑plane interfaces, bus protocols and configuration logic are perfectly matched. Replacement of legacy modules requires no rewiring or configuration rework for fast commissioning.
3. Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model | 07DC92 GJR5252200R0101 |
| Device Type | 32‑channel programmable digital input/output mixed module |
| Number of Channels | 32 independent programmable I/O channels |
| Channel Configuration Mode | Per‑channel independent programming, DI/DO switchable |
| Rated Operating Voltage | 24 VDC (standard industrial DC supply) |
| Output Current per Channel | Max. 0.5 A per channel |
| Galvanic Isolation | Isolation between logic side and field output side |
| Protection Mechanism | Per‑channel independent short‑circuit, overload and over‑temperature protection |
| Communication | ABB proprietary back‑plane bus |
| Ingress Protection | IP20 (standard for cabinet‑internal installation) |
| Operating Temperature | 0 ℃ ~ +60 ℃ (standard industrial condition) |
| Ambient Humidity | 5%‑95%RH, non‑condensing |
| Explosion‑proof Rating | Standard non‑explosion‑proof version for cabinet‑mounting |
| Dimensions | 67.5 × 76 × 54 mm |
| Weight | Approx. 0.2 kg |
| Applicable Systems | ABB Advant Controller 40/50, AC500 control systems |
4. Working Principle
ABB 07DC92 GJR5252200R0101 mixed I/O module follows closed‑loop workflow: Channel Configuration Initialisation → Isolated Signal Acquisition / Command Output → Hardware Protection & Verification → Bus Data Exchange → Real‑time Self‑diagnosis.
After power‑on, the module completes hardware self‑test, bus matching and channel‑mode initialisation. According to system configuration parameters, 32 channels are assigned as digital input or digital output respectively.
For input‑mode channels: field 24 VDC discrete level signals are acquired, processed through opto‑isolation, signal shaping and noise filtering. Standard switch‑status data is uploaded to the main controller for real‑time monitoring of field‑device status, switch points and limit signals.
For output‑mode channels: discrete control commands from main controller go through logic validation, driver amplification and isolation protection. 24 VDC discrete signals are output to drive field actuators such as solenoid valves, relays and indicator lamps to realise equipment start‑stop, logic interlock and condition switching.
All channels are continuously monitored during runtime. Upon detection of short‑circuit, overload, over‑temperature or signal anomaly on any channel, per‑channel latching protection is activated: output of faulty channel is cut off and alarm is reported to host system, while remaining healthy channels keep working. The module also monitors bus communication and power‑supply status to ensure stable I/O data transmission and accurate logic execution for continuous industrial automatic control.
5. Application Scenarios
Discrete‑signal Automatic Control for Chemical Processes: Acquisition of valve status, pump‑valve interlock control, limit‑signal monitoring and equipment start‑stop logic for refinery, coal‑chemical and fine‑chemical plants, supporting safety interlock and discrete control for continuous chemical production.
Auxiliary‑control Systems for Power Plants: Discrete‑signal acquisition of auxiliary equipment, relay‑loop control, device‑status feedback and safety‑interlock triggering in thermal power and cogeneration plants, providing accurate discrete signals for unit auxiliary‑system logic coordination and equipment protection.
Oil‑gas Production Control Systems: Field switch‑device status monitoring, emergency interlock control and pipeline valve actuation for oilfields, gas fields and LNG facilities, suitable for remote unattended high‑reliability continuous operation.
General‑purpose Industrial Automation: Discrete‑point acquisition, equipment coordination, safety interlock and condition monitoring for production lines in metallurgy, water treatment, pharmaceutical and building‑material industries. Flexible configuration meets various discrete‑control demands.
Expansion and Maintenance for Legacy ABB Systems: Direct replacement for aged or faulty I/O modules in existing ABB AC500 and Advant Controller 40/50 installations. No system‑architecture rework or major configuration change is needed for fast point expansion and system upgrade.
6. Common Faults and Troubleshooting
6.1 No input / no output on single channel, point status remains unchanged
Fault Causes: Incorrect channel DI/DO configuration, field‑circuit open‑circuit / poor contact, channel latched by overload protection, failure of field‑end device, hardware damage of individual channel.
Solutions: Verify and correct DI/DO configuration parameters. Inspect field cables, terminals and field devices to repair open‑circuit or poor contact. Power‑cycle to clear overload latching. If no response after eliminating field causes, single‑channel hardware failure is confirmed; replace original 07DC92 module.
6.2 Frequent overload alarms on output channels, failure to drive loads normally
Fault Causes: Short‑circuited field load, load current exceeding rated 0.5 A, cable insulation damage with leakage, degraded channel driver circuit.
Solutions: Inspect field loads, remove short‑circuited or over‑rated equipment. Check cable insulation and repair damaged sections. Reset module protection and retest channel output. Replace module if alarms recur.
6.3 Frequent input‑point dropout, signal jitter and false triggering
Fault Causes: On‑site electromagnetic interference, defective earthing & shielding, unstable connection, signal noise, degraded module filtering performance.
Solutions: Improve earthing and shielding to suppress electromagnetic interference. Tighten terminals and remove oxide layers. Optimise software filter parameters. Replace I/O module if jitter cannot be eliminated.
6.4 Overall module communication failure, no data for all points
Fault Causes: Poor back‑plane bus contact, abnormal module power supply, bus protocol mismatch, abnormal module firmware.
Solutions: Check 24 VDC back‑plane power supply and bus interfaces. Clean module gold‑fingers and slot contacts and re‑seat firmly. Power‑cycle to refresh firmware state. Replace spare module if communication failure persists, indicating damaged bus circuitry.
6.5 Failed channel configuration, unable to switch DI/DO mode
Fault Causes: Abnormal module firmware, failed configuration‑parameter download, defective channel‑control circuit, mismatched system program version.
Solutions: Check compatibility between system program version and module, re‑download configuration parameters. Reboot module for channel re‑initialisation. Re‑flash module firmware to fix program anomaly. Replace original module if configuration function cannot be recovered.
