Description
1. Overview

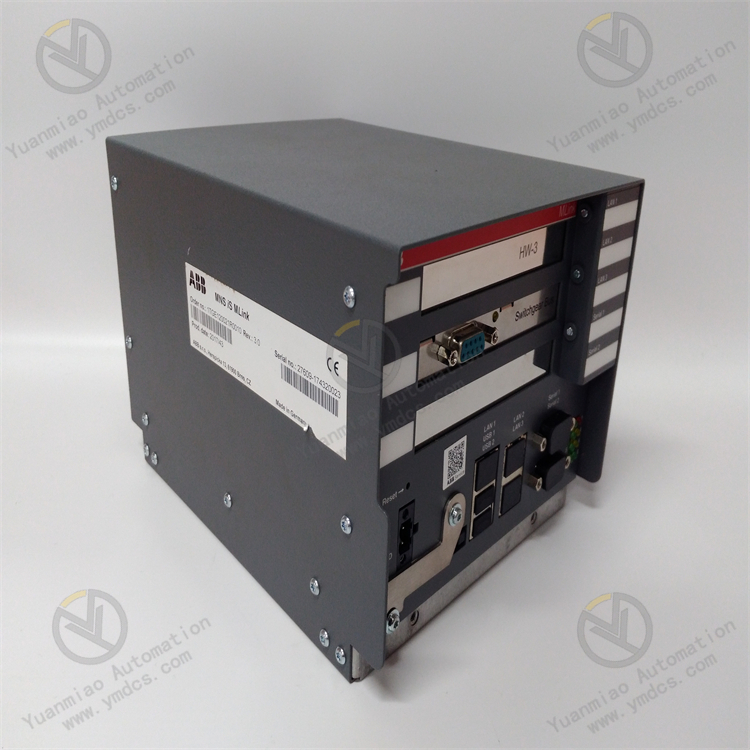

ABB 1TGE120021R0010 is a multi‑protocol communication gateway module dedicated for ABB MNS iS intelligent low‑voltage switchgear system, and core supporting hardware for low‑voltage intelligent power distribution automation. Designed for bus data exchange, protocol conversion, field‑device networking and upper‑level system interconnection of low‑voltage power‑distribution equipment, it enables data intercommunication between the internal MControl bus of low‑voltage cabinets and industrial Ethernet bus. It acts as a critical relay unit for equipment networking, data acquisition, remote monitoring and intelligent operation & maintenance in intelligent power‑distribution systems.
Natively supporting multiple mainstream industrial communication protocols, 1TGE120021R0010 adopts dual‑interface architecture integrating RS485 field bus and RJ45 Ethernet. It features automatic protocol adaptation, transparent data transmission, bus‑signal galvanic isolation, on‑board diagnosis and fault tolerance, solving data‑interoperability challenges of multi‑device, multi‑protocol and multi‑segment low‑voltage power‑distribution systems. With compact dimension, simple configuration and reliable operation for 24‑hour non‑stop industrial power‑distribution service, it is widely applied for MNS iS cabinet system expansion, legacy‑gateway replacement, intelligent power‑distribution retrofitting and multi‑device networking upgrade. It delivers excellent OEM compatibility, fast commissioning and requires no complex secondary development.
2. Functions and Features
2.1 Core Functions
Dual‑way Multi‑protocol Conversion Communication: Supports mainstream industrial protocols including Modbus RTU, Modbus TCP, PROFINET IO and Ethernet/IP. It realizes bidirectional transparent data transmission, protocol parsing and format conversion between serial bus and Ethernet bus, breaking communication barriers between internal cabinet devices and upper‑level monitoring systems.
Dedicated Bus Interconnection for MNS iS System: Equipped with standard RS485 interface for exclusive adaptation to the proprietary MControl bus protocol inside ABB MNS iS cabinets. It centrally collects operating data and status information of circuit‑breakers, contactors, smart meters and protection devices to achieve unified networking and management of cabinet‑mounted equipment.
High‑speed Data Interaction with Upper‑level Systems: Fitted with standard RJ45 Ethernet port for direct connection to PLC, DCS, SCADA and host configuration systems. It uploads critical power‑distribution data such as current, voltage, power, fault alarms and switch status at high speed, and receives remote control and parameter‑configuration commands simultaneously.
Real‑time Bus Condition Monitoring and Diagnosis: Built‑in bus communication self‑check mechanism continuously monitors connection status, data‑transmission rate, message integrity and link load of serial and Ethernet links. It accurately locates faults including bus disconnection, message loss, protocol mismatch and device offline.
Anti‑interference Transmission with Galvanic Isolation: Bus interfaces adopt galvanic‑isolation protection to effectively suppress electromagnetic interference, ground‑potential difference and line noise in low‑voltage power‑distribution sites. It prevents bus‑signal distortion, data packet loss and intermittent communication dropout to guarantee stable and reliable power‑distribution data transmission.
On‑line Configuration and Parameter Setting: Supports on‑line parameter modification, protocol switching, device‑address configuration and baud‑rate adjustment. Networking optimization and parameter calibration can be completed without power‑off or shutdown, greatly reducing system commissioning and O&M downtime costs.
Fault‑tolerant Self‑recovery for Stable Operation: Provides communication‑abnormality self‑recovery, auto‑reconnection after disconnection and data‑cache protection. Communication can be restored automatically under temporary link fluctuation and transient interference, avoiding overall networking breakdown caused by single‑point fault and meeting continuous‑operation requirements of industrial power distribution.
2.2 Product Features
Powerful Multi‑protocol Compatibility: Covers mainstream communication protocols for low‑voltage power‑distribution industry. Compatible with upper‑level systems and field devices from different manufacturers, it eliminates extra protocol converters, simplifies networking architecture and cuts auxiliary equipment costs.
Industrial‑grade Wide‑temperature Stability: Built with rugged industrial components, it withstands temperature fluctuation, dust and minor vibration inside switch cabinets. No communication‑performance degradation or parameter drift occurs across wide temperature range, achieving ultra‑low failure rate for long‑term continuous operation.
Compact Form for Easy Installation and Wiring: Slim modular compact structure supports standard in‑cabinet mounting with minimal space occupation and neat wiring. It fits the standardized layout of MNS iS cabinets for convenient construction and maintenance.
Optimized for High‑interference Power‑distribution Environments: Specially engineered for heavy‑electromagnetic‑interference scenarios with densely‑arranged contactors, frequency converters and switching devices inside low‑voltage cabinets. Multi‑stage filtering and isolation protection eliminate communication anomalies and data distortion induced by electromagnetic disturbance.
Plug‑and‑play without Complex Debugging: Natively compatible with ABB MNS iS intelligent low‑voltage systems with fully‑matched underlying protocols and communication logic. Legacy‑gateway replacement or new networking can be quickly commissioned via simple configuration, no low‑level programming required.
3. Specifications
| Parameter Item | Technical Specification |
|---|---|

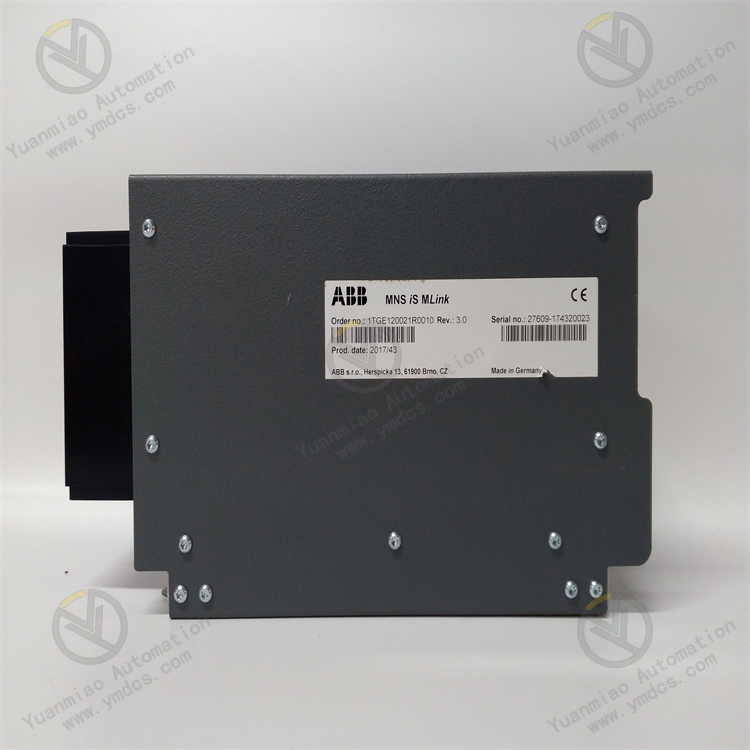

| Model | 1TGE120021R0010 |
| Device Type | Multi‑protocol communication gateway module for MNS iS system |
| Core Functions | Multi‑protocol conversion, serial/Ethernet transparent data transmission, in‑cabinet device networking, bus diagnosis, data upload & download |
| Power Supply | 24 VDC standard industrial DC power supply |

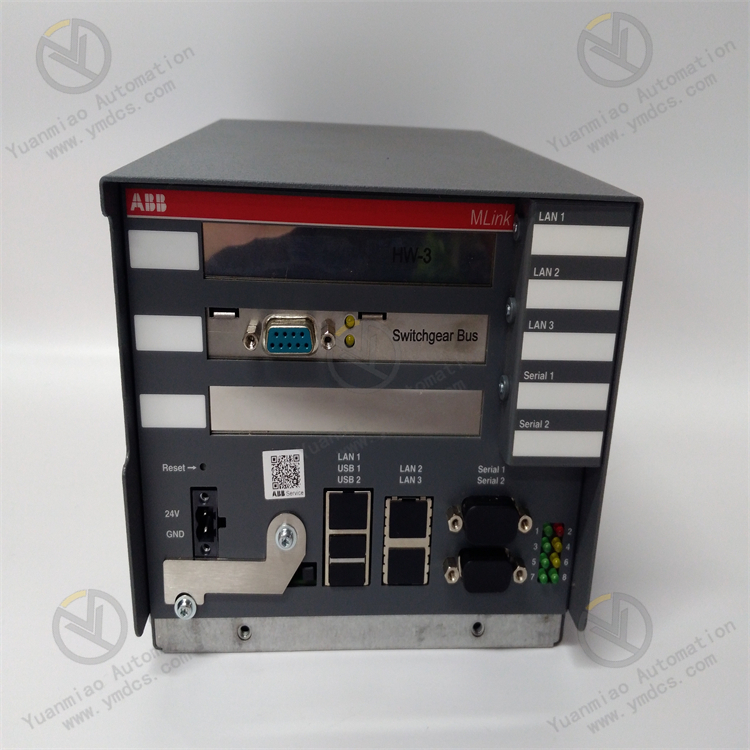

| Hardware Interfaces | RS485 serial port (for MControl bus); RJ45 Ethernet port (for upper‑level systems) |
| Supported Protocols | Modbus RTU, Modbus TCP, PROFINET IO, Ethernet/IP |
| Isolation Performance | Galvanic isolation on bus interfaces; resistance against ground‑potential difference and surge disturbance |
| Operating Temperature | ‑20 ℃ ~ +60 ℃ (standard industrial condition) |
| Storage Temperature | ‑40 ℃ ~ +85 ℃ |
| Ambient Humidity | 5%‑95% RH, non‑condensing and frost‑free |
| Ingress Protection | IP20 (standard protection for cabinet‑internal installation) |
| Mounting Method | Modular fixed mounting inside low‑voltage cabinet |
| Applicable Systems | ABB MNS iS intelligent low‑voltage switchgear system, industrial SCADA/DCS power‑distribution monitoring system |
4. Working Principle
ABB 1TGE120021R0010 gateway module adopts a bidirectional closed‑loop communication workflow: Field Device Data Acquisition → Protocol Parsing & Conversion → Data Caching & Verification → Ethernet Transparent Upload → Remote Command Dispatch & Execution. After power‑on, the module completes hardware self‑test, interface initialization and bus‑protocol matching, then enters normal communication operation.
Via RS485 interface, the module connects to the internal MControl bus of MNS iS cabinets, and polls operating parameters, switch status, fault alarms and energy data of intelligent circuit‑breakers, load‑break switches, contactors, power meters and protective relays. Through signal filtering, data verification and protocol parsing, proprietary‑bus data is converted into standard industrial‑Ethernet protocol data. Abnormal data and invalid messages are filtered out to ensure accuracy and validity of uploaded data.
Converted standardized data is transmitted to SCADA, DCS and host configuration systems through RJ45 Ethernet port for remote power‑condition monitoring, data statistics and fault tracing. Meanwhile, the module receives remote control, parameter‑modification and device‑debug commands from upper‑level systems. After protocol conversion and logic verification, commands are dispatched to corresponding field devices via serial bus to realize remote management. Throughout operation, dual‑link communication status is monitored continuously. Functions including auto‑reconnection, data fault tolerance and fault self‑locking are available. Critical data is cached automatically upon link failure and resynchronized after link recovery, ensuring non‑interrupted communication of power‑distribution systems.
5. Application Scenarios
MNS iS Intelligent Low‑voltage Cabinet Networking: As core communication relay unit for ABB MNS iS low‑voltage switchgears, it realizes centralized networking of intelligent electrical devices within single or multiple cabinets, aggregates power‑distribution data and solves the problem of scattered devices and inconsistent communication.
Industrial Power‑distribution Remote‑monitoring System: Deployed in factory low‑voltage power‑distribution systems, workshop power cabinets and complete power‑distribution assemblies. It establishes communication links between field power‑distribution equipment and upper‑level monitoring systems to enable remote parameter acquisition, real‑time device‑status monitoring and remote fault alarming.
Multi‑protocol Power‑distribution‑system Compatibility Retrofit: For legacy power‑distribution systems with limited protocols incapable of connecting new host systems, multi‑protocol conversion enables inter‑operation between new and old devices of different protocols, supporting intelligent upgrading of power‑distribution facilities.
Power Automatic‑control Systems for Industrial & Mining Plants: Applied in power‑distribution systems of metallurgy, chemical, water‑treatment and manufacturing plants. It provides stable data‑communication support for power interlock, energy‑consumption statistics, equipment maintenance and early‑fault warning of production‑line power equipment.
Legacy‑gateway Replacement and System Expansion: Fully compatible with all legacy ABB MNS iS systems. Aged, slow‑communicating or protocol‑failed old gateways can be directly replaced without modifying cabinet wiring or device configuration, to rapidly restore system communication and expand signal points.
6. Common Faults and Troubleshooting
6.1 Module powers on normally, yet no power‑distribution data is uploaded to upper‑level system
Fault Causes: Ethernet link disconnection, conflicting IP address, incorrect protocol matching, mismatched host‑port parameters, abnormal gateway data forwarding.
Solutions: Inspect Ethernet cable and port for damage and poor contact; verify gateway IP address, subnet mask and port parameters, resolve IP conflict and configuration errors; unify communication protocol and baud‑rate parameters between upper and lower levels; restart gateway communication service. If no data is transmitted with correct configuration, Ethernet forwarding circuit is defective; replace original module.
6.2 Partial cabinet‑mounted devices are offline and single‑point data is missing
Fault Causes: Poor RS485 bus contact, failed bus terminating resistor, duplicate device address, severe serial‑bus interference, abnormal gateway polling.
Solutions: Inspect MControl bus wiring and terminal tightening inside cabinet, repair loose connection and open‑circuit faults; check device communication addresses and eliminate duplication; verify and fit bus terminating resistor to optimize bus impedance; improve cabinet earthing and shielding to mitigate electromagnetic interference; restart bus polling. If partial devices remain offline, serial‑communication unit is faulty; replace module.
6.3 Frequent data fluctuation, garbled messages and severe packet loss
Fault Causes: Excessive bus electromagnetic interference, poor earthing, abnormal protocol parsing, degraded module filtering performance, over‑limit bus load.
Solutions: Optimize power‑cabinet earthing and shielding, keep away from interference sources such as frequency converters and contactors; reduce bus load to avoid over‑rating operation; recalibrate protocol‑parsing parameters and enable data‑filtering function; remove dust from module and improve operating environment. Replace gateway module if data disorder cannot be rectified.
6.4 Frequent gateway disconnection, auto‑reboot and intermittent communication dropout
Fault Causes: 24 VDC power‑supply fluctuation, momentary power loss, abnormal firmware, internal‑circuit ageing, high‑temperature overload operation.
Solutions: Verify power‑supply stability, install voltage‑stabilizing filter to suppress voltage variation; enhance cabinet ventilation and heat dissipation to avoid module overheating; power‑cycle to refresh firmware and reload configuration parameters. If intermittent faults recur, hardware ageing and failure are confirmed; replace original module.
6.5 Failure of on‑line configuration, protocol‑switching failure and invalid parameter saving
Fault Causes: Corrupted firmware, defective configuration‑storage unit, incompatible configuration‑software version, locked permission parameters.
Solutions: Check compatibility between configuration‑software version and module, unlock parameter‑lock permission; re‑flash module firmware to repair program anomaly; re‑configure communication parameters and save manually. If configuration function is completely invalid, storage and control circuit is faulty; replace module directly.
