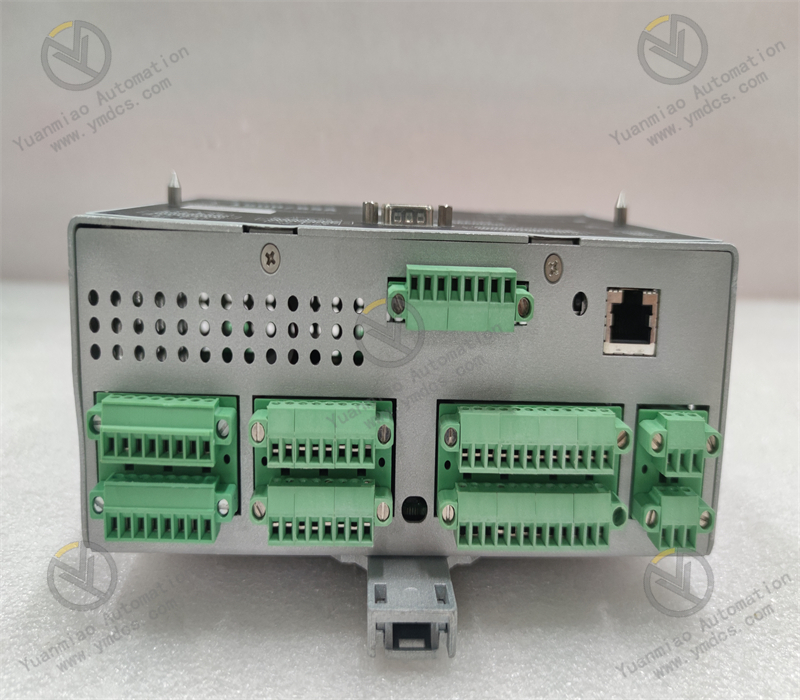

Bently Nevada 1900/65A-01-00-03-00 General Purpose Equipment Monitor

Description

1. Product Overview

Bently Nevada 1900/65A‑01‑00‑03‑00 is a general‑purpose machinery condition monitor of the 1900 series manufactured by Baker Hughes‑Bently Nevada. It is an integrated on‑line monitoring and protection device dedicated to medium‑and‑small‑sized rotating and reciprocating industrial equipment. As a compact all‑in‑one monitoring unit requiring no rack assembly, it integrates multi‑signal acquisition, logic alarming, relay protection, analog transmission and data‑recording functions. Equipped with a 24‑bit high‑precision ADC sampling chip, it delivers high measurement accuracy, flexible configuration and strong environmental adaptability. Designed for general rotating machinery such as fans, pumps, compressors, motors and small turbines, it performs real‑time monitoring of critical operating parameters including vibration, temperature and rotating speed to realize condition early‑warning and fault interlock protection. Compared with traditional rack‑based monitoring systems, it features lower cost, convenient deployment and simple maintenance. Widely used in power, petrochemical, water‑treatment, metallurgy and other industrial sectors, it serves as an intelligent core monitoring device for condition management and safety protection of medium‑and‑small‑sized units.

2. Core Functions

1. Multi‑signal Compatible Acquisition: It is configured with 4 universal sensor inputs plus 4 temperature input channels, compatible with various vibration‑monitoring transducers including eddy‑current probes, velocity sensors and accelerometers. Temperature channels support K‑, J‑, E‑, T‑type thermocouples as well as 2‑wire / 3‑wire RTD resistance temperature detectors, realizing multi‑dimensional data acquisition covering vibration, temperature and rotating‑speed parameters.
2. Multi‑level Intelligent Alarm and Interlock Protection: Built‑in comprehensive condition‑judgment logic supports three status levels: OK, Alert and Danger. Six programmable relay outputs allow users to customize trigger logics based on single‑channel or multi‑channel combinations to trigger over‑limit alarms and fault interlock shutdown, effectively preventing equipment damage and production accidents caused by overload, overtemperature and excessive vibration.
3. Standardized Analog Transmitting Output: Four independent 4‑20 mA recorder output channels convert process parameters such as vibration, temperature and rotating speed from each monitoring channel into standard industrial analog signals, enabling seamless connection with upper‑level monitoring systems for real‑time parameter upload and centralized supervision.
4. High‑precision Data Sampling and Traceability: Adopting 24‑bit high‑speed ADC high‑precision sampling technology, it provides high‑resolution data acquisition with minimal error. Complete event‑log storage enables long‑term recording of equipment operating status, alarm events and fault timestamps, supplying full data support for trend analysis, fault tracing and predictive maintenance.
5. Flexible Programmable Configuration: Supported by dedicated 1900 configuration software, it enables visual parameter setting, channel function definition, custom alarm thresholds, relay‑logic programming and free matching of output variables. Custom‑tailored monitoring and protection strategies can be formulated according to different equipment working conditions to satisfy operation requirements of various general‑purpose machinery.
6. Durable Industrial‑grade Operation with High Protection: Its glass‑fiber housing meets NEMA 4X / IP66 high‑protection standards, featuring dust‑proof, water‑proof, corrosion‑resistant and impact‑resistant performance. Adapted to harsh on‑site environments such as outdoor locations, humid and dusty areas, it supports 7×24‑hour non‑stop on‑line monitoring with stable long‑term operation free of drift.

3. Technical Specifications

4. Working Principle

The Bently Nevada 1900/65A‑01‑00‑03‑00 monitor adopts an integrated closed‑loop monitoring mechanism: multi‑channel synchronous acquisition → high‑speed computation → logical judgment → output linkage. After power‑on, multiple input channels synchronously collect dynamic process signals transmitted from field sensors, including vibration amplitude, vibration velocity, acceleration, equipment temperature and rotating speed. The 24‑bit ADC chip completes high‑precision analog‑to‑digital conversion and digital filtering to eliminate abnormal data caused by electromagnetic interference and instantaneous field fluctuations.

The built‑in core program judges equipment operating status in real‑time against preset thresholds and customized logics, and classifies conditions into three grades: normal, alert and danger. When monitored parameters approach the alarm threshold, warning signals are triggered automatically. Once parameters exceed limits and potential faults are detected, relays are actuated immediately to output interlock‑protection signals and trigger protection actions such as shutdown or load reduction for downstream equipment. Meanwhile, operating data and fault events are recorded continuously, and process parameters are uploaded in real‑time through 4‑20 mA channels. It realizes round‑the‑clock on‑line monitoring, fault prediction and safety protection for machinery, and guarantees stable and continuous equipment operation.

5. System Architecture Compatibility

As an independent integrated monitoring terminal, this unit requires no rack‑based system and delivers flexible deployment and outstanding compatibility. It can be directly matched with the full range of Bently Nevada vibration and temperature sensors. Plug‑and‑play without complicated parameter adaptation, it enables fast construction of dedicated monitoring systems for medium‑and‑small‑sized equipment.

Its analog outputs fully conform to industrial acquisition standards and can be seamlessly connected with DCS distributed control systems, PLCs and upper‑level configuration monitoring platforms to realize centralized collection, remote monitoring and trend analysis of machinery‑condition data. Adopting wall‑mount installation, it is suitable for mounting inside standard industrial cabinets or on‑site equipment walls. It supports retrofitting of legacy simple monitoring systems and monitoring‑capacity expansion without modifying the original control logic and power‑supply framework, and is compatible with all kinds of industrial automation control systems.

6. Application Scenarios

This product focuses on on‑line condition monitoring and safety protection for medium‑and‑small‑sized general‑purpose industrial rotating machinery under unattended continuous‑operation conditions. Within the power sector, it monitors vibration and temperature for plant cooling fans, auxiliary pumps, small‑size motors and standby units. In petrochemical industries, it provides condition monitoring and fault interlock protection for process fans, booster pumps, small reciprocating compressors and auxiliary air‑separation equipment.

It is widely deployed in water treatment, metallurgy, building‑material, general‑manufacturing and other industries. For various medium‑and‑small‑sized rotating and reciprocating machinery, it delivers early‑stage fault warning, over‑limit protection and operation‑data recording, effectively reducing equipment failure shutdown rate and losses caused by unplanned outages. It serves as a lightweight, cost‑effective core on‑line monitoring‑protection device for general‑purpose industrial machinery.
