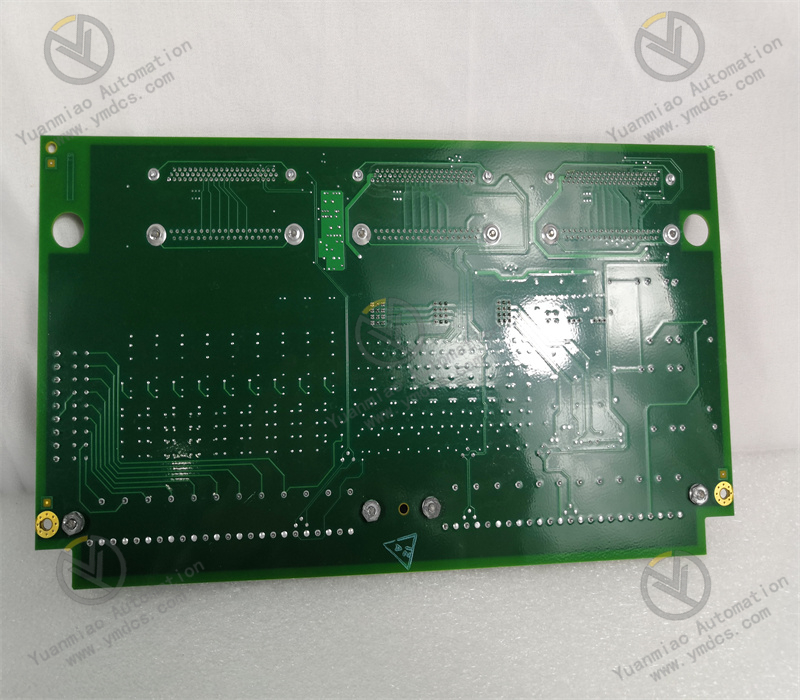

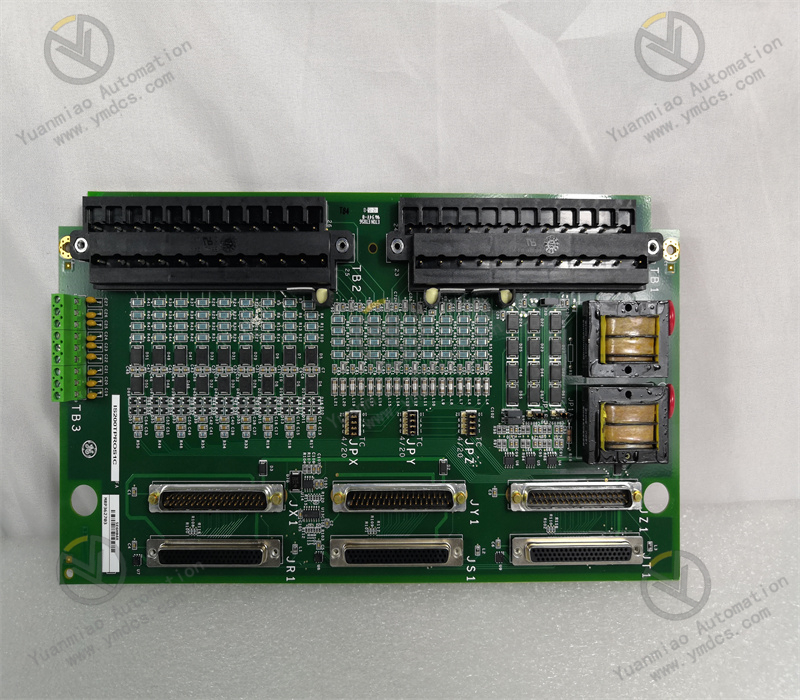

IS200TPROS1C Turbo Protection Terminal Board (TPRO)

Description

1. Product Overview

IS200TPROS1C is a dedicated Turbine Protection Terminal Board (TPRO) for GE (General Electric, USA) Speedtronic Mark VI series. As a core safety‑protection supporting module for gas‑turbine and steam‑turbine generator‑set control systems, it is designed for unit emergency‑trip protection, critical operating‑condition monitoring and safety interlock logic management.

Serving as the signal relay and logic‑execution core of the turbine safety‑protection system, this board receives key measurement‑point signals from field sensors for vibration, temperature, pressure, flame detection and so on. It performs over‑limit fault judgment, emergency‑trip interlock and safety‑status output, acting as a vital protection board to prevent turbine‑unit damage caused by faults and ensure safe shutdown and stable operation. Constructed with a multi‑layer industrial‑grade PCB, SMD surface‑mount technology and full electrical‑isolation design, the board is equipped with EMI/RFI filtering and surge‑suppression circuits. It delivers ultra‑fast fault response, accurate logic judgment, powerful anti‑interference performance, high operational stability and excellent fault‑tolerance capability. Natively compatible with the full GE Mark VI turbine‑control‑system family, it supports both TMR (Triple Modular Redundancy) and simplex architectures. Coated with industrial conformal coating, it adapts to harsh power‑plant environments featuring high temperature, intensive electromagnetic interference, severe vibration and 24‑hour non‑stop heavy‑duty operation. With plug‑and‑play capability and excellent interchangeability, it is widely deployed in automatic‑control and safety‑protection systems of thermal‑power plants, gas‑turbine stations and combined‑cycle power plants.

2. Core Functions

1. Comprehensive safety‑protection interlock for generating unitsAs the core safety‑protection unit of the turbine unit, it receives real‑time signals from key safety measurement points including unit vibration, bearing temperature, exhaust temperature, furnace flame, inlet pressure and oil pressure. Based on factory‑preset protection logic, it accurately judges various over‑limit fault conditions and rapidly triggers emergency shutdown, trip protection and interlock shutdown actions. It fundamentally avoids equipment damage and safety accidents caused by over‑temperature, over‑vibration, pressure loss, flame‑out and other faults, and builds a solid safety barrier for unit operation.




2. High‑precision fault‑signal acquisition and conditioningIntegrated with multiple dedicated safety‑signal acquisition channels, it accepts analog and discrete safety‑measurement signals from the unit. On‑board filtering, noise‑reduction and signal‑shaping circuits eliminate industrial electromagnetic noise, voltage fluctuations and signal distortion. Pure and accurate acquired signals prevent false tripping, unintended shutdown and missed protection triggered by interference, and improve the reliability of the unit safety‑protection system.




3. Ultra‑fast fault response and logic executionBuilt‑in dedicated safety‑logic arithmetic circuits respond to fault signals without delay. Fault judgment and interlock‑output response are completed at the microsecond level, capturing sudden unit anomalies and executing protective actions immediately. It perfectly satisfies the protection requirements of high‑speed turbine‑unit operation and transient‑condition changes, shortens fault‑handling time and reduces risks of fault escalation.




4. 2.5 kV high‑voltage electrical isolation and anti‑interference protection2500 V full‑channel electrical‑isolation design, combined with MOV/TVS surge‑suppression components and multi‑layer EMI/RFI filtering architecture, thoroughly resists high‑frequency electromagnetic interference, high‑voltage noise, ground‑potential difference, transient surge impact and mechanical vibration in power‑plant environments. Galvanic separation between high‑power and low‑signal circuits protects both the board and main‑control‑system hardware, making it suitable for complex industrial environments with strong interference.




5. Real‑time fault self‑diagnosis and status traceabilityComprehensive on‑board self‑inspection and loop‑monitoring functions continuously check board operating status, channel continuity, loop faults and signal anomalies. Problems such as open circuits, short circuits, signal drift and channel failure can be precisely located. Fault codes and operating status are uploaded to the upper monitoring system in real‑time, greatly reducing troubleshooting workload and improving maintenance efficiency.




6. Redundancy compatibility and long‑term maintenance‑free operationNatively adapted to the TMR triple‑modular‑redundant safety architecture of Mark VI systems, it supports three‑channel signal comparison and fault‑tolerant judgment. Abnormality on a single channel or one board will not affect the overall unit‑protection logic, completely eliminating protection failure caused by single‑point faults. Manufactured with long‑life imported industrial components and conformal coating, the board features ultra‑low temperature drift without performance degradation. Its mean‑time‑between‑failures (MTBF) exceeds 1 000 000 hours, supporting 7×24‑hour continuous year‑round unit operation with outstanding maintenance‑free performance.

3. Technical Specifications

4. Working Principle

IS200TPROS1C turbine‑protection terminal board adopts a closed‑loop safety‑protection workflow: field safety‑signal input → isolation, filtering & conditioning → fault‑threshold comparison → safety‑logic operation → interlock‑protection output → status self‑check & feedback.

During unit operation, core safety signals including vibration, temperature, pressure, flame and oil pressure are fed into board channels. After 2.5 kV electrical isolation, EMI filtering, surge suppression and noise‑reduction shaping, field interference is completely removed to guarantee authentic and valid input signals.

Using built‑in dedicated safety‑protection logic, the board continuously compares acquired operating parameters with factory‑defined safety thresholds at high speed, and accurately identifies three operating states: normal, warning and fault. Once parameter over‑limit, signal anomaly or equipment failure is detected, a microsecond‑level emergency‑protection action is triggered immediately. Interlock‑shutdown and emergency‑trip commands are sent to drive on‑site actuators for safe unit shutdown and prevent fault expansion. Meanwhile, the board performs real‑time self‑inspection on channel status, hardware conditions and signal links, and continuously uploads operating data and fault information to the host system. Under the TMR redundant architecture, three boards synchronously compare data and execute fault‑tolerant judgment to avoid protection failure or false tripping caused by single‑point faults, comprehensively ensuring safe, controllable, fault‑preventable and traceable turbine‑unit operation.

5. System‑Architecture Compatibility

This original‑GE dedicated turbine‑safety‑protection terminal board for Mark VI control systems features hardware dimensions, PCB layout, bus‑interaction logic, signal definitions and electrical parameters fully natively compatible with GE Speedtronic Mark VI gas‑ and steam‑turbine control systems. It can operate in seamless coordination with EX2100/EX2100E generator excitation‑control systems and fully supports both TMR triple‑modular‑redundant and simplex architectures. No extra programming configuration, hardware modification, signal conversion or parameter calibration is required. Plug‑and‑play replacement is available for aged, faulty or worn‑out boards of the same model, making it suitable for power‑plant maintenance, safety‑system upgrades, protection‑logic optimization and redundant‑protection‑retrofit projects.

It seamlessly interfaces with various temperature, pressure, vibration and flame sensors as well as safety‑monitoring instruments, and is fully compatible with the full‑chain control logic for safety protection, interlock shutdown and fault monitoring, without modifying existing main‑control programs, protection thresholds, interlock logic or wiring specifications. Its standardized industrial hardware design fits conventional power‑plant control‑cabinet layouts. It can be rapidly integrated into new‑build control‑system projects and automation‑safety retrofits of legacy units, delivering excellent adaptability, interchangeability and scalability.

6. Application Scenarios

Benefiting from ultra‑fast fault response, accurate safety judgment, high‑voltage isolation protection, redundant fault‑tolerant operation and long‑term stable performance, this board is engineered for high‑safety‑grade, 24‑hour non‑stop operation of turbine‑generator units, and adapts to complex industrial‑plant conditions including high / low ambient temperatures, intensive electromagnetic interference, severe mechanical vibration and frequent load fluctuations. It is widely deployed in GE Mark VI turbine‑control systems and supporting safety‑protection systems for large‑scale thermal‑power plants, gas‑turbine power stations and combined‑cycle power plants.

It undertakes critical safety‑related tasks such as core operating‑condition monitoring, over‑limit fault judgment, emergency‑trip protection, start‑stop safety interlock and fault traceability for turbine units. As a core safety board preventing over‑temperature, over‑vibration, flame‑out, abnormal pressure, equipment damage and unplanned shutdown accidents, it is extensively used in routine power‑plant maintenance, safety‑system upgrades for legacy units, protection‑accuracy optimization, faulty‑board replacement and redundant‑safety‑architecture retrofits. It resolves common defects of traditional protection loops such as slow response, frequent false trips, weak anti‑interference performance, poor fault tolerance and difficult fault traceability. The sensitivity, accuracy and operational reliability of the turbine‑unit safety‑protection system are greatly improved, ensuring long‑term safe, stable and efficient grid‑connected power generation of generator units.
