1. Product Overview

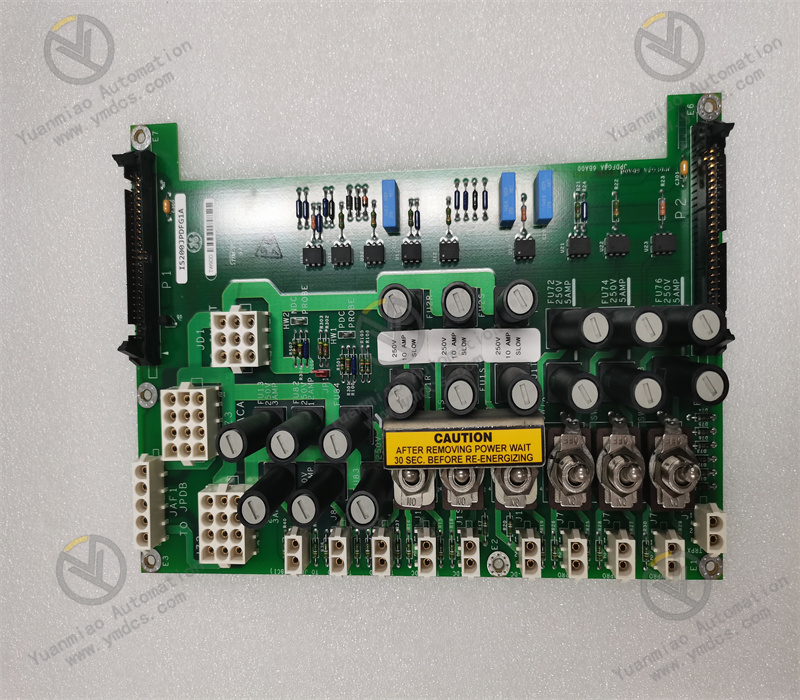

IS200JPDFG1A is a DC Power‑Distribution Module (PDM) developed by General Electric (GE, USA) for the Speedtronic Mark VI gas‑turbine and steam‑turbine control systems. It acts as a core power‑supply supporting unit for generator‑set automatic‑control systems and EX2100/EX2100E excitation systems.
Designed for DC‑power shunting, voltage‑stabilizing filtering and load power distribution inside the rack, this module mainly supplies stable and clean DC power to core control boards such as DACA and signal‑acquisition boards. It coordinates internal system power distribution, surge suppression and overload protection, serving as the power‑supply cornerstone for reliable power‑on and long‑term stable operation of the entire turbine‑unit control system. Integrated with input filtering, current‑limit protection, voltage regulation & shaping and multi‑channel power‑distribution output, the module adopts an aluminum‑alloy reinforced housing and industrial conformal‑coated PCB. It delivers high power‑supply efficiency, low output ripple, strong isolation performance, comprehensive protection mechanisms and excellent adaptability to harsh operating‑conditions. Natively compatible with the full GE Mark VI turbine‑control‑system family, it supports both TMR (Triple Modular Redundancy) and simplex architectures and features hot‑swap capability with excellent interchangeability. Suitable for 24‑hour non‑stop heavy‑duty operation under high‑temperature and heavy‑EMI power‑plant environments, it is widely deployed in automatic‑control systems of thermal‑power plants, gas‑turbine stations and combined‑cycle power plants.
2. Core Functions
High‑precision multi‑channel DC power distribution & outputAs a dedicated core power‑distribution unit, it stably shunts and distributes multiple standard DC power supplies to deliver clean power to DACA main‑control modules, various I/O boards and signal‑acquisition units inside the rack. It precisely matches the power‑supply requirements of Mark VI hardware, resolves uneven load‑sharing and voltage‑offset problems caused by centralized power feeding for multiple boards, and ensures balanced and stable power supply for the whole rack.
High‑efficiency voltage stabilization & filtering with low rippleEquipped with dedicated input‑filter circuits and voltage‑regulation shaping architecture, the module achieves over 90 % overall power‑supply efficiency and restricts output ripple below 1 %. It effectively filters industrial power‑supply noise, voltage fluctuations, high‑frequency interference and transient surges. Smooth and distortion‑free output voltage eliminates board‑level signal drift, sampling distortion and false control actions induced by power ripple, and guarantees signal accuracy and operational stability of the control system.
Multi‑layer electrical‑safety protection mechanismBuilt‑in protective components including DC circuit breakers, current‑limiting resistors and anti‑reverse diodes provide comprehensive protection against overload, short‑circuit, over‑voltage, under‑voltage and back‑EMF. Upon detection of abnormal downstream load, short‑circuit or over‑current, the module rapidly activates current‑limiting and latch‑up protection to isolate the faulty branch without interrupting power supply to other equipment in the rack, greatly reducing risks of system shutdown and hardware burnout caused by power‑supply failures.
2500 Vrms high‑voltage electrical isolationIndustrial‑grade high‑isolation design provides 2500 Vrms channel‑to‑channel dielectric strength, achieving galvanic separation between the input power side and output load side. It blocks back‑flow of on‑site electromagnetic interference, ground‑potential differences and high‑voltage noise, prevents core control boards from breakdown by power‑side disturbances, and raises the overall electrical‑safety rating and anti‑interference capability of the control system.
Hot‑swap maintenance and redundancy compatibilityHot‑swap capability enables module inspection and replacement without full‑system shutdown, significantly cutting downtime losses during maintenance. Natively compatible with the TMR triple‑modular‑redundant architecture of Mark VI systems, it supports fault‑tolerant power supply via redundant power links; abnormal power output from a single module will not affect overall system power delivery, satisfying round‑the‑clock continuous‑production requirements of generator units.
- Industrial‑grade reinforcement for long‑term degradation‑free operationWith an aluminum‑alloy reinforced housing and conformal‑coated PCB, the module is dust‑proof, moisture‑proof, corrosion‑resistant, vibration‑resistant and anti‑ageing. Compliant with IEC 61000‑6‑2/6‑4 industrial EMC standards, it withstands high‑frequency EMI/RFI interference, mechanical vibration and sharp temperature‑humidity fluctuations in power plants. No power‑supply attenuation or performance degradation occurs during long‑term heavy‑load operation, delivering outstanding maintenance‑free performance.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model No. | IS200JPDFG1A |
| Brand | GE (General Electric, USA) |
| Product Series | GE Speedtronic Mark VI Turbine‑Control System |
| Product Type | DC PDM (Power‑Distribution Module) |
| Core Functions | System DC‑power distribution, filtering & voltage stabilization, overload & short‑circuit protection, electrical isolation, load power distribution |
| Power‑Supply Efficiency | ＞90 %, low‑energy‑consumption operation |
| Output Ripple | ＜1 %, high‑precision clean regulated output |
| Electrical‑Isolation Rating | 2500 Vrms high‑voltage isolation protection |
| Protection Configuration | Built‑in circuit‑breaker, current‑limiting resistor, anti‑reverse diode; full‑range protection: overload / short‑circuit / over‑voltage / under‑voltage |
| Supported Architectures | TMR (Triple Modular Redundancy), Simplex |
| Maintenance Feature | Hot‑swap capable, shutdown‑free maintenance |
| Compatible Devices | Power supply for rack‑mounted DACA modules and full‑range I/O boards |
| Operating Temperature | -30 ℃ ~ 65 ℃, wide industrial temperature range |
| EMC Standard | IEC 61000‑6‑2/6‑4, EMI/RFI interference resistance |
| Construction & Protection | Aluminum‑alloy housing, PCB conformal coating, dust‑proof, moisture‑proof & vibration‑resistant |
| Physical Dimensions | 310 mm × 170 mm × 85 mm, approx. 6 kg |
| Key Features | Efficient power distribution, low‑ripple voltage regulation, high‑voltage isolation, full‑range fault protection, hot‑swap maintenance, wide‑temperature stability, redundancy‑ready |
4. Working Principle
IS200JPDFG1A operates on a closed‑loop workflow: power input → noise‑reduction filtering → current‑limited voltage regulation → electrical isolation → multi‑channel power‑distribution output → real‑time fault protection.
After primary‑side DC power enters the module, an internal input filter first removes high‑frequency noise, surge disturbances and voltage spikes from the power loop for initial power conditioning. The signal is then amplitude‑calibrated and energy‑optimized via current‑limiting resistors and voltage‑regulating circuits to strictly control output‑voltage accuracy and ripple factor for smooth, stable power waveforms.
Galvanic separation between strong‑current and weak‑current circuits is realized by the 2500 V high‑voltage isolation unit, preventing interference signals on the power side from flowing back and damaging downstream precision control hardware. Conditioned and regulated DC power is evenly distributed to DACA main‑control modules and analog‑/digital‑I/O boards in the rack through multiple output channels, providing stable operating power for the whole automatic‑control system.
The module continuously monitors output current, voltage and load conditions. Once short‑circuit, overload or voltage anomalies are detected, the circuit breaker immediately triggers latch‑up protection to cut power to the faulty branch while maintaining stable power delivery to other circuits. Co‑operating with the TMR redundant architecture, fault‑tolerant power supply is achieved to guarantee non‑stop, high‑precision and safe operation of the generator‑unit control system.
5. System‑Architecture Compatibility
This original‑GE dedicated DC power‑distribution module for Mark VI control systems features hardware dimensions, electrical parameters, power‑distribution logic and wiring protocols fully natively compatible with GE Speedtronic Mark VI gas‑/steam‑turbine control systems and EX2100/EX2100E generator excitation‑control systems. Both TMR triple‑modular‑redundant and simplex architectures are supported. No extra circuit modification, parameter calibration or software configuration is required. Hot‑swap plug‑and‑play replacement is available for aged, faulty or worn‑out modules of the same model, making it suitable for power‑plant maintenance, system upgrades, power‑loop optimization and redundant‑power‑supply retrofit projects.
It seamlessly interfaces with all main‑control, acquisition and drive boards inside the Mark VI rack and fully follows the factory‑defined power‑load logic without changes to existing wiring specifications, protection parameters or main‑control programs. Compatible with GE Proficy configuration software, it supports remote condition diagnosis and parameter monitoring, and can be rapidly integrated into new‑build control‑system projects and legacy‑unit automation retrofits, delivering excellent adaptability, interchangeability and scalability.
6. Application Scenarios
Benefiting from high‑efficiency regulated power distribution, low‑ripple output, high‑voltage isolation protection, comprehensive fault protection and stable wide‑temperature performance, this module is engineered for harsh power‑supply environments of turbine and generator units, including large temperature‑humidity swings, intensive electromagnetic interference, frequent mechanical vibration and 24‑hour non‑stop heavy‑duty operation. It is widely used in GE Mark VI turbine‑control and EX2100‑series excitation‑control systems for large‑scale thermal‑power plants, gas‑turbine power stations, combined‑cycle power plants and oil‑&‑gas industrial automatic‑control systems.
It is mainly deployed for overall DC‑power distribution inside control‑system racks, regulated power feeding to precision boards, power‑loop interference suppression and power‑distribution fault protection, delivering stable and reliable power support for core functions such as excitation regulation, load control, condition monitoring and interlock fault protection. Extensively applied in routine power‑plant maintenance, legacy control‑system upgrades, power‑supply‑accuracy optimization, faulty‑module replacement and redundant‑power‑supply retrofits, it solves common defects of conventional power‑distribution units such as high ripple, poor stability, insufficient protection and board‑signal interference. Risks including unit‑regulation deviation, signal distortion, false system action and hardware damage caused by abnormal power supply are eliminated. The power‑supply stability and overall operational reliability of generator‑set automatic‑control systems are greatly improved, ensuring long‑term safe, efficient and stable grid‑connected power generation of generator units.
