Description
1. Product Overview

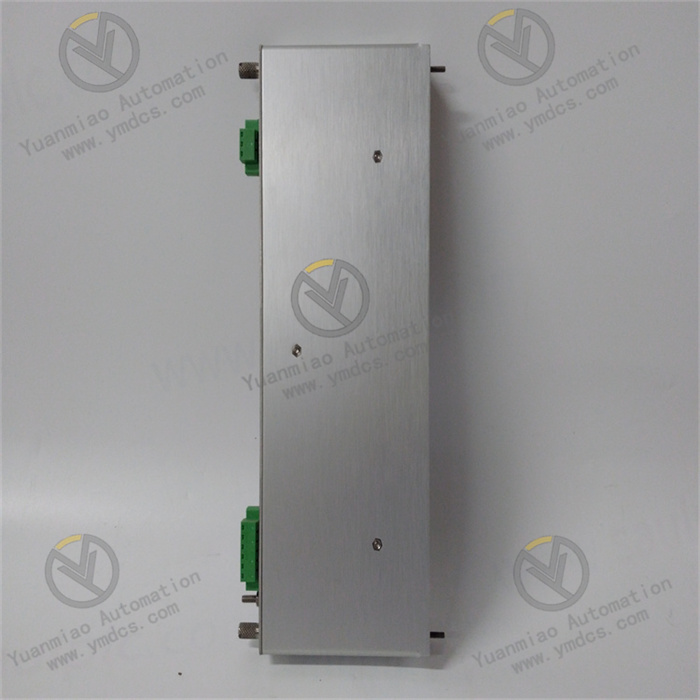

Bently Nevada 133819-01 is the classic 3500/60 temperature monitor module of Baker Hughes Bently Nevada. It serves as the core dedicated temperature monitoring hardware for the 3500 Turbine Safety Instrumentation (TSI) system, widely deployed for heavy-duty gas turbines, steam turbines, generator sets, fans, pumps and other critical rotating power equipment in thermal power, cogeneration and combined-cycle power plants. Designed for continuous online temperature measurement of equipment bearing shells, stators, housings, process media and other process points, this module supports both RTD resistance temperature detectors and TC thermocouples. It acts as a core monitoring unit for thermal condition tracking, over-temperature protection, fault prediction and equipment safety protection of units.
The 3500/60 module (order number 133819-01) adopts an industrial high-precision temperature sampling architecture, equipped with dedicated signal conditioning, linear correction, cold junction compensation and anti-interference filter circuits. It has passed strict factory tests including high-low temperature cycling aging, EMC electromagnetic compatibility, dielectric withstand voltage, vibration shock and long-term stability tests. It features high temperature measurement accuracy, minimal thermal drift, strong anti-interference capability, excellent channel consistency, stable long-term operation and ultra-low failure rate, supporting 24/7 non-stop continuous online monitoring throughout the year. Typical applications include new set assembly of 3500 TSI systems, replacement of aging temperature modules, technical upgrading of unit temperature monitoring systems, and strategic spare parts stock for power plant TSI systems. It ensures accurate temperature measurement and reliable alarm & protection for generator sets and large rotating equipment, mitigating risks of over-temperature damage, thermal fatigue failures and unplanned outages.
2. Functional Features
2.1 6-Channel High-Precision Multi-Point Temperature Acquisition
The 3500/60 module is equipped with 6 independent programmable temperature monitoring channels, enabling synchronous multi-point temperature acquisition in a single module to greatly improve cabinet integration and measurement point coverage. Channels can be freely configured and switched, compatible with mainstream industrial temperature sensors including PT100, PT1000 and other RTD types, as well as standard TC thermocouples of K, J, T, E, N, S, B, R grades. It fully covers temperature measurement requirements of unit bearing shells, bearings, stators, coils, lubricating oil and process media, adapting to full-scenario temperature monitoring applications in power stations.
2.2 Dual-Sensor Compatibility & Intelligent Signal Conditioning
The module natively accepts input signals from both RTDs and TC thermocouples. It integrates dedicated hardware signal conditioning circuits, impedance matching units, multi-stage noise reduction filters and automatic cold junction compensation for thermocouples. It automatically eliminates temperature measurement errors caused by cable voltage drop, ambient temperature drift, electromagnetic noise interference and poor contact at measuring points. Raw temperature signals are processed with linear correction, waveform shaping and data optimization, effectively solving temperature data drift, fluctuation and distortion caused by long-distance signal transmission and high-interference industrial environments, so as to guarantee long-term accurate, stable and credible temperature readings.
2.3 Multi-Level Alarm Protection & Programmable Threshold Configuration
Users can customize multi-level temperature threshold configuration. Two-stage temperature protection logic (Alert and Danger) is available, with over-limit alarm, delay judgment and latch output functions to prevent false alarms and false tripping induced by transient interference. When measured temperature exceeds preset thresholds, the module outputs local alarm and system linkage signals, which can trigger alarm prompts, event recording and interlock protection via the TSI system. It enables early prediction of equipment overheating risks and timely prevention of severe failures such as bearing shell burnout, stator overheating, equipment thermal deformation and insulation aging, fully safeguarding unit operation safety.
2.4 High-Speed Data Transmission & Deep System Compatibility
The module is perfectly compatible with the Bently Nevada 3500 rack system. High-speed, synchronous and stable data interaction is realized through the rack backplane bus. Real-time temperature data, channel status, alarm messages, fault codes and historical event logs can be uploaded to upper monitoring software, DCS control systems and operator monitoring platforms. It supports remote configuration, parameter tuning, channel calibration and data traceability. With superior system compatibility, it can seamlessly integrate with 3500 TSI monitoring architectures of both new and old units without additional protocol conversion or expansion devices, featuring plug-and-play and convenient adaptation.
2.5 Full-Range Hardware Self-Diagnosis & Fault Identification
Comprehensive intelligent self-diagnosis is embedded to continuously monitor module power supply status, hardware chip conditions, temperature measurement channel loops, sensor wiring status, bus communication links and signal sampling conditions. It can accurately detect hidden faults such as sensor open circuit, short circuit, loose wiring, out-of-range signals, channel abnormality, hardware failure, communication interruption and module aging, uploading fault alarm messages and standard fault codes in real time. On-board status LEDs visually indicate equipment working conditions. Maintenance personnel can quickly locate fault points and troubleshoot hazards, shortening maintenance time and reducing risks of equipment running without effective monitoring.
2.6 High-Reliability Industrial-Grade Protection for Harsh Power Station Conditions
The module adopts high-grade industrial PCB substrate and reinforced overall structure. The circuit board is fully coated with three-proof protective coating, delivering excellent performance of dust-proof, moisture-proof, anti-corrosion, anti-oxidation, resistance to high/low temperature aging, vibration shock and strong electromagnetic interference. Core components go through multi-stage factory electrical screening, extreme condition aging and full-load stability tests, featuring high hardware consistency, minimal thermal drift and no long-term performance degradation. It can continuously withstand harsh cabinet environments including accumulated high temperature, condensation, dust buildup, alternating temperature difference, persistent vibration and strong electromagnetic radiation, fully meeting the demand of non-stop continuous monitoring of generator sets all year round.
2.7 In-situ Non-Destructive Replacement for Convenient & Low-Cost Maintenance
It strictly complies with 3500 series standard rack dimensions, slot definitions, backplane bus protocols, wiring logic and system adaptation specifications. Model 133819-01 is the standard general version of the 3500/60 series. It supports in-situ non-destructive replacement of old temperature modules with inaccurate readings, abnormal channels, failed alarms, communication loss and degraded performance. Replacement does not require modification of field measurement wiring, recabling, major revision of system configuration logic or shutdown commissioning. It rapidly restores full-point temperature monitoring of the unit, applicable for emergency repair of power plants, upgrading of old TSI systems, routine spare parts replacement and system expansion, effectively cutting maintenance and technical renovation costs.
3. Technical Specifications
3.1 Core Adaptation Parameters
Product Model: 133819-01 (Module Model: 3500/60) Brand: Bently Nevada (Baker Hughes) Product Series: 3500 Turbine Safety Instrumentation (TSI) System Series Compatible Rack: Bently Nevada 3500 standard system rack Product Type: Multi-Channel Temperature Monitoring & Protection Module Applicable Equipment: Heavy-duty gas turbines, steam turbines, generator sets, fans, water pumps and other large rotating equipment Core Functions: 6-channel temperature acquisition, dual-type RTD/TC sensor compatibility, signal conditioning and correction, multi-level temperature alarm, hardware self-diagnosis, real-time data upload, equipment over-temperature protection Application Scenarios: New assembly of TSI systems, replacement of aging temperature modules, technical upgrading of unit temperature measurement systems, strategic spare parts stock for power plant TSI systems
3.2 Temperature Measurement & Channel Parameters
Number of Channels: 6 independent programmable temperature measurement channels, each channel with isolated design to avoid mutual interference Supported Sensors: Full range of industrial RTD resistance temperature detectors and TC thermocouples Temperature Measurement Accuracy: ±0.1% of reading, high sampling precision and ultra-low long-term thermal drift Sampling Frequency: Continuous high-frequency sampling with real-time data update, no lag or data fluctuation Correction Mechanism: Built-in automatic cold junction compensation for thermocouples, RTD linear correction and loop error compensation Protection Logic: Two-stage programmable alarm thresholds with anti-chatter delay and fault latching functions
3.3 Electrical & Power Consumption Parameters
System Power Supply: Powered uniformly via backplane of 3500 rack, compatible with standard power supply specification of the system Total Power Consumption: ≤20W, low-power design with low heat generation and no overheating aging during long-term operation Circuit Protection: Multi-stage hardware protection including overvoltage, overcurrent, short circuit, surge, static electricity and signal overload Isolation Design: Independent electrical isolation for each channel, preventing cross-talk and signal interference between channels Anti-Interference Grade: Compliant with top industrial standards of power industry for EMC electromagnetic compatibility, dielectric withstand voltage and vibration shock
3.4 Communication & Configuration Parameters
Bus Type: Dedicated high-speed backplane bus for 3500 rack with precise timing, stable transmission and no packet loss Data Functions: Real-time upload of temperature data, channel status, alarm events, fault codes and operation logs Configuration Method: Remote online configuration, parameter calibration, threshold modification and channel enable/disable via upper software Diagnosis Coverage: Full-range self-diagnosis for sensor faults, loop abnormalities, out-of-range signals, communication interruption and hardware failure System Compatibility: Fully compatible with 3500 system configuration software, upper monitoring platform and DCS interface architecture
3.5 Environmental & Operating Condition Parameters
Operating Temperature: -40℃ ~ +70℃, ultra-wide industrial temperature range, adapting to complex temperature difference conditions of power station cabinets Storage Temperature: -45℃ ~ +85℃ Operating Humidity: 5% ~ 95%RH (non-condensing) Operation Mode: Supports 24/7 full-load continuous powered monitoring all year round Environmental Resistance: Long-term tolerance to strong electromagnetic interference, continuous vibration, dust & humidity, accumulated high temperature and alternating temperature difference Seismic Grade: Passed industrial vibration and shock tests, suitable for long-term vibrating operation environment of units
4. Hardware Configuration & Structural Advantages
4.1 Core Hardware Configuration
The Bently Nevada 3500/60 (133819-01) temperature monitor module adopts Bently’s 3rd generation dedicated industrial temperature measurement hardware architecture. It is equipped with high-precision multi-channel temperature sampling chip, universal RTD/TC signal conditioning unit, automatic cold junction compensation circuit, linear error correction module, multi-stage EMI noise reduction filter, backplane bus communication processing chip and full-range hardware self-diagnosis unit. The module features independent electrical isolation for multiple channels. Temperature measurement loops, signal processing zone, power supply zone and communication zone are fully separated, fundamentally eliminating channel cross-talk, signal drift, data jitter and electromagnetic interference. All core components pass multi-stage factory electrical screening, high-low temperature aging, full-load stability tests and dielectric withstand voltage inspection, delivering high sampling accuracy, fast response and excellent channel consistency. It can independently complete 6-point synchronous temperature acquisition, signal optimization, logic judgment, data upload and fault alarm without any external expansion devices.
4.2 Structural Design Advantages
The module adopts the standard compact rack-mounted structure of the 3500 series, featuring compact layout and small cabinet footprint, perfectly fitting embedded installation of the 3500 rack system. The whole unit is structurally reinforced for seismic resistance. The circuit board is fully coated with military-grade three-proof coating, providing excellent dust-proof, moisture-proof, anti-corrosion, anti-oxidation, vibration-resistant, high/low temperature aging resistant and strong electromagnetic interference resistant performance. It effectively protects against harsh cabinet environments including accumulated high temperature, condensation, dust buildup, high-frequency electromagnetic radiation and continuous equipment vibration, fundamentally solving common failures of traditional temperature modules such as data drift, channel failure, frequent false alarms and hardware aging. The standardized slot mounting structure enables convenient assembly and disassembly with firm and anti-loose fixation, adapting to long-term vibrating operation of units. On-board visual status LEDs directly indicate module operation, channel conditions, communication and fault alarm status, facilitating rapid inspection and anomaly localization by maintenance staff and greatly improving TSI system operation & maintenance efficiency. The standardized original design supports non-destructive replacement and upgrade without modification of system configuration, field wiring and monitoring logic, reducing unit technical renovation and shutdown maintenance costs.
5. Working Principle
The Bently Nevada 3500/60 temperature monitor module adopts a fully closed-loop temperature monitoring mechanism: sensor signal acquisition → hardware filtering & noise reduction → signal conditioning & correction → cold junction / linear compensation → high-precision calculation & sampling → threshold logic judgment → multi-level alarm output → data upload & traceability → hardware self-diagnosis & protection, realizing all-weather, high-precision and blind-spot-free online monitoring and safety protection of unit equipment temperature.
During normal unit operation, field RTD/TC temperature sensors collect real-time temperature signals of bearing shells, bearings, stators, lubricating oil, process media and other points. The signals are transmitted to each independent temperature measurement channel of the 3500/60 module through shielded cables. Raw temperature signals first go through on-board multi-stage hardware filtering, anti-interference processing and impedance matching to remove invalid signals induced by field electromagnetic noise, cable interference and ambient temperature difference. Then dedicated signal conditioning and compensation units complete thermocouple cold junction compensation, RTD resistance linear correction and loop voltage drop error correction to output accurate and stable standardized temperature data.
The core arithmetic unit of the module continuously compares measured temperature with preset system alarm thresholds. Under normal working conditions, real-time temperature data and channel status are uploaded steadily. When the measured temperature reaches Alert or Danger threshold, the module immediately triggers corresponding multi-level alarm logic, outputs alarm signals, records event sequence and fault codes, and links with the TSI system for warning prompts and protection interlock to prevent equipment damage caused by overheating. Meanwhile, the module continuously self-checks each channel loop, sensor status, power supply condition, communication link and hardware health status. Once open circuit, short circuit, abnormal signal or hardware fault is detected, it actively raises alarms, latches the faulty channel and uploads abnormal information, fully guaranteeing the integrity, precision and reliability of the unit temperature monitoring system.
6. Application Scenarios
6.1 Core Temperature Monitoring for Generator Set TSI Systems
Widely used in 3500 TSI safety monitoring systems of thermal power, cogeneration and combined-cycle power plants. As the core temperature monitoring hardware for heavy-duty gas turbines, steam turbines and generator sets, it undertakes all-weather online monitoring of critical points including bearing shell temperature, bearing temperature, stator temperature, lubricating oil temperature and housing temperature. With precise temperature measurement and multi-level protection logic, it enables early prediction of thermal fatigue and overheating risks, preventing bearing shell burnout, motor overheating, insulation breakdown, equipment damage and unplanned unit outages. It is the core protection equipment for safe and stable operation of generator sets.
6.2 Condition Monitoring & Protection of Large Rotating Equipment
Suitable for large fans, water pumps, compressors and other key rotating equipment in power stations, chemical plants and heavy energy industries. It performs long-term continuous temperature monitoring for equipment bearings, cavities and media. With high-precision sampling, strong anti-interference and stable operation, it solves problems of inaccurate temperature readings, data fluctuation and frequent false alarms in complex industrial environments, providing accurate data support for equipment condition assessment, hazard investigation and maintenance decision-making to ensure long-term safe operation of auxiliary equipment.
6.3 Strategic Spare Parts Reserve for Power Plant TSI Systems
As the original standard general model of Bently Nevada 3500/60 module, 133819-01 serves as essential strategic maintenance spare parts for power generation and heavy energy enterprises. It can rapidly respond to on-site emergencies including module temperature measurement failure, channel abnormality, alarm failure, communication interruption and hardware fault, quickly restoring full-point temperature monitoring and over-temperature protection functions of units, eliminating blind spots in equipment temperature monitoring and safeguarding year-round non-stop safe and stable operation of generator sets and large power equipment.
