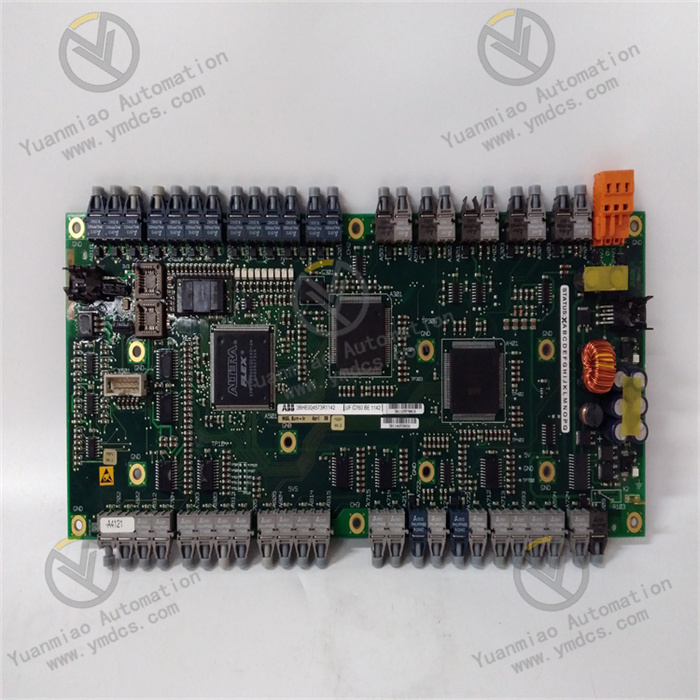

ABB UFC760BE142 3BHE004573R0142

1. Product Description

ABB UFC760BE142 3BHE004573R0142 is a versatile industrial inverter, specially designed for precise speed and torque control of various AC motors. It features high efficiency, energy saving, intelligent control, high reliability and flexible adaptability. As a core drive device for energy saving, efficiency improvement, process optimization and intelligent control of industrial equipment, it is also a key original spare part for upgrading old drive devices and retrofitting industrial motor speed control systems.

The inverter adopts an innovative modular design and advanced control technology, integrating a high-performance control chip, multi-protocol communication interfaces and comprehensive protection functions. It can efficiently realize smooth speed regulation and precise torque control of AC motors, suitable for fans, pumps, compressors, conveyors and other general machinery. It supports a variety of industrial communication protocols and can be seamlessly integrated into industrial automation systems. With easy installation and strong compatibility, it requires no overall modification of the existing equipment structure. Backed by ABB’s strict industrial‑grade quality, it operates stably in various industrial environments (including severe cold conditions), helping enterprises reduce energy consumption, lower equipment wear and improve production process stability.

2. Specifications

Parameter Category	Details
Model	UFC760BE142 3BHE004573R0142
Manufacturer	ABB (Switzerland, globally manufactured, partial local assembly)
Product Type	Versatile industrial inverter, part of ABB ACS880 series drives, for speed and torque control of various AC motors, suitable for general machinery such as fans, pumps, compressors and industrial automation systems
Core Purpose	1) Motor speed regulation: provide precise speed and torque control for AC motors, achieve smooth speed control and reduce equipment shock; 2) Energy saving & efficiency: dynamically adjust motor speed according to load demand, following the cube law to reduce energy consumption; 3) Intelligent control: integrate PID controller, multi-pump control and other functions for process optimization and automatic control; 4) System upgrade: directly replace old drive devices, compatible with existing motors and control systems, reducing retrofit difficulty and cost
Electrical Parameters	Input voltage: 380–480 V AC (3-phase); Output voltage: 0–input voltage (3-phase); Rated power: suitable for medium and high-power motors (multiple power ratings available depending on configuration); Efficiency: above 97%; Overvoltage, undervoltage, overcurrent, overheating, overload protection; motor overheating and short‑circuit protection; Compliant with IEC 61800‑5‑1
Control Performance	Equipped with high-performance control chip, supports V/F control and vector control, high speed regulation accuracy and fast response; Built-in PID controller and multi-pump control for closed-loop control such as constant pressure and constant flow; Anti-freezing reverse mode for cold environments; Supports smooth starting to reduce impact on power grid and mechanical equipment
I/O & Communication	Supports mainstream industrial protocols including Modbus, integrable into central DCS system for remote monitoring and intelligent management; Standardized I/O interfaces for sensor signals (pressure, temperature, etc.) for real-time load feedback and dynamic adjustment; Fault alarm output for convenient operation and maintenance monitoring
Physical Dimensions	Modular design, compact structure, suitable for industrial standard mounting (wall-mounted / floor-standing); Weight: approx. 2–10 kg depending on power rating; Easy installation, no extra space modification, adaptable to various industrial layouts
Protection Degree	IP21 / IP54 optional (depending on installation environment), dustproof and splash‑proof; Compliant with IEC 60529; excellent anti-EMI performance for stable operation in high-interference industrial environments
Environmental Rating	Operating temperature: -25°C ~ +60°C (wide-temperature design for severe cold); Storage temperature: -40°C ~ +85°C; Relative humidity: 5% ~ 95% (non-condensing); Vibration: IEC 60068‑2‑6; Shock: IEC 60068‑2‑27; suitable for harsh industrial environments
Other Features	Innovative modular design for easy maintenance and function expansion; Fault self-diagnosis for fast fault location; Energy consumption monitoring for energy-saving statistics; CE and RoHS compliant; MTBF > 100,000 hours; Detailed installation, commissioning and maintenance manual for fast deployment and operation

3. Functions & Features

(1) Wide Scenario Adaptation & Seamless System Compatibility

Wide application: designed for various AC motor control, flexibly suitable for fans, pumps, compressors, conveyors and other general machinery, widely used in commercial buildings, municipal water supply, chemical industry, manufacturing and other fields, covering constant pressure water supply, process cooling, material handling and other scenarios with strong versatility.
High compatibility: fully compatible with various ABB industrial automation systems and third-party motors and control systems. Supports mainstream industrial communication protocols and can be seamlessly integrated into the central DCS without additional protocol converters. Allows direct replacement of old drive equipment, greatly reducing upgrade and retrofit costs.
Easy installation & expansion: modular design and industrial standard mounting (wall-mounted / floor-standing), simple installation and removal, basic installation by a single person, no extra space modification. Supports later function expansion and flexible configuration according to on-site process requirements.

(2) Precise Speed Control & High Efficiency Energy Saving

High-precision control: high-performance control chip supports V/F and vector control, high accuracy and fast response, realizing smooth speed regulation and precise torque control, avoiding mechanical shock during motor start/stop and extending service life.
Intelligent energy-saving: dynamically adjusts motor speed based on actual load, following the cube law (power proportional to the cube of speed), greatly reducing energy consumption under light load, especially for variable-load applications such as fans and pumps. Energy saving rate can reach 35%–50%, helping enterprises reduce operating costs.
Diversified control: built-in PID controller and multi-pump control for closed-loop constant pressure, constant flow, constant temperature, etc., suitable for constant pressure water supply and process cooling. Anti-freezing reverse mode regularly reverses fans to remove frost, suitable for cold northern industrial environments and ensuring stable winter operation.

(3) High Reliability & Comprehensive Protection

Industrial-grade design: built to ABB industrial standards with selected components and strict production process, compact and robust structure, effectively resisting on-site vibration, electromagnetic interference and dust, reducing failures and ensuring long‑term stable operation.
Multi-level protection: IP21/IP54 optional, dustproof and splash‑proof, adaptable to indoor control cabinets or outdoor sites, effectively resisting environmental influences and suitable for various industrial environments.
All-round fault protection: built-in overvoltage, undervoltage, overcurrent, overheating, overload, motor short‑circuit and other protections, automatically cutting off output in abnormal conditions to protect the inverter, motor and related equipment, reducing failure loss. Wide‑temperature design ensures stable operation from -25°C to +60°C.

(4) Convenient Maintenance & Intelligent Monitoring

Fault self-diagnosis & monitoring: complete self-diagnosis monitors running status in real time and provides clear fault information (overload, overheating, communication error, etc.), enabling quick fault location and shortening repair time. Energy consumption monitoring supports real-time energy-saving statistics.
Easy configuration & commissioning: parameter setting and logic debugging via ABB special software or keypad, with parameter backup and restore for batch configuration and later maintenance. Simple and intuitive interface reduces operation complexity.
Remote intelligent management: supports Modbus and other industrial protocols, integrable into central DCS for remote monitoring of status, energy consumption and alarms, reducing manual inspection and improving efficiency. Detailed guides ensure long‑term stable operation.

4. Applications

Commercial buildings: central air conditioning systems in large commercial complexes and office buildings, driving cooling water pumps and fans, dynamically adjusting speed according to cooling load, achieving energy-saving operation with 35%–50% energy reduction and less equipment shock.
Municipal water supply: water intake pump stations and secondary water supply systems, forming constant pressure water supply systems, automatically adjusting pump speed and quantity according to pipe network pressure, maintaining stable pressure, eliminating throttling loss and water hammer, improving efficiency and saving electricity significantly annually.
Chemical industry: group control of large cooling tower fans in chemical plants, adjusting speed based on circulating water temperature, activating anti-freezing reverse mode to prevent icing, suitable for cold northern areas. Integrated into central DCS for remote monitoring and improved safety.
General manufacturing: drive control for conveyors, compressors, fans, pumps and other equipment, realizing smooth speed control, optimizing processes, reducing wear and energy consumption. Also used for upgrading old drives with low retrofit cost.

5. FAQs & Troubleshooting

1. How to troubleshoot if the motor does not run after the inverter starts?

First check the input power (380–480 V AC 3-phase), terminal connections, phase loss and voltage stability.

Next check the wiring between inverter and motor, polarity and motor condition.

Then check inverter parameters: control mode (V/F/vector), speed setting; reconfigure if incorrect.

Finally check for fault lock mode; clear fault according to alarm code (overload, overcurrent, etc.) and reset. Contact ABB authorized service if the problem persists.

2. How to resolve high energy consumption or unstable speed regulation during operation?

First check for abnormal load, blockage or jamming in fans, pumps, etc., to ensure normal load operation.

Next adjust speed control parameters: optimize PID settings, acceleration / deceleration time for smooth regulation.

For high energy consumption, verify control mode matches load type and adjust speed to actual demand.

Check communication lines and ensure accurate sensor (pressure, temperature) feedback to avoid signal distortion.

Upgrade firmware if necessary and contact ABB support for parameter optimization.

3. How to ensure stable operation and long service life in severe cold environments?

Use IP54 or higher protection for cold conditions; install in dry, ventilated locations to avoid rain, snow and dust.

Regularly check anti-freezing reverse mode parameters to ensure proper function in low temperatures.

Clean dust inside and outside the inverter and inspect the cooling system to avoid overheating.

Operate within rated power and voltage; avoid long‑term overload.

Periodically check terminal connections to prevent loosening due to low temperature. Update firmware regularly and perform routine performance inspections.
