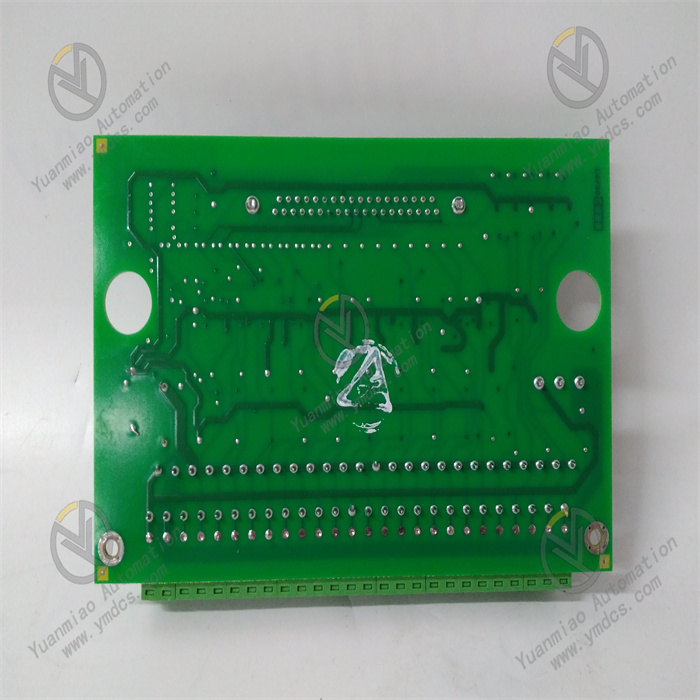

1. Product Overview
GE IS200STCIH2ADD is a Contact Input Terminal Board of the IS200 series under GE Speedtronic Mark VI turbine control system. It serves as the front‑end hardware for field digital‑signal acquisition of Mark VI gas‑turbine and steam‑turbine control systems. Developed for TCS (Turbine Control System), TSI (Turbine Supervisory Instrumentation) and generator control systems of GE gas turbines, steam turbines, hydro‑turbine units and centrifugal compressor units, this board provides wiring access, opto‑electrical isolation, anti‑chatter filtering, level conversion and terminal transfer functions for field contact‑input signals, passive dry contacts, active voltage signals, equipment operation‑status feedback, interlock contacts and local push‑button signals. It safely and reliably brings various field digital measurement points into the main control board of the control system.
It has passed comprehensive industrial‑grade tests including full‑load power‑on aging, temperature cycling, vibration‑shock test, dielectric withstand and electromagnetic interference test. Capable of 7×24‑hour full‑load continuous operation all year round, it endures harsh cabinet conditions in power plants such as high enclosed temperature, dust‑humidity environment, alternating temperature cycles, strong electromagnetic interference and grid voltage fluctuation. Given the long remaining service life of Mark VI‑based installed units worldwide, IS200STCIH2ADD, as the core terminal board for digital‑signal‑acquisition loops, its spare‑part supply, fault replacement and system maintenance are critical for safe operation of legacy on‑site units, and constitute one of the key hardware assets for GE turbine‑control‑system retrofitting and spare‑part stocking.
2. Functional Features
2.1 Centralized multi‑channel contact‑input access with standardized loop organization
As a dedicated contact‑input terminal board for Mark VI systems, IS200STCIH2ADD integrates multiple standardized screw‑type wiring terminals for centralized access to field signals such as circuit‑breaker position, disconnector position, earthing‑switch status, spring‑charging status, remote/local selector switch, pressure switches, temperature switches, vibration switches, local push‑buttons and interlock‑feedback contacts. It unifies and classifies scattered field digital measurement points. Layout strictly follows GE Mark VI original point definition with clear signal zoning, strong‑weak electric separation and distinct wiring marking. It effectively resolves common issues including messy digital‑loop wiring, confused measurement points and cross‑loop interference, making field cabling, loop verification and troubleshooting more standardized and efficient. It perfectly matches standardized turn‑key construction and operation‑maintenance management for gas‑turbine and steam‑turbine control systems.
2.2 Opto‑electrical isolation and anti‑chatter filtering for reliable digital‑signal acquisition
Each input channel is equipped with an optocoupler to achieve galvanic isolation between field loops and control‑system low‑voltage circuits. It accommodates multi‑voltage‑level contact‑input signals including 220 V AC/DC, 110 V DC and 24 V DC, and completely blocks ground‑loop current, common‑mode interference and surge voltage from intruding into the control system. Built‑in digital filtering and configurable anti‑chatter delay circuits effectively suppress false triggering caused by mechanical‑contact bounce, on‑site electromagnetic pulses and induced line noise. True, stable and error‑free contact‑status acquisition provides solid digital‑signal foundation for unit interlock protection and sequence control.
2.3 Physical strong‑weak electric isolation with hardware‑level loop protection
Physical partitioning and independent‑loop layout separate field high‑voltage contact‑input loops (e.g. 220 V trip loops, 110 V control loops) from backplane / low‑voltage circuits. Built‑in overcurrent, surge and varistor‑based protection mechanisms resist transient line surges, electromagnetic radiation and variable‑frequency‑drive harmonic interference. It prevents control hosts and field devices from damage caused by strong‑electric crosstalk or abnormal power‑supply surges. Single‑loop faults will not propagate to trigger full‑board failure or control‑system anomalies, enhancing anti‑interference performance and fault tolerance of contact‑input acquisition loops for complex electromagnetic environments at gas‑turbine sites.
2.4 Native Mark VI compatibility for plug‑and‑play performance
Natively adapted to the backplane architecture of GE Mark VI Speedtronic control systems. Point definitions, signal protocols, mechanical dimensions and connector definitions fully comply with OEM design. No extra adaptor modules, secondary signal conditioning or complex calibration are required. Direct in‑situ installation is supported for both new‑build and legacy Mark VI units. It seamlessly interfaces with peer CPU main‑control boards, system master units, upper‑level HMI and plant DCS to realize real‑time contact‑status uploading, sequence‑control logic judgment and interlock linkage. It fits multiple scenarios including new‑unit turn‑key delivery, legacy‑system retrofitting and loop reformation.
2.5 Reliable gold‑plated terminal structure for stable long‑term contact
Industrial‑grade gold‑plated anti‑corrosion wiring terminals feature anti‑oxidation, anti‑corrosion, anti‑loosening and repeated‑mating resistance. They withstand high‑humidity, dusty, oily and vibrating gas‑turbine site conditions, eliminating hidden risks such as signal interruption and status misjudgment induced by terminal oxidation, poor contact or loose connections. Firm terminal locking maintains constant contact resistance with no signal jitter, loop open‑circuit or contact bounce during long‑term operation. It greatly reduces risks of protection mis‑action, unit load reduction and unplanned shutdown caused by contact‑input‑loop faults, and extends service life of signal‑acquisition loops.
2.6 Modular debug‑free design for efficient maintenance and replacement
Standardized modular plug‑in structure for Mark VI systems delivers precise rack alignment, easy assembly and secure latching, matching layout of GE standard control cabinets. Clear definitions for standardized terminal interfaces and signal loops require no specialized debugging, system‑logic reconfiguration or control‑logic modification. Non‑destructive in‑situ replacement of faulty legacy contact‑input terminal boards is supported without unit shutdown or large‑scale rewiring. Digital‑signal‑acquisition‑loop reformation and hardware upgrading can be completed rapidly, lowering O&M costs, repair difficulty and unit shutdown losses for power‑plant turbine systems.
3. Technical Specifications
3.1 Core Compatibility Parameters
| Item | Specification |
|---|---|
| Complete Part Number | IS200STCIH2ADD |
| Brand | General Electric (GE) |
| Product Series | GE Mark VI / Speedtronic IS200‑series turbine‑control system |
| Product Type | Contact Input Terminal Board |
| Applicable Systems | GE Mark VI gas‑turbine / steam‑turbine TCS, TSI, plant DCS/SIS |
| Matching Hardware | Mark VI VME rack, CPU main‑control board, I/O control pack, power‑supply module |
| Compatible Signals | Passive dry contacts, 24 V DC/48 V DC/110 V DC/220 V DC/AC active contact‑input signals |
| Core Functions | Centralized multi‑channel contact‑input access, opto‑electrical isolation, anti‑chatter filtering, level conversion, terminal transfer, loop surge protection, data uploading |
| Typical Applications | Acquisition of circuit‑breaker position, valve feedback, remote/local status, pressure/temperature switches, interlock contacts, push‑buttons and equipment operating status |
3.2 Electrical Performance Parameters
| Item | Specification |
|---|---|
| Signal Types | Passive dry contacts and multi‑voltage‑level active contact‑input signals |
| Isolation Mode | Optocoupler isolation per channel; full galvanic isolation between field loops and control‑system low‑voltage circuits |
| Anti‑chatter Filtering | Digital filtering plus configurable anti‑chatter delay to suppress mechanical‑contact bounce and electromagnetic‑pulse interference |
| Protection Capability | Built‑in overcurrent, surge and varistor protection to withstand transient abnormal‑voltage line surges |
| Channel Response | Millisecond‑level contact‑status acquisition without lag following unit‑condition changes |
| Interface Configuration | Industrial screw‑type gold‑plated anti‑corrosion terminals; mating backplane connectors for Mark VI I/O control cards |
| Electrical Stability | 7×24‑hour continuous operation; no loop open‑circuit, signal jitter or terminal‑contact anomalies |
| Insulation Performance | High‑voltage dielectric‑withstand compliance; effective isolation against field strong‑electric interference and leakage risks |
3.3 Environmental & Physical Parameters
| Item | Specification |
|---|---|
| Operating Temperature | Industrial wide‑range design for enclosed power‑plant cabinet conditions |
| Storage Temperature | Suitable for extreme temperature during storage and transportation |
| Operating Humidity | 5 %‑95 %RH (non‑condensing); tolerant to dusty‑humid cabinet environments |
| Environmental Resistance | Dust‑proof, moisture‑resistant, oil‑pollution resistant, temperature‑cycle aging resistant, continuous‑vibration resistant, high‑EMI immunity |
| Installation | Mark VI standard rack plug‑in installation; precise alignment and easy assembly |
| Mechanical Construction | Industrial flame‑retardant ruggedized PCB, insulated protective housing; anti‑loosening, vibration‑resistant, aging‑resistant, flame‑retardant and moisture‑proof |
4. Hardware Configuration & Structural Advantages
4.1 Core Hardware Configuration
IS200STCIH2ADD adopts dedicated contact‑input‑terminal‑board hardware architecture for GE Mark VI IS200 series. Core components include multi‑channel contact‑input wiring terminals, optocoupler isolation circuits, anti‑chatter‑filtering and level‑conversion units, strong‑weak‑electric isolation modules, surge‑overcurrent‑protection loops, backplane connectors and stabilized‑power‑supply adaptation units. Fine‑partitioned internal‑circuit design completely separates field high‑voltage contact‑input loops, backplane communication loops and auxiliary power‑supply loops to prevent signal crosstalk and distortion at hardware level. Core components and wiring terminals pass strict OEM screening including full‑load aging, thermal shock, vibration fatigue, high‑voltage insulation and electromagnetic‑interference tests. Optimized for long‑term uninterrupted turbine‑unit operation, complex field cabling and harsh cabinet conditions, it reliably implements full‑process functions of field multi‑channel contact‑input access, isolation, conditioning and transfer.
Gold‑plated contacts are adopted on rear‑side Mark VI standard backplane connectors for reliable mating with peer CPU main‑control boards. Front‑panel screw‑type field‑wiring terminal blocks feature signal definitions fully consistent with OEM drawings for convenient on‑site construction and maintenance. The PCB is built with industrial flame‑retardant ruggedized design. Multi‑point mechanical locking for internal circuits resists hardware poor‑contact, terminal loosening, board deformation and aging under sustained cabinet vibration, temperature cycling, oil pollution and dust.
4.2 Structural & Engineering Advantages
Compact standardized modular structure for GE Mark VI series perfectly fits dense‑installation layout of turbine‑control cabinets with high space utilization, secure mounting and strong adaptability. Industrial flame‑retardant, moisture‑proof and vibration‑resistant rugged materials plus multi‑point locking for internal circuits and terminal bases sustain long‑term cabinet vibration, temperature cycling, humidity and dust. Clearly marked and partitioned board terminals greatly reduce on‑site wiring errors and loop‑troubleshooting difficulty.
Non‑destructive in‑situ replacement of faulty legacy contact‑input terminal boards is supported without cabinet‑rack modification, main‑control‑logic reconfiguration or unit shutdown, lowering retrofitting, O&M and repair costs for turbine systems. Standardized dimensions, terminal layout and installation modes are fully consistent with other IS200‑series I/O terminal boards (analog, speed, vibration etc.). Unified spare‑parts management, on‑site training and fault‑repair workflows for maintenance personnel fully satisfy requirements for long‑term stable operation of digital‑acquisition loops for large‑power‑plant gas‑turbine and steam‑turbine units.
5. Working Principle
IS200STCIH2ADD contact‑input terminal board implements closed‑loop digital‑acquisition workflow: field contact‑input signal access → opto‑electrical isolation → anti‑chatter filtering & level conversion → stable backplane transmission → full‑range hardware protection, to realize regularization, accurate transmission and safe isolation of field contact‑input signals for Mark VI turbine‑control systems.
During operation, field contact‑input signals including circuit‑breaker / valve‑position feedback, remote/local status, pressure/temperature‑switch contacts, interlock‑protection contacts and local push‑button signals are connected to corresponding partitioned terminal loops on the board. All incoming signals first pass optocoupler isolation circuits for full galvanic isolation between field high‑voltage loops (220 V/110 V/24 V) and control‑system low‑voltage circuits, eliminating strong‑electric crosstalk, ground‑loop current and surge voltage. Subsequently, anti‑chatter‑filtering and level‑conversion units filter mechanical‑contact bounce, on‑site electromagnetic pulses and induced line noise, and convert multi‑voltage‑level contact‑input signals into standard logic levels recognizable by the control system.
Conditioned digital signals are stably transmitted to peer CPU main‑control boards via rear‑side Mark VI backplane connectors. Main‑control boards perform digital‑status reading, logical judgment, sequence‑control and interlock‑protection calculation, participating in unit start‑stop logic, auxiliary‑equipment linkage, protection interlocks, status display and SOE event logging. On‑board full‑range hardware‑protection circuits real‑time monitor current‑voltage conditions of each partitioned loop. In case of line short‑circuit, overcurrent, surge shock or abnormal leakage, faulty loops are automatically isolated to suppress interference propagation and protect main‑control equipment and field devices.
Standardized terminal integration and loop optimization resolve pain points of messy contact‑input‑point wiring, signal instability and frequent‑loop faults at turbine sites, ensuring accurate digital‑status acquisition, reliable interlock protection and controllable unit operation for Mark VI turbine‑control systems.
6. Troubleshooting
6.1 Frequent HMI‑status jitter or mismatch against field actual status
| Probable Cause | Inspection Method | Remedial Action |
|---|---|---|
| Poor field‑contact performance, mechanical bounce or oxidized / loose terminals | Locate jittering channels via HMI measurement‑point trends; inspect field contacts and terminals | Clean or replace field contacts; tighten terminals; re‑crimp cable lugs |
| Insufficient anti‑chatter‑delay setting failing to suppress contact bounce | Check channel anti‑chatter‑delay configuration via Mark VI engineer station | Increase anti‑chatter‑delay parameter appropriately; download updated configuration |
| Optocoupler false triggering caused by on‑site electromagnetic interference | Observe whether jitter coincides with motor start‑stop or variable‑frequency‑drive operation | Check cable‑shield grounding; separate laying for signal cables and power cables |
| Insufficient field‑loop supply voltage preventing reliable contact closure | Measure supply voltage of field contact‑input loop | Inspect 24 V/110 V/220 V DC power supply; restore rated voltage |
6.2 Non‑refreshing HMI‑status or bad‑point alarm
| Probable Cause | Inspection Method | Remedial Action |
|---|---|---|
| Damaged field contact or broken lead‑wire | Short contacts at field terminal box and verify HMI‑status change | Replace faulty contacts / switches; repair broken cables |
| Damaged optocoupler on corresponding terminal‑board channel | Apply simulated short‑circuit signal at terminal‑board input and check for HMI‑status refresh | Replace channel‑specific components or full IS200STCIH2ADD terminal board |
| Poor backplane‑connector contact or main‑control‑board fault | Cross‑reference adjacent channels; inspect backplane‑connector tightness | Re‑plug and clean backplane connectors; troubleshoot peer CPU main‑control board |
6.3 Global abnormal contact‑input data or communication interruption
| Probable Cause | Inspection Method | Remedial Action |
|---|---|---|
| Loose, oxidized or bent‑pin backplane connector | Extract full terminal board and inspect gold fingers and backplane pins | Clean gold fingers and pins; re‑insert and secure the board; repair backplane for bent pins |
| Faulty peer CPU main‑control board | Check main‑control‑board LED status and system alarm messages | Hot‑swap corresponding CPU main‑control board per procedure; terminal board itself requires no modification |
| Abnormal cabinet power supply or faulty power‑supply module | Measure backplane supply voltage against nominal specification | Troubleshoot cabinet power‑supply loops; replace faulty power‑supply module |
6.4 Interlock mis‑operation or protection failure to act
| Probable Cause | Inspection Method | Remedial Action |
|---|---|---|
| Poor interlock‑contact performance or degraded loop insulation | Measure interlock‑loop resistance and insulation resistance; inspect on‑site contact condition | Clean or replace interlock contacts; resolve loop‑insulation degradation |
| Excessively long anti‑chatter delay leading to protection‑response failure | Verify whether interlock‑loop anti‑chatter delay meets protection‑response requirements | Shorten anti‑chatter delay per protection‑setting values; download updated configuration |
| Application‑logic‑configuration error or incorrect interlock‑condition download | Online monitor interlock‑logic blocks and input‑variable status | Restore previous controlled‑version logic; re‑release configuration following MOC workflow |
