Description
1. Overview

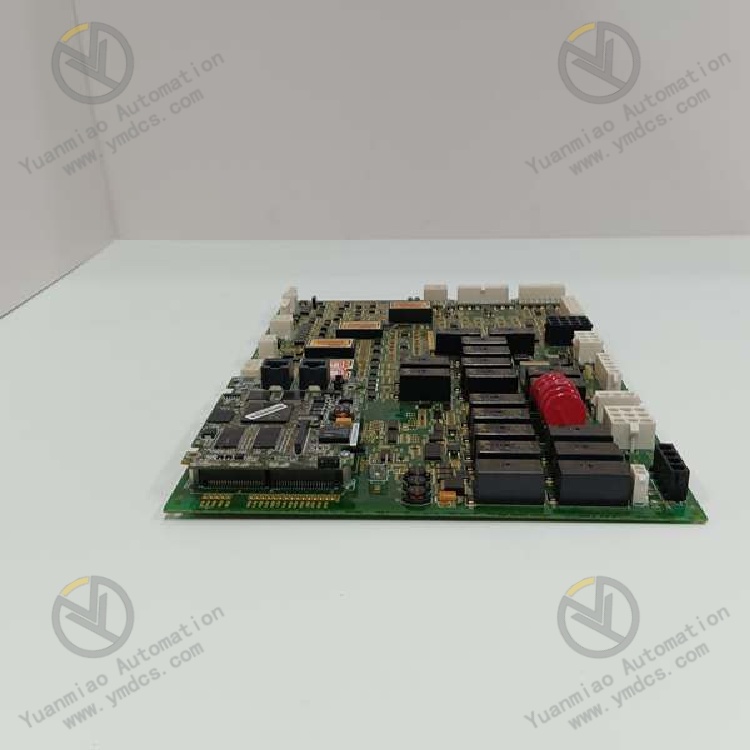

The GE IS200AEPAH1ACB is a high-precision analog acquisition and signal conditioning mainboard dedicated to the Speedtronic Mark VI turbine control system. The assembly is factory-equipped with the attached subboard IS210BPPBH2BMD. The two boards form an integral factory-matched assembly and cannot be separated or mixed with other versions. Belonging to the GE Vernova core hardware system for power generation control, this complete assembly is widely applied in parameter monitoring, signal acquisition, condition conditioning and closed-loop control circuits of gas turbines, steam turbines and combined-cycle generator units.
The integrated module assembly is mainly responsible for isolated acquisition, filtering and shaping, precision calibration, pre-conditioning and data forwarding of key process analog and discrete signals including unit temperature, pressure, vibration, speed and displacement. It serves as the core front-end hardware for turbine control systems to sense field operating conditions, implement load regulation, execute protection logic judgment and monitor equipment status. Among the assembly, IS200AEPAH1ACB acts as the main board carrier, undertaking core signal calculation, bus interaction, data processing and system configuration matching. The IS210BPPBH2BMD is a supporting signal expansion subboard that realizes multi-channel signal shunting, loop isolation, terminal signal preprocessing and link enhancement, expanding the signal channel capacity and operating condition adaptability of the main board.
Specially optimized for harsh power plant operating conditions including severe electromagnetic interference, alternating temperature and humidity, 24/7 continuous operation and high-frequency dynamic signal acquisition, the assembly adopts industrial-grade high-precision sampling chips and a full electrical isolation architecture. It features high sampling accuracy, superior signal stability, outstanding anti-interference performance and zero long-term zero drift. Fully compatible with the backplane, system bus and configuration software of all GE Mark VI turbine cabinets, it provides reliable front-end signal acquisition support for precise parameter control, stable operation and fault tracing of generating units. It is a standardized complete module for new power plant project matching, legacy board replacement and signal acquisition loop optimization.
2. Technical Features
2.1 Cooperative Mainboard and Subboard Architecture for Accurate and Comprehensive Signal Acquisition
Adopting a hierarchical architecture of mainboard core calculation + subboard front-end preprocessing, the IS210BPPBH2BMD subboard performs primary filtering, surge suppression, electrical isolation and signal conditioning for multi-channel field sensor signals to eliminate field clutter, pulse interference and power frequency crosstalk. The IS200AEPAH1ACB mainboard then completes high-precision AD sampling, data calibration, logic operation and bus data uploading. This hierarchical processing thoroughly resolves signal distortion, sampling drift and data fluctuation caused by complex electromagnetic environments in power plants, ensuring authentic, accurate and real-time acquisition of key unit parameters such as vibration, temperature, pressure and speed.
2.2 High-Precision Sampling Adapted to Precision Unit Control Conditions
The mainboard is equipped with a 16-bit high-precision AD sampling unit with a sampling accuracy of ±0.05% and millisecond-level high-speed signal acquisition and refresh capability, enabling real-time capture of tiny parameter changes during unit load variation, start-stop switching and grid disturbance. Cooperating with the front-end signal optimization capability of the subboard, it effectively eliminates signal attenuation and waveform distortion caused by long-distance transmission. No zero drift or parameter offset occurs during long-term operation, perfectly adapting to high-precision closed-loop regulation and protection threshold judgment of turbine units.
2.3 Full-Range Electrical Isolation with Excellent Anti-Interference Performance
The entire assembly adopts a dual-layer isolation design. The IS210BPPBH2BMD subboard isolates front-end signal loops and blocks interference caused by field equipment start-stop, grounding disturbance and voltage fluctuation. The IS200AEPAH1ACB mainboard implements board-level bus and power supply isolation, built with multiple protection mechanisms including overvoltage, overcurrent, short circuit, electrostatic discharge and surge impact. The dual isolation structure effectively resists strong electromagnetic radiation, ground potential difference and transient grid disturbance in power plants, preventing signal breakdown, channel damage and system sampling errors and significantly improving overall system operational stability.
2.4 Multi-Channel Signal Expansion with Strong Operating Condition Adaptability
Leveraging the channel expansion capability of the IS210BPPBH2BMD subboard, the module supports simultaneous acquisition of multiple analog and discrete signals, covering all turbine operating parameters including temperature, pressure, vibration, shaft displacement, speed, valve position feedback and equipment status. A single module realizes centralized acquisition and conditioning of key unit measurement points, simplifying cabinet wiring and signal loops and reducing superposed interference risks of multi-point signal acquisition.
2.5 Intelligent Self-Diagnosis and Monitoring for Accurate Fault Localization
The assembly supports dual protection mechanisms: full-dimensional power-on self-test and real-time operational monitoring. Upon power-up, it automatically verifies the integrity of the mainboard sampling unit, bus links, subboard preprocessing channels, power supply loops and signal loops. During operation, it continuously monitors potential hazards such as channel abnormality, signal disconnection, over-range, data anomaly, link interference and board temperature rise. It accurately locates faulty channels and fault types, automatically stores fault logs and uploads system alarms, greatly shortening the troubleshooting time for signal-related faults.
2.6 Industrial-Grade Reinforced Design for Long-Term Unattended Operation
Core components of both mainboard and subboard have passed strict wide-temperature screening, high-low temperature cycling, industrial aging and vibration resistance tests. The circuit boards adopt three-proof coating technology with dustproof, moisture-proof, anti-corrosion, vibration-resistant and anti-aging properties. With no mechanical wearable parts, low power consumption and low heat generation, the module stably withstands cabinet temperature and humidity fluctuation, equipment vibration and high-frequency electromagnetic radiation in power plants. It supports 24/7 uninterrupted continuous operation and meets the long-service-life operation and maintenance requirements of large generator units.
2.7 Standardized Matching and Plug-and-Play Replacement with No Commissioning Required
Fully compliant with GE Mark VI original factory specifications including hardware dimensions, slot standards, interface definitions, electrical parameters and bus protocols, the assembly is completely compatible with turbine control system configuration software and cabinet architecture. Faulty assemblies can be directly replaced as a complete set without modifying on-site wiring, system programs, sampling parameters or protection settings. Secondary calibration and commissioning are not required, and the module can be put into service immediately after power-on configuration matching, delivering high maintenance efficiency and low renovation costs.
3. Specification Parameters
3.1 Basic Assembly Parameters
- Complete Assembly Model: Mainboard IS200AEPAH1ACB + Attached Subboard IS210BPPBH2BMD
- Manufacturer: GE General Electric (Affiliated to GE Vernova Power Generation Control System)
- Device Type: High-Precision Signal Acquisition and Conditioning Complete Module for Turbine Control Systems
- Core Functions: Isolated acquisition of field operating signals, front-end filtering and shaping, high-precision AD sampling, parameter calibration, data operation, bus data uploading, channel fault self-diagnosis, unit operating condition monitoring
- Compatible Systems: GE Speedtronic Mark VI Turbine Control System, Combined-Cycle Unit DCS, Generator Excitation and Monitoring System
- Applicable Equipment: Gas Turbine, Steam Turbine, Combined-Cycle Generator Set, CHP Unit, Unit Sensor Measurement Assembly
- Application Scenarios: Matching for new unit signal acquisition systems, complete replacement of faulty legacy boards, optimization of unit measurement accuracy, rectification of signal interference problems, upgrade and maintenance of control systems
3.2 Electrical and Sampling Parameters
- Power Supply: Standard industrial DC power supply, compliant with dedicated power specifications of GE Mark VI cabinets, low power consumption and stable operation
- Sampling Accuracy: 16-bit high-precision sampling, steady-state error ≤±0.05%, no zero drift during long-term operation
- Sampling Speed: Millisecond-level high-speed refresh, adapting to rapid signal acquisition demands under dynamic unit load variation
- Signal Processing: Subboard front-end filtering, isolation and waveform shaping; mainboard precision sampling, data calibration and error correction
- Isolation Performance: Dual-layer electrical isolation for mainboard and subboard, completely isolating signal side and system control side to resist ground potential interference and electromagnetic crosstalk
- Electrical Protection: Built-in multi-protection of overvoltage, overcurrent, short circuit, surge, static electricity and reverse voltage, tolerating industrial electrical disturbances
3.3 Communication and Operation Parameters
- Communication Protocol: Compatible with GE Mark VI original dedicated bus protocol, supporting system configuration recognition, high-speed data uploading and remote parameter diagnosis
- Data Functions: Real-time uploading of channel measurement parameters, board operating status, channel fault information and abnormal alarm data
- Fault Tolerance: Independent isolation of single-channel faults without affecting other channels or overall module operation
- Operation Mode: Continuous non-stop sampling, adapting to all-weather unit monitoring requirements
3.4 Environmental Parameters
- Operating Temperature: -40℃～+70℃, adaptable to wide temperature fluctuation of power plant rooms
- Storage Temperature: -40℃～+85℃
- Operating Humidity: 5%～95%RH (non-condensing), suitable for constant temperature and humidity enclosed cabinet environments
- Protection Technology: Military-grade three-proof coating, dustproof, moisture-proof, anti-corrosion, anti-oxidation and anti-mold, anti-aging
- Anti-Interference Level: Compliant with high-end industrial EMC standards for power plants, resisting strong electromagnetic radiation and equipment vibration interference
3.5 Structural and Maintenance Parameters
- Installation Method: Standard embedded cabinet slot installation; subboard onboard integrated with mainboard, stably docking with backplane interface with high vibration resistance
- Structural Features: Integrated mainboard-subboard structure, high integration, no mechanical vulnerable parts, low failure rate and stable operation
- Replacement Characteristics: Standardized complete assembly replacement, no wiring/program modification or secondary calibration required, ready for operation after power-on
- Maintenance Features: Support precise faulty channel positioning and data traceability, no frequent daily calibration required, convenient maintenance and low cost
4. Working Principle
After power-on, the complete IS200AEPAH1ACB+IS210BPPBH2BMD assembly completes hardware initialization, bus link handshake and sampling parameter calibration. Meanwhile, it automatically detects the connection status and channel integrity of the attached subboard and performs full-board self-test. After confirming no abnormalities, the module enters normal sampling operation mode.
Field analog and discrete signals including temperature, pressure, vibration, speed and displacement output by various sensors are first sent to the IS210BPPBH2BMD subboard for front-end preprocessing. Through onboard filter circuits, impedance matching units and electrical isolation loops, the subboard filters industrial field clutter, power frequency crosstalk and voltage transient, regularizes signal waveforms and suppresses signal attenuation, outputting pure and stable standard signals to the mainboard.
After signals are transmitted to the IS200AEPAH1ACB mainboard, the high-precision AD sampling unit completes analog-to-digital conversion, precise sampling and data calibration. Combined with system configuration parameters, it performs data calculation, logic judgment and condition analysis, and finally uploads standardized unit operating data to the upper-level main control system via the system bus, providing accurate data basis for unit load regulation, valve position control, protection logic action and operating condition monitoring and traceability.
During the whole operation process, the mainboard and subboard cooperatively monitor channel status, data quality, power supply condition and communication links in real time. Once hidden risks such as signal disconnection, over-range, data abnormality, channel fault and communication fluctuation are detected, the module immediately locks faulty channels, records fault codes and uploads system alarms, isolates abnormal signals to avoid impact on overall sampling and system logic, and fully guarantees authentic signal acquisition and accurate and stable unit condition monitoring.
5. Application Scenarios
5.1 Full-Condition Signal Acquisition for Turbine Units
As the core front-end acquisition assembly of the GE Mark VI turbine control system, it is responsible for signal acquisition and preprocessing of key process measurement points of gas turbines, steam turbines and combined-cycle units, covering vibration, temperature, pressure, speed, shaft displacement, valve position feedback and other critical parameters. It provides core data support for unit start-stop control, variable load regulation and steady-state operation monitoring.
5.2 Signal Support for Unit Protection Logic
It provides accurate original sampling data for unit protection logics including over-temperature, over-pressure, excessive vibration, abnormal speed and shaft displacement over-limit. It ensures precise judgment and reliable action of the protection system, eliminates protection misoperation and refusal caused by signal distortion and sampling drift, and builds a solid safety barrier for unit operation.
5.3 Optimization and Replacement of Legacy Acquisition Systems
Aiming at common problems of old-version boards such as inaccurate sampling, data fluctuation, channel damage, degraded anti-interference capability and frequent alarms, the complete mainboard-subboard assembly can be directly replaced without system architecture or wiring modification. It realizes low-cost performance optimization of the front-end acquisition system and improves unit monitoring accuracy and operational stability.
5.4 Anti-Interference Rectification for Complex Operating Conditions
Relying on the dual-layer isolation and hierarchical signal processing architecture, the module specifically resolves signal interference, data fluctuation and unstable sampling under strong electromagnetic field environments. It is applicable to large-scale energy industrial control scenarios with complex electromagnetic conditions, severe interference and dense measurement points.
