Description
1. Product Overview

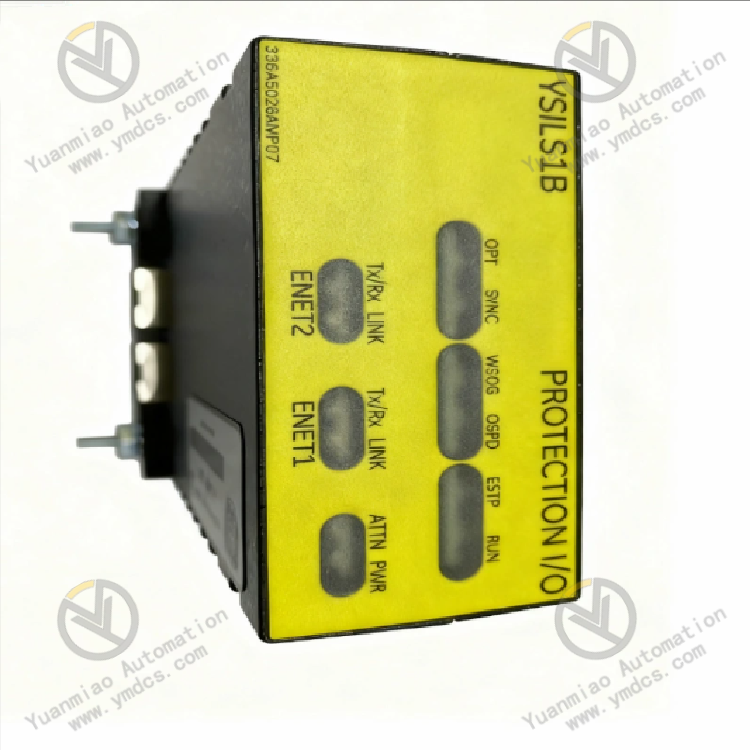

Part Number: IS220YSILS1B
Manufacturer: GE Vernova (General Electric)Compatible System: Speedtronic Mark VIe / Mark VIeS gas & steam turbine distributed control system. It is a discontinued end-of-life critical spare part dedicated to safety interlock loops of turbine units.
2. Hardware Structure & Six Functional Units
2.1 Dual-Core Real-Time Processing & Storage Unit
1.6GHz AMD G-Series dual-core main processor, 2GB DDR3 RAM and 128GB solid-state storage running QNX Neutrino hard real-time OS. It completes safety logic judgment and SOE millisecond-level timestamp recording. Hardware watchdog and stack overflow monitoring trigger automatic reset and protection latch upon program exception to prevent out-of-control safety loops.
2.2 8-Channel Isolated Integrated DI/DO Unit
8 mutually galvanically isolated digital I/O channels configurable as safety discrete input or output. Input circuits integrate surge suppression and reverse polarity protection for 24VDC dry contact signals. Output channels adopt short-circuit current limiting and load open-circuit diagnosis; single-channel fault locks only the corresponding loop without disabling the whole module’s protection function, suitable for driving trip solenoid valves and shutdown relays.
2.3 Dual Redundant IONET Ethernet Communication Unit
Two independent hot-backup IONET Ethernet ports with seamless failover during single link disconnection. It communicates with main controllers, redundant CPUs and other I/O modules via Mark VIe proprietary bus and ControlST configuration software. Three deployment modes are supported: simplex standalone, duplex hot redundancy and TMR triple modular voting to meet fault-tolerant requirements of critical power generation units.
2.4 Terminal Base Signal Transfer & Loop Protection Unit
Field cables connect directly to dedicated SCS/TCS terminal bases with built-in TVS lightning protection, common-mode filtering and overvoltage clamping components, eliminating intermediate marshalling cabinets and reducing wiring failure points. DIN rail mounting simplifies on-site installation and wiring.
2.5 Power-On Self-Test & Multi-Dimension Diagnosis Unit
Comprehensive self-test on memory, signal channels, bus links and power supply after power-up. Real-time monitoring detects wire breakage, signal overrange, output open load, link loss and firmware abnormality with hardware fault latch. Front-panel LEDs indicate power, dual-network status, module fault and channel operation for on-site troubleshooting without upper computer software.
2.6 Industrial Reinforced & EMC Protection Unit
4-layer gold-plated flame-retardant PCB with full conformal coating for moisture, corrosion and dust resistance. Fanless passive cooling design complies with Class A industrial EMC standards to resist high-frequency harmonic interference from SCR rectifiers and continuous vibration of turbine units, enabling 24/7 uninterrupted long-term operation under harsh industrial conditions.
3. Detailed Technical Specifications
3.1 Core Functional & Safety Parameters
| Item | Specification |
|---|---|
| Part Number | IS220YSILS1B Core Safety I/O Pack |
| Total Configurable Channels | 8 isolated digital input / output channels |
| Safety Level | SIL2 per IEC61508; SIL3 achievable via TMR redundant architecture |
| Embedded OS | QNX Neutrino Hard Real-Time RTOS |
| Main Processor | 1.6GHz Dual-Core AMD G-Series CPU |
| Memory & Storage | 2GB DDR3 RAM + 128GB Solid-State Storage |
| SOE Timestamp Accuracy | 1ms sequence-of-event logging |
| Redundancy Modes | Simplex / Duplex Hot Standby / TMR Triple Modular Redundancy |
| Matching Terminal Bases | IS200TCSAS1A, ISx0yWCSAS1A, ISx0ySCSAS1A |
| Fault Reset | Hardware latch; cleared by software command or power cycle |
3.2 Electrical & Communication Parameters
- Rated Input Power: 24VDC from rack backplane, tolerance 18~32VDC
- Typical Power Consumption: ≤4.5W
- Communication Interface: Dual redundant 10/100Mbps IONET Ethernet
- Input Signal Type: 24VDC passive dry contact discrete signal
- Output Protection: Per-channel current limiting for relay and small solenoid loads
- Hot Swap: Hot plugging is strictly forbidden
3.3 Environmental Parameters
- Operating Temperature: -40℃ ~ +70℃
- Storage & Transit Temperature: -40℃ ~ +85℃
- Humidity: 5%~95%RH non-condensing, no corrosive gas or salt fog
- Ingress Protection: IP20 (for sealed cabinet installation only)
3.4 Mechanical Parameters
- Mounting: DIN 35mm standard rail clip mounting for base + module assembly
- Overall Dimensions: 120H × 80W × 40D mm
- Net Weight: ~0.5kg
- PCB Material: V0 flame-retardant FR-4 gold-plated board with anti-oxidation contacts
4. Product Advantages
- Safety-oriented dedicated hardware forces output cutoff and trip interlock upon watchdog failure, eliminating loss of emergency shutdown capability caused by program crash or communication loss.
- Flexible redundancy options match unit criticality; TMR 2-out-of-3 voting prevents spurious trip or failure to trip induced by single component damage.
- Direct field wiring via terminal bases removes intermediate terminal junctions and minimizes wiring-related fault points.
- Hard real-time architecture ensures ultra-low response latency to satisfy strict timing requirements for overspeed, vibration and furnace flameout shutdown protection.
- Channel-level fault diagnosis pinpoints exact fault location via HMI alarm to reduce unplanned outage maintenance time.
- Fanless conformal coated design requires zero routine maintenance and matches generator overhaul cycle service life.
5. Application Scenarios
ETS emergency trip system and BMS furnace safety monitoring for Mark VIe gas/steam turbine combined-cycle power units; safety interlock signal acquisition and shutdown execution for petrochemical compression and heating furnace turbo equipment; anti-surge and equipment protection logic processing for blast furnace waste heat power generation and induced draft fan control systems; legacy Mark VIe I/O system replacement, SIL safety loop upgrade and preventive spare part procurement for power plants.
