I. Basic Information

II. Technical Specifications

(1) Basic Hardware Parameters

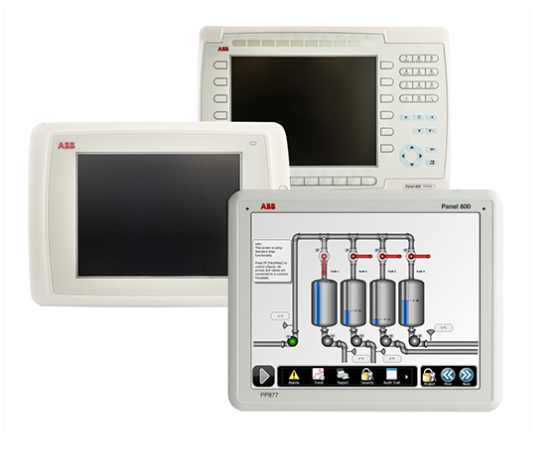

• Model: PP877, Order Part Number: 3BSE069272R2
• Brand: ABB, Origin: Sweden
• Product Type: Standard Industrial Touch HMI (Panel800 V6)
• Compatible Systems: System800xA DCS, AC800M PLC, Compact Control Builder industrial control platform
• Application Fields: Local operation for power plant auxiliary equipment, chemical process units, sewage pump houses, metallurgical dust removal & belt conveyor sets, field cabinets of oil & gas facilities
• Mounting: Flush cutout installation on control cabinet door with standard industry cutout dimension
• Overall Dimension: 204mm(W)×143mm(H)×50mm(D), Net Weight: 0.8kg
• Protection Rating: Front panel IP65 (dustproof and splash-proof), rear cabinet side IP20
• Hardware Architecture: 1GHz ARM Cortex-A8 processor; 512MB RAM + 512MB Flash onboard storage, integrated hardware watchdog

• Touch Feature: Industrial resistive touch, single-point service life ≥1,000,000 touches, adjustable backlight brightness

•


(2) Rated Electrical Parameters

• Rated Power Supply: DC24V, allowable input range: 18～32VDC; total power consumption ≤12W, built-in overvoltage, reverse-polarity and short-circuit protection for power circuit
• Operation Mode: 24/7 round-the-clock continuous energized operation to satisfy unattended field working conditions

• Real-time Clock: Onboard hardware RTC module to maintain clock timing upon power failure

•


(3) Communication Interface Parameters

• 1×RJ45 Ethernet: 10/100Mbps auto-adaptive; supports Modbus TCP, ABB MMS, ControlNet, Profinet IO for connection with System800xA upper system and AC800M controllers;
• Multiplexed 3-channel serial port (RS232/RS422/RS485): compatible with Modbus-RTU and COMLI for external connection of variable frequency drives, third-party transmitters and compact PLCs;
• 1×USB2.0: Used for HMI project upload/download, historical data export and recipe backup via USB flash drive;

• SD Card Slot: For system firmware upgrade, local project backup and extended storage.

•


(4) Environmental Specifications

• Operating Temperature: -10℃～+60℃, adaptable to cabinet temperature rise in summer and seasonal ambient temperature variation in workshops
• Storage Temperature: -20℃～+70℃, capable of enduring high/low temperature shocks during transportation and storage
• Operating Humidity: 5%～95% RH (non-condensing), suitable for humid, slightly dusty and mildly corrosive substation environments
• EMC Standard: Compliant with IEC61000 industrial EMC standard to resist harmonic interference from inverters and electromagnetic disturbance of high-voltage busbars

III. Key Features

Native compatibility with 800xA system for seamless interconnection

Fully-integrated functional process HMI

Multi-protocol interconnection with heterogeneous devices

Combined Ethernet plus multi-serial-port design enables simultaneous connection of ABB main controllers, domestic PLCs, VFDs and smart transmitters to realize centralized local monitoring of multi-brand field equipment.

Highly reliable dustproof & waterproof industrial construction

Convenient maintenance and commissioning

Direct drop-in replacement for legacy projects

IV. Working Principle

1. Power-on Self-test & Initialization: After DC24V power-on, the unit executes self-check on hardware, touch panel and communication ports, loads Panel Builder configuration project and synchronizes onboard RTC clock.
2. Multi-link Data Collection: Collects real-time current, pressure, temperature and equipment status data from AC800M controllers and field instruments via parallel Ethernet and serial communication links.
3. Screen Calculation & Display: CPU refreshes configured graphic screens and real-time trends; automatically triggers pop-up alarms upon parameter over-limit and locally records fault occurrence time and measured values.
4. Local Command Issuance: Operators send start/stop and parameter modification orders via touch operation; commands are transmitted down to DCS/PLC through communication links to realize field equipment control.
5. Local Data Storage & External Export: Alarms, operation logs and recipes are stored in onboard Flash memory and can be exported via USB or SD card for production traceability.
6. Watchdog Automatic Recovery: Onboard watchdog triggers automatic system restart in case of program crash to avoid terminal offline and out-of-control.

V. Application Scenarios

(1) Thermal & Cogeneration Captive Power Plants

Installed on local control cabinets for boiler induced draft fans, forced draft fans and circulating water pumps to realize on-site auxiliary machine start/stop, motor current & temperature checking and local fault reset, linked to plant-wide System800xA DCS.

(2) Petrochemical & Coal-Chemical Process Plants

Serves as local operation panel for reaction kettles, process pumps and compressors for on-site fine-tuning of process parameters and interlock fault inquiry, suited for corrosive and inverter-intensive production environments.

(3) Municipal Sewage & Clean Water Treatment Plants

Equipped on local cabinets of intake pumps, aeration blowers and chemical dosing systems for unattended pump station matching, on-site maintenance commissioning and parameter setting.

(4) Metallurgical & Steel Dust Removal & Belt Conveying Lines

Used for local operation of dust exhaust fans and belt conveyors; enables on-site checking and reset of belt deviation and pull-cord faults under dusty and voltage-fluctuating harsh workshop conditions.

(5) Spare Part Retrofit for Legacy ABB Systems
