I. Basic Information

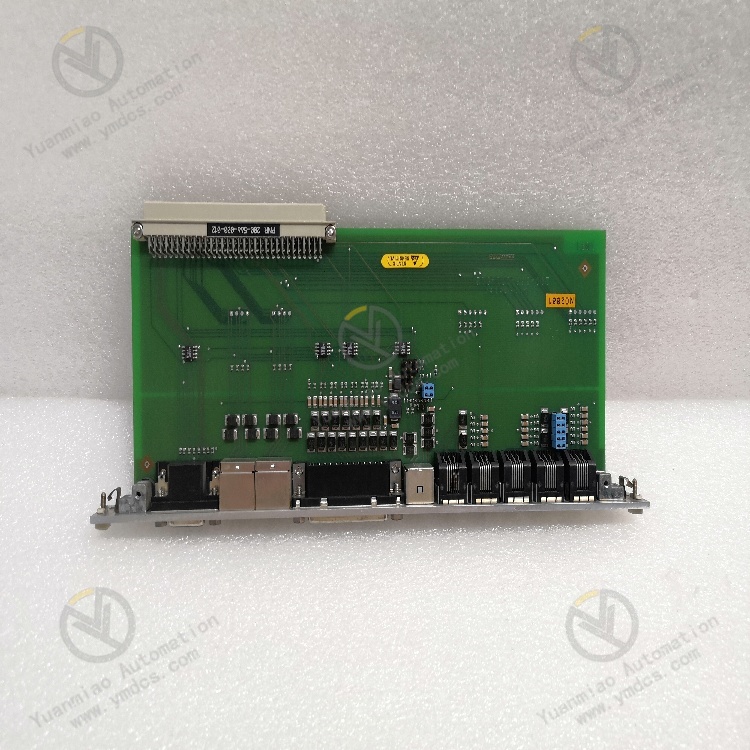

Full Model：IOCN / 200-566-000-112 (Standard Version), 200-566-101-013 (Conformal Coating Enhanced Version)
Brand & Origin：VIBRO-METER
Product Positioning
As a dedicated I/O communication master gateway module for VIBRO-METER VM600 Mk1/Mk1.5 machinery protection and condition monitoring systems, it serves as the core control, data interaction and signal forwarding hub of the entire VM600 rack system. Cooperating with the CPUM master card to form the system control core, it undertakes core functions such as full machine data summary, logic scheduling, network communication, switch input/output, upper computer interaction and protocol conversion, connecting front-end vibration acquisition modules, sensors with back-end monitoring systems, DCS, PLC and upper software. The 200-566-000-112 is a standard universal model suitable for conventional clean electric cabinet working conditions; the 200-566-101-013 is a conformal coating three-proof enhanced model, specially designed for harsh industrial sites with dust, humidity, corrosive gas and sharp temperature changes. Widely applied to key rotating unit monitoring systems such as steam turbines, gas turbines and centrifugal compressors in power, petrochemical, oil & gas and metallurgical industries, it is the core central board to ensure stable full machine data transmission, interlock logic and system networking, adapting to full scenarios including new machine complete set, old module replacement, system communication upgrading and redundant architecture transformation.
Hardware Architecture
It adopts an industrial embedded master control architecture, integrating high-speed bus scheduling unit, multi-protocol communication processing core, isolated switch I/O loop, data cache array, hardware fault monitoring and system redundant management system. Equipped with an exclusive industrial processor, it is responsible for summarizing, calculating and forwarding data, scheduling instructions, outputting alarm logic and uploading network data for all acquisition modules of the entire rack, realizing full machine system time sequence synchronization, unified data packaging and standardized protocol conversion. The standard 200-566-000-112 adopts conventional PCB protection technology to meet standard computer room conditions; the enhanced 200-566-101-013 is fully coated with imported three-proof insulating coating to achieve all-round moisture-proof, dust-proof and corrosion-resistant reinforcement for circuit boards, components and solder joints. Adopting strong and weak current partition wiring, full-domain electromagnetic shielding and independent bus isolation design, it is built with communication surge protection, port overvoltage current limiting and electrostatic protection loops. It features fast communication speed, zero data packet loss, stable logic operation, strong anti-interference ability and no long-term operation drift, perfectly adapting to harsh continuous operation conditions of heavy industry.
Mounting Specification
It is embedded installed in standard VM600 racks, fixed in rack slot 0 and slot 1, perfectly matching the original factory backplane high-speed bus, power contacts, redundant communication protocol and overall layout. The snap-on anti-loosening and vibration-resistant structure can long-term withstand unit start-stop impact, continuous equipment vibration and on-site mechanical disturbance. The front panel is equipped with status indicators to real-timely display system operation, bus communication, network connection, I/O status, fault alarm and redundant switching conditions, supporting rapid on-site inspection, link verification and fault location. It supports independent single-module operation and dual-module hot redundant backup deployment. The standardized compact rack design adapts to dense cabinet layout, supporting non-destructive in-situ replacement and non-stop upgrading and expansion, fully complying with VIBRO-METER original installation, operation and maintenance specifications.
Compatible Systems
Natively and exclusively compatible with the full series of VM600 Mk1/Mk1.5 machinery condition monitoring (CMS) and machinery protection (MPS) systems, it perfectly adapts to the bus protocol and networking logic of CPUM master cards, various vibration acquisition cards, relay output cards and power modules. It can seamlessly connect with VibroSight upper monitoring software, support mainstream industrial communication protocols such as Modbus and PROFINET, and realize seamless data interaction with on-site DCS, PLC, upper monitoring terminals and data servers. Fully compatible with the full redundant architecture, bus synchronization mechanism and fault diagnosis system of VM600, it can directly replace outdated faulty IOCN modules, adapting to new unit system construction, old system communication transformation, redundant system upgrading and faulty module replacement.
Product Characteristics
As an original industrial system-level communication master module, it has completed full-item tests including full machine bus synchronization test, full-protocol communication stability test, full-load aging, high and low temperature impact and EMC electromagnetic compatibility before delivery, with high hardware consistency and strong system adaptability. It features full machine data overall planning, multi-protocol compatibility, intelligent redundant switching, controllable I/O logic and intelligent fault self-diagnosis and self-recovery, which can effectively eliminate system communication interruption, data stuttering, logic disorder and false alarms. The two models adapt to different working conditions differentially: the standard version is suitable for conventional indoor electric control environments with high cost performance; the three-proof enhanced version withstands harsh corrosive, humid and dusty working conditions with longer service life. Faulty old modules with poor communication stuttering, bus abnormality, I/O failure and redundant switching faults can be replaced in situ without damage, greatly improving the overall stability and safety redundancy level of VM600 systems.
II. Technical Specifications
1. Bus & Master Control Parameters
Bus Adaptation: Natively compatible with VM600 system exclusive high-speed backplane bus, supporting full rack multi-module time sequence synchronization, high-speed data interaction and real-time instruction scheduling, with extremely low bus transmission delay, no data misalignment and no time sequence deviation. Master Scheduling Capability: It can manage the operating status of all acquisition modules, output modules and power modules in the whole rack, uniformly summarize full-dimensional equipment data such as vibration, displacement, speed and temperature, and centrally complete data packaging, filtering sorting, threshold comparison, alarm generation and interlock instruction issuance. Redundant Control: Supports dual-IOCN + dual-CPUM complete hot redundant architecture, with real-time data synchronization and status mirroring between master and slave modules. In case of faults, millisecond-level undisturbed automatic switching is realized, without interrupting system monitoring and protection logic, no data loss and no logic misoperation during switching.
2. Communication Protocol & Port Parameters
Communication Protocols: Standard support for Modbus RTU/TCP, PROFINET industrial Ethernet protocols, compatible with VIBRO-METER exclusive private protocols, which can dock upper configuration software, third-party industrial control systems and data acquisition servers simultaneously with strong networking adaptability. Network Performance: Industrial high-speed Ethernet communication with stable transmission and strong anti-interference, supporting continuous upload of large-capacity real-time data, historical trend data, fault logs and spectrum data without packet loss, delay or disconnection throughout the process. Port Protection: All external communication ports are built with isolation transformers, surge suppression and electrostatic protection loops, eliminating port damage and communication interruption caused by external network interference, voltage series connection and electrostatic impact, ensuring long-term stable industrial networking.
3. Input & Output Parameters
Signal Configuration: Integrated isolated switch input and switch output loops, supporting external interlock signal access, system alarm dry contact output, remote status feedback and start-stop logic linkage. I/O Isolation Performance: All I/O channels are completely electrically isolated, independent of system bus and communication loops with high insulation and voltage resistance, which can effectively isolate external on-site interference, ground loop current and high-voltage series connection risks, avoiding system master control disorder caused by external signal abnormalities. The logic response speed is fast, accurately matching the unit protection interlock time sequence requirements, ensuring accurate and reliable over-limit alarm, fault interlock and status feedback actions.
4. Electrical & Protection Parameters
Power Supply Specification: Adapts to standard 24VDC rack power supply of VM600 systems, with wide voltage adaptation, low power consumption and low heat generation, compatible with single power supply and dual redundant power supply architectures, adapting to long-term continuous system operation. Hardware Protection: Built with multiple hardware protections including full machine overvoltage, undervoltage, over-temperature, bus overload and port short circuit, with automatic fault locking and status latching, realizing zero propagation of single-point faults. Model Differential Protection: The 200-566-000-112 standard version adopts conventional PCB protection for clean, constant temperature and dry computer rooms; the 200-566-101-013 enhanced version adopts full-domain three-proof coating, with moisture-proof, mildew-proof, salt spray-proof and corrosion-resistant capabilities, adapting to harsh chemical, coastal, dusty and humid sites.
5. Environmental Operating Parameters
Operating Temperature：0℃～+60℃
Storage Temperature：-40℃～+85℃
Operating Humidity：5%~95% RH, non-condensing
The whole machine has passed authoritative industrial certifications including EMC electromagnetic compatibility, insulation voltage resistance, vibration and impact resistance and high and low temperature cycles, complying with industrial safety standards for heavy industry unit monitoring systems. The enhanced version 200-566-101-013 has additionally passed special tests including salt spray corrosion, humid heat cycle and dust aging, tolerating harsh industrial working conditions. Both models have excellent vibration resistance, electromagnetic interference resistance and aging resistance, and can long-term adapt to continuous operation scenarios such as closed high temperature, temperature difference fluctuation, electromagnetic interference and continuous mechanical vibration of control cabinets.
III. Key Features
1. Full-Rack Data Hub & Global Data Scheduling
As the core control gateway of the VM600 rack system, it can real-timely summarize vibration, displacement, speed and phase status data of all acquisition modules in the whole rack, and uniformly complete data sorting, operation analysis, trend statistics and spectrum packaging, solving the problems of scattered multi-module data, inconsistent time sequence and data disorder. It accurately coordinates the overall operation logic of the system, uniformly executes threshold comparison, fault judgment, alarm output and interlock scheduling, ensuring that all unit monitoring data has the same source, synchronized time sequence and unified logic, providing standardized, accurate and reliable global data support for equipment condition diagnosis, trend analysis and safety protection.
2. Multi-Protocol Compatibility & Seamless Industrial Networking
Integrating mainstream industrial Ethernet and serial communication protocols, it takes into account both original software private protocols and universal third-party protocols, and can bidirectionally communicate with VibroSight upper software, factory DCS control system, PLC logic controller and remote data platform simultaneously, realizing two-way intercommunication of monitoring data, alarm information, fault logs and equipment parameters. The communication link is stable with strong anti-interference ability, adapting to complex on-site industrial networking architecture, eliminating the pain points of traditional modules such as single protocol, limited networking, communication stuttering and data disconnection, and greatly improving the informatization and intelligent networking capability of the unit monitoring system.
3. Millisecond-Level Redundant Switching & Undisturbed Fault Tolerance
It natively supports dual-module hot redundant backup architecture, with real-time data mirroring, status synchronization and heartbeat monitoring between master and slave IOCN modules. When the master module has communication abnormality, bus fault or hardware abnormality, the system automatically switches to the standby module at millisecond level, without interrupting data acquisition, losing monitoring data or triggering interlock misoperation throughout the process. Single-point faults are completely isolated with zero propagation, thoroughly eliminating the single-point paralysis risk of single-module operation mode, greatly improving the safety redundancy of key unit monitoring and protection systems, adapting to high-safety-level working conditions of zero shutdown and continuous production.
4. Isolated I/O Logic & Accurate Interlock Protection
Equipped with fully isolated switch input and output loops, it independently processes on-site external interlock signals and internal system alarm output signals, effectively isolating external on-site electrical interference, high-voltage series connection and ground loop current, avoiding main control breakdown and system logic disorder caused by external working condition abnormalities. The I/O response time sequence is accurate and the action is reliable, which can accurately execute logic actions such as unit over-limit alarm, fault interlock, remote start-stop and status feedback, eliminating false interlock, mis-shutdown and signal failure caused by interference, ensuring rigorous, stable and reliable unit protection logic.
5. Dual-Model Condition Adaptation & Long-Term Maintenance-Free Operation
The two models are completely compatible in hardware structure, interface, program and size, universal and interchangeable for in-situ replacement, with only differentiated protection levels for working conditions. The standard version 200-566-000-112 adapts to conventional clean computer rooms with high economy and stable performance; the three-proof enhanced version 200-566-101-013 is reinforced by full-domain coating to withstand harsh on-site conditions such as humidity, salt spray, dust and corrosion, eliminating board oxidation, solder joint corrosion and circuit moisture failure. The whole machine has no mechanical moving parts, low power consumption and low heat generation, with no parameter drift or performance attenuation during long-term operation, realizing long-term maintenance-free operation and greatly reducing system operation and maintenance costs and fault probability.
IV. Working Principle
The VM600 IOCN series module is the core communication and logic control hub of the VM600 monitoring and protection system, embedded installed in the rack main control slot, and cooperates with the CPUM main control card to complete full machine system scheduling, data interaction, network communication and logic interlock functions. After power-on, the module automatically completes hardware self-inspection, bus initialization, protocol loading, redundant pairing and I/O port initialization. After self-inspection is correct, it enters the normalized main control operation state, and real-timely takes over the system management and data forwarding work of the entire rack.
During normal system operation, equipment status data collected by vibration acquisition modules and signal conditioning modules in the rack is summarized to the IOCN module through the backplane high-speed bus. The module performs time sequence calibration, unified sorting, operation filtering and threshold comparison on all scattered data to generate standard monitoring data, status trends and fault alarm information. On the one hand, it uploads to upper monitoring software, DCS and PLC systems through multi-protocol communication ports to realize remote monitoring, data storage and trend traceability; on the other hand, it outputs alarm and interlock instructions through isolated I/O loops to link on-site protection equipment and complete unit safety protection.
Under redundant architecture operation, dual IOCN modules perform real-time heartbeat interaction, data mirror synchronization and mutual inspection of working status. The master module is fully responsible for system scheduling and data output, and the standby module synchronizes data uninterruptedly in standby state. Once the master module has hardware failure, communication interruption or bus abnormality, the system seamlessly switches to the standby module immediately, without data loss, logic interruption or working condition disturbance throughout the process. Meanwhile, the built-in self-diagnosis system of the module real-timely monitors the status of bus, communication ports, I/O loops and power supply, accurately identifies various abnormalities and latches alarms, realizing rapid fault location and single-point isolation, and continuously ensuring stable and controllable operation of the entire system.
V. Application Scenarios
1. VM600 System Core Master Networking: As the core communication and control hub of the entire VM600 rack, it coordinates full-rack module data, bus scheduling, industrial networking and interlock logic, serving as the central core hardware of the entire unit condition monitoring and machinery protection system.
2. Key Unit Safety Monitoring and Protection: Adapts to large rotating units such as steam turbines, gas turbines and centrifugal compressors in power, petrochemical and oil & gas industries, realizing unit vibration condition monitoring, fault alarm, safety interlock and remote data upload to ensure continuous and safe unit operation.
3. System Communication Upgrading and Transformation: Used for communication optimization, protocol expansion and networking upgrading of old VM600 systems, solving the problems of stuttering communication, single protocol and unstable networking of old modules, and improving the intelligent data interaction capability of the system.
4. Special Adaptation and Replacement for Harsh Working Conditions: The 200-566-101-013 three-proof enhanced version is specially applied to coastal, chemical, high-humidity, dusty and corrosive working conditions, replacing ordinary modules prone to corrosion, moisture and aging faults, and improving the system's tolerance to harsh environments.
5. System Redundant Architecture Construction: Used for dual hot backup redundant transformation of VM600 systems, building a high-fault-tolerance, high-reliability and zero-shutdown safety monitoring architecture, meeting the safe operation requirements of high-level continuous production units.
