Description

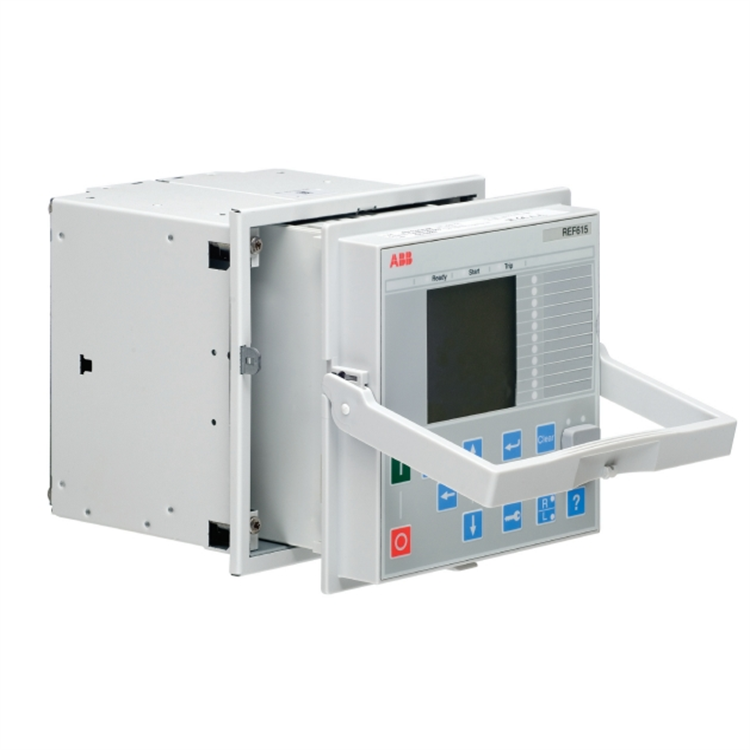

ABB REF615 HBFNAEAGNEA6BCA1XG
I. Basic Information
Model：REF615 HBFNAEAGNEA6BCA1XG
Brand：ABB (Original), Relion® 615 series intelligent feeder protection and control IED, a special configuration model for heavy-duty industrial and grid-connected power generation conditions, focusing on voltage/frequency protection, grid synchronization monitoring and non-directional fault judgment, adapted to industrial impact load and distributed power grid-connected scenarios.
Product Positioning
The REF615 HBFNAEAGNEA6BCA1XG is an industrial power generation adaptive feeder protection and control device of ABB Relion® 615 series. Different from conventional distribution network models, it optimizes frequency/voltage protection, grid synchronization verification, heavy-load overload protection and full-range non-directional fault judgment. Designed for distribution lines with distributed power generation, industrial self-provided power station outgoing lines, heavy-duty impact load feeders and factory power main circuits, it integrates full feeder fault protection, high-precision electrical measurement, breaker condition monitoring, grid-connected safety verification, fault recording and multi-protocol communication. It is the core secondary equipment for safety protection and automatic operation of industrial power systems and distributed new energy grid-connected systems, adapting to complex working conditions with frequent grid disturbances and large load fluctuations.
Hardware Architecture
Adopting mature industrial 4U compact modular hardware architecture and ABB dedicated high-speed power processor, it optimizes sampling and operation logic for grid connection, load impact and frequency fluctuation, accurately capturing transient disturbances and frequency deviations easily missed by conventional devices. Equipped with high-speed AD digital sampling unit, programmable I/O matrix, independent hardware fault judgment module and large-capacity local storage, it enhances steady-state and transient data recording of frequency and voltage to meet dynamic grid monitoring requirements. The internal full physical isolation of strong and weak current is equipped with multi-level lightning surge suppression, full-range EMI shielding and filter isolation circuits, with all loops independently electrically isolated to resist strong electromagnetic interference generated by industrial frequency converters and high-power equipment. With high-definition LCD HMI and physical keys, it supports on-site setting, grid parameter verification and loop commissioning. Built-in full-time hardware self-diagnosis ensures 7×24-hour stable operation under complex industrial conditions.
Mounting Specification
Adopts standard 4U embedded panel mounting, compatible with universal opening sizes of domestic industrial high-voltage distribution rooms and substation secondary cabinets, suitable for new project layout and old equipment replacement. With strict industrial anti-vibration, anti-shock, wide-temperature aging, dust and moisture resistance tests and optimized reinforced structure, it tolerates long-term temperature fluctuation, frequent equipment vibration and slight dust/humidity in industrial sites. The front high-protection dustproof and moistureproof design and standardized rear partition wiring with separated strong and weak current ensure firm and anti-loosening terminals, fully complying with long-term continuous operation specifications of industrial power systems.
Compatible Systems
Fully compatible with industrial factory power monitoring systems, distributed PV/wind grid-connected platforms, intelligent substation automation systems, power SCADA scheduling systems, industrial PLC automatic control systems and energy management systems. It seamlessly connects with upper monitoring background, engineer workstations and power RTU equipment. Natively supports IEC61850, IEC60870-5-103, Modbus TCP/RTU, DNP3, Profibus DP multi-protocol communication, adapting to industrial automatic networking. With SNTP and IRIG-B dual-mode time synchronization, it realizes real-time grid data upload, remote setting modification, remote switching and active fault information upload, perfectly adapting to industrial intelligent power operation and maintenance systems.
Product Characteristics
1. Special optimization for grid-connected working conditions, enhanced frequency/voltage protection and grid synchronization verification to prevent reverse power transmission, frequency oscillation and voltage over-limit risks of distributed power generation;
2. Optimized anti-impact load algorithm accurately identifies heavy-load overload and transient impact faults, avoiding protection misoperation caused by industrial equipment start-stop disturbance;
3. Mature and stable full-range non-directional fault judgment logic covers complex faults of radial distribution networks and hybrid grid-connected networks without blind judgment areas;
4. Integrated multi-function design covers protection, measurement, grid connection verification, recording, communication and event recording to simplify industrial cabinet configuration;
5. High-grade EMC electromagnetic protection resists strong harmonics and electromagnetic radiation interference in industrial sites with excellent operational stability;
6. Large-capacity local storage completely retains grid-connected disturbance, frequency fluctuation and fault sequence data to support grid condition analysis and accident traceability;
7. Modular programmable configuration with flexible logic and parameters, adapting to industrial power distribution, new energy grid connection and old power station renovation scenarios.
II. Technical Specifications
2.1 Electrical Sampling & Protection Parameters
Rated AC input: Secondary voltage 100V, secondary current 1A/5A adaptive, matching universal industrial and power transformer configurations;
Rated frequency: 50Hz/60Hz adaptive with high-precision frequency sampling, accurately capturing ±0.1Hz frequency deviation to adapt to grid-connected frequency fluctuation monitoring;
Measurement accuracy: Three-phase voltage, current, active/reactive power, power factor, frequency and energy meet power secondary metering standards with accurate steady-state and transient sampling without disturbance drift;
Main protection functions: Non-directional overcurrent protection, non-directional zero-sequence earth fault protection, thermal overload protection, over/undervoltage protection, over/under frequency protection, grid-connected out-of-step protection, breaker failure protection, breaker condition monitoring, phase discontinuity protection, optional arc protection module;
Operation performance: Millisecond-level ultra-fast fault response with optimized judgment logic for grid disturbance, load impact and frequency abnormality, supporting flexible multi-stage delay and interlock setting, accurately isolating grid-connected faults and ensuring main grid safety;
Binary input: Multi-channel programmable passive inputs for breaker status, spring energy storage, remote/local switching, grid connection permission signals and equipment alarm status;
Binary output: Multi-channel programmable relay outputs for breaker switching, grid connection locking, fault alarm, system linkage control and remote signal output.
2.2 Power Supply & Power Consumption Parameters
Auxiliary power supply: DC80～250V / AC100～240V ultra-wide voltage adaptive power supply, compatible with industrial power station and substation AC/DC operating power, tolerating minor power fluctuation;
Power consumption: Optimized low-power design with extremely low temperature rise under heavy load and frequent disturbance conditions, no device aging or performance attenuation during long-term uninterrupted operation;
Power protection: Built-in reverse connection prevention, over/undervoltage self-locking, transient surge suppression and grid fluctuation fault tolerance, resisting industrial power impact and voltage distortion.
2.3 Communication & Time Synchronization Parameters
Hardware interfaces: Standard RJ45 Ethernet and RS485 serial port, support Profibus DP industrial communication interface, optional optical fiber communication, adapting to both industrial automation and power networking scenarios;
Supported protocols: Full compatibility with IEC61850, IEC60870-5-103, Modbus TCP/RTU, DNP3, Profibus DP mainstream power and industrial communication protocols;
Time synchronization: SNTP network time synchronization and IRIG-B hardware high-precision time synchronization with high station-wide time accuracy to ensure consistent time sequence of grid-connected data;
Remote functions: Supports remote parameter setting, grid connection logic configuration, program upgrade, real-time telemetry upload, remote control and fault waveform & grid data export analysis.
2.4 Environmental & Protection Parameters
Operating temperature: -25℃～+55℃, stable performance of protection logic, sampling accuracy and grid connection monitoring without attenuation in full temperature range, adapting to industrial site temperature fluctuation;
Storage & transportation temperature: -40℃～+70℃, no circuit aging, structural deformation or program loss during long-term storage and transportation;
Operating humidity: 5%～95%RH non-condensing, suitable for enclosed and dry environments such as industrial high-voltage distribution rooms and power station central control rooms;
Protection class: Front panel IP54, top IP40, rear panel IP20, with excellent dustproof, moistureproof and foreign matter invasion resistance for indoor cabinet installation;
EMC performance: Fully compliant with high-grade IEC61000 series EMC standards, strong resistance to harmonic, radiation, conduction and surge interference, adapting to complex industrial electromagnetic conditions.
2.5 Structural & Physical Parameters
Specification: Standard 4U embedded panel structure, dimension 177mm×177mm×155mm, compatible with universal opening sizes of domestic industrial and power cabinets;
Weight: Approx. 3.5kg, lightweight reinforced anti-vibration structure tolerates long-term vibration and frequent operation of industrial equipment;
Mounting method: Standard embedded bolt fastening installation with accurate positioning and easy assembly, suitable for dense cabinet layout and old equipment replacement;
Material: Flame-retardant and anti-corrosion industrial shell with insulation and aging resistance for long-term uninterrupted operation of industrial power systems.
III. Key Features
3.1 Special Grid-Connected Protection to Eliminate Distributed Power Operation Risks
Custom optimized for grid-connected power generation conditions, the device is equipped with exclusive voltage/frequency protection and grid synchronization verification logic. It real-time monitors voltage amplitude, frequency and phase deviation of grid-connected lines, accurately identifying abnormal conditions such as grid-connected out-of-step, reverse power transmission, voltage over-limit and frequency oscillation. It quickly locks grid-connected loops and cuts off faulty lines, effectively preventing grid disturbance, equipment damage and safety tripping caused by distributed power grid connection. It solves the shortcomings of conventional distribution network protection devices that cannot adapt to grid-connected conditions, greatly improving the operational safety and stability of industrial self-provided power stations and distributed new energy grid-connected systems.
3.2 Anti-Impact Load Adaptation for Complex Industrial Conditions
Optimized sampling filtering and fault judgment algorithms for industrial high-power equipment start-stop, sharp load fluctuation and strong harmonic interference, accurately distinguishing normal equipment impact disturbance from real electrical faults, completely avoiding protection misoperation and false alarms. Relying on high-precision full electrical sampling technology, it real-time monitors load change trend, three-phase balance and power parameter fluctuation with metering-level accuracy. It realizes integrated loop protection, condition monitoring, energy consumption statistics and basic power quality analysis, providing accurate data support for industrial load regulation, equipment operation and maintenance and grid connection optimization.
3.3 Full-Range Non-Directional Protection with Zero Fault Blind Area
Adopting non-directional overcurrent and non-directional ground fault full-range protection logic without complex directional setting, it adapts to complex grid structures such as radial power grids and grid-connected hybrid power grids with multi-power supply. It fully covers common faults such as phase short circuit, single-phase grounding, overload overheating, voltage/frequency abnormality and switch failure with fast and reliable action, adapting to complex and variable industrial power distribution scenarios without clear fault direction. It supports local manual operation and remote background telecontrol dual modes with complete anti-misoperation, permission locking and operation traceability logic to ensure industrial equipment operation safety.
3.4 Complete Fault and Grid-Connected Data Traceability System
The expanded local storage is specially adapted to the recording requirements of grid-connected condition disturbance, frequency fluctuation and transient faults, completely retaining fault recording waveforms, protection action events, grid-connected status records, equipment alarm information, manual operation logs and full-sequence operation data. It accurately captures the dynamic change process of voltage, frequency and load before and after faults, solving the pain point of difficult accident review due to missing data of transient disturbance in industrial grid-connected conditions, providing complete data basis for fault troubleshooting, grid-connected parameter optimization and grid operation mode adjustment.
3.5 High-Grade Industrial Protection for Harsh On-Site Conditions
The integrated protection design of full-loop electrical isolation, multi-level surge suppression and full-range electromagnetic shielding passes high-grade industrial EMC tests, effectively resisting strong harmonics and electromagnetic interference generated by frequency converters, high-power motors and grid-connected equipment. The mechanical-free full-digital architecture operates stably without parameter drift or logic disorder under wide temperature, humidity, vibration and strong interference conditions, realizing 7×24-hour uninterrupted stable operation and adapting to harsh operating scenarios such as industrial parks and self-provided power stations.
3.6 Multi-Protocol Flexible Configuration with Strong Industrial Adaptability
Adopting modular programmable software architecture, protection logic, grid-connected control strategy, I/O definition, power/industrial communication protocols and time synchronization modes can be flexibly configured via PCM600 software without hardware modification. Compatible with both power scheduling networking and industrial PLC automatic networking, it adapts to diverse scenarios such as industrial power main loops, self-provided power station outgoing lines, distributed new energy grid connection and old industrial power distribution renovation with excellent universality and scalability.
IV. Working Principle
The ABB REF615 HBFNAEAGNEA6BCA1XG industrial grid-connected feeder protection and control device realizes protection, measurement & control, grid-connected safety management, fault analysis and intelligent operation & maintenance of industrial power distribution and distributed power grid-connected systems based on core mechanisms of anti-disturbance high-speed digital sampling + full-range non-directional fault judgment + special voltage/frequency grid-connected protection + multi-system data interaction + full-sequence condition traceability.
After power-on, the device automatically completes full hardware self-inspection, sampling calibration, communication initialization, grid-connected protection logic loading and station-wide time synchronization, and enters real-time monitoring standby status after passing self-check. Secondary analog signals from on-site VT/CT are converted into standardized digital data via high-speed AD conversion. The core processor analyzes electrical amplitude, phase, frequency, load fluctuation and sequence component characteristics in real time, and synchronously collects binary information such as breaker status, grid connection permission signal, local/remote status and equipment alarms to complete full-dimensional real-time monitoring of power distribution loops and grid-connected conditions.
Under normal operation of power grid and grid-connected system, the device continuously performs high-precision electrical measurement, load statistics, steady-state frequency/voltage monitoring and real-time data upload, and maintains two-way data interaction with power scheduling, industrial PLC and monitoring background to ensure steady-state safe operation of grid-connected systems. When abnormal conditions such as short circuit, grounding, overload, voltage over-limit, frequency offset and grid-connected out-of-step occur, the device quickly compares real-time data with preset settings and grid-connected protection thresholds, accurately judges fault type and risk level, outputs tripping or locking signals to quickly isolate faults and lock grid-connected loops, avoiding fault diffusion and reverse power transmission risks.
The device supports local manual operation and remote background telecontrol for parameter setting, grid-connected logic configuration, switching control, program upgrade and loop verification. Full hardware self-diagnosis and logic self-inspection are enabled during operation, actively alarming and locking abnormal logic for hidden dangers such as sampling abnormality, communication interruption, power fault and abnormal grid-connected logic, fully ensuring safe, stable and intelligent operation of industrial power distribution and new energy grid-connected systems.
V. Application Scenarios
1. Industrial self-provided power station systems: Protection, measurement & control and grid-connected safety management for factory self-provided generator outgoing lines and factory power main loops;
2. Distributed new energy grid connection: Fault protection, frequency/voltage monitoring, anti-islanding and reverse power transmission protection for medium and small-sized PV and wind power distributed power grid-connected feeders;
3. Heavy-duty industrial power distribution systems: Protection and measurement & control for high-voltage feeders with large load fluctuation and frequent impact loads in metallurgy, chemical and manufacturing industries;
4. Radial complex distribution networks: Full-range fault protection for industrial plant distribution lines with no clear fault direction and multi-branch loops;
5. Industrial automatic power distribution engineering: Integrated protection and measurement & control for intelligent power distribution bays connected to PLC automatic control systems and industrial SCADA;
6. Old industrial power station renovation: Secondary system upgrading and replacement of traditional industrial distribution rooms and self-provided power stations, adapting to compatible operation of new and old grid structures.
