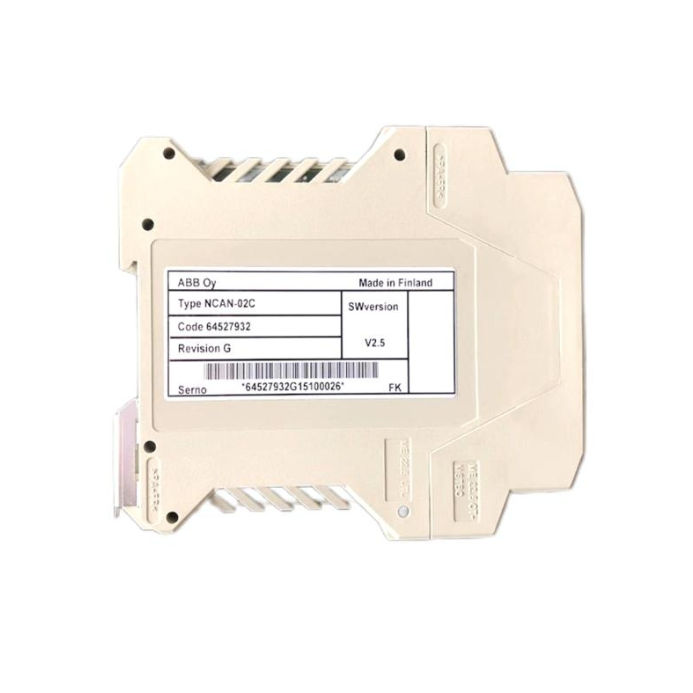

ABB NCAN-02C
I. Basic Information
Model: NCAN-02CMaterial Code: 64286731Brand: ABBApplicable System: ABB ACS600, ACS800 single/multi-drive inverters. It connects with the drive main control unit via DDCS fiber link, serves as an optional fieldbus expansion component to access inverters into CANopen industrial bus networks for multi-drive synchronous networking, remote parameter management and coordinated motion control.Product Type: DIN rail-mounted CANopen fieldbus communication adapter, integrating DDCS fiber interface, 500V galvanically isolated CAN transceiver, hardware bus fault diagnosis, node address DIP switch configuration and watchdog safety circuit, compliant with CANopen DS301 and CiA402 drive profiles, dedicated gateway module for connecting variable frequency drives to distributed CANopen control systems.
Product Positioning
NCAN-02C 64286731 is a standard CANopen fieldbus expansion adapter for ABB drive systems. It realizes bidirectional high-speed data exchange between inverters and CANopen master stations such as PLC and motion controllers, supporting drive start/stop, speed/torque reference, status collection, fault reading and online parameter modification. The galvanic isolation design eliminates ground loop, inverter harmonic and electrostatic surge interference to prevent communication dropout and drive runaway. With multi-baud-rate adaptive and flexible node address configuration, it is widely applied in technical renovation, communication capacity expansion and spare part replacement projects for legacy frequency conversion systems in metallurgy, port, mining, thermal power and chemical industries.
Hardware Architecture
- DDCS Fiber Communication Unit: Dedicated fiber transceiver realizes isolated high-speed data interaction between the adapter and drive main controller, uploading operating data and receiving control commands.
- Galvanically Isolated CANopen Transceiver Unit: 500V opto-isolated CAN interface complying with ISO 11898-2, equipped with short-circuit, overvoltage and reverse polarity protection to suppress common-mode industrial interference.
- Node Configuration & Status Indication Unit: Hardware DIP switch for CANopen node address setting; four LED indicators display transmit, receive, network and module operating status for rapid on-site fault location.
- Watchdog Safety Monitoring Unit: Hardware watchdog automatically resets the module upon communication timeout or program exception, supporting fault latch and auto-reset safety modes with fault information uploaded to upper systems.
- DIN Rail Mounting Unit: Compact flame-retardant plastic housing with snap-on DIN rail structure, spring anti-loose terminals for reliable wiring and dense cabinet layout adaptation.
Mounting Specifications
Power Supply: DC 10~35V wide-range DC, typical power consumption ＜1WProtocol: CANopen DS301, CiA402, ISO 11898-2Selectable Baud Rate: 10kbit/s ~ 1Mbit/sNode Address: 1~127 configured via DIP switchIsolation Voltage: 500VAC between CAN bus and DDCS drive sideMounting: 35mm standard DIN rail snap installationDimension: 110mm(H) × 69mm(W) × 30mm(D)Net Weight: 0.10kgProtection Class: IP20, installed in sealed dust-proof constant-temperature industrial control cabinetSupporting Equipment: ACS600/ACS800 inverter, DDCS fiber, twisted shielded CAN cable, 120Ω terminating resistor, 24VDC power supplyCommissioning Tools: DriveWindow software, CAN bus analyzer, PLC configuration software, EDS file, anti-static wristband
Supporting System
Supporting Hardware
ACS600/ACS800 drive, RDCU main control unit, DDCS fiber, CANopen master PLC, shielded twisted pair cable, bus terminating resistor.
Commissioning Tools
ABB DriveWindow, CAN bus analyzer, PLC programming software, hipot tester, portable multimeter.
Upper-level System
CANopen master PLC and motion controller, realizing multi-drive synchronous control, centralized fault alarm, historical data archiving and remote parameter management, connected to factory SCADA for equipment predictive maintenance.
Typical Application Industries
Metallurgical hot rolling production line multi-drive synchronous control, port crane frequency conversion coordinated system, mine conveyor distributed drive networking, thermal power plant auxiliary equipment remote monitoring, chemical and building material production line centralized frequency control.
Product Features
- Dual-link Isolation High-reliability Communication: DDCS fiber plus CAN galvanic double isolation eliminates strong electrical interference from high-power inverters to avoid communication error and accidental drive action.
- Standard CANopen Protocol High Compatibility: Equipped with official EDS file, seamlessly connected to mainstream brand CANopen master stations without customized protocol development.
- Long-distance Multi-node Flexible Networking: Up to 1Mbit/s high-speed real-time transmission, supporting up to 127 nodes on a single bus, meeting large-scale distributed centralized control requirements.
- Multi-mode Watchdog Safety Protection: Two optional fault processing strategies ensure safe equipment shutdown under bus communication failure to prevent multi-motor synchronous runaway accidents.
- Wide-temperature Industrial EMC Design: Stable operation from -40℃ to +70℃ compliant with EN 61000 standards, MTBF ≥160000 hours for 24/7 continuous industrial operation.
- Full Compatibility with ABB Legacy Drives: Pin-to-pin compatible with ACS600/ACS800 series, faulty adapters can be replaced on-site with existing wiring reused to shorten maintenance downtime.
II. Technical Specifications
2.1 Electrical Parameters
Model: NCAN-02C, Material Code: 64286731Power Range: DC 10~35V, power consumption ≤1WBus Standard: ISO 11898-2, CANopen DS301, CiA402Baud Rate Options: 10k~1Mbit/sNode Address: 1~127 DIP switch configurableIsolation: 500VAC between CAN and DDCS sideProtection: CAN bus overvoltage, short-circuit, reverse polarity, watchdog, fiber break detectionCommunication Modes: PDO cyclic process data, SDO parameter access, emergency fault message
2.2 Mechanical Parameters
Mounting: Vertical snap installation on 35mm DIN railDimension: 110 × 69 × 30mmNet Weight: 0.10kgTerminals: 5-pin spring anti-loose terminal, standard DDCS fiber portIndicators: TXD, RXD, NS, MS four LED status lightsHousing: Flame-retardant insulating engineering plastic
2.3 Environmental Specifications
Operating Temperature: -40℃ ~ +70℃Storage & Transportation Temperature: -40℃ ~ +85℃Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust
III. Key Features
- CANopen Fieldbus Gateway for Frequency Converters: Bidirectional data exchange between drives and upper master stations to realize remote centralized speed, torque and safety interlock control.
- Multi-drive High-precision Synchronous Motion Control: Deterministic real-time bus transmission ensures coordinated operation of multiple motors for rolling, conveying and lifting process requirements.
- Remote Online Parameter Backup & Commissioning: SDO service enables offline parameter modification and backup without local panel operation, reducing field maintenance workload.
- Real-time Bus Fault Diagnosis & Safety Interlock: Multi-dimensional fault detection with local LED and remote emergency dual alarm ensures safe equipment protection under communication abnormality.
- Flexible Daisy-chain Topology & System Expandability: Up to 127 nodes per bus segment, communication distance extended by reducing baud rate for convenient later equipment capacity expansion.
- Retrofit & Spare Part Compatibility for Legacy Drive Systems: Universal communication spare part for ABB ACS600/ACS800 drives, ideal for fieldbus renovation and in-situ replacement of faulty communication adapters.
IV. Working Principle
After DC power-on, the module reads pre-configured node address and baud rate via DIP switch, completes self-test of power supply, CAN transceiver and DDCS fiber link, initializes CANopen protocol stack and waits for network access. Bidirectional data interaction is realized between the drive main controller and CAN master station through fiber and differential bus. The hardware watchdog monitors program operation; once communication or hardware fault occurs, fault latch is triggered with emergency alarm uploaded, and normal communication can be restored after troubleshooting and module reset.
V. Application Scenarios
- CANopen bus networking and synchronous control renovation for metallurgical hot rolling line ACS series multi-drive systems.
- Centralized remote monitoring and torque coordinated control for port container crane variable frequency equipment.
- Distributed frequency conversion interlock and speed synchronization control for mine long-distance belt conveyor systems.
- Intelligent bus transformation for thermal power plant auxiliary fan and water pump high-voltage frequency converters.
- Technical upgrading and faulty communication module replacement for chemical, paper and building material production line centralized drive control systems.
