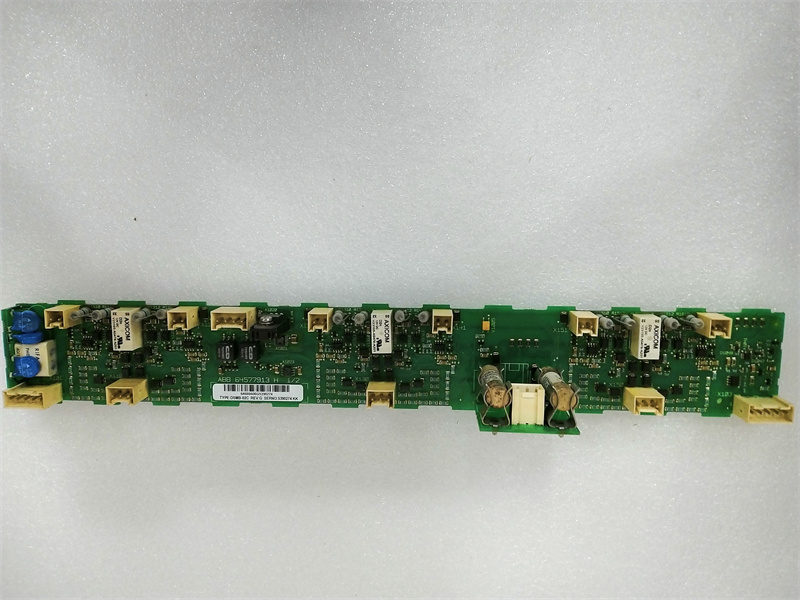

ABB DSMB-02C
I. Basic Information
Model: DSMB-02CMaterial Code: 3AFE64666606Brand: ABBApplicable System: ABB ACS800 MultiDrive multi-drive inverter system, dedicated to be installed in the internal slot of the rectifier unit, compatible with 500~1000V DC bus power rectifier cabinets. It undertakes rectifier bridge trigger control, DC bus voltage closed-loop regulation and power factor correction, and realizes data interaction with RDCU/AINT main control board via internal bus, serving as the core control hardware on the rectifier side of the common DC bus multi-drive system.Product Type: Embedded rectifier unit main control interface board, integrating thyristor/IGBT trigger pulse output, multi-channel analog signal sampling, isolated power conversion, hardware fault detection, internal bus communication and digital I/O logic processing circuits, which can complete closed-loop control of rectifier voltage and current, device protection, status collection and upper command interaction.
Product Positioning
DSMB-02C 3AFE64666606 is the core control board of the rectifier unit of ACS800 multi-drive system. It receives DC bus voltage setting and power factor adjustment commands from the main drive controller, outputs multiple groups of isolated trigger pulses to drive rectifier power devices, and converts three-phase alternating current into stable DC bus power for all back-end inverter drive units. Equipped with multi-level hardware protection circuits, it monitors faults such as overvoltage, overcurrent, phase loss, power device short-circuit and radiator overtemperature, immediately blocks trigger pulses and uploads fault codes once abnormalities are detected to avoid rectifier module burnout and bus voltage out of control. Adopting strong and weak electrical isolation architecture, it resists high-frequency electromagnetic harmonics and voltage spikes inside the cabinet to ensure stable bus voltage of multi-drive systems, widely used in fault maintenance, spare part replacement and technical renovation of legacy ACS800 frequency conversion systems in metallurgy, mining, port, thermal power and chemical industries.
Hardware Architecture
- Multi-channel Isolated Rectifier Trigger Pulse Output Unit: Multiple groups of opto-isolated trigger channels output phase-accurate thyristor/IGBT drive pulses to realize phase-shift voltage regulation of three-phase fully-controlled rectifiers, supporting trigger control under four-quadrant energy feedback working conditions, with hardware filtering to prevent false triggering caused by electromagnetic interference.
- High-precision Analog Sampling & Closed-loop Control Unit: Real-time sampling of three-phase incoming voltage, DC bus voltage, incoming current and radiator temperature signals, which are converted into digital quantities for PID closed-loop operation to automatically adjust the trigger angle and stabilize bus voltage and system power factor.
- Isolated Power Supply & Digital Logic Processing Unit: Built-in multi-channel isolated DC-DC power supply provides stable working power for control, trigger and sampling circuits; multi-channel DI/DO collects circuit breaker, fan and emergency stop status, and outputs interlock signals such as fault alarm and closing permission.
- Internal Bus Communication & Fault Diagnosis Unit: Special ACS800 internal parallel bus uploads operating parameters and fault alarm codes cyclically, receives main control configuration commands; automatic full-loop self-test after power-on, independent fault latch and local LED status indication.
- Embedded Slot-mounted Installation Unit: Compact long PCB structure with anti-misplug connectors, directly clamped to the internal guide rail slot of the rectifier unit for accurate positioning and convenient maintenance.
Mounting Specifications
Control Power Supply: DC 24V (21.6V~28.8V), typical power consumption ≤4.8WCompatible DC Bus Voltage: 500VDC~1000VDCSampling Accuracy: ±0.2%FSCommunication: ACS800 dedicated internal parallel drive busMounting: Guide rail embedded plug-in installation inside rectifier unitOverall Dimension: 384mm(L) × 54mm(W) × 55mm(D)Net Weight: 0.22kgProtection Class: IP20, installed in sealed forced-air-cooled frequency conversion cabinetSupporting Equipment: RDCU main control board, rectifier power module, current/voltage transformer, cooling fan, DC bus capacitorCommissioning Tools: DriveWindow software, high-voltage oscilloscope, insulation tester, anti-static wristband
Supporting System
Supporting Hardware
ACS800 multi-drive rectifier & inverter units, incoming circuit breaker, energy consumption braking unit, fiber communication assembly, 24VDC control power supply.
Commissioning Tools
DriveWindow parameter debugging software, process calibrator, hipot tester, infrared thermometer.
Upper-level System
800xA automation platform, power plant DCS and industrial SCADA for centralized equipment monitoring, fault traceability and predictive maintenance.
Typical Application Industries
Metallurgical hot rolling production line multi-drive system, mine hoist frequency conversion equipment, port crane drive control system, thermal power plant auxiliary machine high-voltage frequency conversion device, chemical large compressor variable frequency speed regulation project.
Product Features
- Multi-isolation Closed-loop Stabilization Control: Multi-stage galvanic isolation for trigger, sampling and control circuits, paired with dual closed-loop PID algorithm to stabilize DC bus voltage and correct reactive power under complex grid and load conditions.
- Full-range Hardware Safety Protection: Six major protection functions including overvoltage, overcurrent, phase loss, short-circuit, overtemperature and undervoltage, microsecond-level pulse blocking and fault latch to avoid large-area damage of power components.
- Four-quadrant Working Condition Compatibility: Supports both rectifier and active inverter modes to feed braking energy back to the power grid, suitable for heavy-duty frequent start-stop drive scenarios such as rolling mills and cranes.
- Real-time Data Upload & Remote Fault Diagnosis: Full operational parameters and fault historical records can be read via upper software to realize rapid on-site fault location and reduce equipment downtime.
- Wide-temperature Industrial EMC Design: Compliant with EN 61800-3 standards, stable 24/7 continuous operation under harsh industrial environments, MTBF ≥170000 hours.
- Full ACS800 Series Pin-to-pin Compatibility: Direct in-situ replacement of faulty boards without parameter and wiring modification to shorten maintenance outage duration.
II. Technical Specifications
2.1 Electrical Parameters
Model: DSMB-02C, Material Code: 3AFE64666606Control Power: DC24V ±20%, power consumption ≤4.8WApplicable DC Bus Range: 500VDC~1000VDCSampling Accuracy: ±0.2%FSChannel Withstand Voltage: 2500VAC opto-isolation between control and trigger sideBus Type: ACS800 dedicated internal parallel drive busProtection Functions: Overvoltage, overcurrent, phase loss, short-circuit, overtemperature, undervoltage protection, fault latch & instantaneous pulse blockFault Response Time: ≤5μsOperating Modes: Controlled rectification, active energy feedback
2.2 Mechanical Parameters
Mounting: Guide rail embedded plug-in installation with anti-reverse connectorDimension: 384mm × 54mm × 55mmNet Weight: 0.22kgInterfaces: Multi-group anti-misplug connectors, power/run/fault LED indicatorsHeat Dissipation: Cabinet forced air cooling + PCB copper foil heat conduction
2.3 Environmental Specifications
Operating Temperature: -20℃ ~ +60℃ (forced air cooling)Storage & Transportation Temperature: -40℃ ~ +85℃Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust
III. Key Features
- Three-phase Controlled Rectification & DC Bus Voltage Stabilization: Realizes stable power supply for multi-inverter units and grid reactive power compensation through phase-shift trigger closed-loop regulation.
- Multi-parameter Real-time Sampling & Centralized Status Monitoring: Collects electrical, temperature and interlock switch data to realize full visual monitoring of rectifier unit operation.
- Multi-layer Safety Protection & Dual-channel Fault Alarm: Prevents catastrophic equipment accidents through local indicator and remote upper system dual alarm after fault latch and pulse blocking.
- Four-quadrant Active Inverter Energy Feedback: Effectively absorbs regenerative braking energy to avoid bus overvoltage shutdown for heavy-duty dynamic drive equipment.
- Digital Interlock Logic & Safety Enable Control: Executes equipment safety start-stop interlock logic to meet industrial safety standard specifications.
- Legacy Frequency Conversion System Retrofit & Spare Part Compatibility: Maximizes reuse of existing wiring, parameters and cabinet resources to reduce technical renovation cost and maintenance downtime.
IV. Working Principle
After 24VDC power-on, the board completes full-loop hardware self-test and establishes communication with the main controller to receive configuration parameters. It samples incoming voltage and current signals, calculates the trigger angle via PID algorithm to drive the rectifier bridge for DC voltage stabilization, and automatically switches to active inverter mode for grid energy feedback during load braking. Once protection conditions are triggered, all trigger pulses are immediately blocked with fault information latched and uploaded; normal function can be restored by power cycle or remote fault reset after troubleshooting.
V. Application Scenarios
- Spare part replacement and preventive maintenance of rectifier units for metallurgical ACS800 multi-drive production lines.
- Hardware overhaul and technical renovation of mine hoist and belt conveyor high-power frequency conversion rectifier cabinets.
- Drive system maintenance and component replacement for port container and gantry cranes.
- Auxiliary machine high-voltage frequency conversion equipment rectifier side fault repair for thermal power plants.
- Spare part reserve and hardware upgrade of large compressor and rotary kiln multi-drive frequency conversion systems in petrochemical and cement industries.
