ABB TU812V1 3BSE013232R1 Compact 50V Terminal Unit (MTU)

Description

1. Product Overview

ABB TU812V1, part number 3BSE013232R1, is a compact passive Module Termination Unit (MTU) for S800 I/O system, fully compatible with ABB System 800xA DCS and AC800M distributed I/O control systems. It acts as the wiring transition base between field instruments, actuators and S800 I/O modules, undertaking three core functions: field signal splitting, ModuleBus daisy-chain communication and physical positioning of I/O modules.

This 50V signal-grade compact MTU adopts a 25-pin male D-Sub connector for field wiring, supporting up to 16 independent I/O signal channels per unit. Equipped with mechanical keying design, it only fits matched S800 I/O cards to prevent mismatched installation. Passive design with DIN rail grounding latch supports horizontal and bidirectional mounting, featuring compact size to save cabinet space. Widely used in thermal power, chemical, metallurgy, water treatment and paper industries for DCS cabinet wiring renovation, I/O point expansion and replacement of old termination bases.

2. Hardware Structure and Composition

2.1 ModuleBus Daisy-chain Communication Unit

Integrated complete internal module bus links to realize serial communication of multiple TU812V1 units on one DIN rail. It automatically generates hardware addresses for I/O modules via sequential signal shifting without extra dip switches, simplifying cabinet bus wiring and ensuring stable high-speed data exchange between I/O modules and controllers.

2.2 25-Pin D-Sub Field Signal Transition Unit

Front-side standard 25-pin male industrial D-Sub connector supports up to 16 analog/digital field signals with 50V rated voltage resistance. Each channel has independent signal circuit: max 2A per single channel, total 5A maximum current for the whole D-Sub connector, suitable for 24V DC transmitters, solenoid valves and discrete contact signals. Integrated metal shield suppresses electromagnetic interference from field wiring.

2.3 Mechanical Anti-Mismatch Positioning Lock Unit

Two sets of mechanical coding keys with 6 adjustable positions each, providing total 36 coding combinations. Physical mechanical restriction blocks insertion of mismatched I/O modules (analog/digital), fundamentally avoiding circuit short circuit, module burnout and system communication failure caused by wrong card installation.

2.4 DIN Rail Mounting & Grounding Unit

Bottom integrated latch for standard 35mm DIN rail, supporting horizontal and bidirectional mounting directions. Built-in grounding spring piece automatically realizes equipotential grounding after installation. Fully passive structure without power supply or heat-generating components, requiring no extra heat dissipation space for dense I/O cabinet layout.

2.5 Flame-Retardant Protective Housing Unit

Integrated flame-retardant engineering plastic housing with IP20 indoor protection grade. Gold-plated PCB contacts resist oxidation and corrosion for long-term stable operation in sealed control cabinets. No wearing mechanical parts, requiring zero routine maintenance.

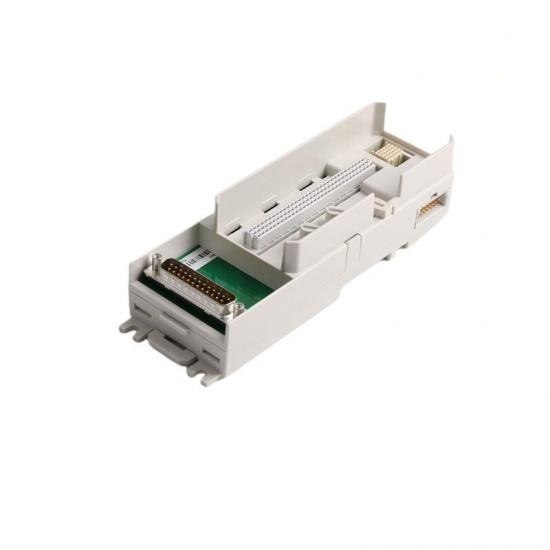

TU812V1 3BSE013232R1.jpg

3. Technical Specifications

3.1 Electrical Performance Specifications

Model: TU812V1, Article No. 3BSE013232R1
Rated signal voltage: 50V AC/DC
Max current per channel: 2A
Max total current of D-Sub connector: 5A
Dielectric withstand test voltage: 500V AC
Power consumption: Passive unit, zero power consumption
Compatible I/O modules: AI810, AI815, AO810, DI810, DO810 and full series standard S800 analog/digital I/O cards
Bus type: Built-in ModuleBus daisy-chain bus with automatic address assignment

3.2 Environmental & Protection Specifications

Operating temperature (horizontal mount): 0℃ ~ +55℃
Operating temperature (vertical mount): 0℃ ~ +40℃
Storage & transport temperature: -40℃ ~ +85℃
Relative humidity: 5%~95% RH, non-condensing, no corrosive gas
Protection class: IP20 (indoor cabinet use only)
EMC compliance: IEC 61000-4 series industrial Class A standard
Vibration standard: IEC 60068-2-6 cabinet vibration resistance standard
Max operating altitude: ≤2000m

3.3 Mechanical Mounting Specifications

Mounting method: 35mm standard DIN rail, bidirectional/horizontal installation
Overall dimensions: W64mm × H170mm × D64mm
Net weight: approx. 0.17kg
Signal interface: 25-pin male D-Sub connector
Mechanical coding: 2 sets of 6-position keys, 36 anti-mismatch combinations
Housing material: Flame-retardant high-temperature resistant engineering plastic, gold-plated PCB contacts

4. Product Functions and Features

Passive compact wiring base simplifies cabinet field wiring

Passive power-free design only for signal transition and bus daisy-chain. D-Sub quick connector replaces massive traditional terminal blocks, greatly reducing cabinet wiring workload, shortening construction and renovation cycle and lowering wiring error rate.

Hardware mechanical anti-mismatch design eliminates I/O module mismatch faults

Dual mechanical coding lock structure distinguishes analog and digital I/O bases, physically blocking wrong card insertion, preventing overvoltage and card damage caused by analog modules connected to discrete circuits, improving system stability.

Automatic bus address assignment without manual dip switch setting

ModuleBus daisy-chain bus automatically distributes hardware address via signal shifting. Multiple cascaded TU812V1 units require no manual address configuration, convenient for commissioning and I/O point expansion.

Bidirectional DIN rail flexible mounting adapts to various cabinet layouts

Supports horizontal and bidirectional rail installation, compatible with shallow and standard depth control cabinets, saving installation space for dense I/O layout, suitable for old cabinet renovation and new I/O expansion cabinets.

Matches hot-swappable I/O modules to support continuous production

Cooperating with matched S800 I/O cards supports online hot swap. The base bus link remains unaffected during module replacement, allowing single-channel fault maintenance without full system shutdown and reducing production loss.

5. Applicable Working Conditions and Application Scenarios

Power industry: S800 distributed I/O cabinets for thermal, hydropower and PV power plant DCS systems, signal transition for transmitters, valve feedback and auxiliary machine discrete signals.
Chemical & petrochemical industry: Analog temperature/pressure/level signals and solenoid valve discrete wiring bases for refining, fine chemical and coal chemical plants.
Metallurgical industry: I/O signal transition for field instruments and equipment limit switches in steel rolling, sintering and dust removal production lines.
Water treatment, paper making, cement light industry: Automatic production line I/O point expansion and old termination base replacement renovation projects.
Special environments: Offshore platforms, marine power control and Zone2 explosion-proof area automatic I/O wiring systems.
Technical renovation: 800xA system I/O cabinet upgrading, new field measuring points addition and messy terminal block simplification renovation projects.
