1. Product Overview

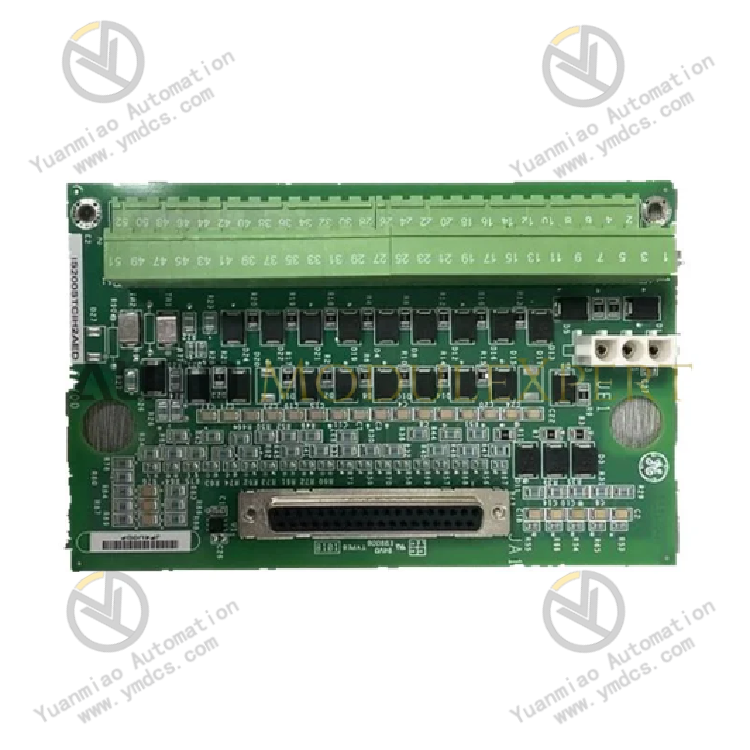

Full Model Name: IS200STCIH2A
Applicable Platform: GE Speedtronic Mark VI / Mark VIe Distributed Control System for gas turbines and steam turbines, originally manufactured in the United States. It is a discontinued spare part belonging to the core I/O interface category for turbine units.
Product Positioning: Simplex Dry Contact Input Terminal Board. It serves as an intermediate adaptation unit between field digital signals and rack main control modules. It mainly collects passive dry contact signals from limit switches, circuit breaker auxiliary contacts, relay feedbacks, local pushbuttons, door interlocks, pressure switches and other devices. The board performs hardware filtering, surge suppression, electrical isolation and level conversion, converts irregular field switching signals into standardized digital signals recognizable by the Mark VIe system, and uploads data to the controller for interlock protection, sequence control logic, condition monitoring and unit start-stop management.
This board can operate in basic simplex mode. With a matched backplane, it can be expanded to form 1+1 dual redundant or TMR triple modular redundant architecture, meeting the fault-free operation requirements of critical processes in thermal power generating units. It is widely applied to maintenance replacement, standardized cabinet wiring renovation, I/O point expansion and faulty board replacement projects for turbine control systems in power plants.
2. Hardware Structure & Six Functional Units
2.1 Front-end Terminal Wiring Convergence Unit
A pluggable screw terminal block is integrated on the upper part of the board to centrally connect multi-core field on-site cables, supporting crimping and fixing of 12~22AWG industrial wires. Multiple independent dry contact input circuits are integrated on a single board to gather scattered field switching signals, replacing scattered terminal blocks, standardizing cabinet wiring, and greatly reducing poor contact, wrong wire number labeling and signal crosstalk issues.
2.2 Multi-stage Hardware Surge & Noise Suppression Unit
Each input channel is equipped with MOV varistors, RC filter networks and freewheeling diode arrays to absorb induced lightning surges on cables, high-frequency harmonics from frequency converters, and back EMF generated during relay pull-in and drop-out. Pulse clutter interference is filtered without software intervention to prevent signal false triggering and interlock misoperation, adapting to the strong electromagnetic environment around excitation cabinets and high-power auxiliary equipment in power plants.
2.3 Channel Electrical Isolation & Level Conversion Unit
High-voltage optoelectrical isolation (2500VAC isolation withstand voltage) is implemented between each input circuit and the backplane system bus, blocking ground potential difference at the field side and reverse intrusion of abnormal high voltage that would damage the rear-end CPU main control module. It is compatible with passive contact inputs at multiple DC voltage levels including 24VDC, 48VDC and 125VDC, automatically completing level matching without additional voltage division conversion to fit field devices with different voltage specifications.
2.4 Rear Backplane Bus Interface Unit
A standard high-density DB European-style connector is mounted on the side of the board to plug directly into the parallel backplane bus of the Mark VIe rack. It uploads preprocessed digital signals to the CPU controller at high speed, and receives channel diagnosis and loop enable commands issued by the controller. Gold-plated backplane contacts feature oxidation resistance, dust resistance and wear resistance against long-term vibration and plugging, ensuring stable contact during long-term cabinet operation.
2.5 On-board Loop Self-test & Fault Diagnosis Unit
Hardware continuously monitors each channel for open circuit, short circuit, overvoltage and abnormal signal conditions. Fault information is uploaded to the upper HMI and diagnostic software via periodic messages to pinpoint fault points accurately. Test pins are reserved on the board for multimeter offline measurement of channel continuity and isolation circuit integrity, enabling basic board verification without upper computer software.
2.6 Reinforced PCB & Protection Structure Unit
Multi-layer gold-plated PCB with full conformal coating for moisture and corrosion resistance. Components are fixed via dual reinforcement of SMT and through-hole soldering. No fans or wearable mechanical moving parts are adopted. Designed exclusively for installation inside sealed cabinets, it withstands high temperature, dust, humidity and long-term vibration from turbine units.
3. Detailed Technical Specifications
(1) Signal & Channel Parameters
| Item | Specification |
|---|
| Model | IS200STCIH2A |
| Board Type | Simplex Dry Contact Input Conditioning Terminal Board |
| Signal Type | Passive dry contact digital input (NO / NC universal) |
| Supported Input Voltage | Multi-standard compatible: 24VDC / 48VDC / 125VDC DC |
| Max Input Current per Channel | 0.5A |
| Typical Power Consumption | 6W |
| Isolation Withstand Voltage per Channel | 2500VAC electrical isolation between strong and weak current circuits |
| Applicable Wire Gauge | 12~22AWG |
| Redundancy Expansion | Native simplex; supports 1+1 dual redundancy and TMR triple redundancy via networking |
(2) Electrical Power Supply Parameters
Rated Operating Power Supply: 24VDC from rack backplane
Allowable Voltage Fluctuation Range: 18~36VDC
Built-in Protection: Multi-level hardware protection against reverse polarity, overcurrent, short circuit and ESD static electricity
Bus Protocol: Dedicated I/O backplane communication protocol for Mark VIe rack
Hot-swap Specification: Hot plugging on the rack is strictly prohibited
(3) Environmental Specifications
Standard Operating Temperature: -40℃ ~ +70℃
Storage & Transportation Temperature: -40℃ ~ +85℃
Relative Humidity: 5%~95% RH, non-condensing; no corrosive acid gas or salt fog condensation
Ingress Protection Class: IP20; only for installation inside sealed industrial control cabinets
Vibration Compliance: IEC 60068-2-6, suitable for continuous vibration conditions of turbine units
Maximum Operating Altitude: ≤2500m
(4) Mechanical Installation Parameters
Mounting Method: Embedded fixed installation in standard Mark VIe rack slots
Overall Dimensions: 260.4mm × 241.3mm × 25.4mm
Net Weight per Unit: Approx. 0.68kg
Base Material: V0 flame-retardant high-temperature resistant PCB with gold-plated backplane connectors
4. Product Functions & Advantages
Centralized multi-channel signal acquisition to simplify cabinet wiring architecture
The integrated multi-terminal design unifies a large number of scattered interlock and feedback signals from the field before forwarding them to the controller, eliminating messy loose wiring inside the cabinet and facilitating circuit inspection and daily operation & maintenance management.
Native hardware anti-interference to prevent unit false interlocks fundamentally
The combination of pure hardware filtering and varistor surge absorption resists strong electromagnetic interference in power plants, eliminating signal jitter caused by auxiliary equipment startup/shutdown and excitation regulation, so as to avoid unit false tripping and sequence control logic disorder.
Wide voltage compatibility for universal application with various field devices
It supports passive contact equipment ranging from 24VDC to 125VDC without jumper modification on hardware, allowing direct connection of circuit breakers, valve feedbacks, local pushbuttons and unit protection switches with strong spare part versatility.
Robust isolation hardware protection to safeguard the core main control system
Optoelectrical isolation completely separates the field primary circuit and secondary control bus. Even if the field cable is mistakenly connected to high voltage or short-circuited, the fault is limited to the corresponding channel only, without damaging rack CPU and core control cards and minimizing fault impact scope.
Flexible redundant architecture to meet high-reliability requirements of critical units
The basic simplex mode is applicable to non-critical auxiliary control points. When matched with a dedicated backplane, it can be configured as 1+1 dual redundant or triple modular redundant systems for core safety loops such as turbine main protection and emergency shutdown interlocks, complying with SIL safety control requirements.
Long-lifespan industrial conformal coating design for harsh power plant environments
Conformal coating prevents erosion from moisture, dust and mild salt spray. Wide-temperature industrial components enable 24/7 uninterrupted long-term operation, matching the 10-year overhaul cycle of power generation equipment.
Thermal Power Gas / Steam Turbine Main Control System
Signal acquisition for ETS trip interlocks, oil system pressure switches, bearing temperature switches, cylinder limit switches, fire door interlocks and generator circuit breaker status of GE Mark VIe units.
Power Plant Auxiliary Equipment Control System
Access of local switch feedbacks, local operation pushbuttons and equipment fault alarm contacts for induced draft fans, forced draft fans, boiler feed pumps and condensate pumps.
Oil & Chemical Turbine Units
Digital interlock signal collection and process safety loop condition monitoring for large compressor units and boost turbine control systems.
Technical Renovation & Operation Maintenance
Replacement of aging terminal boards, addition of new I/O measuring points, troubleshooting of frequent signal false alarms, standardized cabinet wiring sorting and annual preventive spare part stocking for Mark VIe series systems.
![]()
