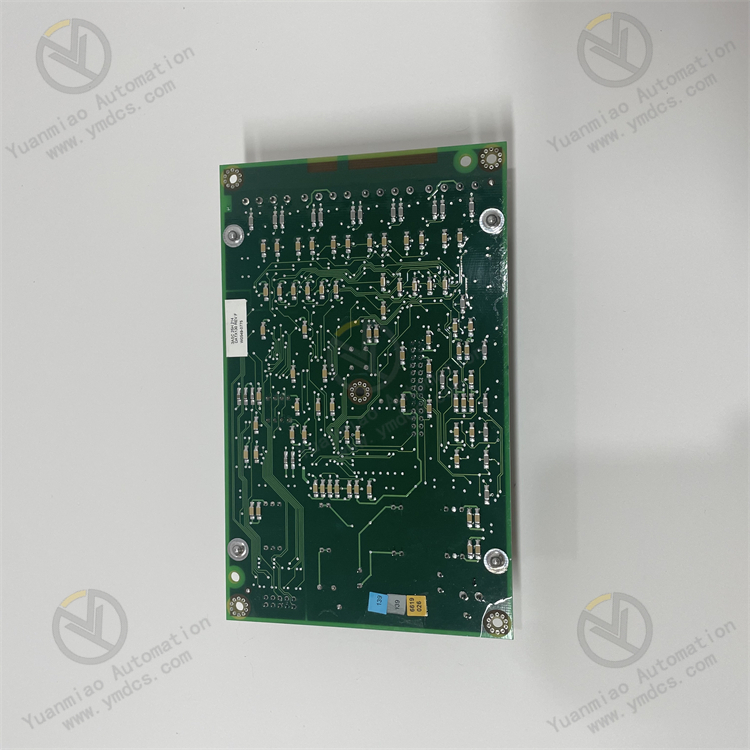

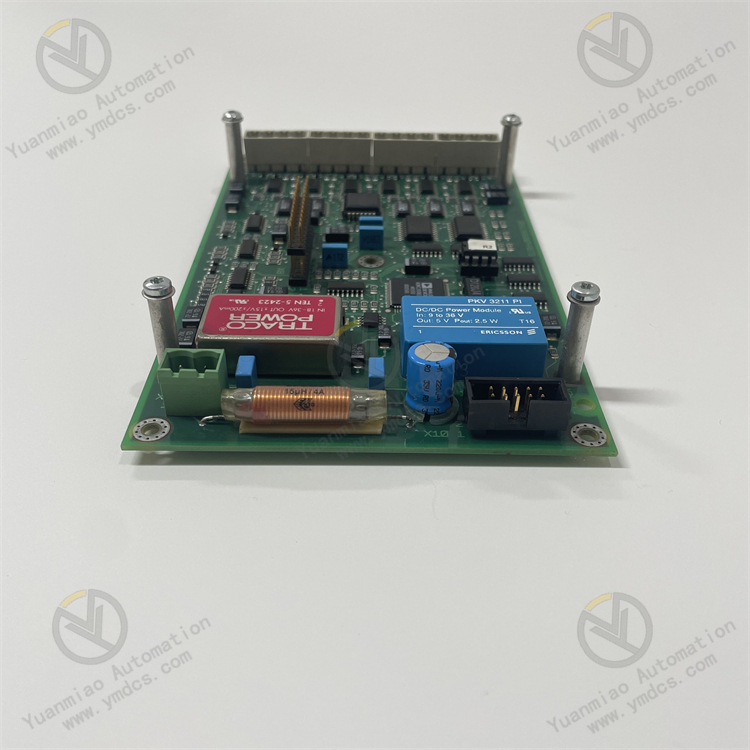

ABB DATX130 3ASC25H214 Analogue Output Module

Description

1. Product Overview

Full Model: DATX130

Material Code: 3ASC25H214

Manufacturer: ABB

Product Name: High-precision Multi-channel Analog Output Module / Industrial DCS Process Control Signal Conversion Module

Product Description

ABB DATX130 (3ASC25H214) is an industrial-grade high-precision analog output module specially designed for ABB Symphony, Industrial IT and System 800xA DCS control systems. It serves as core hardware of the S800 I/O series and is developed for demanding process industries including power generation, chemical industry, metallurgy, water treatment and intelligent manufacturing. The module accurately converts digital signals from the control system into standard field analog signals and outputs continuously adjustable analog control signals to regulating valves, electric actuators, variable frequency drives and process transmitters. It is a core I/O unit for closed-loop process regulation and precise parameter control in industrial applications.

Equipped with an industrial high-precision D/A converter chip, the module features excellent signal linearity and ultra-low temperature drift. It supports standard industrial analog current signal output. Adopting channel-wise independent opto-isolation architecture, it thoroughly eliminates channel crosstalk and ground loop interference, adapting to long-distance field wiring and harsh environments with complex electromagnetic interference. Built-in digital filtering, automatic temperature drift compensation, real-time fault self-diagnosis and multiple hardware protection mechanisms effectively prevent control abnormalities caused by signal fluctuation and wiring faults on site. Designed as a standard rack-mounted modular unit, it supports hot swapping and non-destructive in-situ replacement for 24/7 continuous stable operation. Only genuine identical replacement modules are recommended to avoid regulation deviation, signal jitter and system logic faults induced by incompatible third-party modules, ensuring process control accuracy and system stability.

2. Core Functions

1. High-precision analog signal output. Supports multiple channels of standard industrial current output with high conversion linearity and minimal error. It precisely meets control requirements of various field regulating equipment to realize continuous closed-loop precise regulation of process parameters such as temperature, pressure, flow, liquid level and valve position.




2. Independent electrical isolation for all channels. Each output channel is electrically isolated. Faults or abnormal wiring on one channel will not affect other channels or the whole module. It effectively suppresses signal distortion caused by ground loops and electromagnetic crosstalk, greatly improving system anti-interference capability and fault tolerance.




3. Intelligent signal processing. Embedded dedicated D/A conversion algorithm, digital noise reduction filtering, linear calibration and dynamic temperature drift compensation automatically correct signal deviation under wide temperature variation, strong interference and load fluctuation, maintaining stable, accurate and drift-free output signals.




4. High-speed bus data communication. Natively compatible with bus protocols of full range ABB DCS/PLC systems. It supports high-speed real-time data transmission to rapidly receive upper-level control commands and synchronously upload channel operating status, fault information and real-time parameters with low data latency and strong synchronization.




5. Comprehensive fault self-diagnosis and alarm. Power-on self-test plus continuous runtime inspection accurately detect channel open circuit, short circuit, overload, over-range, communication abnormality and hardware failure. On-board indicators and pop-up alarms on the host system enable fast fault location and reduce maintenance workload.




6. Multiple hardware safety protections. Integrated channel short-circuit protection, overcurrent protection, overvoltage protection and reverse polarity protection defend hardware against damage resulting from field wiring faults and abnormal loads, protecting both the module and downstream field equipment.




7. Convenient maintenance without system shutdown. Supports online parameter calibration, range configuration, logic parameter modification, fault reset and status monitoring. Hot-swap replacement is available. Commissioning, calibration and maintenance can be performed without halting the system, matching the round-the-clock continuous production mode of industrial sites.

3. Technical Features

1. Ultra-high-precision signal conversion. Adopts industrial high-precision D/A conversion chip with multi-stage factory calibration by the manufacturer. It achieves extremely low linear error and minimal temperature drift, maintaining high-precision output under complex conditions such as temperature variation and load fluctuation to satisfy precise process regulation requirements.




2. Channel-wise independent isolation architecture. Dual opto-isolation between channels and between channels and backplane completely eliminates ground loop interference and channel crosstalk. It adapts to industrial long-distance wiring and mixed high/low voltage wiring scenarios and significantly enhances system stability.




3. Excellent industrial anti-interference performance. Passes stringent EMC tests with outstanding immunity against static electricity, surge and electromagnetic radiation. It can operate reliably in high-interference industrial sites such as power plants, chemical plants and metallurgical facilities without long-term signal jitter or drift.




4. Hot-swappable non-destructive replacement. Supports live hot swapping on the rack. Module replacement requires no shutdown or power cut. Non-destructive in-situ replacement allows rapid commissioning to minimize maintenance downtime and guarantee production continuity.




5. Stable long-term operation with low power consumption. Optimized low-power circuit design generates low heat consumption. No parameter shift or channel degradation occurs during long-term operation. It achieves low failure rate for 24/7 continuous service and long service life.




6. Standardized universal compatibility. Fully compatible with ABB Symphony Plus, Industrial IT, System 800xA and other full-range industrial control systems with native matching software and hardware parameters and strong configuration compatibility. Suitable for equipment retrofitting, system upgrading and spare part replacement.

4. Specification Parameters

5. Working Principle

After being supplied with 24V DC power, the module automatically executes full hardware self-test, channel initialization, communication handshake and loading of system configuration parameters. It sequentially verifies power supply status, isolation circuits, D/A conversion units and bus communication. Once self-test succeeds, the module enters standby mode and waits for control commands from the host system.

During normal operation, the module continuously receives digital regulation commands and process setpoints issued by upper-level DCS/PLC controllers via the high-speed system bus. The internal high-precision D/A converter converts discrete digital signals into standard continuous analog current signals of 0～20mA. Prior to output, built-in digital filtering, linear calibration and dynamic temperature drift compensation algorithms automatically filter industrial noise and correct signal deviation caused by temperature and load variation. After signal conditioning, stable signals are output through isolated channels to field regulating valves, actuators, variable frequency drives and other terminal loads to realize closed-loop precise regulation of process parameters.

The module implements continuous full-channel real-time self-diagnosis to monitor output current of each channel, circuit continuity, load condition, hardware status and bus communication quality. In case of channel short circuit, overload, open circuit, signal out-of-tolerance or communication failure, independent channel protection lock activates immediately to lock output of the faulty channel and prevent fault propagation across the system. Accurate fault codes and alarms are uploaded to the host system to support rapid troubleshooting by maintenance personnel. After fault clearance, channel output can be restored automatically or manually, consistently ensuring stability, accuracy and safety of the analog control loop.

6. Common Faults and Troubleshooting

1. Module communication failure, offline on host, no output on all channels

Causes: Loss of 24V DC power supply, insufficient voltage or loose wiring; oxidized rack bus contacts and loose communication cables; lost module configuration parameters or program error; bus address conflict with other devices.

Solutions: Stabilize power supply voltage and tighten power terminals; clean rack bus contacts, secure communication cables and troubleshoot bus links; reload module configuration and verify bus address to avoid conflicts; replace original module if communication hardware is damaged.

2. Output signal drift, large regulation deviation and fluctuating process parameters

Causes: Accumulated temperature drift after long-term operation and invalid factory calibration parameters; severe on-site electromagnetic interference and poor cabinet grounding; mismatched output load and excessive loop voltage drop; ageing of module D/A conversion circuit.

Solutions: Re-perform zero and full-scale calibration for channels; optimize cabinet grounding and shielding, keep away from high-power interference equipment; match standard load parameters and rectify overlong wiring and unreasonable loops; replace original module if hardware ageing occurs.

3. Single channel locked with no output while other channels operate normally

Causes: Short circuit, overload or leakage on single output loop; fault or ground short of field terminal equipment; channel locked by protection without reset; micro-short circuit induced by dust and moisture on connectors.

Solutions: Isolate and inspect wiring and field loads of the faulty channel to completely eliminate short-circuit, overload and leakage risks; clean dust and moisture on module terminals; power cycle to release channel lock; replace module if faults recur indicating hardware damage.

4. Fluctuating output signal, intermittent disconnection and unstable regulation

Causes: Severe on-site electromagnetic interference and failed shielding grounding; loose terminals and poor contact; abnormal module temperature drift compensation; unstable bus data transmission.

Solutions: Optimize system grounding and electromagnetic shielding to suppress interference; tighten all terminals and repair damaged cables; re-calibrate channel parameters and update underlying compensation program; restart bus link to stabilize data transmission; replace module if faults persist.

5. Failed power-on self-test, unable to put into operation

Causes: Unstable power supply and instantaneous voltage fluctuation; damaged module hardware circuit and faulty D/A conversion unit; corrupted configuration file or program loss; poor contact of backplane bus.

Solutions: Stabilize power supply to avoid voltage fluctuation interference; reload complete configuration program; clean backplane bus contacts and re-seat the module; replace original module if hardware failure cannot be repaired.

6. No output, parameter refresh failure and system incompatibility after installing new module

Causes: New module not configured with matching bus address and communication parameters; incomplete channel initialization calibration; incompatible system firmware version; incorrect wiring definition and reversed loop polarity.

Solutions: Strictly verify wiring definition and correct misconnections; configure matching bus address, baud rate and system parameters; complete zero and span initialization calibration for channels; ensure compatible system firmware; put into operation after successful online testing.
