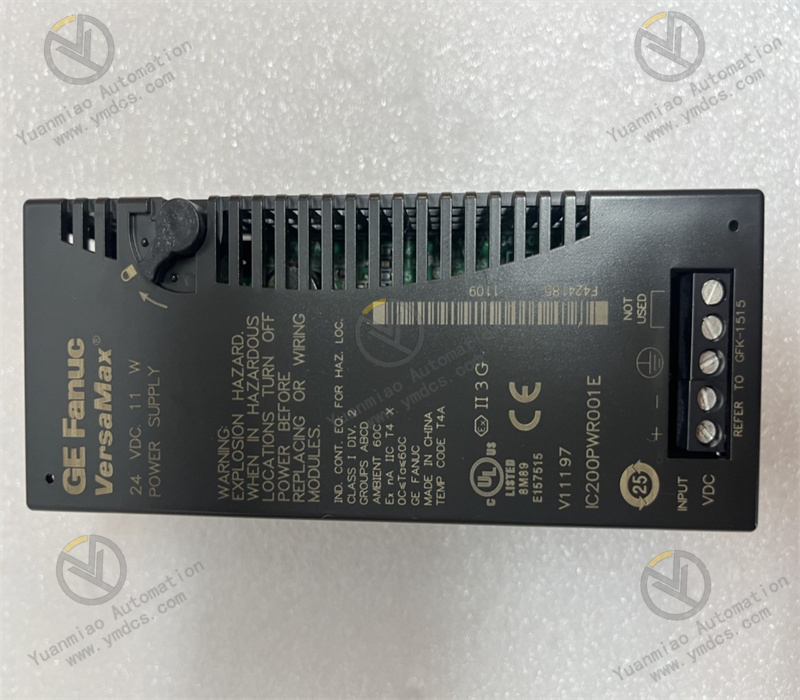

IC200PWR001G Backplane power supply module

Description

1. Product Overview

IC200PWR001G is a dedicated backplane power‑supply module of the VersaMax series manufactured by General Electric (GE Fanuc / Emerson). It acts as the core power‑supply unit for the VersaMax distributed‑control PLC system, delivering stable, clean backplane‑bus operating power to the rack‑mounted CPU, communication modules and various I/O modules. It is the fundamental hardware guarantee for reliable operation of the whole automation‑control system. Designed for harsh industrial environments characterized by large‑magnitude voltage fluctuations, strong electromagnetic interference and non‑stop continuous power requirements, the module performs key functions including system voltage conversion, regulated output, power distribution, power‑fault protection and ripple filtering. It ensures steady power supply to the PLC main processor and all expansion modules, preventing system reboot, communication breakdown, module error alarms and loss of control triggered by abnormal power conditions.

As an original standardized industrial power‑supply module from GE, the IC200PWR001G adopts a wide‑range DC‑input architecture. It converts the commonly‑used industrial 24 VDC wide‑input voltage into two standard backplane operating voltages: 5 VDC and 3.3 VDC. Equipped with multi‑stage filter circuits as well as built‑in hardware protection against reverse polarity, over‑current, short‑circuit and overload, it solves common‑industry drawbacks of conventional industrial power supplies such as unstable output voltage, high ripple, weak anti‑interference performance, burnout risk and inrush‑current damage to control modules. Featuring a compact industrial‑reinforced housing, extended‑temperature‑range design and high‑efficiency low‑power conversion scheme, the module can withstand long‑term exposure to dust, humidity, vibration and heavy electromagnetic interference inside factory facilities and supports 7×24‑hour non‑stop heavy‑duty operation. It is widely deployed in engineering projects including new‑system configuration, replacement of ageing legacy power modules, power‑supply‑stability optimization and power‑architecture upgrades for VersaMax installations across intelligent‑manufacturing, assembly‑line automation, chemical, power‑generation, water‑treatment, HVAC, light‑industry and metallurgical sectors.

2. Core Functions

1. Multi‑channel precise voltage conversion and regulated output: Accepts a wide industrial DC‑input voltage of 18‑30 VDC, matching the common‑site 24 VDC power supply. It accurately converts and outputs two dedicated backplane voltages (5 VDC and 3.3 VDC), supplying clean, ripple‑free and fluctuation‑free operating power to CPU, I/O and communication modules. High conversion precision and extremely low ripple eliminate abnormal module behaviour caused by voltage deviation.




2. Stable power distribution at rated capacity: The total maximum output‑current of the unit is 1.5 A, of which the 3.3 VDC channel delivers a rated 0.25 A. Remaining available power is allocated to the 5 VDC channel. Balanced power distribution and strong load adaptability fully satisfy the power requirements of multiple modules operating cooperatively inside a standard VersaMax rack under full‑load I/O‑point conditions, without power derating or thermal overload.




3. Comprehensive hardware‑based power‑protection mechanism: Natively integrated protection functions cover reverse‑polarity protection, output short‑circuit protection, overload protection and over‑current protection. In the event of reversed wiring, loop short‑circuit, excessive load or abnormal voltage, the module rapidly latches off power output to isolate the faulty circuit. This protects both the power‑supply unit itself and downstream CPU / I/O hardware from power‑related damage, greatly reducing maintenance costs and unplanned downtime risks.




4. Low‑inrush power‑on performance and strong noise immunity: Optimized inrush‑current suppression limits instantaneous switch‑on current peaks of 20‑25 A and prevents damage to precision control hardware. Multi‑stage EMI filtering and electromagnetic‑shielding circuits filter electromagnetic noise and coupled interference originating from variable‑frequency drives, motor start‑stop transients and high‑power cables. Clean power output avoids system jitter, intermittent communication loss and signal disturbance induced by power‑line interference.




5. Extended‑temperature industrial‑environment adaptability: Built with industrial‑grade wide‑temperature components and reinforced circuitry, the module operates reliably across ‑40 ℃ ~ +70 ℃. It copes with cold‑weather startup, high‑temperature operation inside enclosed cabinets and outdoor temperature swings, maintaining constant conversion efficiency and output accuracy without cold‑start failure or thermal power derating.




6. Compact modular design for non‑disruptive maintenance and expansion: Built to the standard VersaMax compact form factor, it clips quickly onto standard DIN rails and is mechanically compatible with the full range of VersaMax racks and backplanes. Plug‑and‑play installation requires no extra wiring or parameter configuration and works seamlessly with both new and legacy systems. Replacement of old modules can be completed without program modification or field‑wiring changes, lowering construction risks and improving maintenance and expansion efficiency.

3. Technical Specifications

4. Working Principle

The IC200PWR001G power‑supply module operates under a closed‑loop workflow: wide‑voltage input filtering → inrush‑current suppression → precise voltage conversion → multi‑channel regulated output → real‑time fault monitoring and protection. After DIN‑rail mounting, terminal‑wiring completion and rack‑backplane connection, the unit is energized from the industrial 24 VDC supply. Incoming power passes first through an input‑side EMI‑filter circuit to remove mains‑borne noise and voltage spikes, while the inrush‑suppression stage attenuates large switch‑on transients that could damage downstream control hardware.

The filtered, stabilized DC voltage enters high‑precision regulation‑conversion circuitry, where it is stepped‑down accurately to produce the two backplane supply voltages, 3.3 VDC and 5 VDC. These regulated voltages are distributed evenly over the rack backplane bus to the CPU, communication modules, digital‑ and analogue‑I/O boards and all other rack‑mounted hardware, delivering continuous, clean and stable power for program execution, field‑signal acquisition, logic processing and industrial data communication. During runtime the module dynamically adjusts its output voltage to counteract mains‑supply fluctuations and maintains constant output precision under variable‑load conditions, preventing module malfunctions caused by voltage drift.

An always‑on electrical‑fault monitor continuously samples input/output voltage, operating current and load‑state parameters. Upon detection of reverse power polarity, output short‑circuit, load overload or over‑current conditions, latching protection activates within milliseconds. The faulty output path is cut off to contain fault propagation and protect all downstream control modules. Power is automatically restored once the root‑cause fault has been cleared. This mechanism ensures safe, stable and uninterrupted power delivery for the VersaMax rack and prevents full‑system shutdown, process interruption and equipment alarms triggered by a single point‑of‑failure on the power‑supply chain.

5. System‑Architecture Compatibility

The IC200PWR001G is an original‑equipment dedicated standard backplane power‑supply module for the GE VersaMax PLC control system. Its electrical parameters, output‑voltage logic, backplane‑bus power‑supply protocol, mechanical mounting dimensions and connector pin‑out definitions are fully matched to the complete VersaMax hardware ecosystem. It delivers 100 % seamless interoperability with all VersaMax CPUs, communication modules, I/O expansion boards and rack bases, serving as the factory‑standard power‑supply unit for VersaMax racks.

Purpose‑built for the VersaMax distributed‑control system, its power rating, voltage accuracy and load‑matching characteristics satisfy native system power requirements. Precise bus‑power sequencing and balanced load distribution enable reliable high‑concurrency steady‑state operation for fully‑populated racks. The standard compact modular design and DIN‑rail mounting conform to industrial‑cabinet layout specifications. It can be deployed for power‑supply configuration in new automation projects, replacement of ageing legacy power‑supply modules, system power‑capacity optimization, retrofit upgrades for sites with unstable mains voltage and anti‑interformance improvements for control systems. Retrofit work can be completed without modifying existing control‑programs, field wiring or process logic. Plug‑and‑play installation requires zero on‑site commissioning and carries no adaptation risk. After upgrade, power‑supply cleanliness, stability, voltage‑ride‑through capability and fault‑protection performance are significantly enhanced, eliminating system‑instability issues originating from ageing power hardware.

6. Application Scenarios

Designed to resolve well‑known limitations of conventional industrial power supplies, such as narrow input‑voltage tolerance, high output ripple, incomplete protection circuits, severe power‑on inrush, temperature‑related failure and poor mains‑fluctuation tolerance, the IC200PWR001G is targeted at industrial applications requiring non‑stop, highly‑stable and safe power delivery to PLC racks. Its core strengths include wide‑voltage input capability, dual‑output precision regulation, multi‑layer electrical protection, extended‑temperature operation, strong noise immunity and low failure rates.

The module is widely used in intelligent‑manufacturing assembly‑lines, custom‑built automated machinery, thermal‑power‑plant auxiliary control systems, petrochemical process automation, water‑treatment environmental‑protection equipment, HVAC automation, textile‑processing, metallurgical machinery, automated warehousing and other industrial sectors, fully compatible with the complete GE VersaMax PLC product family. It provides regulated power delivery, mains‑noise filtering, fault protection and power‑reliability assurance for all control hardware installed inside a PLC rack. Suitable projects include power‑system configuration for new‑build automation installations, replacement of failed legacy power‑supply modules, stability upgrades for existing control systems, harsh‑environment power‑supply retrofits and optimization of automation equipment operating on highly‑fluctuating power grids. It mitigates operational risks caused by mains‑voltage swings, power‑line interference, inrush‑current transients, short‑circuit‑overload hardware damage and temperature‑dependent power‑supply failure. The module improves overall PLC operational stability, equipment safety, environmental adaptability and continuous‑production capacity, enabling long‑term safe, steady and efficient non‑stop operation of industrial‑automation production lines.
