1. Product Overview

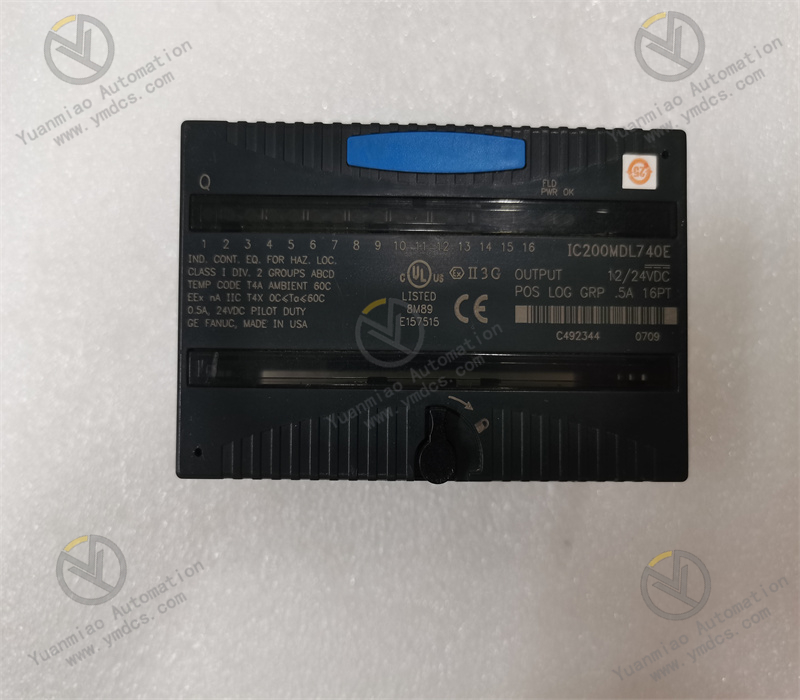

IC200MDL740E is a 16‑Channel DC Discrete Output Module of the VersaMax series manufactured by General Electric (GE Fanuc). It serves as the core output unit for the VersaMax PLC distributed‑control system and is designed for on‑site industrial digital‑signal output and actuator drive‑control applications. As the terminal‑output hardware of the PLC control system, the module converts digital logic commands issued by the main‑control CPU into standard DC switching‑output signals to precisely drive field‑installed solenoid valves, relays, contactors, indicator lamps, small‑sized actuators and other equipment. It is a critical output module for implementing start‑stop control, operating‑condition switching, logic interlocking and sequential‑control functions in industrial‑automation systems.
As an original standardized industrial‑output module from GE, the IC200MDL740E adopts a transistor‑based DC output architecture equipped with independent channel‑isolation circuits, over‑current self‑protection for outputs and anti‑interference filtering circuits. It resolves common‑industry problems of traditional output modules, such as crosstalk between channels, burnout caused by overload, signal distortion, accidental on‑site operation and abnormal cold‑start performance at low temperatures. Supporting wide‑range DC‑voltage adaptation and compatibility with both positive and negative logic, this module features fast response, high‑output accuracy, stable‑channel performance and long anti‑ageing service life. Housed in an industrial‑grade reinforced plastic casing with a compact modular structure and wide‑temperature‑resistant design, it can operate continuously under harsh plant‑site conditions including dust, humidity and strong electromagnetic interference, supporting 7×24‑hour steady heavy‑duty operation. It is widely deployed in engineering projects such as new‑system configuration, replacement of legacy output modules, I/O‑point expansion, control‑loop optimization and automation‑system stability upgrades for VersaMax installations in intelligent‑manufacturing, assembly‑line automation, chemical, power‑generation, water‑treatment, HVAC and light‑manufacturing industries.
2. Core Functions
16‑channel high‑density DC discrete‑output capability: Equipped with 16 independent discrete‑output channels, the single module can control multiple field‑switching devices simultaneously. Its high‑density layout greatly reduces cabinet‑mounting space and meets the demands of medium‑to‑large‑scale automated production lines for centralized control over numerous points, loops and equipment, supporting complex‑process sequential start‑stop and multi‑device linkage scenarios.
Wide‑voltage compatibility and dual‑logic output support: It operates across a wide DC‑voltage range of 10.2–30 VDC, fully matching the industry‑standard 24 VDC power supply. Natively compatible with both positive‑logic and negative‑logic output modes, it flexibly adapts to DC actuators from different manufacturers without requiring extra adapter components for most on‑site control loops.
High‑speed response and precise‑signal output: Built‑on a high‑performance transistor‑output architecture free of mechanical‑contact delay, the module delivers fast signal response and high‑output synchronisation. It accurately executes high‑frequency switching instructions sent by the CPU, eliminating output lag, asynchronous operation and signal loss to guarantee stable execution of high‑precision logic such as assembly‑line timing control, equipment linkage and interlock protection.
Independent‑channel isolation and electrical‑protection functions: Each output channel features galvanic isolation so that individual loops do not interfere with one‑another, effectively preventing unintended operation caused by channel‑to‑channel or load‑induced crosstalk. Built‑in intelligent over‑current, overload and short‑circuit protection shuts down only the faulty channel while leaving all remaining channels operational, minimising system‑shutdown risks and maximising continuous‑control availability.
Robust anti‑interference performance for industrial environments: Multi‑stage EMI‑filter circuits and electromagnetic‑shielding design suppress electromagnetic noise and coupling interference generated by variable‑frequency drives, power cables and motor‑start‑stop transients, preventing output jitter, false triggering and signal disruption in high‑EMI industrial‑plant environments.
- Lightweight installation and non‑disruptive maintenance‑friendly replacement: Featuring a compact VersaMax‑standard modular form factor, the module clips quickly onto standard DIN rails for simple installation and neat wiring. Fully compatible with the complete VersaMax PLC architecture, it supports plug‑and‑play replacement without control‑program modification, logic re‑configuration or field‑wiring alteration, thus lowering construction costs and downtime risks during maintenance‑swap operations and I/O‑point expansion.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model No. | IC200MDL740E |
| Brand | GE (General Electric / GE Fanuc) |
| Product Series | VersaMax PLC Discrete I/O Module Series |
| Product Type | 16‑Channel DC Discrete Output Module, Transistor Digital‑Output Unit |
| Compatible Systems | Full‑range GE VersaMax PLC Distributed‑Control Systems |
| Number of Output Channels | 16 independent isolated DC‑output channels |
| Output Type | NPN / PNP transistor DC output, dual‑logic compatible |
| Output‑Voltage Range | 10.2 VDC ~ 30 VDC (24 VDC nominal industrial rating) |
| Output Current per Channel | Max. 0.5 A / Channel (rated load current) |
| Output‑Response Characteristic | No mechanical‑contact delay, high‑speed response, excellent signal synchronisation |
| Isolation Method | Galvanic isolation per individual channel; channels electrically independent |
| Protection Mechanism | Intelligent over‑current, overload and short‑circuit protection; latching fault isolation on affected channel |
| Anti‑Interference Design | Multi‑stage EMI filtering and electromagnetic shielding; suitable for high‑EMI industrial conditions |
| Operating Temperature | -20 ℃ ~ +70 ℃, wide‑temperature industrial‑environment suitability |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Ambient Humidity | 5 %‑95 % RH, non‑condensing, for thermostatically‑controlled industrial cabinets |
| Hardware Construction | Industrial‑grade reinforced plastic housing, anti‑ageing PCB, heavy‑duty terminal blocks, compact modular layout |
| Operational Characteristics | High‑density output, fast response, stable‑channel performance, fault isolation, 7×24‑hour continuous heavy‑load operation |
| Mounting Method | Quick‑clip DIN‑rail installation, compatible with VersaMax racks |
| Key Advantages | 16‑channel high‑density I/O, wide‑voltage compatibility, dual‑logic support, zero‑delay high‑speed output, independent per‑channel isolation and protection, strong noise immunity, fault containment without cross‑channel impact, plug‑and‑play replacement, broad DC‑actuator compatibility, greatly improved automation‑control accuracy and stability |
4. Working Principle
The IC200MDL740E discrete‑output module follows a closed‑loop workflow: bus‑signal reception → internal‑logic interpretation → filtering and voltage regulation → transistor‑driven output → fault self‑test and isolation. After DIN‑rail mounting, field‑terminal wiring and backplane‑bus connection, the module automatically completes power‑on self‑diagnostics and channel initialisation. Once power‑loop, chip and communication‑link health are confirmed, the unit enters steady‑state signal‑output mode.
During runtime, the module receives switching‑logic commands from the PLC main‑control CPU via the internal VersaMax backplane bus. Its internal circuitry decodes instructions, removes noise interference and shapes signals to eliminate waveform distortion introduced during transmission. The conditioned control‑signals switch on and off high‑speed internal transistors, converting logical control signals into stable 24 VDC DC‑switching outputs that directly energise on‑site solenoid valves, relays, indicator lamps and other loads to execute automated actions such as equipment start‑stop, process‑condition switching, sequenced motion and multi‑device interlocking.
The module continuously monitors operating current, load status and loop conditions on every output channel. If a short‑circuit, overload or wiring fault is detected on one channel, latching protection is triggered, cutting power only to the faulty loop while all remaining channels continue operating normally. Fault‑channel status information is uploaded in real‑time to the supervisory PLC system to support rapid maintenance troubleshooting. This mechanism ensures continuous, precise and reliable execution of automation logic and prevents full‑system shutdown or process disruption caused by single‑point failures.
