1. Product Overview

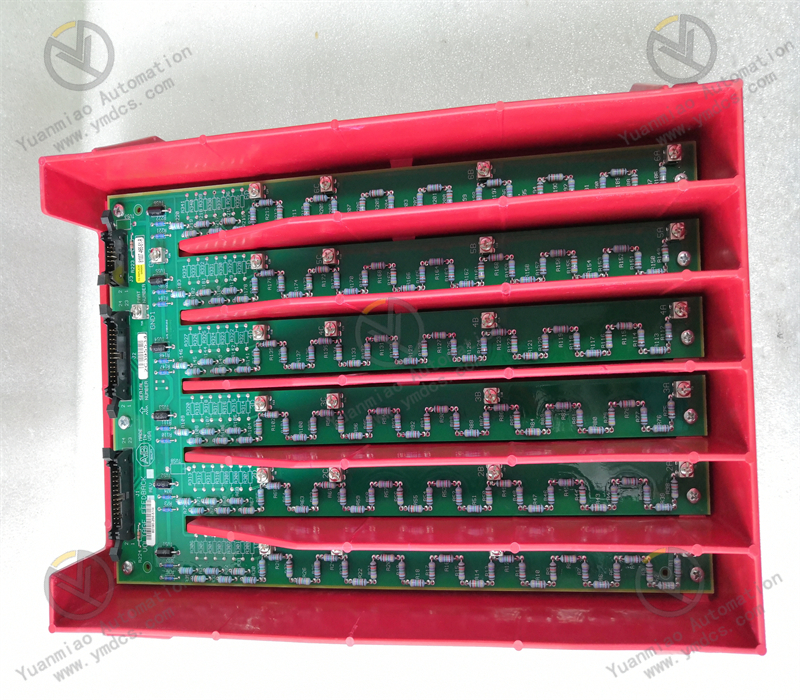

Allen‑Bradley 81007‑465‑51‑R is an OEM‑supplied voltage feedback board dedicated to PowerFlex 7000 medium‑and‑high‑voltage drives under Allen‑Bradley (Rockwell Automation, USA). It constitutes key supporting hardware for signal acquisition and closed‑loop regulation inside high‑voltage variable‑frequency transmission systems.
Developed specifically for medium‑/high‑voltage high‑power variable‑frequency equipment, this board is responsible for isolated sampling, waveform conditioning, precision calibration and feedback transmission of high‑side voltage signals. It acts as a vital signal‑acquisition unit for drive voltage stabilization, over‑voltage protection, dynamic voltage adjustment and output‑waveform optimization.
As an original component of the PowerFlex 7000 drive system, its accurate voltage‑sampling feedback directly determines speed‑regulation stability, output precision and fault‑protection response speed of the variable‑frequency drive. It effectively reduces output‑voltage error and suppresses waveform distortion caused by grid‑side fluctuations.
Equipped with industrial‑grade isolated sampling circuits, high‑precision operational components and full‑board conformal coating, the board features robust galvanic isolation, strong high‑voltage interference immunity, high sampling accuracy and long‑term operational stability. It withstands harsh cabinet‑level conditions including high temperature, intense electromagnetic radiation and high‑frequency switching surges, and supports 7×24‑hour non‑stop continuous operation. It is widely deployed for maintenance spare‑part replacement, system‑accuracy upgrades and troubleshooting of signal‑related faults on high‑voltage variable‑frequency equipment in power, metallurgy, chemical, cement and other industrial sectors.
2. Core Functions
High‑precision isolated sampling and feedback of high‑voltage signals: Optimized for high‑voltage variable‑frequency systems, the board safely samples AC voltage signals on the high‑voltage side. Its built‑in isolation converter provides galvanic separation between high‑power circuits and low‑voltage control circuits, converting raw high‑voltage signals into standard low‑level sampling values recognizable by the main‑control system. With high sampling accuracy and excellent linearity, it faithfully reproduces grid‑voltage waveform and amplitude, delivering authentic and reliable raw data for drive closed‑loop voltage regulation.
Output‑voltage error correction and voltage‑stabilization optimization: Using real‑time high‑precision voltage‑feedback data, the board cooperates with main‑control algorithms to dynamically adjust output‑voltage amplitude and phase of the drive. It reduces inherent output‑voltage deviation of high‑power variable‑frequency systems and mitigates output instability and voltage drift triggered by grid‑voltage swings or sudden load changes. Constant drive output voltage and well‑shaped waveforms are maintained to improve running smoothness of high‑voltage motors.
Accurate over‑voltage / under‑voltage monitoring for high‑voltage systems: It continuously monitors input‑side and output‑side high‑voltage conditions, precisely capturing voltage transients, surge spikes, over‑voltage violations and under‑voltage sags. Abnormal signals are promptly sent to the main‑control processor to provide decision‑making references for voltage protection, fault alarming, load limiting by frequency reduction and emergency shutdown, thus preventing equipment damage such as high‑voltage breakdown or overload under low‑voltage conditions.
Signal conditioning and anti‑interference filtering: Multi‑stage RC filter, waveform‑shaping and noise‑reduction circuits eliminate signal distortion caused by strong electromagnetic interference, high‑frequency switching noise and line‑coupled interference inside high‑voltage cabinets. Sampling‑waveform quality is improved to avoid sampling deviation, false feedback, erroneous regulation and nuisance trips induced by noise, greatly enhancing overall system stability.
Native compatibility with high‑voltage drive closed‑loop control logic: Fully matched with the voltage closed‑loop control timing and algorithm logic of PowerFlex 7000 drives, the board works in real‑time coordination with the main‑control board, current‑sampling board and firing‑driver board to establish a complete dual‑closed‑loop regulation system for voltage and current. Fast dynamic response, high speed‑regulation accuracy and wide load adaptability are guaranteed for high‑power high‑voltage variable‑frequency equipment.
- Long‑term stable industrial‑grade operation with conformal protection: The entire PCB is conformal‑coated for moisture‑proof, dust‑proof and anti‑corrosion performance. Core components are industrial wide‑temperature rated, while circuits are reinforced for high‑voltage insulation and designed for EMC compliance. The board endures prolonged exposure to high temperature, humidity, heavy electromagnetic interference and frequent start‑stop shocks inside drive cabinets. No sampling drift or performance degradation occurs over extended runtime, delivering long maintenance‑free intervals and lowering maintenance costs for high‑voltage equipment.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Product Model | 81007‑465‑51‑R |
| Brand | Allen‑Bradley / Rockwell Automation |
| Product Series | Signal‑acquisition board series for PowerFlex 7000 high‑voltage variable‑frequency drives |
| Product Type | High‑voltage voltage‑feedback board, isolated voltage‑sampling & conditioning board |
| Core Functions | Isolated high‑voltage sampling, signal filtering & conditioning, voltage‑error correction, over‑/under‑voltage monitoring, closed‑loop feedback transmission |
| Circuit Characteristics | Galvanically‑isolated sampling, multi‑stage noise‑reduction filtering, high‑precision linear operation, high‑voltage‑interference‑resistant design |
| Compatible Equipment | Full range of Allen‑Bradley PowerFlex 7000 medium‑and‑high‑voltage variable‑frequency drives |
| Operating Temperature | ‑25℃ ~ +85℃, industrial wide‑temperature range |
| Ambient Humidity | 5%‑95% RH, non‑condensing |
| Process Features | Full‑board conformal coating (moisture‑proof, dust‑proof, anti‑corrosion), high‑voltage‑insulation‑reinforced PCB |
| Operating Characteristics | High sampling accuracy, good linearity, zero signal drift, strong anti‑interference performance, fast response, 7×24‑hour continuous operation |
| Protection Compatibility | Works with the host system to implement full‑range protection against over‑voltage, under‑voltage, voltage distortion and voltage transients |
| Key Advantages | Perfect OEM compatibility, safe high‑voltage isolation, high sampling precision, powerful voltage‑stabilization correction, robust anti‑interference durability, 100 % drop‑in replacement compatibility |
4. Working Principle
The Allen‑Bradley 81007‑465‑51‑R voltage‑feedback board follows a standardized workflow: isolated high‑voltage signal acquisition → filtering and waveform conditioning → high‑precision calibration → standard‑signal feedback → system closed‑loop voltage stabilization.
After power‑up, the board automatically completes hardware self‑check and sampling‑link initialization before entering real‑time acquisition mode.
During system operation, dedicated high‑voltage‑isolated sampling circuits non‑intrusively capture raw high‑voltage signals from the drive’s input and output sides. The galvanic‑isolation architecture completely separates high‑power circuits from low‑voltage control circuits to protect the control system. Raw sampled signals go through multi‑stage RC filtering, waveform shaping and noise‑removal procedures to eliminate high‑frequency interference, line‑borne noise and voltage spikes, yielding clean, highly‑linear sampled values. After calibration by high‑precision operational circuits, standard feedback signals are transmitted in real‑time to the drive’s main‑control processor module.
Based on authentic voltage‑feedback data, the main‑controller compares measured values against preset process parameters and dynamically adjusts PWM modulation strategy and output‑voltage amplitude to achieve precise closed‑loop voltage stabilization. Voltage conditions are continuously evaluated. Once anomalies such as over‑voltage, under‑voltage, waveform distortion or transient fluctuation are detected, coordinated protective actions including alarming, load limiting, frequency reduction or shutdown are triggered to ensure stable, accurate and safe operation of the high‑voltage variable‑frequency transmission system.
5. System‑Architecture Compatibility
Allen‑Bradley 81007‑465‑51‑R is an original‑equipment dedicated voltage‑feedback acquisition board for the PowerFlex 7000 medium‑and‑high‑voltage drive family. Its hardware circuits, sampling logic, signal‑output timing and connector pin‑out definitions are fully compatible with all PowerFlex 7000 models. Plug‑and‑play installation is supported without firmware modification or external adaptation circuitry, enabling loss‑free 100 % drop‑in replacement.
The board seamlessly interfaces with the full hardware suite of the PowerFlex 7000 system, including the main‑control processor, current‑sampling board, firing‑driver board and power‑supply board. It perfectly fits the closed‑loop control architecture of the high‑voltage drive, delivering precise signal exchange and timing‑synchronization without deviation. Standard board dimensions, mounting holes and terminal layout conform to original cabinet specifications. It may be deployed for new complete drive assemblies, failed‑board replacement on legacy units, repair of voltage‑sampling anomalies, or upgrades for improved voltage‑stabilization accuracy. Retrofit projects require no cabinet‑structure or wiring modifications, delivering simple replacement, high post‑upgrade stability and excellent system expandability.
6. Application Scenarios
Designed to address common pain‑points of high‑voltage variable‑frequency systems including inaccurate voltage sampling, output‑voltage stabilization drift, noise‑induced nuisance trips and waveform distortion, the Allen‑Bradley 81007‑465‑51‑R board delivers high‑precision isolated sampling, strong noise immunity and long‑term reliability for voltage‑signal acquisition and closed‑loop voltage regulation of high‑power high‑voltage drive equipment.
It is widely used in high‑voltage variable‑speed control applications across power‑generation, metallurgical rolling, chemical‑process, cement‑building‑material, mining, large‑scale water‑treatment and heavy‑duty HVAC industries, serving high‑power‑consumption equipment such as high‑voltage fans, water pumps, grinding mills, crushers and conveyor drives. Its primary responsibilities include real‑time high‑voltage sampling, output‑voltage error correction, system voltage‑stabilization optimization, voltage‑abnormality monitoring‑protection and closed‑loop control‑signal feedback.
Suitable engineering applications include component supply for new high‑voltage variable‑frequency projects, maintenance spare‑part replacement for ageing PowerFlex 7000 drives, voltage‑control‑precision upgrades, system anti‑interference optimization and fault‑remediation campaigns. The board improves output stability, speed‑regulation accuracy and operational safety of high‑voltage variable‑frequency units, supporting stable, efficient and low‑fault continuous heavy‑duty industrial‑production workflows.
