Description
1. Product Overview

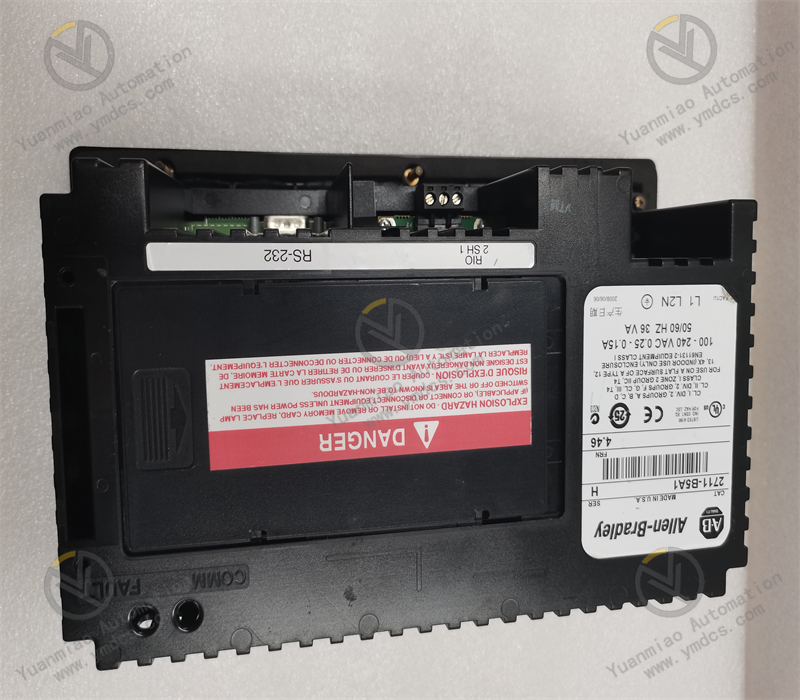

Allen‑Bradley 2711‑B5A1 is a hybrid Human‑Machine Interface (HMI) of the classic PanelView Standard 550 series from Rockwell Automation. As the first‑generation industrial operation terminal of the 2711 series, it is custom‑designed for legacy AB PLC industrial control systems, complete‑set process automation equipment, production‑line units and power monitoring systems. Adopting an integrated dual‑operation architecture of touch screen plus physical keys and equipped with a 5.3‑inch industrial monochrome FSTN LCD display, it combines the convenience of touch operation with the durability of physical keys. It delivers highly‑reliable, highly‑adaptable and maintenance‑free functions including on‑site equipment monitoring, process parameter adjustment, operating status acquisition, fault‑alarm viewing & reset and manual sequence control. It is suitable for complex and harsh industrial conditions in workshops with dust, oil contamination, high vibration and drastic temperature fluctuations.
The 2711‑B5A1 is natively equipped with DH‑485 industrial bus and RS‑232 dual‑communication interfaces, providing deep compatibility with full‑range legacy AB PLC controllers. It features good networking‑protocol adaptability, stable data transmission and excellent anti‑electromagnetic‑interference performance. High‑speed data exchange, real‑time status linkage and synchronous parameter update with the main control system can be realized without additional protocol‑conversion modules. Built with industrial reinforced metal housing and a front high‑protection dust‑proof & moisture‑proof panel, it supports standard cabinet flush‑mount installation and stably adapts to 7×24‑hour non‑stop factory production. Benefiting from dual‑operation mode, streamlined hardware architecture, extremely low failure rate, drift‑free long‑term data operation, aging‑resistance and vibration‑resistance, it is widely used for matching legacy industrial‑control systems, in‑situ technical‑retrofit replacement of faulty terminals and operation‑maintenance upgrade of traditional production lines. It is a classic replacement model with high versatility and outstanding service stability for industrial sites.
2. Functional Features
Industrial Monochrome High‑definition Display for Clear Visibility under All‑weather and All‑working‑conditions

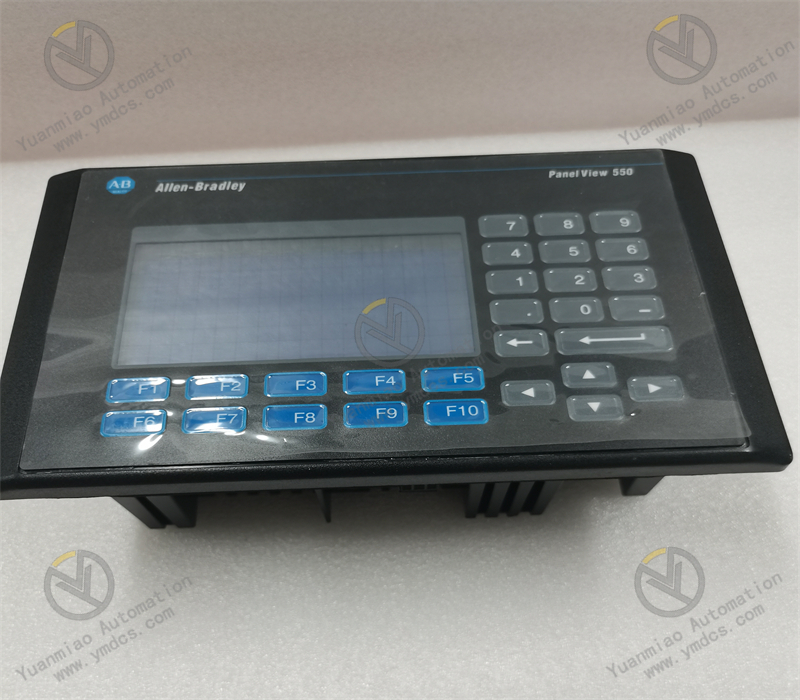

Equipped with a 5.3‑inch industrial‑grade FSTN monochrome LCD display at a physical resolution of 256×128 pixels and an industrial high‑contrast long‑life backlight system, it delivers neat images, high character recognizability and distinct display layers. Compared with consumer‑grade display devices, it features no black screen on cold startup, no screen distortion under high‑temperature operation, legible reading under strong‑light environments, clear view under dim‑light conditions, zero brightness degradation and no image ghosting or stuttering over long‑time runtime. It steadily presents equipment operation screens, core parameters such as process temperature, pressure, flow and speed, as well as equipment start‑stop status, fault codes, alarm prompts and sequence‑operation information round‑the‑clock. It perfectly adapts to harsh industrial workshop environments with uneven lighting, large temperature differences, heavy dust and severe oil contamination.
Dual‑operation Architecture of Touch Screen plus Keypad for Full‑scenario Industrial Operation
It adopts industry‑specific hybrid‑operation design integrating analog resistive touch screen and stainless‑steel membrane physical keys, combining the convenience of touch operation with the durability of physical keys. The touch screen realizes sensitive, accurate, drift‑free and anti‑mis‑operation performance, suitable for fine parameter adjustment and screen switching. The physical keys are oil‑resistant, wear‑resistant, corrosion‑resistant and feature long actuation service life for high‑frequency and high‑intensity on‑site operation. It completely solves pain points of single touch screens such as easy breakage, moisture‑induced malfunction and vibration‑caused mis‑operation, as well as cumbersome operation of keypad‑only terminals. It is fully applicable to various industrial sites including heavy industry, chemical industry, rubber‑plastic, packaging and water treatment. It requires no daily calibration and low maintenance, and enjoys much longer service life than conventional single‑mode HMI terminals.
DH‑485 + RS‑232 Dual‑link Communication for Full‑coverage Compatibility with Legacy AB Systems
On‑board dedicated DH‑485 industrial bus interface and RS‑232 serial communication interface realize independent‑networking and complementary‑redundancy dual‑link, natively compatible with full‑range legacy Rockwell‑Automation PLC industrial‑control systems. Optimized for networking of legacy AB industrial‑control systems, DH‑485 industrial bus fits scenarios of long‑distance transmission, heavy electromagnetic interference and multi‑device parallel networking, featuring low transmission latency, precise data synchronization and high networking fault tolerance. The RS‑232 serial port supports configuration‑program upload & download, equipment parameter commissioning and point‑to‑point connection with upper‑level devices. It meets demands for regular online equipment‑monitoring networking and daily operation‑maintenance commissioning. Plug‑and‑play performance, convenient networking and excellent compatibility are achieved without extra adapter modules.
Full‑function Local Human‑machine Interaction to Streamline On‑site Operation and Maintenance Management Workflow
It covers complete core human‑machine interaction functions for industrial sites: real‑time acquisition, refresh and display of core equipment operating parameters, process conditions, unit start‑stop status, fault‑alarm codes and abnormal‑condition information. Meanwhile, it supports full‑dimensional on‑site local operations including parameter modification, manual equipment start‑stop, operation‑mode switching, fault acknowledgement & reset and sequence‑status query. Field technicians can independently complete daily equipment operation, rapid troubleshooting and precise process‑parameter commissioning without upper‑level computers. It greatly shortens downtime for fault diagnosis, simplifies management workflows for automated equipment and significantly improves on‑site maintenance efficiency and production continuity.
Industrial‑grade Reinforced‑protection Design for Long‑term Continuous and Trouble‑free Operation
The unit features high‑strength reinforced metal housing. Its front‑panel delivers high‑standard industrial protection against dust, moisture, oil contamination and scratch. It tolerates workshop dust accumulation, mild moisture condensation, oil stains, continuous equipment vibration and start‑stop impact. Having passed strict industrial tests of high‑low‑temperature cycling, vibration‑shock and EMC, it boasts excellent performance of electromagnetic‑interference immunity, anti‑aging, vibration‑resistance and temperature‑humidity fluctuation resistance. It supports year‑round 7×24‑hour non‑stop production with zero on‑site failure, no data drift, no screen stuttering, no communication dropout and no operation malfunction.
Standardized Flush‑mount Installation for Non‑destructive Retrofit and Upgrade of Legacy Terminals
It strictly follows original‑factory specifications of PanelView 550 series. Cut‑out dimensions, mounting method, housing thickness and hardware interface definitions are fully interchangeable within the series. Communication protocols, configuration logic and power‑supply specifications are fully compatible with terminals of the same model and series. It can directly replace on‑site HMI terminals suffering from screen failure, touch malfunction, keypad sticking, communication anomaly and data disorder. No cabinet reconstruction, configuration‑program reprogramming or networking‑parameter re‑commissioning is required. Equipment repair and system upgrade can be completed within short downtime with low retrofitting cost, high efficiency and prominent cost‑effectiveness.
3. Technical Parameters
Basic Specifications
Product Model: 2711‑B5A1；Brand & Manufacturer: Allen‑Bradley (Rockwell Automation)；Product Series: PanelView Standard 550 2711‑Series Industrial HMI Terminal；Product Type: Touch‑keypad Integrated Industrial HMI Operation Terminal；Core Positioning: Core unit for local monitoring, parameter commissioning, fault indication and human‑machine interaction of industrial automation equipment；Core Features: 5.3‑inch monochrome high‑definition display, dual‑operation of touch screen and keypad, DH‑485 / RS‑232 dual‑communication, reinforced metal housing, wide‑temperature operation, high anti‑interference performance, non‑destructive replacement for legacy AB systems.
Display and Operation Parameters
Display Screen: 5.3‑inch FSTN industrial monochrome LCD；Backlight: High‑contrast industrial long‑life backlight for clear visibility under all‑weather light conditions；Resolution: 256 × 128 pixels；Operation Method: Analog resistive touch screen + industrial stainless‑steel membrane keypad (numeric keys + function keys + navigation keys)；Operation Characteristics: Sensitive & drift‑proof touch, oil‑resistant & wear‑resistant keypad, mis‑operation‑proof, ultra‑long mechanical actuation service life；Display Functions: Real‑time screen refresh, synchronous parameter update, fault pop‑up alert, real‑time equipment‑status linkage, dynamic process‑data display.
Communication Parameters
Communication Interfaces: DH‑485 industrial bus interface, RS‑232 serial communication interface；Networking Protocol: Natively compatible with proprietary AB PLC communication protocols；Networking Modes: Multi‑device industrial‑bus networking, point‑to‑point serial connection；Transmission Characteristics: Low‑latency, high‑stability, strong electromagnetic‑interference‑resistance, precise and unbiased data synchronization；Compatible Systems: Full‑range legacy Rockwell‑Automation PLC industrial‑control systems and supporting automation equipment of 2711 series；Supported Functions: Configuration‑program read‑write, on‑line process‑parameter modification, real‑time equipment‑status monitoring, fault‑information upload, local & remote equipment commissioning.
Electrical Operating Parameters
Power Supply: 100～240 V AC industrial wide‑range AC power supply；Frequency: 50/60 Hz；Power Consumption: Industrial low‑power design with low heat generation and energy consumption；Operation Mode: 7×24‑hour year‑round non‑stop continuous operation；Anti‑interference Grade: Industrial Class‑A EMC, resistant to high‑frequency workshop electromagnetic crosstalk, interference from variable‑frequency devices and impact interference caused by motor start‑stop；Operating Characteristics: Free of screen flicker, garbled data, communication dropout, touch‑keypad malfunction and parameter drift.
Environmental and Mechanical Parameters
Operating Temperature: 0℃～+50℃；Storage Temperature: ‑25℃～+85℃；Operating Humidity: 5%～95% non‑condensing；Panel Protection: Industrial dust‑proof, moisture‑proof and oil‑proof protection；Housing Material: High‑strength industrial reinforced metal enclosure；Shock‑vibration Resistance: Tolerant of equipment start‑stop impact, continuous cabinet vibration and minor workshop mechanical vibration；Installation Mode: Standard cabinet panel flush‑mount；Applicable Conditions: Continuous‑production scenarios for light‑industry, rubber‑plastic, packaging, chemical, metallurgical, water‑treatment and traditional assembly‑line automation equipment.
4. Hardware Configuration and Structural Advantages
Dual‑mode Industrial Operation Architecture for Full‑condition Adaptation without Weak Points
The original dual‑operation design of touch screen plus physical keys meets demands for fine touch‑based operation and high‑intensity keypad‑based operation, perfectly adapting to complex and changeable industrial on‑site conditions. The resistive touch screen works well under humid environment and slight oil contamination without malfunction at low temperature. The stainless‑steel membrane keys are wear‑resistant, corrosion‑resistant, anti‑aging and resistant to high‑frequency actuation loss. It thoroughly solves industry pain points of vulnerable single‑touch terminals and low‑efficiency single‑keypad terminals, delivering far superior working‑condition adaptability and operation stability compared with ordinary single‑mode HMI terminals.
Dual‑link Proprietary Communication for Seamless Compatibility with Legacy AB Systems
Equipped with AB‑exclusive DH‑485 industrial bus deeply adapted to communication logic of legacy Rockwell‑Automation industrial‑control systems, it achieves high‑synchronization data exchange, ultra‑low transmission latency and excellent networking stability without compatibility bugs of generic protocols. Complemented by RS‑232 serial port for dual‑link redundancy, it meets demands for centralized multi‑device workshop bus‑networking monitoring as well as standalone equipment commissioning, program read‑write and upper‑level point‑to‑point connection. No additional conversion modules are needed for convenient networking and full‑range adaptability.
Industrial Monochrome Long‑life Display without Performance Degradation over Years of Operation
The industrial‑grade FSTN monochrome display is purpose‑built for industrial 7×24‑hour continuous‑production conditions, featuring stable backlight brightness and high image contrast. Its performance remains unaffected by strong / dim workshop lighting or high‑low‑temperature fluctuations. No screen yellowing, brightness dimming, image ghosting, display defects or display drift occur during long‑term runtime. It features long service life and reduces later‑stage maintenance costs and downtime frequency by eliminating frequent component replacement.
Reinforced Integrated Metal Housing for Robustness and Excellent Stability
Constructed from high‑strength reinforced metal enclosure, the unit is pressure‑resistant, impact‑resistant, deformation‑resistant and corrosion‑resistant. Compared with plastic‑housing terminals, it gains prominent improvement in shock‑resistance, dust‑proofing, moisture‑proofing, anti‑aging and electromagnetic‑interference immunity. It withstands complex harsh industrial‑site conditions including dust, oil contamination, vibration and temperature fluctuations with extremely low hardware failure rate, guaranteeing continuous and stable production of production lines from the hardware perspective and reducing unexpected downtime caused by faults.
Low‑power Streamlined Architecture with Outstanding Maintenance‑free Performance
Adopting streamlined and optimized industrial‑circuit architecture, the terminal consumes low power and generates little heat with few high‑frequency vulnerable electronic components for highly‑reliable hardware structure. Periodic operations including screen calibration, touch‑sensitivity adjustment, keypad inspection and parameter reset are not required. Stable 7×24‑hour continuous operation drastically cuts manual‑maintenance workload and equipment‑failure‑caused downtime, satisfying long‑term non‑stop production requirements of factories.
Original‑factory Standardized Universal Design for Efficient and Convenient Non‑destructive Replacement
It fully complies with original‑factory general technical standards of Rockwell‑Automation PanelView 550 series. Mounting cut‑out dimensions, interface definitions, communication protocols, configuration logic and power‑supply specifications are fully interchangeable within the series. Direct plug‑and‑play replacement is available for defective legacy terminals. No program revision, field‑wiring alteration or networking re‑commissioning is required. Equipment repair and technical‑retrofit upgrade can be finished within short downtime to resolve various failures of legacy terminals with high efficiency and low cost.
5. Application Scenarios
Traditional Automated Assembly‑line Equipment: Widely applied on packaging machinery, textile machinery, rubber‑plastic molding equipment, conveyor lines, printing machines and other conventional automated production lines as integrated local operation terminals. It performs full‑process human‑machine interaction tasks including equipment start‑stop control, precise process‑parameter adjustment, real‑time sequence‑status monitoring and fault‑code viewing & reset.
Complete AB PLC Industrial‑control Systems: Precisely matched with full‑range legacy Rockwell‑Automation PLC control systems as local visualization operation units. It monitors core process parameters such as temperature, pressure, speed and flow in real‑time and implements local equipment control, effectively compensating for deficiencies of on‑site operation and visualization in systems without upper‑level touch‑screen HMIs.
Power Equipment for Heavy Industry, Chemical Industry and Water Treatment: Adapted to severe working conditions of metallurgy, chemical, building‑material and sewage‑treatment industries characterized by heavy dust, high vibration, oil contamination and high humidity. It is used for operating‑status monitoring, parameter adjustment and local fault disposal of fans, water pumps, heat‑exchanger units and complete process units to guarantee stable operation and safe service of auxiliary power equipment.
- Technical Retrofit and Maintenance of Legacy Industrial‑control Systems: Realizes in‑situ non‑destructive replacement and upgrade for failures of legacy 2711‑series HMI terminals such as screen damage, touch malfunction, keypad sticking, communication dropout, data garbling, parameter drift and equipment offline. It rapidly restores complete human‑machine‑interaction functions of equipment without overall system reconstruction, greatly lowering retrofitting and maintenance costs.
