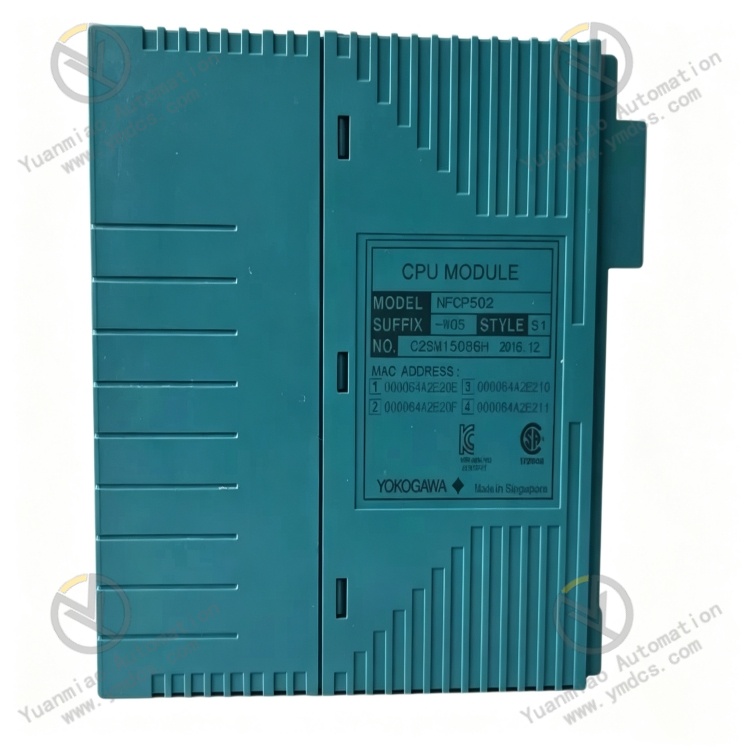

YOKOGAWA NFCP502‑W05 Controller CPU Core Module

Description

1. Product Overview

YOKOGAWA NFCP502‑W05 is a high‑end autonomous controller CPU core module within the STARDOM FCN‑500 series manufactured by Yokogawa Electric Corporation of Japan. Acting as the main computing unit for the Field Control Station (FCS), it is compatible with the CENTUM VP distributed control system platform and constitutes the core hardware for logic operation, closed‑loop control, data interaction and multi‑device coordination in process‑industry DCS systems. Designed for high‑precision, high‑reliability and non‑stop process‑control scenarios in large‑scale chemical, petrochemical, power‑generation and water‑treatment plants, this module executes control programs, performs computation on I/O collected data, schedules multi‑device communications, manages real‑time databases, calculates interlock logics and implements system fault‑tolerant regulation. It serves as the computing hub and scheduling core of the whole automation‑control system.

As an original standardized high‑end Yokogawa CPU module, the NFCP502‑W05 is equipped with a high‑performance 32‑bit RISC industrial processor, large‑capacity memory and high‑speed flash storage. It has been deeply optimized for operating conditions featuring massive control loops, complex interlock logics and high‑frequency data exchange. Natively supporting dual‑redundancy hot‑standby architecture, multi‑protocol high‑speed Ethernet communication and hardware‑level self‑diagnosis and fault tolerance, the module resolves common industrial‑control pain‑points such as insufficient computing power of traditional industrial CPUs, large‑program stalling, limited communication bandwidth, unplanned shutdowns triggered by single‑point failures and delayed data synchronization. Built on industrial‑grade reinforced hardware with wide‑temperature resistance and enhanced EMC electromagnetic‑compatibility technology, it can withstand harsh on‑site conditions including high cabinet temperature, dust, vibration and strong electromagnetic interference, supporting 7×24‑hour continuous heavy‑duty operation. It is widely deployed in engineering projects including complete‑set construction of new large‑scale DCS systems, upgrade and renewal of legacy FCN controllers, computing‑capacity expansion, control‑station stability optimization and redundancy‑architecture retrofits for high‑risk processes.

2. Core Functions

1. High‑performance industrial computing processing: Powered by a high‑frequency 32‑bit dedicated industrial RISC processor with abundant computing resources and ultra‑low operation latency, the module simultaneously performs high‑speed computation for numerous control loops, complex PID regulation, sequential interlock logics and batch‑process control programs without stalling or calculation lag. It meets high‑precision control requirements for sophisticated processes in large‑scale process industries and ensures real‑time accurate regulation of process parameters.




2. Large‑capacity storage and high‑speed data caching: Factory‑fitted with large‑capacity RAM and high‑speed Flash memory, it supports storage and caching of large control programs, complex process recipes and massive historical data. It reliably runs large‑scale real‑time databases, eliminating risks of program overflow, data loss and cache stalling, and is well‑suited for multi‑point, high‑capacity and high‑concurrency industrial‑control applications.




3. Multi‑port gigabit high‑speed communication scheduling: Integrated with multiple gigabit Ethernet ports and standard serial communication interfaces, it natively supports mainstream industrial protocols including Modbus TCP/IP, PROFINET IO and Ethernet/IP. It connects operator stations, engineer stations, I/O modules, third‑party intelligent equipment and upper‑level monitoring systems concurrently, enabling high‑speed multi‑device data exchange, instruction synchronization and real‑time status upload with sufficient communication bandwidth and minimal transmission delay.




4. Dual‑redundancy hot‑standby fault‑tolerant operation: The native dual‑CPU hot‑standby architecture achieves real‑time data synchronization, program mirroring and operating‑state linkage between primary and standby modules. Upon failure, power loss or abnormal shutdown of the primary CPU, the standby unit performs bumpless, seamless switchover without interrupting process operation, losing control data or triggering false process interlocks, greatly improving reliability and fault tolerance of the overall DCS system.




5. Full‑range hardware self‑diagnosis and fault protection: Built‑in hardware watchdog, temperature monitoring, voltage monitoring and link‑self‑check mechanisms continuously track processor status, module temperature, power‑supply conditions, communication links and storage‑unit health. Hardware faults, program exceptions, communication outages and data errors are precisely identified, with fault codes and alarm signals generated for rapid troubleshooting by maintenance personnel. Hardware fault‑tolerant protection is activated to prevent system collapse.




6. Convenient configuration‑based maintenance and non‑destructive replacement‑upgrade: Fully compatible with CENTUM VP configuration logic, it supports on‑line program download, parameter modification, program debugging and remote maintenance, allowing system optimization without production shutdown. Its standardized hardware structure and program‑adaptation logic enable plug‑and‑play non‑destructive replacement across all FCN‑500 control stations, eliminating the need for system‑architecture or control‑program modification and significantly lowering construction costs and shutdown risks during upgrades and maintenance replacement.

3. Technical Specifications

4. Working Principle

The YOKOGAWA NFCP502‑W05 main‑control CPU module operates under a closed‑loop workflow: program loading & initialization → hardware self‑inspection → real‑time data acquisition & computation → logic‑interlock judgment → high‑speed communication interaction → redundancy synchronization & fault tolerance. After rack installation, bus connection and power‑on initialization, the module automatically completes full hardware diagnostics covering the processor, storage units, communication ports and power‑supply loops. Once diagnostics are passed, user‑control programs and process‑configuration parameters are loaded and the module enters steady‑state high‑speed main‑control operation.

During runtime, the module collects real‑time process data including temperature, pressure, flow rate, liquid level, valve position and equipment status transmitted from field I/O modules via the internal SB bus and Gigabit‑Ethernet links. The high‑frequency RISC processor performs massive‑data real‑time computation, PID closed‑loop regulation, sequential‑logic evaluation and process‑interlock calculation. Control commands are then sent to actuators according to pre‑set programs and upper‑level operating instructions to realize automatic process‑parameter adjustment, equipment startup‑shutdown interlocks and batch‑process execution.

Under redundant‑architecture operation, primary and standby CPU modules continuously synchronize program data, operating parameters, process status and historical caches to maintain identical data mirror images. When hardware failure, communication anomaly or power‑supply fluctuation occurs on the primary CPU, millisecond‑level bumpless switchover is triggered and the standby CPU takes over full control tasks without process interruption, data loss or false interlock activation. The module continuously monitors hardware conditions and communication links, uploading real‑time alarms and recording fault logs for traceable and rapid troubleshooting, ensuring long‑term precise, stable and continuous operation of the complete DCS system.

5. System‑Architecture Compatibility

The YOKOGAWA NFCP502‑W05 is an original‑equipment dedicated high‑end main‑control CPU module for the STARDOM FCN‑500 control platform and CENTUM VP DCS system. Its electrical parameters, bus‑communication protocols, program‑computation logic, rack‑mount dimensions and interface definitions are fully matched to Yokogawa’s complete DCS control architecture. Natively adapted to distributed‑control topologies, multi‑device cooperative control and redundant fault‑tolerant operation for large‑scale process industries, it supports plug‑and‑play non‑destructive replacement and system upgrades without control‑program modification, parameter re‑configuration or adapter hardware, delivering 100 % seamless compatibility.

This module seamlessly interfaces with FCN‑500‑series control‑station racks, the full range of I/O modules, field‑bus equipment, CENTUM VP operator stations, engineer stations, data servers and third‑party intelligent industrial‑control devices. Accurate operation timing, matched communication protocols and drift‑free data synchronization fully satisfy complex‑process control demands with multi‑point, multi‑loop and high‑concurrency workloads in large‑scale DCS systems. Its standardized rack‑mount design complies with industrial control‑cabinet layout specifications and can be deployed for new‑project main‑control configuration, ageing‑CPU replacement on legacy FCN control stations, computing‑capacity expansion, redundancy‑architecture retrofits and process‑control‑stability‑optimization projects. Upgrades can be implemented without modifying existing wiring, configuration logic or process programs, delivering simple construction and low‑risk implementation. After installation, system computing speed, communication efficiency, fault‑tolerance capability and continuous‑operation stability are substantially enhanced.

6. Application Scenarios

Developed to address DCS‑system pain‑points in large‑scale process industries such as insufficient computing power, program stalling, limited communication bandwidth, unplanned shutdowns from single‑point failures, unstable process control and delayed data synchronization, the NFCP502‑W05 delivers core automation‑control capabilities requiring high reliability, high precision and non‑stop production, through high‑performance computation, large‑capacity storage, multi‑protocol high‑speed communication, dual‑redundancy fault tolerance and full‑range hardware self‑diagnosis.

It is widely used in oil‑and‑gas petrochemicals, fine‑chemical plants, thermal‑power generation, gas‑fired power stations, water‑treatment facilities, pharmaceutical manufacturing, metallurgy and light‑industry process sectors, fully compatible with the YOKOGAWA CENTUM VP DCS system and STARDOM FCN‑500 control platform. It undertakes core main‑control tasks including logic operation, process regulation, interlock protection, data interaction, equipment scheduling and fault monitoring. Suitable engineering applications include complete‑set DCS delivery for new large‑scale automated production‑lines, core‑hardware upgrades for legacy DCS installations, replacement of faulty control‑station modules, redundancy‑system retrofits for high‑risk processes and optimization projects improving system stability and process accuracy. The module effectively mitigates issues such as delayed large‑process responses, inaccurate parameter regulation, frequent system alarms, single‑point‑failure shutdowns and corrupted or lost data. It enhances computing performance, control precision, fault tolerance and continuous‑operation reliability of industrial‑control systems, securing long‑term steady, safe, efficient and non‑stop production for large‑scale process‑industry facilities.
