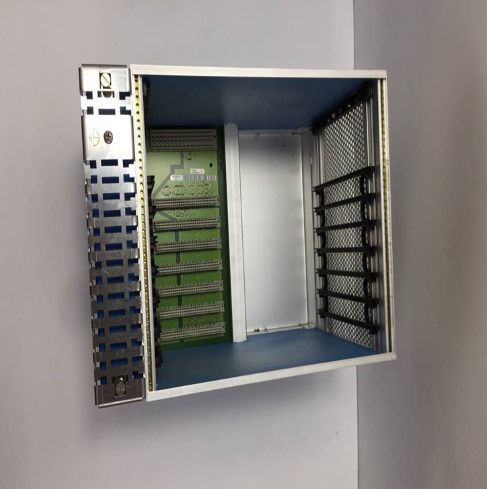

HIMA H51Q-HRS Dual-redundant secure central controller rack

Description

I. Product Overview

HIMA H51Q-HRS (Model B5233-2, Part No.997205233) is a high-availability dual-redundancy safety central rack assembly of HIMA HIQuad H51q safety control system, designed for Safety Instrumented System (SIS), Emergency Shutdown System (ESD) and Fire & Gas (FGS) safety applications. Adopting triple redundancy architecture of dual CPU, dual I/O bus and three-channel power supply, it complies with IEC 61508 SIL3 and AK6 highest process safety standards.

Pre-installed with 2 F8650 safety CPU modules, 3 F7126 redundant power modules and 1 F7131 power monitoring module, the rack is equipped with two physically isolated safety I/O buses, each supporting up to 128 safety I/O points, and can expand up to 16 remote I/O sub-racks with a maximum total of 256 safety measuring points. With full-range hardware self-diagnosis and fail-safe design, any single-point hardware fault will not cause safety misoperation or failure to operate. Certified by TÜV, CE, UL and ATEX Zone 2, it is widely used as core spare parts for safety system renovation and capacity expansion in petrochemical, power, oil & gas and coal chemical high-risk industries.

II. Hardware Structure and Composition

1. Dual Redundant Safety CPU Operation Unit

Two synchronized F8650 safety CPUs run in parallel with cross-checking mechanism to ensure bumpless switchover under single CPU fault. Onboard lithium battery provides temporary data buffer for SRAM and system clock after power failure. Program configuration is realized via certified SILworX and ELOP II software, with the minimum safety scan cycle of 10ms to meet millisecond-level emergency trip response requirements.

2. Three-channel Redundant Power Supply & Monitoring Unit

Three F7126 24VDC to 5VDC switching power modules operate in parallel hot standby mode, with seamless load sharing after single power failure. The F7131 monitoring module continuously tracks bus voltage, power operation status and backup battery health, triggers local alarm and remote fault uploading once overvoltage, undervoltage or power fault occurs.

3. Dual Isolated Redundant Safety I/O Bus Unit

Two independent physical safety I/O buses each support 128 I/O points and 16 remote sub-racks, with built-in CRC data verification and link fault diagnosis. The system automatically switches to the backup bus in case of main bus failure, and supports hot-swap replacement of I/O modules without system shutdown.

4. Multi-channel Extended Communication Unit

The rack supports up to 3 coprocessor modules and 5 industrial communication modules, compatible with Modbus TCP/RTU, PROFINET and HIMA dedicated safety protocols, realizing remote parameter configuration, program downloading and historical fault data uploading with DCS and SCADA systems.

5. Industrial Protected 19-inch Standard Rack Unit

5U 19-inch standard cabinet mounting structure with high-strength steel shielding and three-proof coated backplane PCB. Front panel LED indicators display running, synchronization, power, bus and fault status for rapid on-site troubleshooting, with full compatibility for H51q series legacy rack in-situ replacement.

III. Technical Specifications

(1) Electrical Parameters

Power Input: 24VDC, 19.2～28.8VDC wide range, 3-channel parallel redundant power supply
Main Control: Dual synchronized F8650 safety CPU, minimum scan cycle 10ms
I/O Expansion: Dual safety buses, max 256 safety I/O points, supporting 16 remote I/O sub-racks
Communication: Max 3 RS485 channels, 5 Ethernet/Profibus-DP industrial bus channels
Safety Certification: IEC 61508 SIL3, AK6, PL e, hardware diagnostic coverage ≥99%
Data Buffer: Onboard lithium battery for temporary power-off data and clock retention
Protection: Reverse connection, overcurrent, surge protection, bus short-circuit isolation, dual-channel fault tolerance

(2) Environmental Parameters

Operating Temperature: -20℃～+70℃; Storage Temperature: -40℃～+85℃
Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dust
EMC Standard: Highest IEC 61000 industrial anti-electromagnetic interference standard
Ingress Protection: IP20, installed only in indoor ventilated hazardous area control cabinets

(3) Mechanical Parameters

Mounting: 19-inch 5U standard embedded cabinet installation
Overall Dimension: 5U standard industrial rack size
Net Weight: Approx. 7.5kg (complete set with pre-installed modules)
Protection Process: Steel shielding rack, three-proof conformal coated backplane PCB, anti-vibration lock structure
Origin: Germany

IV. Product Functions and Features

1. Triple Full Redundant Fault-tolerant Design Eliminates Single-point Safety Risks

Dual CPU, triple power supply and dual bus redundant architecture ensure uninterrupted safety interlock operation under any single hardware fault, complying with mandatory SIL3 safety specifications for high-risk process industries, avoiding accidental shutdown and safety protection failure accidents.

2. Large-capacity Distributed I/O Expansion Adapts to Large-scale Process Facilities

The maximum 256 safety I/O points support multi-area centralized safety monitoring through distributed remote sub-racks, simplifying system architecture and reducing investment and operation costs for large joint process plants.

3. Full-range Online Self-diagnosis Realizes Accurate Fault Traceability

Time-stamped fault logs, alarm records and event data support local and remote query, facilitating rapid troubleshooting and industrial safety compliance audit and accident review.

4. I/O Hot-swap Maintenance Avoids Process Shutdown Loss

Faulty I/O modules can be replaced online without safety system outage, greatly reducing maintenance safety risks and production economic losses in hazardous industrial sites.

5. Standardized Engineering Compatibility Enables Fast System Upgrading

Certified configuration software supports one-click project backup and compatible engineering migration, realizing seamless replacement and upgrading of legacy H41q/H51q safety control systems to shorten renovation downtime.

6. Fanless Wide-temperature Design Reduces Long-term O&M Frequency

Maintenance-free passive heat dissipation and industrial three-proof structure ensure long-term stable 24/7 unattended operation, only requiring regular dust cleaning and periodic backup battery replacement to guarantee system safety.

V. Application Scenarios

Core safety main control equipment for SIS, ESD and FGS systems in petrochemical, fine chemical and coal chemical plants.
Turbine, boiler auxiliary safety interlock and emergency trip control systems for thermal, gas and hydropower plants.
High-pressure process safety monitoring and protection applications for oil & gas pipelines, compressor stations and LNG terminals.
Mechanical safety shutdown and explosion-proof area safety control systems in mining, pharmaceutical and metallurgical industries.
Reliability upgrading and spare part replacement projects for aging HIMA H41q/H51q legacy safety control systems.
