ABB 3BHB020538R0001
I. Basic Information

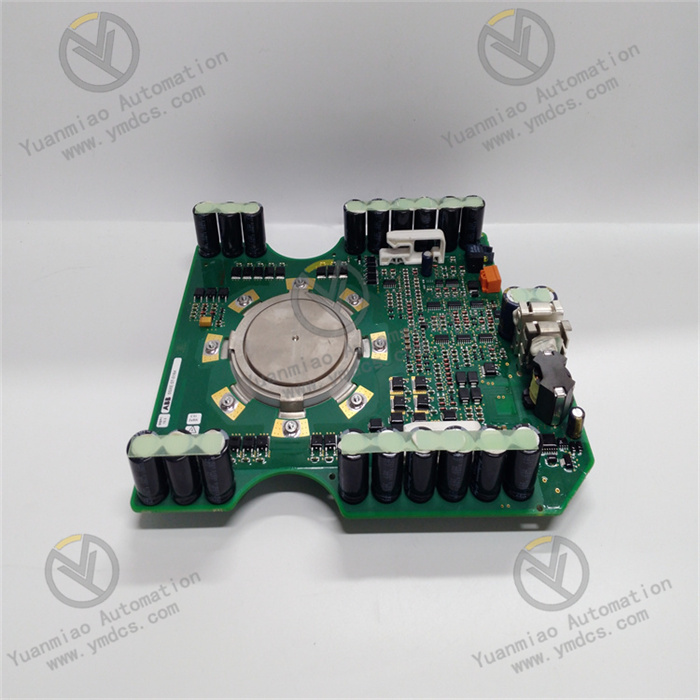

Material Part Number: 3BHB020538R0001Device Model: 5SHX1060H0003 (Reverse Conducting RC-IGCT)Brand: ABBApplicable System: ABB ACS5000 Series Medium-Voltage Current Source Inverters (CSI). It serves as an integrated assembly consisting of the core switching power device and gate drive unit for high-voltage power units.
Product Type: Integrated drive power assembly of Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT). It integrates an RC-IGCT power chip, gate drive control board, RC snubber absorption circuit, fault detection circuit, and optical fiber isolated signal transceiver circuit. Combining the advantages of high withstand voltage from GTOs and high-speed low-loss performance from IGBTs, it is a core power electronic component for megawatt-level high-voltage variable frequency systems.
Product Positioning
3BHB020538R0001 is the core switching unit for the rectifier and inverter power loops of ACS5000 medium-voltage inverters. Adopting an integrated reverse-conducting RC-IGCT design with a built-in anti-parallel freewheeling diode, it eliminates the need for external freewheeling components and greatly simplifies the topological structure of high-voltage power units. Equipped with an optical fiber isolated gate drive circuit, the assembly receives optical fiber PWM trigger signals from the main controller to accurately implement high-power AC-DC and DC-AC power conversion. Meanwhile, it collects the on-state current, substrate temperature and gate fault status of the device in real time. When abnormal conditions occur, it blocks drive pulses within microseconds to protect power devices from breakdown caused by overcurrent and overvoltage. Featuring high voltage withstand capability, large rated current, low switching loss and strong short-circuit resistance, it can operate stably for a long time in heavy-duty variable frequency speed regulation scenarios of medium-voltage high-power motors in industries including metallurgy, thermal power, oil & gas and mining. It supports capacity expansion through series and parallel connection of multiple devices to meet the reliability requirements for continuous operation of high-voltage high-power transmission equipment.
Hardware Architecture
RC-IGCT Power Chip Unit
Integrates a reverse-conducting IGCT main chip and an anti-parallel freewheeling diode, featuring high voltage blocking, high-speed switching and bidirectional freewheeling capabilities. It significantly reduces stray inductance in the power loop, suppresses switching voltage spikes, and adapts to high-power energy conversion applications on high-voltage DC buses.
Optical Fiber Isolated Gate Drive Unit
Dual-channel optical fiber receiving and isolation circuits convert weak PWM optical signals from the main controller into ±15V gate drive levels, achieving complete electrical isolation between high-power and low-voltage control circuits. It prevents false triggering of drive signals caused by high-voltage crosstalk and electromagnetic surges, ensuring stable transmission of control signals on the high-voltage side.
RC Snubber and Absorption Protection Unit
Multiple onboard RC resistance-capacitance snubber and varistor absorption circuits absorb voltage spikes generated during IGCT turn-on and turn-off processes, suppress EMI electromagnetic radiation, reduce device switching losses and extend the service life of power chips.
Current & Temperature Sampling and Fault Diagnosis Unit
Integrates high-precision Hall effect current sampling circuits and NTC substrate temperature acquisition circuits to monitor device load current and heatsink temperature rise in real time. It simultaneously detects gate undervoltage, optical fiber signal loss and chip short-circuit faults. Once a fault occurs, the fault status is latched immediately and fault codes are transmitted back to the upper main controller via optical fiber.
Power Heat Dissipation Compression Mounting Unit
Designed with a circular compression packaging structure. Torque bolts are used to tightly attach the IGCT chip to the surface of water-cooled or air-cooled heatsinks to rapidly dissipate heat generated under high-power operating conditions and avoid local thermal imbalance and thermal burnout of the device.
Mounting Specifications
Drive Control Power Supply: DC 24V (allowable fluctuation range: 21.6V~26.4V)Rated Device Blocking Voltage: 4500VRated Device On-State Current: 4000ASignal Transmission Mode: Dual-channel optical fiber transceiver (gate triggering + fault feedback)Mounting Method: Compression bolt fastening installation inside the inverter power unit, with the device substrate closely attached to water-cooled or air-cooled heatsinksOverall Dimensions: 290mm (L) × 180mm (W) × 35mm (T)Net Weight: 2.5kgIngress Protection Rating: IP20; must be installed inside a sealed, dust-proof, constant-temperature and dehumidified high-voltage variable frequency control cabinetSupporting Equipment: ACS5000 inverter main control unit, water cooling system, high-voltage insulated copper busbars, optical fiber communication cables, 24VDC redundant control power supplyCommissioning Tools: DriveIT commissioning software, oscilloscope, hipot tester, infrared thermometer, torque wrench, anti-static wristband
Supporting System
Supporting Hardware
Main control board for ACS5000 series medium-voltage inverters, RC-IGCT power assemblies of the same specification, high-voltage fuses, water cooling systems, optical fiber distribution units, shielded control cables, high-voltage insulated busbar copper bars.
Commissioning Tools
ABB DriveExplorer configuration and commissioning software, high-voltage signal generator, insulation resistance tester, optical fiber detector, torque screwdriver, anti-static workbench.
Upper-level Connection System
Plant DCS, SIS monitoring systems and industrial SCADA platforms, enabling remote monitoring of inverter operating current, device temperature and fault status, fault alarm uploading and remote load regulation.
Typical Application Industries
Medium-voltage variable frequency systems for boiler induced draft fans, forced draft fans and circulating water pumps in thermal power plants; blast furnace blowers and main rolling mill drive devices in the metallurgical industry; variable frequency drive projects for large compressors and booster pumps in long-distance oil & gas pipelines; long-distance mine belt conveyors and high-power transmission equipment for large cement kilns; energy-saving variable frequency renovation projects for high-voltage pump sets in large municipal water treatment facilities.
Product Features
- Integrated RC Reverse-Conducting DesignBuilt-in anti-parallel freewheeling diode eliminates the need for external freewheeling components, simplifies wiring of high-voltage power units, reduces loop stray inductance, suppresses high-frequency switching voltage spikes and significantly lowers system failure rates.
- High-Power Rating of 4500V/4000AHigh voltage withstand and large current carrying capacity support capacity expansion via series and parallel connection of multiple devices. A single assembly can drive megawatt-level medium-voltage motors, adapting to harsh operating conditions including heavy-load startup, short-term overload and grid voltage fluctuation.
- Fully Optically Isolated Drive ArchitectureControl signals are transmitted via optical fiber with a dielectric withstand voltage of up to 3000VAC between high-power and low-voltage circuits. It completely isolates high-voltage harmonics, electrostatic surges and space electromagnetic interference to eliminate gate false triggering and accidental device conduction faults.
- Microsecond Ultra-Fast Fault Protection PerformanceFive onboard hardware protection loops cover short circuit, overcurrent, overtemperature, gate undervoltage and optical fiber disconnection. The fault response blocking time is ≤2μs, which can rapidly turn off the IGCT before power chip breakdown and prevent cabinet arc explosions caused by high-voltage short circuits.
- Low-Loss High-Frequency Switching PerformanceTypical turn-on time is 200ns, with much lower switching losses than traditional GTO thyristors. The maximum switching frequency reaches 600Hz, delivering high operating efficiency and low heat generation for variable frequency systems, ideal for continuous steady-state operation of high-power equipment.
- Standardized Hardware Compatibility and InterchangeabilityAssemblies of the same model can be directly replaced in situ within ACS5000 power units of the same voltage and power ratings. Only optical fiber link verification and hipot testing are required before commissioning, greatly shortening unit maintenance downtime.
- Wide-Temperature High-Reliability Industrial DesignAdopts full-series industrial-grade components and complies with the IEC 61000 EMC standard. It can operate stably for long periods under high-dust, high-vibration and extreme temperature conditions, with an MTBF (Mean Time Between Failures) of no less than 120,000 hours.
II. Technical Specifications
1. Electrical Parameters
Device Type: RC-IGCT (Reverse Conducting Integrated Gate-Commutated Thyristor)Device Code: 5SHX1060H0003, Material Part Number: 3BHB020538R0001Rated Blocking Voltage (Vdrm): 4500VRated On-State Current (It): 4000AGate Drive Voltage: +15V for turn-on, -15V for turn-offControl Circuit Power Supply: DC 24V ±10%, typical power consumption: 380mATypical Turn-On Time: 200nsMaximum Operating Switching Frequency: 600HzFault Response Blocking Time: ≤2μsCommunication Mode: Dual-channel optical fiber (trigger input + fault feedback output)Dielectric Withstand Voltage Between Strong & Weak Current Circuits: 3000VAC (drive control circuit vs high-voltage power circuit)Current Sampling Accuracy: ±0.8% FSTemperature Measuring Range: -40℃ ~ +150℃
2. Mechanical Parameters
Mounting Method: Torque compression fixing inside the power unit, with the device substrate attached to the heatsinkOverall Dimensions: 290mm (L) × 180mm (W) × 35mm (T)Net Weight: 2.5kgInterface Types: Optical fiber ports, 24VDC drive power terminals, high-voltage power wiring terminals
3. Environmental Parameters
Normal Operating Ambient Temperature: 0℃ ~ +55℃Storage and Transportation Temperature: -40℃ ~ +85℃Operating Humidity: 5%~95% RH, non-condensing, free of corrosive gas and conductive dustVibration Compliance Standard: IEC 60068-2-6, suitable for conventional vibration conditions of industrial transmission equipment
III. Key Features
High-Voltage High-Power Rectifier and Inverter Switch Control
Reverse Freewheeling and Regenerative Energy Management
The built-in anti-parallel freewheeling diode realizes feedback and freewheeling of motor braking energy and reactive energy from inductive loads, suppresses bus overvoltage and ensures safe and stable operation of the power loop under four-quadrant operating conditions.Full-Range Condition Monitoring of Power Loops
Collects real-time data including IGCT operating load current, substrate heatsink temperature, gate drive voltage and optical fiber communication link status. Analog and fault digital signals are transmitted back to the main controller via optical fiber to provide accurate data support for overload, overtemperature and short-circuit interlock protection.Ultra-Fast Hardware Fault Blocking Protection
When faults such as device short circuit, gate undervoltage, optical fiber signal loss, heatsink overtemperature and overcurrent are detected, the drive circuit blocks gate trigger pulses within microseconds, latches fault codes and uploads alarm signals to the upper system to trigger inverter load reduction and trip protection.High-Voltage Electromagnetic Interference Suppression Protection
Integrated RC snubber absorption and shielding filter circuits reduce electromagnetic radiation generated during switching processes, restrain harmonic crosstalk inside high-voltage inverters and guarantee synchronous switching consistency of multiple IGCTs within the same power unit.Current and Voltage Balancing Adaptation for Series and Parallel Connection of Multiple Devices
Device parameters are screened and matched at the factory. Combined with onboard snubber voltage balancing circuits, the voltage and current imbalance of multiple assemblies under series and parallel operation is controlled within 3%, preventing overload and thermal burnout of individual devices and meeting the capacity expansion requirements of high-power systems.IV. Working Principle
After the assembly is powered on, the 24VDC control power supply energizes the gate drive, sampling and optical fiber communication circuits. The drive board completes hardware initialization, optical fiber link self-inspection and current & temperature sampling circuit self-inspection, and enters standby trigger status once self-checking passes.
The inverter main controller converts PWM modulation commands into optical pulse signals, which are transmitted to the optical fiber receiving port of this assembly via transmitting optical cables. The isolated drive circuit converts optical signals into standard ±15V gate drive voltage to drive periodic high-frequency turn-on and turn-off of the RC-IGCT power chip, realizing rectification of high-voltage grid AC power and inversion of DC power to supply variable-frequency driving power for medium-voltage motors. Inductive load current achieves energy freewheeling and feedback through the built-in anti-parallel freewheeling diode to stabilize DC bus voltage.
During the whole operating cycle, onboard Hall current sensors and NTC temperature sensors collect the IGCT on-state current and substrate temperature rise in real time. After filtering and A/D conversion, combined with gate voltage monitoring circuits, the operating status of the device is judged continuously. Once abnormalities including short circuit, overcurrent, overtemperature, optical fiber disconnection and drive power undervoltage occur, the drive control unit immediately blocks gate drive pulses, uploads fault type codes to the inverter main controller via feedback optical fibers, and triggers system audible and visual alarms, power unit locking and unit interlock tripping to prevent breakdown of high-voltage power devices and cabinet short-circuit explosion accidents. When multiple assemblies operate in parallel, factory parameter matching design and RC snubber current balancing circuits balance the load current of each branch to ensure long-term reliable continuous operation of the entire power unit.
V. Application Scenarios
- ACS5000 medium-voltage variable frequency systems in thermal power plants: Fault replacement of high-voltage power units and technical renovation for capacity expansion for boiler induced draft fans, forced draft fans, primary air fans and circulating cooling water pumps.
- Heavy-duty transmission equipment in metallurgy and mining industries: Spare parts replacement of medium-voltage inverter power units and upgrading of aging equipment for blast furnace blowers, sintering main exhaust fans and long-distance mine belt conveyors.
- Petrochemical and long-distance oil & gas pipeline projects: High-voltage variable frequency drive systems for large process compressors and oil & gas booster pumps, applied for energy-saving speed regulation, anti-surge closed-loop control and equipment safety interlock protection of process plants.
- High-power kiln production lines in cement and building materials industries: Renovation of aging power units and in-situ replacement of faulty IGCT drive assemblies for medium-voltage inverters of cement raw material mills and main exhaust fans.
- High-voltage pump stations in large municipal water supply and sewage treatment industries: Medium-voltage energy-saving variable frequency projects for urban water intake and drainage high-voltage pump sets, supporting power unit matching for new projects and spare parts inventory for operation and maintenance.
