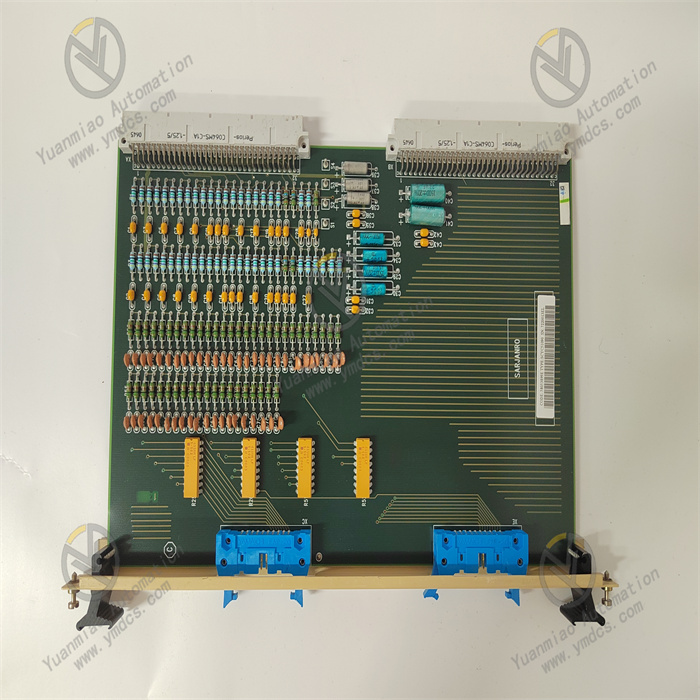

ABB SCYC51220 63901075C
1. Basic Information
ABB SCYC51220 (Part No. 63901075C) is a high-precision pulse amplifier and trigger board dedicated for ABB industrial drive and power control systems. As the core driving component of thyristor rectifier and voltage regulation units, it shapes, isolates and amplifies control pulse signals to output standard trigger pulses for high-power thyristors.
With full photoelectric isolation, signal shaping and self-diagnosis functions, the board features high triggering accuracy, adjustable pulse parameters and strong anti-interference capability. It supports long-term 7×24-hour stable operation and is widely used in industrial rectification power supplies, heat treatment power regulation and electrochemical equipment, serving as a standard replacement part for faulty trigger boards of old ABB power equipment.
2. Technical Specifications
2.1 Power Electrical Parameters
- Model: SCYC51220
- Part Number: 63901075C
- Device Type: Industrial Pulse Amplifier & Trigger Board
- Power Supply: DC 24V ±10%
- Power Consumption: ≤10W
- Rated Current: ≤1.5A
- Isolation Performance: Full photoelectric isolation for input and output
2.2 Signal I/O Parameters
- Input Signal: 0-5V/4-20mA analog, TTL/CMOS digital pulse, AC 0-220V synchronous signal
- Output Signal: Isolated thyristor trigger pulse, dry contact/TTL fault alarm signal
- Pulse Frequency Range: 1kHz～100kHz
- Pulse Width: 10μs～1000μs continuously adjustable
- Trigger Accuracy: ≤±0.1° (50/60Hz power grid)
- Trigger Mode: Phase-shift triggering / Zero-crossing triggering dual mode
2.3 Communication Parameters
- Interface: CANopen, RS485 Modbus
- Function: Remote parameter configuration, pulse calibration, fault data upload
- Networking: Multi-board synchronous triggering for high-power unit linkage
2.4 Environmental & Physical Parameters
- Operating Temperature: -20℃～+60℃
- Storage Temperature: -40℃～+85℃
- Humidity Range: 5%～95%RH (Non-condensing)
- Protection Grade: IP65
- Certification: CE, RoHS
- Weight: Approx. 0.75kg
- Dimensions: 132mm × 53mm × 65mm
3. Main Features
- High-precision Phase-shift Triggering: Ultra-high triggering accuracy ensures smooth and stepless adjustment of voltage, current and power, effectively avoiding output fluctuation and ensuring stable operation of high-power rectification equipment.
- Multi-signal Compatibility: Supports analog, digital pulse and AC synchronous signal input, compatible with various upper control systems, realizing seamless docking of new and old industrial equipment.
- Full Isolation Anti-interference Design: Full photoelectric isolation of all ports eliminates high-voltage crosstalk and ground loop interference, preventing pulse loss and false triggering caused by complex on-site electromagnetic interference.
- Dual Trigger Mode Switching: Dual phase-shift and zero-crossing trigger modes meet the requirements of precision voltage regulation and energy-saving power regulation processes respectively, with wide application adaptability.
- Complete Self-diagnosis & Alarm: Real-time monitoring of signal loss, overload, over-temperature and pulse abnormality, with active alarm output and fault code upload for rapid maintenance and fault elimination.
- Industrial Durability: Wide temperature resistance, dustproof and moisture-proof performance support long-term uninterrupted operation in harsh industrial environments such as metallurgy, chemical industry and heat treatment.
- Flexible Networking & Calibration: Dual-bus communication supports remote parameter debugging and multi-board synchronous triggering, meeting the synchronous control requirements of high-power multi-phase rectifier units.
4. Working Principle
- Power-on Initialization: After DC24V power-on, the board completes hardware self-inspection, port matching and parameter loading, and enters standby trigger state with normal hardware status.
- Signal & Synchronization Locking: Collect upper control signals and power grid synchronous signals in real time, lock the power frequency phase reference to prepare for precise phase-shift triggering.
- Signal Shaping & Operation: Filter and shape the input signals, calculate the precise trigger timing according to preset pulse parameters and working modes.
- Pulse Isolation & Amplification: Amplify and isolate the trigger signal to output standard high-power trigger pulse, driving the thyristor power unit to conduct.
- Closed-loop Power Regulation: Adjust the thyristor conduction angle in real time to realize closed-loop control of output voltage, current and power, ensuring stable process parameters.
- Fault Protection & Alarm: Automatically cut off trigger output and trigger alarm when abnormal conditions such as signal loss and over-temperature occur, protecting rear-end power devices.
- Remote Operation & Maintenance: Upload operating data and fault information through bus, support remote parameter calibration and mode switching to realize intelligent equipment maintenance.
5. Applications
5.1 Industrial High-power Rectifier Power System
Serves as the core trigger unit for electroplating, electrolysis and electrochemical rectification power supplies, realizing precise and stable DC output to meet high-precision industrial production process requirements.
5.2 Heat Treatment & Temperature Control Power Regulation Equipment
Applied in industrial furnace and heating equipment power regulation systems, realizing constant temperature and energy-saving control through dual trigger modes to ensure stable heat treatment process.
5.3 Power Grid Voltage Stabilization & Regulation System
Used in power grid voltage regulation and reactive power compensation equipment to suppress voltage fluctuation, stabilize power supply quality and protect precision electrical equipment.
5.4 ABB Power Equipment Replacement & Renovation
In-situ replacement of aging and faulty trigger boards for original ABB power equipment, compatible with original wiring and control logic, realizing rapid equipment performance recovery.
5.5 Multi-unit Synchronous Power Control
Realizes multi-board synchronous triggering through bus networking, suitable for high-power multi-phase rectifier and parallel unit working conditions, avoiding output imbalance and circulating current faults.
