I. Basic Information

•


• Brand: ABB Power | Country of Origin: Switzerland

• Category: Excitation-dedicated 8-channel Isolated AI (Analog Input) Acquisition Board
• Compatibility: Full-range UNITROL5000/6000 excitation cubicles, AC800PEC master controller (PVD164A mainboard) and backplane bus base; operates in linkage with pulse firing boards and main control communication boards inside complete cabinets.
• Mounting: Plug-in installation into standard European card slots within excitation cabinets; Dimensions: 178×113×34mm; Net Weight: approx. 0.19kg; Full PCB coated with three-proof insulating paint in bare modular design; IP30 protection for installation inside sealed control cabinets.

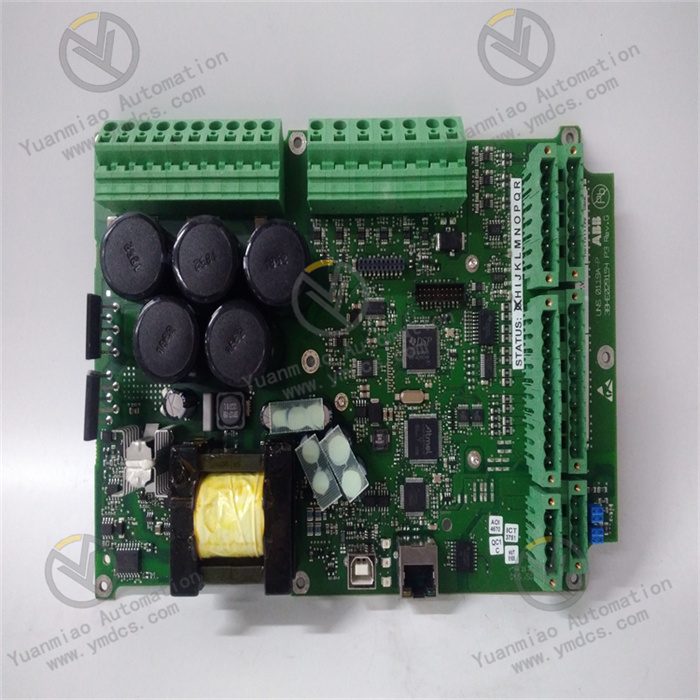

• Onboard Layout: Backplane gold-finger system bus connector, side-mounted green spring-cage signal terminal blocks, individual channel fault LEDs, RUN status LED, onboard precision transformer sampling circuits and isolated operational amplifier modules.

II. Technical Specifications

(1) Electrical Specifications

• Power Supply: 24VDC±10% cabinet DC power supply; total power consumption ≤4.8W; built-in hardware protection against reverse polarity, channel surge and overvoltage.
• Acquisition Channels: 8 fully isolated analog input channels grouped into two sets with opto-isolation per 4 channels.
• Supported Signal Types: Three signal formats are available: AC100V generator terminal voltage, CT secondary AC5A alternating current and 4~20mA DC excitation feedback signal.
• Sampling Accuracy: ≤±0.2% for voltage & current sampling; ≤±0.15% for 4~20mA loop signals.
• Communication Interface: Combined backplane parallel bus and PROFIBUS-DP interfacing with PVD164A master communication board; auto-adaptive baud rate ranging from 2.4kbps to 12Mbps.

• Isolation Rating: Each channel features opto-isolation with withstand voltage ≥2000VAC; separated routing for high-power and low-power circuits prevents interference from high-voltage sampling to low-voltage control loops.

•


(2) Environmental Specifications

• Operating Temperature: -20℃～+65℃ for long-term continuous operation inside excitation cabinets; Storage Temperature: -40℃～+85℃.
• Humidity: 5%~95% RH non-condensing; compliant with IEC61000 industrial EMC immunity standards to withstand excitation harmonics, dust and cabinet condensation; certified with CE and UL industrial safety approvals.

III. Key Features

1. Integrated Multi-type Mixed Signal Acquisition

   A single module supports three core excitation measurement types: AC voltage, AC current and 4~20mA DC, replacing multiple single-function small acquisition cards and simplifying I/O layout inside excitation cubicles.
2. Grouped Channel Isolation to Prevent Fault Propagation

   Every four channels form an independent isolated group; open-circuit or short-circuit on one single loop only triggers local fault alarm without disrupting acquisition of the remaining seven channels, avoiding overall AVR runaway caused by single-point failure.
3. Direct Raw Sampling Data Transmission to Master CPU

   Original analog sampled values are uploaded to PVD164A master board via backplane or DP bus, providing raw data source for master AVR constant-voltage and constant-reactive-power PID calculation.
4. Per-channel Self-diagnosis & Local Alarm Indication

   Corresponding LED lights up upon channel open-circuit, over-range or short-circuit; fault codes are transmitted to DCS upper HMI screen via fieldbus for fast troubleshooting of faulty transmitter or CT/PT wiring loops.
5. Backward Compatibility for Rewire-free Retrofit Replacement

   V.1 hardware version is compatible with legacy R-version UNS4684 modules; direct plug-in swap is feasible without modification to field terminal wiring or rack base during excitation system revamp of existing generating units.
6. Remote Online Firmware Upgrade

   Remote firmware update is realized via PROFIBUS bus coordinated with AC800PEC master controller, eliminating physical card removal for on-site program flashing.

IV. Working Principle

• Power-on Self-test: After 24VDC power-up, the board runs self-diagnosis for onboard power circuit, sampling op-amps, isolation loops and backplane communication chips, then completes backplane handshake communication with PVD164A master board and UNS0881 pulse board.
• Signal Sampling: Generator PT terminal voltage, CT stator current and rotor excitation feedback signals are fed via terminals and converted between AC and DC through onboard precision sampling circuits.
• Data Packaging: Digitized sampled values of eight channels are packed and cyclically transmitted to AC800PEC master controller over DP or backplane bus.
• Parameter Execution: Receives range configuration parameters downloaded from master controller and automatically switches between AC and DC sampling modes.
• Fault Handling: Abnormal channels are locked with corresponding fault LED activated and fault messages uploaded to DCS, while all intact channels maintain uninterrupted data acquisition.

V. Application Scenarios

1. Standard factory-fitted sampling board for UNITROL5000/6000 excitation cubicles on 30MW~660MW thermal power generating units.
2. Core OEM acquisition spare part for excitation regulators of medium & large mixed-flow/axial-flow hydro-generator sets.
3. Retrofit replacement spare for legacy excitation systems at captive power plants of steel, coking and petrochemical refining industries.

4. Matching component for static UNITROL excitation systems of combined-cycle gas turbine and biomass power plants.

5.


Version Differentiation

• UNS4684a-P,V.1 (Current Version HIEE305114R00R0001): Full 8-channel isolation with enhanced EMC performance, universally used for new unit commissioning and existing plant renovation projects.
• Legacy UNS4684 V0 Standard Version: No grouped isolation with common-ground sampling; still in service on aged early-generation excitation units without harmonic suppression optimization.
