ABB DSAO120 57120001-EY

I. Basic Information

Model: DSAO120

Material Code: 57120001-EY

Brand: ABB

Applicable System: ABB Advant Master / Advant OCS DCS Control System, belonging to S400 rack-mounted I/O hardware series. It can be installed in local control racks or deployed in remote I/O stations via MasterFieldbus fieldbus, converting digital control commands from the main controller into standard analog regulation signals to drive field regulating valves, frequency converters and servo positioning devices.

Product Type: Rack-mounted 8-channel isolated analog output board, integrating high-precision DAC conversion circuit, independent channel overcurrent short-circuit protection, backplane parallel bus communication and hardware fault diagnosis loop. It provides 8 programmable voltage/current regulation output channels, serving as a dedicated I/O module for closed-loop PID process control.

Product Positioning

DSAO120 57120001-EY is a dedicated analog output unit for ABB classic Advant S400 series control systems. It converts digital control commands issued by DCS into standard industrial analog signals including 4~20mA, 0~20mA and ±10V to precisely regulate boiler feed water valves, desuperheating pressure reducing valves, process regulating valves, fan and water pump frequency converters, realizing stable closed-loop control of temperature, pressure, liquid level and flow parameters. Each output channel adopts independent galvanic isolation and hardware protection to resist field ground loop potential difference, inverter harmonic and electrostatic surge interference, ensuring single-channel faults will not cause the whole board failure. High-speed data interaction with the main controller via rack parallel backplane bus features fast response, high linearity and stable control accuracy, widely used in technical renovation, measuring point expansion and faulty I/O board in-situ replacement projects of legacy Advant DCS systems in thermal power, petrochemical, metallurgy, oil & gas and paper industries.

Hardware Architecture

8-channel Programmable Analog Output Unit: 8 independent isolated analog output channels, supporting software configuration of current or voltage signal types with 3 selectable ranges: 4~20mA, 0~20mA, ±10VDC. Equipped with high-precision DAC chips to guarantee signal linearity and control accuracy.
Channel-level Hardware Protection & Signal Conditioning Unit: Each channel integrates RC filter, current limiting and short-circuit self-locking protection circuits. In case of short circuit, overload or reverse polarity connection, the channel automatically blocks output and latches fault status to avoid reverse damage to internal circuit and controller backplane.
Rack Parallel Backplane Bus Interaction Unit: Dedicated Advant parallel I/O backplane bus receives digital setpoints and channel configuration parameters cyclically, and uploads channel operating status and fault alarm codes to realize millisecond-level control command transmission.
Power-on Self-test & Status Diagnosis Indication Unit: Equipped with power RUN and bus fault LED indicators. Automatic full-loop self-inspection after power-on; channel fault information is uploaded remotely to the upper system for rapid on-site troubleshooting.
Standard European Rack Hot-swappable Installation Unit: Single-slot rack structure with double-sided gold-plated backplane fingers, supporting hot swapping and snap locking, suitable for dense cabinet layout with convenient maintenance.

Mounting Specifications

Control Power Supply: DC 24V (21.6V~28.8V), typical power consumption ≤4.5W

Channel Configuration: 8 independent isolated analog output channels

Selectable Output Ranges: 4~20mA, 0~20mA, ±10VDC

DAC Resolution: 12-bit (13-bit for bipolar voltage including sign bit)

Max Current Load: 750Ω; Max Voltage Drive Current: ±2mA

Single-channel Response Time: ≤1ms

Mounting: Single-slot slot installation in standard Advant control rack, hot-swappable

Overall Dimension: 234mm(W) × 324mm(H) × 27mm(D)

Net Weight: 0.37kg

Protection Class: IP20, installed in sealed dust-proof constant-temperature industrial control cabinet

Supporting Equipment: Advant series redundant controller, S400 I/O rack, shielded analog cable, 24VDC redundant power supply, loop fuse

Commissioning Tools: ABB Advant Control Builder, process calibrator, insulation tester, anti-static wristband

Supporting System

Supporting Hardware

Advant Controller410/450 main unit, S400 series I/O modules, MasterFieldbus shielded cable, 24VDC terminal block, field valve positioner, frequency converter actuator.

Commissioning Tools

ABB Advant configuration software, portable process calibrator, hipot tester, infrared thermometer.

Upper-level System

800xA automation platform, power plant DCS/SIS, industrial SCADA for remote parameter setting, valve position monitoring and fault alarm.

Typical Application Industries

Thermal power plant boiler process regulation control, petrochemical reactor and distillation column valve closed-loop control, metallurgical furnace temperature regulation system, oil & gas pipeline pressure control, paper and building material production line variable frequency speed regulation.

Product Features

8-channel Isolated High-precision Output: Mutual galvanic isolation between channels, 12-bit DAC resolution with ±0.1%FS full-scale accuracy, realizing precise micro-adjustment of valve opening to avoid process oscillation.
Flexible Software Range Configuration: Supports mixed use of current and voltage signals within one module, compatible with most field actuators including valve positioners and servo drives.
Independent Single-channel Fault Self-locking Protection: Faulty channel only cuts local output without affecting other normal regulation loops to prevent plant unplanned shutdown.
High-speed Real-time Bus Control: Millisecond-level command transmission with ≤1ms channel conversion response time, suitable for fast closed-loop process regulation.
Wide-temperature Industrial EMC Design: Compliant with EN 61000 standards, stable 7×24-hour operation under harsh industrial conditions, MTBF ≥150000 hours.
Full Backward Compatibility for In-situ Replacement: Pin-to-pin compatible with S400 rack hardware, no modification required for existing configuration and field wiring during spare part replacement.

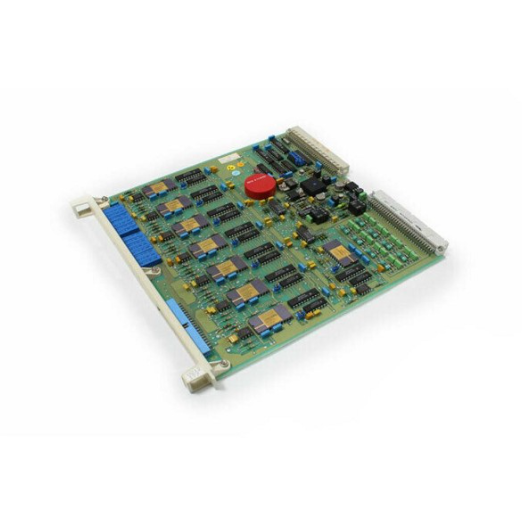

DSAO120 57120001-EY.png

II. Technical Specifications

2.1 Electrical Parameters

Model: DSAO120, Material Code: 57120001-EY

Channel Quantity: 8 galvanically isolated analog output channels

Software Selectable Ranges: 4~20mA, 0~20mA, ±10VDC

DAC Resolution: 12-bit unipolar, 13-bit bipolar (with sign bit)

Full-scale Accuracy: ±0.1%FS @ 25℃

Max Current Load Impedance: 750Ω

Max Voltage Output Drive Current: ±2mA

Single-channel Response Time: ≤1ms

Power Supply: DC24V ±20%, power consumption ≤4.5W

Channel Dielectric Withstand Voltage: 500VDC between channel and backplane/ground

Bus Type: Advant dedicated parallel I/O backplane bus

Protection Functions: Per-channel short-circuit, overcurrent, reverse power, surge voltage protection

2.2 Mechanical Parameters

Mounting: Single-slot snap installation on standard Advant rack, hot-swappable

Dimension: 234mm × 324mm × 27mm

Net Weight: 0.37kg

Structure: European rack plug-in card with double-sided gold-plated fingers

Cooling Mode: Natural convection air cooling, fanless design

2.3 Environmental Specifications

Operating Temperature: -20℃ ~ +60℃

Storage & Transportation Temperature: -40℃ ~ +85℃

Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust

III. Key Features

Digital-to-analog Conversion for Closed-loop Regulation: Converts PID digital setpoints into standard 4~20mA/±10V signals to drive valves and frequency converters for automatic process parameter control.
Independent Per-channel Range Configuration: Mixed current and voltage output modes supported to realize centralized control of multiple types of field equipment in one cabinet.
Channel Fault Remote Diagnosis & Alarm Upload: Real-time monitoring of short-circuit, overload and wire break faults with timestamped fault information uploaded to DCS for efficient troubleshooting.
Bumpless Initialization Output: Predefined safety output value after power-on or fault reset to avoid process disturbance during equipment startup and fault recovery.
Multi-loop Centralized Regulation Control: 8 independent control channels reduce cabinet hardware quantity, failure rate and maintenance workload.
Retrofit & Spare Part Compatibility: Suitable for new measuring point expansion and in-situ replacement of aging I/O modules for legacy Advant DCS systems.

IV. Working Principle

After 24VDC power-on, the module completes power supply, backplane bus and 8-channel hardware self-test. Once passed, it waits for configuration parameters from the main controller. Digital control values transmitted via backplane bus are converted into analog voltage/current signals by DAC chips, conditioned through filter and isolation circuits and output to field actuators. Once short-circuit or overload faults are detected, the faulty channel enters self-locking protection with fault status uploaded remotely; other isolated channels keep normal operation, and function can be restored via remote fault reset after on-site troubleshooting.

V. Application Scenarios

Thermal power plant DCS boiler auxiliary loop valve regulation and fan water pump variable frequency control.
Petrochemical plant reactor and distillation column closed-loop process regulation system.
Metallurgical heating furnace gas and cooling water flow automatic control project.
Oil & gas pipeline station pressure regulating valve and anti-surge compressor analog control system.
Technical renovation and capacity expansion of legacy Advant automation systems with faulty DSAO120 module replacement.
