Description
1. Product Overview

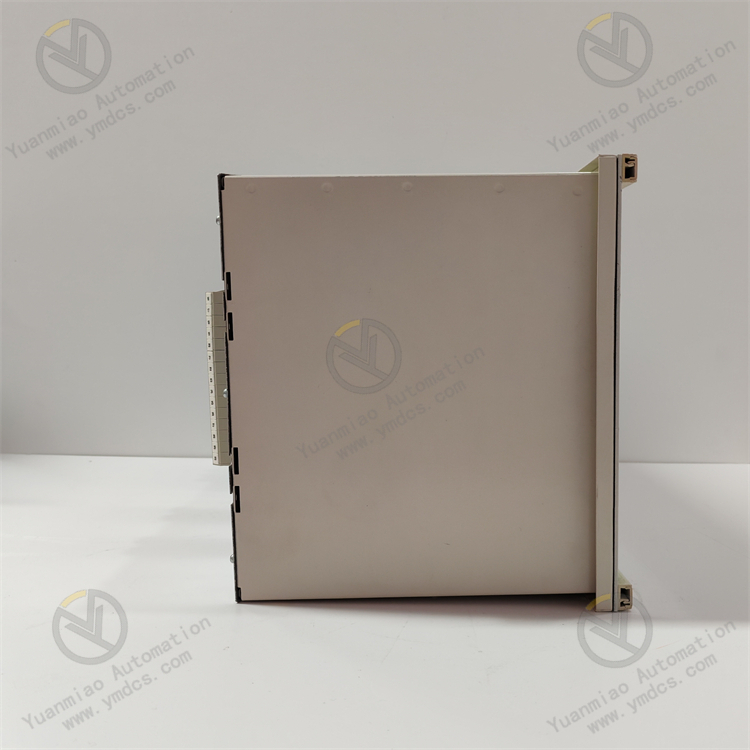

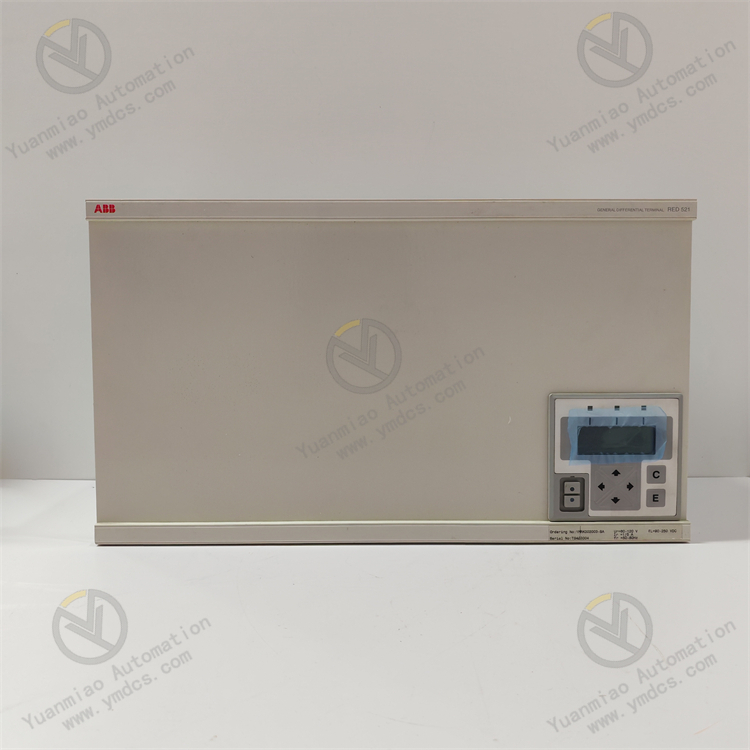

ABB RED521 (Part No.: 1MRK002003-BA) is an original dedicated extended communication interface module from ABB. It belongs to the supporting accessory portfolio for ABB relay protection and automation systems, and is specially designed to match ABB medium-voltage protection devices as well as AC500/PM500 series controllers. Acting as a system bus expansion unit, this module expands the backplane bus communication capacity of master devices to compensate for insufficient native communication ports. It enables data exchange, bus interlocking and protocol expansion between devices, serving as a core auxiliary expansion component for ABB power automation control systems and medium-voltage distribution protection systems.
This module adopts standardized factory configuration exclusive to 1MRK002003-BA. Featuring mature hardware workmanship and excellent compatibility, it fully supports the bus protocols of all compatible ABB master devices and can be plugged directly without complicated configuration. Built with an industrial compact modular structure free of complex mechanical assemblies, it delivers strong anti-interference performance, stable operation, ultra-low power consumption, maintenance-free service and long-term trouble-free running. It is widely deployed for communication capacity expansion and bus extension in substation automation systems, industrial power distribution control systems, integrated medium-voltage protection & control equipment and industrial PLC automation systems. It is a universal standard module for upgrading legacy ABB automation systems, expanding communication ports and implementing equipment interlocking reconstruction.
2. Technical Features
2.1 Original Bus Compatibility for Seamless Connection with ABB Master Devices
RED521 (1MRK002003-BA) is a dedicated ABB backplane bus expansion module natively compatible with ABB AC500, PM500 series controllers and all matching relay protection devices. It fully conforms to ABB internal bus communication protocols, ensuring stable communication links without packet loss, delay or protocol conflicts. The plug-and-play design eliminates extra protocol adaptation and complex programming. After insertion, it automatically completes bus identification, data synchronization and link matching, thoroughly solving the constraints of limited communication ports and insufficient bus expansion capacity on master equipment.
2.2 Indirect Multi-Protocol Expansion Suitable for Diversified Networking
Relying on backplane bus interconnection with master devices, the module indirectly supports mainstream industrial communication protocols including Modbus, Profibus and CANopen, flexibly meeting various networking requirements of power automation and industrial control. It supports parallel bus connection of multiple devices, data sharing and interlock control, enabling coordinated operation of multiple units within one system. Compatible with both traditional bus networking and modern digital networking architectures, it fits renovation and upgrading of new and legacy automation systems.
2.3 Passive Bus Power Supply Without Independent Power Source
The module adopts passive power supply via system bus; operating power is provided uniformly by matched ABB master devices (standard 24 V DC). No separate power supply module or extra power wiring is required. The streamlined hardware structure greatly simplifies cabinet wiring, reduces circuit failure risks and cuts operation and maintenance points. It suits compact cabinet installation and effectively improves neatness and operational stability of integrated equipment.
2.4 Industrial-Grade Anti-Interference Performance for Electromagnetically Complex Sites
The complete module has passed industrial EMC tests, temperature cycling endurance tests and humidity cycling tests. It offers outstanding resistance against electromagnetic interference, electrostatic discharge and voltage fluctuation, effectively suppressing harmonic interference, high-frequency disturbance and electrostatic shocks commonly found in substations and industrial power rooms. Constructed purely with electronic circuits without moving mechanical parts, it avoids wear and aging drift and supports long-term continuous stable operation.
2.5 Compact Modular Structure for Simplified Installation and Maintenance
Designed as a standardized compact DIN rail/rack-mounted unit, it occupies minimal space and fits standard control cabinets. Quick plug-in mounting and removal are supported. The robust hardware structure meets cabinet installation requirements. No routine maintenance is necessary. In case of failure, single-module on-site replacement can be carried out without modifying system wiring or programs, significantly shortening downtime and lowering costs for equipment maintenance, system expansion and technical retrofits.
2.6 Highly Stable Data Transmission Ensuring Reliable System Interlocking
Equipped with dedicated ABB bus transmission chips, the module achieves high-precision data synchronization and low transmission latency. It transmits real-time operational data, status signals and control commands steadily to guarantee accurate execution of multi-device interlock logic. Problems such as data packet loss, signal disorder and link interruption are avoided, providing reliable bus transmission support for stable operation, precise control and data traceability of power distribution automation and industrial control systems.
3. Technical Specifications
3.1 Basic Specifications
Model: RED521 Full Part Number: 1MRK002003-BA Brand: ABB Product Type: Bus Communication Expansion Interface Module Device Positioning: Bus expansion for ABB master equipment, communication port expansion, multi-device interlock communication, industrial protocol expansion Compatible Master Units: ABB AC500 series, PM500 series controllers, matched ABB relay protection devices Hardware Characteristics: Original standardized modular design, passive bus power supply, compact structure, all-electronic without mechanical components Core Advantages: Plug-and-play, strong compatibility, maintenance-free, stable transmission, excellent anti-interference, suitable for upgrading new and legacy systems
3.2 Communication Function Specifications
Bus Interface: Dedicated ABB internal backplane bus interface Extended Communication Protocols: Indirect support for mainstream industrial protocols (Modbus RTU/TCP, Profibus, CANopen) via master device Transmission Characteristics: High-speed synchronous data transmission, low latency, no data drift, supporting data interaction among parallel bus-connected devices Communication Functions: Communication port expansion for master equipment, system bus extension, data transmission for multi-device interlocking, adaptation for remote data exchange Supported Networking Topologies: Bus topology, point-to-point communication, multi-device coordinated networking, compatible with architectures of power automation and industrial control systems
3.3 Electrical Power Supply Specifications
Power Supply Mode: Passive power supply via bus (powered by matched ABB master device) Rated Supply Voltage: 24 V DC Supply Features: No independent power source required, no extra load on power system, compatible with rated voltage range of master equipment Power Consumption: Ultra-low power design, low temperature rise during long-term operation without increasing system load Supply Stability: Tolerates regular system voltage fluctuations; no restart or data interruption during operation
3.4 Environmental & Protection Specifications
Operating Temperature: -20℃ ~ +60℃ Storage Temperature: -40℃ ~ +85℃ Operating Humidity: 5%～95%RH (non-condensing, no corrosive gas) Electromagnetic Compatibility: Complies with industrial IEC EMC standards; resistant to high-frequency interference, electrostatic interference and electromagnetic radiation Protection Class: IP20 (suitable for enclosed cabinet installation) Mounting Type: Standard rack / DIN rail mounting inside control cabinets Operation Mode: Supports continuous unattended operation 7×24 hours all year round Device Properties: Maintenance-free, no mechanical wear, stable parameters without drift over long-term operation
4. Operating Principle
The core operating principle of ABB RED521 (1MRK002003-BA) communication expansion module lies in backplane bus signal expansion and data forwarding. The module is plugged into ABB AC500/PM500 series master controllers or relay protection devices via dedicated backplane bus interfaces and receives passive power supply from the master unit. After power-on, it automatically completes bus link initialization, protocol matching and device identification. No manual parameter configuration or programming is required, and it quickly enters standby status.
During normal system operation, acting as a bus expansion carrier for the master device, the module continuously receives internal bus data from the master unit and performs signal sorting, forwarding and extended transmission to overcome the limitation of insufficient native communication ports and limited networking capacity of the master device. Supported by protocol parsing capability of the master equipment, multi-protocol communication such as Modbus and Profibus is realized indirectly. It forwards operational data, status signals and alarm messages of the master unit to external equipment, and transmits control commands from remote stations or interlocked devices back to the master unit, enabling coordinated networking, data sharing and interlock control among multiple devices in the system.
Adopting all-electronic circuit operation without mechanical movement, the module monitors bus link status continuously. Once link abnormality, signal loss or data disorder occurs, it actively blocks abnormal signals to protect stable operation of the master device and triggers alarms together with the master unit. This ensures continuous and reliable operation of the whole automation and protection control system to meet non-stop operation requirements of power and industrial facilities.
5. Application Scenarios
5.1 Communication Port Expansion for ABB Automation Systems
Suitable for port expansion of ABB AC500, PM500 series PLCs and controllers. Where native communication ports of master units cannot support multi-device networking, RED521 rapidly expands bus communication capacity to realize data interconnection among multiple terminals and devices. Widely used for networking upgrading of industrial automatic production lines and power distribution control systems.
5.2 Bus Expansion and Interlocking for Medium-Voltage Relay Protection Systems
Matched with ABB medium-voltage protection & control IEDs to expand bus communication channels of protection devices. It realizes data synchronization, fault interlocking and signal sharing among multiple protection units, optimizes protection interlock logic of distribution networks, improves fault handling efficiency and operational stability of power distribution systems, and applies to networking reconstruction of substations and industrial power room protection systems.
5.3 Coordinated Industrial Control Systems with Multiple Devices
Deployed in chemical, manufacturing, metallurgical and other industrial control scenarios. Utilizing bus expansion capability, multiple controllers, protection devices and measurement terminals can be connected in parallel on the bus to realize centralized collection of equipment operating data, unified command issuing and coordinated condition regulation, guaranteeing stable operation of continuous industrial production systems.
5.4 Supporting Expansion for Integrated Power Equipment
As original standard supporting accessory from ABB, it is extensively adopted in the assembly of medium-voltage switchgear, intelligent power distribution cabinets and automatic control cabinets. It provides standardized bus communication expansion capability for integrated equipment, ensures communication compatibility and stability, and satisfies all requirements of power engineering bidding, equipment acceptance and standardized operation & maintenance.
