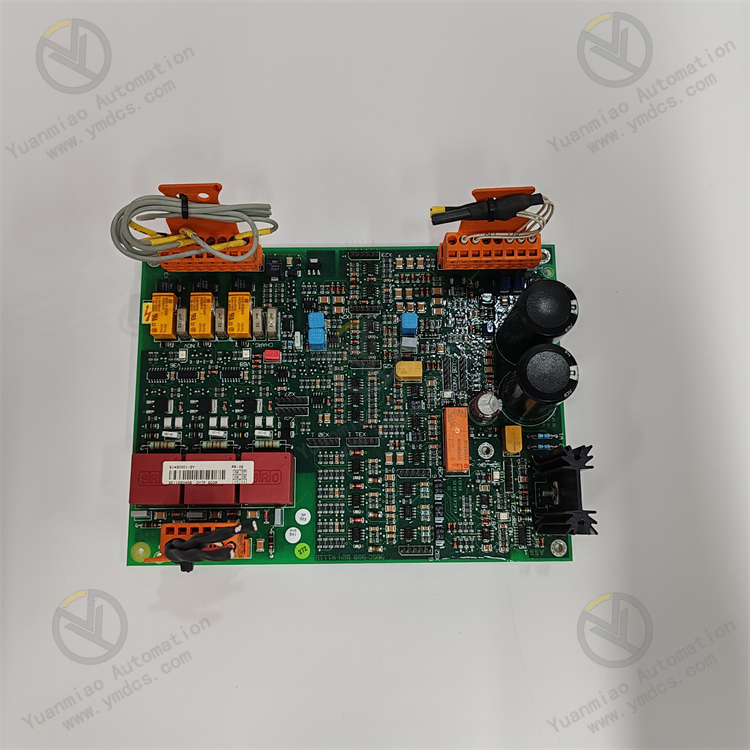

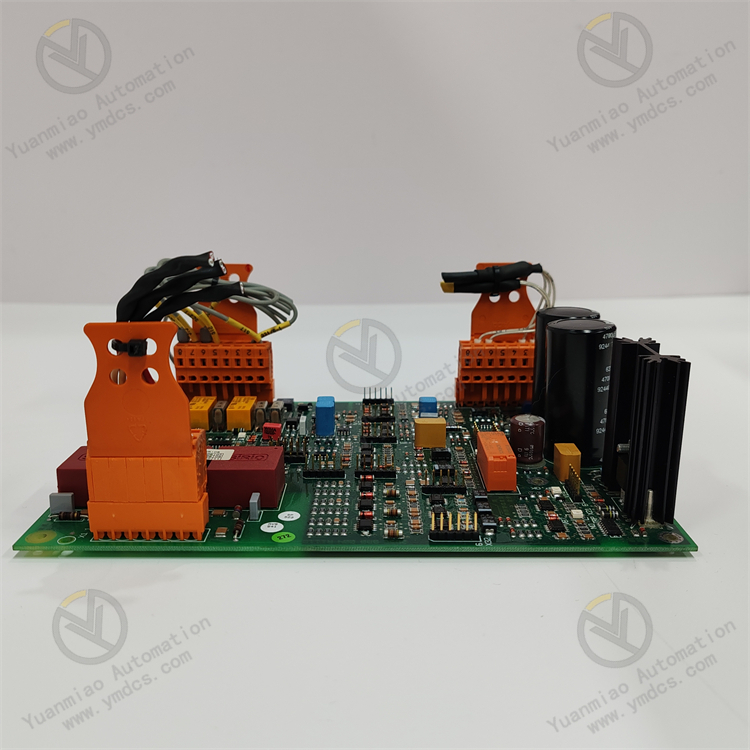

ABB DYTP600A 61430001-ZY Digital Signal Acquisition Module

Description

1. Product Overview

Full Model: DYTP600A 61430001-ZY

Manufacturer: ABB

Product Series: Advant OCS Industrial Process Control System I/O Module Series

Product Name: 32-Channel High-Density Digital Input Module, Industrial Discrete Signal Acquisition Module

Product Positioning

DYTP600A 61430001-ZY is an industrial-grade high-density digital input module matched with the ABB Advant OCS process control system. As the core signal conversion unit between the industrial control system and field discrete equipment, it is specially designed for precise acquisition and isolated transmission of field switch status, point signals and equipment operating condition feedback. Adopting a highly integrated industrial circuit architecture and grouped opto-isolation design, the module operates stably under harsh industrial conditions featuring strong electromagnetic interference, voltage fluctuation and variable temperature & humidity. It accurately captures the on/off status of field equipment and serves as fundamental core hardware for sequential control, equipment interlock protection, operating condition monitoring and automatic logic operation in process industries. With advantages including high-density channels, powerful anti-interference performance, full-channel self-diagnosis and wide voltage adaptation, it is widely deployed in large and medium-sized industrial automatic control systems covering power energy, petrochemical, metallurgy heavy industry, large-scale manufacturing and municipal automation. It meets full-scenario engineering demands such as new unit complete set, system technical retrofitting, replacement of aging modules and I/O point expansion.

Core Functions

The module undertakes five core responsibilities: isolated acquisition of field digital signals, precise level discrimination, signal filtering and shaping, synchronous multi-channel data uploading and channel fault self-diagnosis. It can universally access various dry contact and wet contact signals from limit switches, photoelectric sensors, proximity switches, mechanical pushbuttons, valve feedbacks and relay contacts, converting the on/off status of physical equipment into standard digital logic signals recognizable by the control system. Through grouped electrical isolation and multi-stage anti-interference design, it thoroughly eliminates signal misjudgment, state jumping and signal loss induced by crosstalk between channels, electromagnetic noise and voltage fluctuation. It provides authentic, stable and accurate underlying signal support for system interlock logic, sequence control programs, equipment fault alarming and operating status tracing, ensuring reliable logic operation, accurate equipment linkage and safe operation of the whole automatic control system.

Compatible Systems

Fully compatible with the complete ABB Advant OCS process control system and the standard rack bus architecture of the system. It can seamlessly coordinate with system main control CPUs, analog modules, output modules, communication modules and redundant power units. Natively compatible with all series of ABB Control Builder programming and configuration software, supporting customized parameter setting, channel filtering configuration, fault threshold setup and online program debugging. The module supports non-destructive in-situ replacement with full backward compatibility for new and legacy systems. No modification to main control logic, wiring architecture or control programs is required. It adapts to various industrial engineering scenarios including upgrading reconstruction of legacy systems, replacement of faulty modules, I/O point expansion and optimization of automatic systems.

Application Scenarios

Mainly applied in industrial sites equipped with ABB Advant OCS systems, including thermal power plants, hydropower stations, wind power facilities, chemical plants, metallurgical production lines, large factory automatic assembly lines and oil & gas transmission automatic control systems. It focuses on acquisition of production equipment status feedback, valve on/off monitoring, limit protection signals, electrical equipment interlock points, auxiliary unit start-stop signals and field safety switch status. Capable of long-term operation under severe cabinet environments with high temperature, dust, vibration, intensive variable-frequency electromagnetic interference and voltage fluctuation, it delivers reliable discrete signal acquisition guarantee for continuous and stable operation of industrial automation.

2. Technical Features

1. High-Density Channel Integration for High Space Utilization

   Equipped with 32 independent digital input channels in a compact dual-row terminal layout. A single unit realizes mass signal acquisition, greatly saving rack slot resources, reducing hardware stacking and lowering overall system volume and hardware investment. Well-organized channel layout and clear point zoning facilitate on-site wiring, point classification and later maintenance troubleshooting, satisfying mass discrete signal acquisition requirements of large and medium-sized automatic systems.




2. Broad Compatibility with Multiple Signal Types for Superior Adaptability

   The module supports switching between PNP sourcing and NPN sinking signal modes, compatible with most mainstream industrial sensors and switch devices. It accepts passive dry contact signals from mechanical switches as well as active wet contact signals from sensors. No additional adapter modules are needed to connect different types of field equipment, significantly improving versatility and suiting both retrofitting of legacy equipment and matching for new facilities.




3. Wide Voltage Compatibility & Ultra-Fast Response Ensuring Stable Acquisition Accuracy

   Supports DC 19.2V~28.8V wide-range input to accommodate regular 24V power supply fluctuation on site, preventing signal failure and mis-acquisition caused by unstable voltage. Channel response delay ≤ 1ms, enabling instant capture of rapid equipment actions and transient switch signals to meet real-time requirements of high-precision sequence control and high-speed interlock protection without signal lag or status delay. Built-in voltage hysteresis anti-chatter mechanism effectively avoids frequent false triggering arising from minor voltage drift and signal noise and ensures precise and stable signal acquisition.




4. Grouped Opto-Isolation Delivers Outstanding Anti-Interference Performance

   The 32 channels are divided into 4 independent isolation banks (8 channels per bank) with 2500V AC high-voltage opto-isolation between banks. Capacitive isolation architecture is adopted between channels and the system backplane bus to completely cut off interference propagation paths between banks, among channels and between field side and control system. Integrated multi-protection circuits including surge suppression, electrostatic protection, high-frequency filtering and electromagnetic shielding resist interference from inverters, high-voltage radiation, line surges and electrostatic discharge on site. It complies with industrial EMC standards and maintains stable signals without fluctuation, false alarm or loss under complex operating conditions.




5. Three-Level Full-Range Self-Diagnosis Enables Precise and Efficient Fault Localization

   Three-tier comprehensive self-diagnosis covering channel level, isolation bank level and module system level. It continuously monitors hidden risks such as channel open circuit, short circuit, signal abnormality, sensor failure, wiring damage, abnormal power supply of isolation banks, optoelectronic unit failure, bus communication fault and module power supply anomaly. Fault information is uploaded to the system in real time with corresponding indicator lights activated to pinpoint fault points and types. Troubleshooting time is drastically shortened without point-by-point inspection, improving system operation and maintenance efficiency.




6. Visual Status Indication for Intuitive and Convenient Maintenance

   Each input channel is fitted with an independent LED status indicator (green light on for high level conduction, off for low level). Field personnel can directly check real-time channel status, equipment on/off state and wiring abnormality without upper computer access. Standard rack pluggable structure with automatic snap locking ensures firm installation and easy removal. Online maintenance and in-situ replacement are supported without large-scale shutdown debugging.




7. Industrial Ruggedized Design Ensures Long-Term Stable Operation

   Constructed with industrial reinforced PCB and wide-temperature anti-aging components enhanced with moisture-proof, dust-proof, oxidation-resistant, vibration-proof and shock-resistant treatments. Wide operating temperature range accommodates alternating high and low temperatures on site. MTBF ≥ 200,000 hours to meet 24/7 continuous operation of industrial equipment. No parameter drift, channel attenuation or circuit aging failure occurs during long-term service.

3. Specification Parameters

4. Working Principle

4.1 Power-On Initialization and Full-Range Self-Test

After stable DC24V power supply from the system, the module automatically completes hardware initialization, underlying firmware loading, bus protocol matching and parameter reset. It sequentially performs comprehensive self-test on all 32 acquisition channels, four groups of isolated optoelectronic units, power supply loops, bus communication circuits and fault diagnosis units to detect hidden troubles including channel short circuit, open circuit, circuit damage, abnormal power supply and bus disconnection. Upon successful self-test, the module synchronizes system configuration parameters, channel filter settings and signal mode parameters automatically, completes level threshold calibration and signal mode matching, and enters steady-state signal acquisition and monitoring mode.

4.2 Field Signal Termination and Preprocessing

Dry/wet contact signals from field switches and sensors are connected to corresponding channels via terminals. The module matches input circuit modes according to preset sourcing/sinking configuration. Incoming signals first pass through pre-protection circuits. Current limiting, voltage regulation and RC high-frequency filtering units provide overvoltage protection, spike pulse suppression and high-frequency noise filtering. Invalid signals induced by field electromagnetic interference, line coupling noise and instantaneous voltage fluctuation are eliminated to retain pure raw switch signals and prevent mis-acquisition triggered by abnormal signals entering post-stage circuits.

4.3 Grouped Electrical Isolation and Signal Shaping Conditioning

Preprocessed signals enter independent opto-isolation units in groups of eight. Electro-optic-electronic conversion via optocouplers achieves complete electrical isolation between field primary equipment and control system secondary circuits, blocking interference transmission paths and eliminating inter-bank signal crosstalk, earth potential difference interference and circulating current disturbance. Isolated signals are fed into shaping and amplifying circuits to convert irregular waveforms into standard rectangular digital waveforms, correcting signal distortion and compensating weak signals to guarantee regular waveform and stable amplitude for every channel.

4.4 Precise Level Discrimination and Anti-Chatter Judgment

Processed standard signals enter the level detection unit, which accurately judges signal logic status based on preset high/low level thresholds. Supported by built-in voltage hysteresis anti-chatter logic, the module distinguishes valid signal fluctuation from interference noise to avoid frequent state inversion and jumping caused by minor voltage drift and transient disturbance. After stable judgment, standard 0/1 digital logic signals are output to realize accurate conversion from analog switch signals to system digital signals, ensuring the status of each measuring point faithfully reflects actual field equipment conditions.

4.5 Data Aggregation, Transmission and System Synchronization

The module microprocessor aggregates digital logic status of all 32 channels in real time and converts parallel signals into serial data. Data is uploaded to the main control unit via Advant OCS high-speed backplane bus within milliseconds and written into the host input image area. Sequence control programs, interlock logic, alarm programs and data monitoring programs can call data in real time to realize synchronous linkage between field equipment status and control system logic operation.

4.6 Real-Time Fault Diagnosis and Status Tracing

The module maintains three-level self-diagnosis during operation, continuously monitoring channel input current, isolation bank supply voltage, operating status of optoelectronic units, bus communication links and module power supply conditions. It accurately identifies channel disconnection, short circuit, sensor failure, wiring anomaly, isolation bank fault, communication intermittent failure and unstable power supply. Fault codes are generated, fault points locked, panel alarm indicators activated and information uploaded to the upper computer system synchronously. Real-time alarm, precise localization and full traceability of faults support rapid disposal of system abnormalities.

5. Common Faults and Troubleshooting

5.1 Symptom: System fails to detect the module after power-up; no online status

Possible Causes

① The module is not fully inserted into the rack, resulting in poor contact caused by loose or oxidized backplane contacts;

② Rack backplane bus fault or abnormal backplane supply voltage;

③ Incorrect module address setting or address conflict;

④ Mismatched firmware versions between module and control system;

⑤ Damage of internal module bus communication circuit.

Solutions

Power off the system, reinsert the module and fully engage the lock snaps. Clean dust and oxidation layers on backplane contacts with anhydrous alcohol. Measure rack backplane DC24V supply voltage with multimeter, troubleshoot power module faults and replace defective power units. Verify and reconfigure module addresses to ensure unique addresses within the rack. Upgrade system or module firmware to compatible versions. If the module remains undetected after eliminating external power supply, bus and configuration issues, internal communication circuit failure is confirmed; replace with original DYTP600A 61430001-ZY module.

5.2 Symptom: Single channel no signal, LED off, measuring point status unchanged

Possible Causes

① Field sensor or switch damaged or stuck with no valid signal output;

② Broken wiring, loose terminals or damaged cables of the channel;

③ Abnormal external power supply for sensors leading to equipment malfunction;

④ Mismatch between module sourcing/sinking setting and output type of field equipment;

⑤ Aging and damage of single-channel input circuit inside the module.

Solutions

Measure output signals of field equipment with multimeter and replace defective sensors and switches. Inspect channel wiring segment by segment, fasten terminals and repair open circuits and poor connections. Check external power supply loops, fix power faults and stabilize supply voltage. Modify module signal mode via hardware DIP switch or software configuration to match PNP/NPN equipment type. Test by transferring signals to a healthy channel. If hardware damage of the channel is confirmed, replace the module or shield the faulty channel and reassign measuring points.

5.3 Symptom: Channel falsely reports high level, LED stays on, signal triggers unexpectedly

Possible Causes

① Insulated channel wiring damaged and short-circuited causing false conduction;

② Severe field electromagnetic interference triggering spurious signals;

③ Low system level threshold and insufficient anti-chatter parameters;

④ Sensors malfunction under external disturbance;

⑤ Abnormal parameter drift of internal module level detection circuit.

Solutions

Power off and locate wiring short-circuit points, replace damaged cables and strengthen wire insulation protection. Optimize on-site wiring, adopt shielded twisted-pair cables with standardized single-point grounding and route cables away from strong interference sources such as inverters and high-power motors. Tune channel high-level threshold and anti-chatter filter parameters in software to avoid false triggering by transient disturbance. Adjust sensor installation position to reduce metal interference and vibration impact. If frequent false alarms persist after parameter optimization and wiring rectification, circuit parameter drift inside the module is confirmed and module replacement is required.

5.4 Symptom: All channels within one isolation bank report faults; bank-level alarm triggered

Possible Causes

① Abnormal power supply or missing voltage for the corresponding isolation bank;

② Aging or damage of opto-isolation units inside the bank;

③ Broken common power wiring or loose terminals leading to abnormal signals of the whole bank;

④ Fault of isolation bank control circuit within the module.

Solutions

Measure supply voltage of the faulty isolation bank, troubleshoot and repair power supply loop faults. Inspect common wiring and terminals of all channels in this bank, fasten connections and eliminate hidden open-circuit risks. Locate defective optoelectronic units through system diagnostic functions. If bank alarm persists after eliminating external wiring and power supply faults, internal isolation circuit failure is confirmed; replace the whole DYTP600A 61430001-ZY module.

5.5 Symptom: Channel signal fluctuates frequently, status jumps, unstable data

Possible Causes

① Strong field electromagnetic interference coupling into signal loops;

② Non-standard module grounding with excessive grounding resistance;

③ Wide fluctuation of system supply voltage;

④ Insufficient channel filtering and anti-chatter time setting;

⑤ Loose sensor installation leading to signal instability induced by vibration.

Solutions

Optimize cable routing and shielding grounding, lay signal cables separately away from interference sources and install additional signal isolators. Rectify cabinet grounding to ensure grounding resistance ≤4Ω. Install voltage stabilizing and filtering devices on power supply loops to stabilize 24V voltage. Appropriately increase channel filtering time constant in software to enhance anti-chatter capability. Reinforce sensor mounting base and add vibration damping protection to reduce mechanical vibration disturbance. If signal fluctuation continues after all optimizations, hardware aging of the module is confirmed and spare part replacement is needed。
