1. Product Introduction

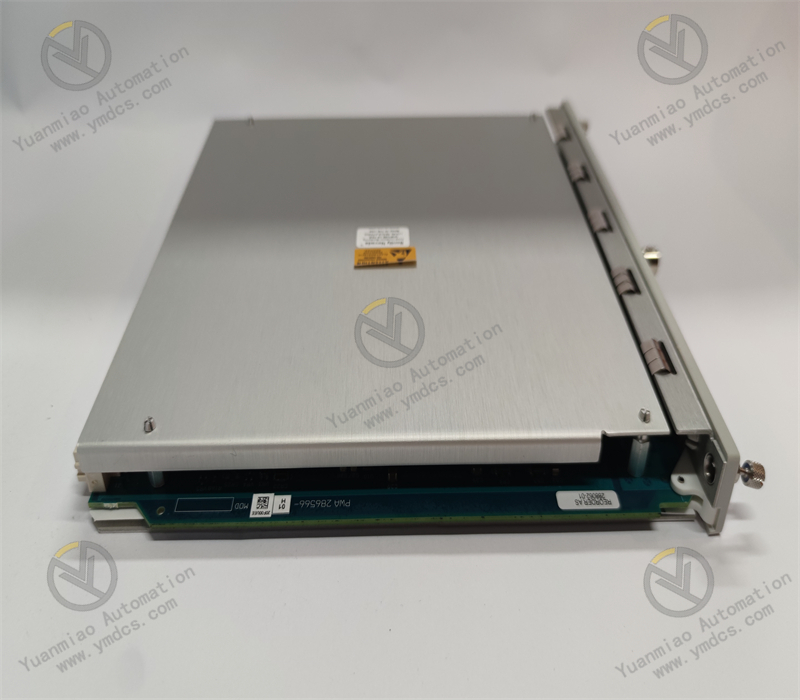

The Bently Nevada 3500/54M (Part No. 286566‑01) is a 3‑channel programmable overspeed monitoring and protection module dedicated to the 3500 system. As a core safety unit of the high‑end 3500‑series rotating‑machinery protection system, it complies strictly with API 670 machinery‑protection standards, SIL 2 functional‑safety specifications and high‑grade industrial EMC requirements. It serves as dedicated overspeed‑protection hardware for high‑speed critical equipment such as steam turbines, gas turbines and large‑scale centrifugal compressors in the power‑generation, petrochemical, coal‑chemical and oil‑gas‑storage‑transport industries.
Adopting a hot‑swappable integrated structure for the standard 3500 rack, the module integrates rotational‑speed signal acquisition, digital‑filter computation, overspeed‑logic judgment, graded‑alarm output, 2‑out‑of‑3 voting interlock and data communication transmission into a single unit. It is compatible with Bently Nevada 3300‑series speed probes, magnetoelectric speed sensors and Hall‑effect key‑phasor sensors, and is purpose‑built for high‑risk operating conditions including overspeed runaway, rotational‑speed fluctuation and signal anomalies on high‑speed rotating equipment. Different from conventional vibration‑monitoring modules, the 3500/54M 286566‑01 focuses on accurate speed measurement and emergency overspeed interlock protection. Equipped with factory‑developed high‑precision digital speed‑measurement algorithms, it supports independent synchronous acquisition across three channels and implements a 2‑out‑of‑3 voting protection logic, effectively resolving common‑industry issues such as speed‑sampling deviation on high‑speed units, single‑channel signal faults, false trips and missed protection actions. It features high speed‑measurement accuracy, fast response, reliable redundant logic, strong anti‑interference capability, flexible configuration and maintenance‑free stable operation. It performs reliably under harsh plant‑room conditions with high temperature‑humidity, oil‑gas dust, heavy frequency‑converter electromagnetic interference and continuous mechanical vibration, supporting 7×24‑hour non‑stop safety monitoring and overspeed interlock protection. It is widely deployed for new‑build TSI oversafety‑protection systems, upgrade‑and‑replacement projects for legacy overspeed modules, compliance retrofits of safety‑interlock systems and optimisation of overspeed‑protection frameworks for high‑risk rotating machinery.
2. Functions and Working Principle
Core Functions
The 3500/54M 286566‑01 overspeed‑monitor module integrates six core capabilities: high‑precision real‑time rotational‑speed acquisition for high‑speed machinery, redundant comparative‑signal analysis across three channels, programmable graded overspeed alarms, 2‑out‑of‑3 voting overspeed‑trip interlock, sensor‑loop fault self‑diagnostics, and trending recording & upload of speed data. It fully satisfies the full‑scope requirements for speed monitoring, early overspeed‑fault prediction, emergency safety protection and compliance‑based interlock control on large high‑speed rotating machinery. The module accepts synchronous inputs from multiple speed / key‑phasor signals and accurately captures minor speed fluctuations, abnormal speed surges and rotational‑speed instability during unit startup‑shutdown, load‑variation and steady‑state operation.
Pulse signals received from field sensors are conditioned, filtered, frequency‑converted and computed in real‑time to produce accurate actual rotational‑speed values for the unit. Three configurable threshold levels (Alert, Danger‑Overspeed and Emergency Trip) can be defined by users. The core 2‑out‑of‑3 redundant voting logic greatly reduces false alarms and spurious trips caused by single‑channel sensor faults, wiring anomalies or signal interference; interlock action is triggered only when overspeed is confirmed by multiple channels simultaneously, thus substantially improving unit stability and protection reliability. Comprehensive self‑diagnostics monitor loop health, open circuits, abnormal signals and module faults, enabling advance warning of monitoring‑system degradation. It delivers highly‑reliable, fast‑response and zero‑omission safety protection against serious hazards including turbine overspeed runaway and load‑change speed instability, and safeguards high‑speed rotating equipment throughout its operation.
Working Principle
This module operates on the principle of high‑frequency‑pulse digital acquisition plus triple‑redundancy voting safety algorithms. Together with external speed / key‑phasor sensors, a 3500‑series rack and host‑configuration software, it forms a complete closed‑loop overspeed‑monitoring‑and‑protection system. During unit operation, speed sensors continuously generate high‑frequency pulse signals proportional to shaft rotational speed via gear‑tooth cutting and transmit these pulses to the 3500/54M module.
On‑board high‑precision digital processing chips and multi‑stage anti‑interference filter circuits remove noise pulses induced by electromagnetic disturbance, frequency‑converter interference and mechanical resonance, while valid pulses undergo high‑speed frequency sampling and accurate speed conversion. Three independent channels perform synchronous computation and real‑time data comparison. Bently‑Nevada proprietary 2‑out‑of‑3 voting‑logic algorithms evaluate actual shaft speed and prevent protection failure or spurious trips originating from single‑point faults. When measured speed exceeds pre‑set alarm thresholds, the module activates Alert and Danger alarms sequentially. If speed reaches the emergency‑trip threshold or runaway‑speed conditions are detected, hard‑contact interlock‑trip signals are immediately output to cut power supply to the equipment and prevent catastrophic overspeed damage. Real‑time speed data, alarm logs, fault sequences and channel status are transmitted to the supervisory system for live display, trend archiving, fault root‑cause tracing and remote monitoring. The complete protection loop provides ultra‑fast response, rigorous logic and robust redundancy, and adapts to severe operating conditions on all types of high‑speed heavy‑duty rotating machinery.
3. Technical Features
- 3‑channel redundant acquisition and 2‑out‑of‑3 voting for superior safety redundancyThree independent synchronous speed‑acquisition channels are implemented together with industrial‑safety‑grade 2‑out‑of‑3 voting protection logic, outperforming ordinary single‑/dual‑channel speed monitors. This architecture eliminates false trips and missed‑protection events caused by sensor failure, wiring disturbance or signal anomalies, and prevents overspeed‑protection failure at both hardware and algorithm levels. It fully satisfies safety specifications for high‑risk thermal‑power and petrochemical units and constitutes a core compliance‑focused safety module for high‑speed machinery.
- High‑precision ultra‑fast speed measurement with sensitive and reliable dynamic responseEquipped with high‑speed digital‑sampling chips and proprietary speed‑calibration algorithms, the module delivers high‑accuracy speed readings and rapid dynamic response. Minor speed variations during turbine roll‑up, load swings and steady‑state operation are captured accurately with negligible measurement lag and zero data drift. Instantaneous speed surges are detected quickly so that overspeed risks can be predicted in advance, ensuring protection accuracy under transient operating‑conditions.
- Full‑operating‑condition signal compatibility with flexible, universal configurationFully compatible with the complete portfolio of Bently‑Nevada magnetoelectric and Hall‑effect speed / key‑phasor sensors. Adaptive acquisition of high‑frequency pulse signals supports gear‑tooth speed‑measurement arrangements and high‑speed rotating equipment across a broad rotational‑speed range. Three‑level alarm thresholds, channel functions and interlock‑logic settings are fully configurable to meet divergent safety requirements for both new‑build and retrofitted units, delivering exceptional application flexibility.
- Multi‑layer anti‑interference design for harsh industrial environmentsIntegrated multi‑stage digital filtering, electromagnetic shielding and signal‑stabilisation circuits enable the module to pass high‑grade EMC/EMI compliance testing. It resists signal distortion and false‑pulse triggering induced by heavy electromagnetic radiation, frequency‑converter interference, cable crosstalk and continuous mechanical vibration in plant rooms, ensuring accurate speed sampling, stable logical decisions, jitter‑free data and no spurious protection actions under complex field conditions.
- Hot‑swappable integrated design for convenient maintenance and cost reductionStandard rack‑mounted hot‑swap capability permits module replacement without shutting down the entire rack, substantially reducing downtime losses caused by maintenance or fault‑swap activities. Acquisition, computation, alarm‑evaluation, interlock‑drive and communication functions are implemented on‑board, eliminating the requirement for external conversion hardware and simplifying system architecture and field wiring. Remote configuration, parameter backup and fault diagnostics are supported; no routine calibration is required, lowering long‑term maintenance costs.
- SIL 2 safety certification to satisfy industry compliance requirementsThird‑party SIL 2 functional‑safety certification and compliance with API 670 high‑end machinery‑protection standards are achieved. Built‑in fail‑safe protection mechanisms mitigate risks including monitoring outages, protection‑fail‑to‑act events and spurious trips. The module meets overspeed‑protection acceptance criteria for high‑risk power‑generation and petrochemical facilities and is well‑suited for unattended, continuously‑running industrial‑production sites.
4. Specifications
Basic Parameters
Product Model: 3500/54M Part Number: 286566‑01 Manufacturer: Bently Nevada Product Series: 3500 Machinery‑Protection Monitoring‑System Series Device Type: 3‑Channel Redundant Overspeed‑Monitoring and Protection Module Compatible Rack: Standard Bently Nevada 3500‑series system rack Supported Sensors: Bently‑Nevada magnetoelectric & Hall‑effect speed / key‑phasor sensors Applicable Standards: API 670 Machinery‑Protection Standard, SIL 2 Functional‑Safety Certification, IEC Industrial‑EMC Standard, Bently‑Nevada factory precision‑measurement specifications Primary Application: Real‑time speed monitoring, graded overspeed alarm, triple‑redundancy trip‑interlock protection, fault tracing, safety‑compliance maintenance and predictive‑maintenance data support for large steam turbines, gas turbines, centrifugal compressors and other high‑speed rotating equipment
Core Performance Parameters
Operating Principle: High‑frequency‑pulse digital acquisition + 3‑channel redundant computation + 2‑out‑of‑3 voting protection algorithm Channel Configuration: 3 independent synchronous speed‑acquisition channels with full‑channel redundancy backup Measurement Range: Covers conventional industrial speed bands for high‑speed rotating machinery; custom range configuration available Measurement Accuracy: Industrial high‑precision speed‑measurement grade; zero drift and no accuracy degradation during long‑term operation Alarm Logic: User‑configurable three‑level thresholds for Alert, Danger and Overspeed Trip Protection Logic: 2‑out‑of‑3 redundant voting interlock to avoid protection anomalies caused by single‑point faults On‑board Diagnostics: Comprehensive self‑alarming for sensor open‑circuit, signal anomalies, channel faults and module faults
Electrical & Output Parameters
Operating Power Supply: Standard DC power feed supplied via the 3500 rack Analogue Output: 4‑20 mA standard analogue remote transmission of rotational speed for connection to DCS supervisory systems Digital Outputs: Multiple relay dry‑contact alarm and interlock outputs, capable of emergency‑trip interlock Communication Interfaces: Compatible with 3500 system bus communication for data upload, remote configuration and trend logging Immunity Rating: High‑level EMI/RFI electromagnetic shielding, resistant to industrial high‑electromagnetic, frequency‑converter and vibration‑related interference
Mechanical & Physical Parameters
Construction: Hot‑swappable single‑board modular design for standard rack installation, integrated circuitry, shock‑resistant dust‑sealed industrial housing Mounting Method: Slot‑mounted inside the 3500 standard rack, easy insertion‑removal, neat wiring, hot‑swap under power permitted Maintenance Requirements: No routine calibration; supports remote‑parameter configuration, fault diagnostics and trend‑data storage; suited for long‑term continuous‑operation maintenance regimes
Environmental Parameters
Operating Temperature: −20 ℃ ~ +60 ℃ Storage Temperature: −40 ℃ ~ +85 ℃ Relative Humidity: 5 %‑95 % RH, non‑condensing Environmental Resistance: Shock‑resistant, dust‑proof, oil‑gas‑corrosion‑resistant, EMI‑hardened and high signal stability for 7×24‑hour continuous operation in power‑plant facilities
5. Application Scenarios
The Bently Nevada 3500/54M 286566‑01 overspeed‑monitor module is purpose‑engineered for safety‑protection duties on high‑speed high‑risk rotating machinery. It is widely deployed in TSI condition‑monitoring and overspeed‑safety‑protection systems for large steam‑turbine generator sets, gas turbines, centrifugal process compressors and high‑speed fans in thermal‑power plants, combined‑cycle gas‑power stations, oil refineries, coal‑chemical facilities, oil‑gas storage‑transport terminals and heavy‑industry captive power stations. It acts as a safety‑grade core module for overspeed prevention, compliance‑based interlocking and safe operation of high‑speed units.
Typical use‑cases include full‑range speed monitoring and triple‑redundancy overspeed‑trip protection for steam‑turbine generator sets at thermal‑power / gas‑power plants; high‑speed‑condition overspeed safety protection for large centrifugal compressors in refineries; abnormal‑speed early warning and emergency‑trip protection for high‑pressure high‑speed rotating machinery in coal‑chemical plants; complete‑system integration for new‑build 3500 TSI overspeed‑protection installations; upgrade‑and‑replacement projects converting legacy single‑channel speed monitors to triple‑redundancy safety modules; compliance retrofits for overspeed‑interlock systems; automated safety monitoring for high‑risk unattended high‑speed machinery; dynamic speed monitoring during startup‑shutdown and load‑transient periods; overspeed‑fault root‑cause tracing and operating‑trend analysis; and optimisation‑and‑upgrade projects for safety‑protection frameworks on industrial high‑speed rotating equipment.
As the dedicated triple‑redundancy overspeed‑safety monitor within the 3500 product family, the 3500/54M 286566‑01 addresses well‑known limitations of traditional single‑channel speed monitors: low reliability, high spurious‑trip probability, missed‑protection risk and poor operating‑condition adaptability. It delivers comprehensive mitigation of major hazards including speed surges, turbine overspeed runaway and rotational‑speed instability, reducing risks of equipment destruction, unplanned unit trips, production outages and safety incidents. It ensures long‑term safe, stable, compliant and efficient operation of large‑scale industrial high‑speed heavy‑duty rotating power equipment and is the preferred original safety‑critical module for new installations, legacy‑system retrofits and safety‑upgrade projects on high‑speed‑machinery overspeed‑protection systems.
