Description
1. Product Overview

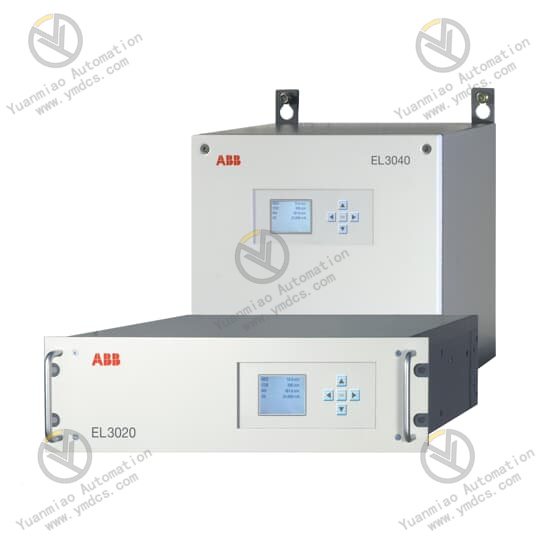

The ABB EL3020 is an industrial continuous online gas analyzer under Switzerland EasyLine EL3000 series. It adopts a standard 19-inch rack-mounted structure and is engineered for real-time component monitoring of industrial process gases. Supported by mature detection technologies including high-precision infrared absorption and paramagnetic oxygen measurement, it continuously measures concentrations of process gases such as CO, CO₂, CH₄ and O₂. Featuring a modular combined detection design, one single unit can accommodate dual measurement cells to meet the demands of synchronous multi-component gas analysis.
As core equipment for industrial process gas analysis, the EL3020 is widely deployed in power generation, chemical industry, metallurgy, environmental flue gas monitoring, combustion condition optimization, process gas purification and other fields. It collects process gas parameters uninterruptedly 24/7, delivering accurate data to support combustion efficiency regulation, compliance monitoring of exhaust emissions, closed-loop control of process quality and safety production management. Built with an expandable modular architecture, intelligent self-diagnosis and fully automatic calibration logic, the analyzer delivers stable operation and convenient maintenance, serving as a mainstream standardized and highly reliable analytical device for industrial gas analysis.
2. Technical Features
2.1 Modular Multi-Principle Detection for Multi-Component Gas Analysis
It natively integrates core measurement modules including URAS26 infrared photometry module, MAGNOS206 paramagnetic oxygen module and ZO23 trace oxygen module with flexible configuration options. A single chassis can be equipped with dual measurement units to synchronously detect infrared-absorbable gases and oxygen components. It adapts to most industrial process gas, flue gas and combustion gas measurement scenarios with outstanding versatility and expandability for customizable measurable gas components.
2.2 Ultra-High Measurement Precision & Ultra-Fast Response
Equipped with a high-precision optical detection core and intelligent signal filtering algorithm, it boasts excellent repeatability and long-term freedom from zero drift. The response time for key gas detection is shortened to 1 second, enabling quick capture of minor fluctuations in process gas composition. With high linearity and a wide adjustable measuring range, it fully satisfies strict precision requirements for precise industrial process regulation and high-accuracy environmental monitoring, delivering far more stable data than conventional online analyzers.
2.3 Fully Automatic Intelligent Calibration to Cut Maintenance Costs Significantly
It incorporates an automatic calibration control system with integrated pump-valve linkage logic. It supports automatic ambient air calibration and internal calibration cell calibration, completing routine zero and span calibration without external standard gas cylinders. The system autonomously stores calibration parameters and automatically corrects deviations caused by working condition changes. Frequent manual calibration is eliminated for long-term operation, greatly reducing manual maintenance workload and fitting unattended round-the-clock industrial operation.
2.4 Full-Condition Intelligent Self-Diagnosis Ensures Controllable & Safe Operation
A full-scale hardware self-diagnosis system monitors potential hazards in real time, including gas circuit status, optical core performance, power supply conditions, communication links, abnormal flow/pressure and module faults. It automatically records fault logs, predicts maintenance cycles and reminds users of consumable replacement in advance, effectively preventing data distortion and monitoring failure triggered by hidden equipment faults and guaranteeing consistent reliability of gas data.
2.5 Standardized Rack Structure for Easy Integration with Industrial Control Systems
Designed as a standard 19-inch 3U rack-mounted unit with IP20 protection grade (IP40 upgrade optional), it features a compact and neat layout perfectly matching standardized cabinet integration of industrial control systems. The lightweight design (net weight: 7~15kg) facilitates easy disassembly and installation, suitable for complete set integration of new projects as well as renovation and replacement of legacy equipment.
2.6 Multi-Protocol Communication Output for Seamless Connection with Automation Systems
It supports customizable analog output, multi-channel digital I/O and Modbus bus communication, enabling seamless linkage with PLCs, DCS and upper monitoring systems for real-time upload of gas concentration data and automatic linkage adjustment of process parameters. Remote parameter configuration, data reading and status monitoring are available to accommodate closed-loop industrial automatic control and remote operation & maintenance management.
2.7 Industrial-Grade Robust Structure Adaptable to Long-Term Continuous Operation
The whole unit adopts a galvanized steel housing, aluminum rear panel and anti-corrosion gas path structure. All electronic components undergo rigorous industrial screening to resist temperature/humidity fluctuations and mild electromagnetic interference, tolerating long-term continuous operation in industrial computer rooms. The detachable modular design partitions the optical core, gas circuit and circuit independently. Single-point faults can be replaced separately to lower maintenance costs and improve equipment reusability.
3. Hardware & Electrical Specifications
3.1 Basic Hardware Information
- Model: EL3020 (EasyLine Series)
- Manufacturer: ABB (Switzerland)
- Equipment Type: Continuous Online Multi-Component Gas Analyzer
- Mounting Method: Standard 19-inch 3U rack mounting
- Protection Class: IP20 (IP40 upgrade optional)
- Housing Material: Galvanized steel enclosure, aluminum rear panel, polyester keypad panel
- Net Weight: 7~15kg (varies with configured modules)
- Core Detection Modules: URAS26 IR module, MAGNOS206 paramagnetic oxygen module, ZO23 trace oxygen module
- Structural Characteristics: Modular partition layout, detachable for maintenance, low failure rate, high reusability
3.2 Core Measurement Parameters
- Measurable Gases: CO, CO₂, CH₄, O₂, trace oxygen and other common industrial process gases
- Measurement Principles: Non-Dispersive Infrared (NDIR) Absorption, Paramagnetic Oxygen Detection, Trace Oxygen Detection
- Response Time: ≤1s (standard working condition)
- Measurement Accuracy: High linear precision, low drift, superior repeatability
- Expandability: Dual-module combination within one chassis for synchronous dual-gas measurement
- Calibration Modes: Automatic ambient air calibration, internal calibration cell calibration, manual calibration (all optional)
3.3 Electrical Power Supply Parameters
- Rated Supply Voltage: 100~240V AC wide-range alternating current
- Voltage Tolerance: Accommodates voltage fluctuation of -15% / +10%
- Supply Frequency: 50~60Hz (±3Hz)
- Maximum Power Consumption: ≤187VA
- Power Interface: EN 60320-1/C14 standard 3-pin earthed connector
- Electrical Protection: Multi-protection against overvoltage, undervoltage, overload and electric leakage
3.4 Communication & Functional Parameters
- Analog Output: Multi-channel programmable isolated analog signal output
- Digital Interface: Multi-channel DI/DO digital switching signals
- Bus Protocol: Modbus bus supporting remote networking
- O&M Functions: Remote configuration, parameter modification, fault self-diagnosis, log storage, data export
- Control Logic: Built-in pump-valve linkage control, automatic calibration timing sequence, fault self-locking protection
3.5 Environmental & Working Condition Parameters
- Operating Temperature: 5℃ ~ 45℃ (standard computer room condition)
- Storage & Transportation Temperature: -20℃ ~ +60℃
- Operating Humidity: 10%~90%RH (non-condensing, free of corrosive gas)
- Sample Gas Requirements: Clean and dry sampling gas free of excessive dust, oil contamination and liquid condensate
- Applicable Environments: Industrial analysis rooms, DCS cabinet rooms, environmental monitoring control rooms
4. Operating Principle
The ABB EL3020 online gas analyzer realizes precise gas component analysis based on combined Non-Dispersive Infrared Absorption Spectroscopy and paramagnetic oxygen detection principles. The device consists of a sampling gas circuit, optical detection modules, signal processing unit, intelligent control unit and communication output unit. After pretreatment including dust removal, dehydration, pressure stabilization and flow regulation, process sampling gas flows evenly into the internal detection cell of the analyzer.
The infrared detection module emits infrared light of specific wavelengths targeting characteristic infrared absorption bands of CO, CO₂, CH₄ and other gases. Gas components absorb infrared energy proportionally to their concentration; the detector receives transmitted light and completes photoelectric signal conversion. Built-in algorithms calculate real-time gas concentrations accordingly. The paramagnetic oxygen module precisely measures process oxygen content by leveraging the paramagnetic physical property of oxygen. The two modules operate synchronously without mutual interference.
The analyzer runs full-process intelligent self-inspection and automatic calibration, correcting measurement deviations induced by temperature, pressure and ambient conditions in real time while filtering interference data to guarantee measurement accuracy. Finally, analyzed gas concentration data are uploaded to automation control systems via analog signals and fieldbus communication, alongside fault monitoring, alarm indication and data storage. This achieves round-the-clock automatic high-precision online monitoring of industrial process gases.
5. Application Scenarios
5.1 Combustion Condition Monitoring for Power Industry
Applied to flue gas analysis of boilers in thermal power plants and cogeneration units, it monitors real-time concentrations of O₂, CO and CO₂ to accurately reflect furnace combustion status. It guides optimized air distribution and fuel ratio adjustment to cut energy consumption and boost combustion efficiency while meeting requirements for continuous environmental flue gas emission monitoring.
5.2 Process Gas Analysis for Chemical Industry
It fits coal chemical, fine chemical, syngas preparation and other processes. It conducts online monitoring of gas component concentrations in reaction kettles, pipelines and purification sections to track reaction progress and purification purity in real time, stabilizing chemical production processes and raising product qualification rates.
5.3 Furnace Gas Monitoring for Metallurgical Industry
Deployed for furnace gas composition testing in steelmaking, ironmaking and heat-treatment furnaces, it monitors furnace oxygen content and combustible gas concentration to precisely regulate furnace temperature and atmosphere, optimize smelting processes, improve product quality and eliminate safety risks caused by excessive combustible gas inside furnaces.
5.4 Online Flue Gas Monitoring for Environmental Protection
Serving as core equipment for online monitoring of industrial waste gas, tail gas and flue gas, it continuously measures exhaust gas component concentrations. It provides compliant and accurate real-time data for emission compliance management, data traceability and working condition supervision, complying with industrial environmental online monitoring codes.
5.5 Industrial Gas Purification & Production
Used in high-purity industrial gas manufacturing, gas separation and tail gas recovery processes, it monitors real-time gas purity and impurity content to enable closed-loop regulation of purification processes, enhance gas recycling efficiency and reduce production loss and energy consumption.
