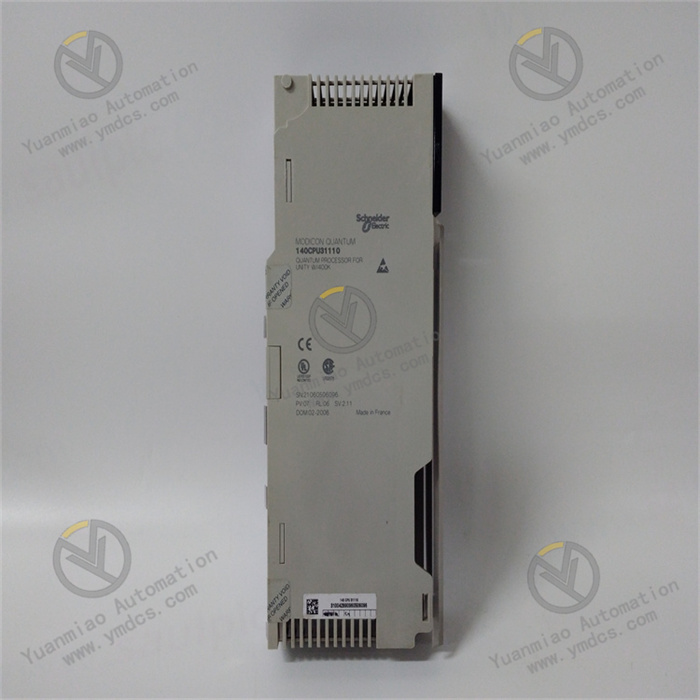

Schneider 140CPU31110
1. Overview
Schneider 140CPU31110 is a Unity-class Central Processing Unit (CPU) module. As the core control hub of the entire PLC system, it is responsible for executing user control logic, coordinating collaborative operation of all modules, processing on-site data, and realizing multi-device communication interaction. It is suitable for medium and large-scale industrial automation control tasks.Its main functions include running control programs complying with IEC 61131-3 standard, rapidly processing on-site signals from I/O modules, and performing logic judgment, data calculation, timing control and other operations. Through built-in communication ports and optional communication modules, it realizes data interaction with remote I/O stations, HMIs, inverters and other equipment. Supported by high-performance processor and sufficient memory resources, it ensures rapid execution of control instructions and stable system operation.Adopting industrial-grade metal enclosure, this module is equipped with comprehensive fault diagnosis, power-off data retention and anti-interference functions. It supports hot standby configuration and online debugging, and can be seamlessly integrated into Schneider Quantum series PLC systems. It is widely applied in medium and large industrial scenarios including manufacturing, energy, water treatment and process control, meeting requirements of complex control logic and multi-equipment coordinated control.
2. Product Specifications
| Parameter Name | Specifications |
|---|---|
| Model | 140CPU31110 |
| Manufacturer | Schneider Electric |
| Product Series | Schneider Modicon Quantum series PLC |
| Product Type | Unity-class Central Processing Unit (CPU) module, 32-bit RISC architecture |
| Compatible Devices | Compatible with Quantum series racks (e.g. 140XBP00400), 140 series power modules (e.g. 140CPS11420), I/O modules and communication modules; supports programming and debugging via Unity Pro software |
| Processor & Memory | 32-bit RISC processor, 66MHz clock frequency; built-in 548kB memory (for user logic, data storage and system overhead), including 256kB power-off retention memory area |
| Communication Parameters | Built-in 1 Modbus Plus (MB+) port and 1 Modbus RTU (RS485) port; supports expansion of optional communication modules such as Ethernet and Profibus DP |
| I/O Expansion Capacity | Up to 10 local slots, connectable to 7 local racks (including main rack); supports Modbus Plus distributed I/O (63 stations per network) and S908 remote I/O; total discrete I/O capacity up to 31744 points |
| Physical Parameters | Dimensions: approx. 260mm × 35mm × 200mm; Weight: approx. 0.8kg; Protection class: IP20 (for internal cabinet installation) |
| Power Supply Parameters | Powered by PLC rack backplane (5.1VDC); bus current consumption approx. 1800mA, power dissipation approx. 18W; requires dedicated Quantum power supply modules |
| Environmental Parameters | Operating temperature: 0℃ to +60℃; Relative humidity: ≤ 85% (non-condensing); excellent electromagnetic interference resistance complying with relevant industrial standards |
| Core Functions | Control logic execution, data calculation, I/O scanning, multi-protocol communication, high-speed interrupt, precise timestamp, fault diagnosis, power-off data retention, hot standby configuration, online debugging |
3. Technical Features
- High-performance processing capability: Adopts 32-bit RISC processor with 66MHz clock frequency and instruction execution time of 0.1–0.27µs per instruction (varies by instruction type). It features powerful logic operation and data processing capacity, efficiently running complex control programs to meet real-time requirements of medium and large automation control systems.
Sufficient memory and data protection: Built-in 548kB memory satisfies demands of user program storage, data caching and system operation. Equipped with 256kB power-off retention area, critical data can be stored for a long time without batteries, avoiding data loss caused by sudden power failure and improving system reliability.
- Flexible communication and expansion: Integrated dual communication ports of Modbus Plus and Modbus RTU for direct connection with HMIs, inverters and intelligent instruments. Supports expansion of Ethernet, Profibus DP and other modules, as well as distributed and remote I/O expansion, adapting to multi-device coordination and large-scale control scenarios.
Complete control functions: Supports IEC 61131-3 standard programming languages (ladder diagram, function block diagram, etc.). With functions of high-speed interrupt input, precise timestamp and counter, it realizes complex timing control, logic linkage and data acquisition to meet diversified industrial control demands.
- High reliability and stability: Built with industrial-grade metal housing and strong EMI resistance, operating stably from 0℃ to +60℃ in harsh industrial conditions. Supports hot standby for non-stop system switching, and integrates comprehensive fault diagnosis functions to reduce system downtime risks.
- Convenient maintenance and debugging: Front panel is equipped with LED indicators (RUN, Ready, Bat Low, etc.) and key switch for intuitive display of operating status and fault information, supporting run/stop/protection mode switching. Compatible with online programming, debugging and parameter modification in Unity Pro, with partial hot-swappable functions for high maintenance efficiency.
4. Application Scenarios
(1) Manufacturing Automation
Widely used in medium and large automatic production lines of automobile manufacturing, mechanical processing and electronic industry. As the core control unit, it executes complex control logic and coordinates collaborative operation of I/O modules, inverters, robots and other equipment. It realizes automatic start-stop, process control, position monitoring and fault alarming of production lines to improve production efficiency and product qualification rate.
(2) Energy & Electric Power Industry
Adapted to substations, new energy power stations and power transmission & distribution systems. As the main controller, it collects operating parameters and switching status of power equipment, executes logic control and protection instructions, and realizes data interaction between devices via Modbus Plus and other protocols for stable, efficient operation and management of power systems.
(3) Water Treatment
Applied to large water plants and sewage treatment plants. It coordinates operation of multiple water pumps, valves and dosing equipment, collects signals of liquid level, flow and water quality, and executes logic control of constant pressure regulation and dosage adjustment. It realizes automatic control of water treatment processes to ensure stable and efficient water supply and sewage treatment.
(4) Process Control & Other Fields
