Description
1. Product Introduction

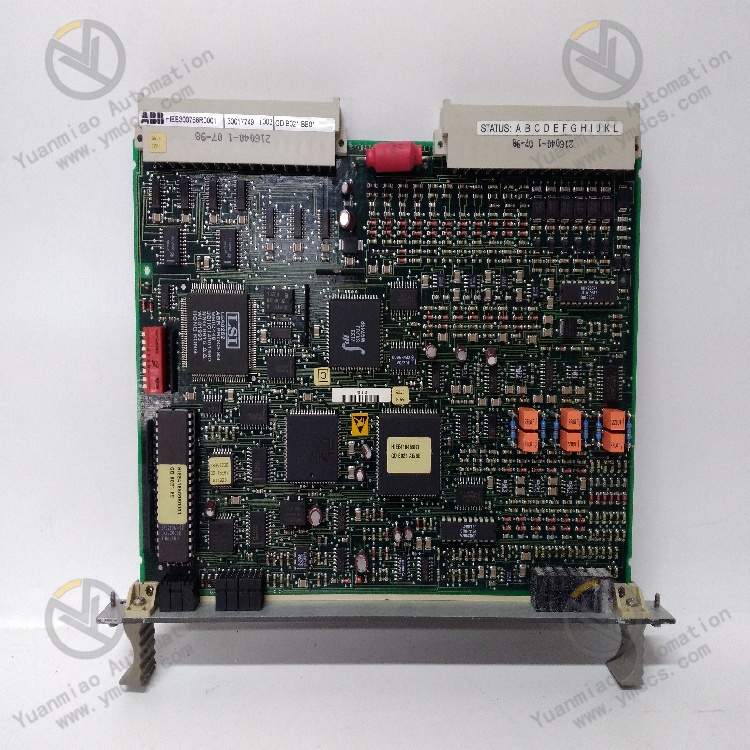

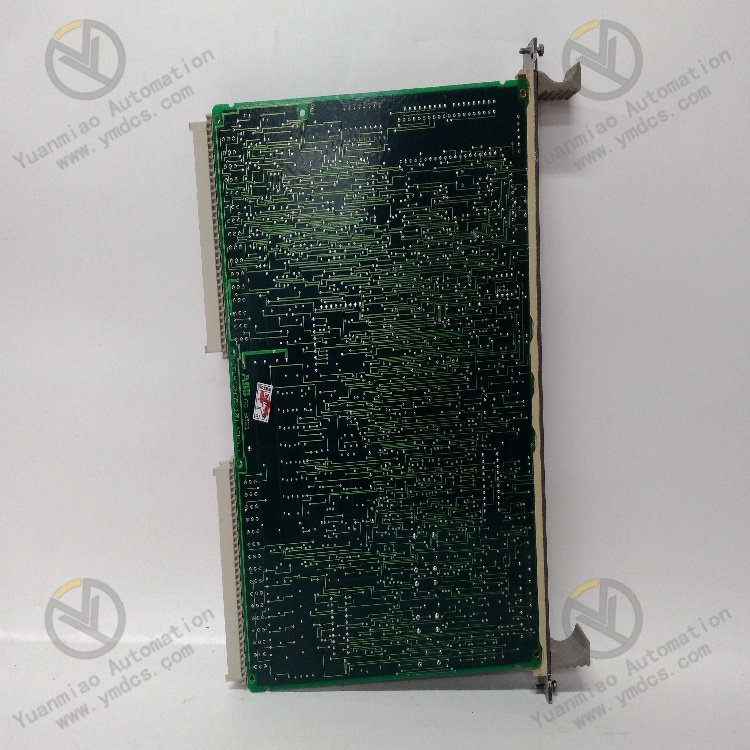

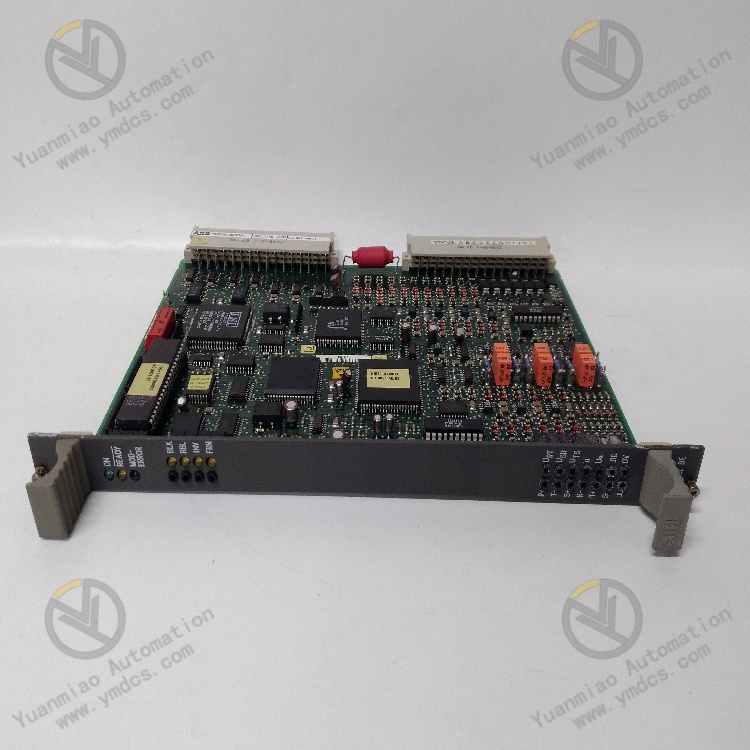

ABB HIEE300766R1 GDB021BEV1 is an original‑manufactured industrial‑grade gate control module by ABB, serving as a core board for ABB high‑end industrial automation and power control systems. Custom‑developed for industrial protective doors, equipment safety doors and passage interlock gate control systems, this module integrates gate‑control logic operation, signal acquisition, status interlock and fault diagnosis functions. It acts as a key hardware unit for safety protection and equipment access interlock management on industrial sites. Adopting a compact rugged PCB structure with industrial‑grade dust‑proof and anti‑interference design, it fits cabinet‑mount conditions and supports 7×24‑hour continuous stable operation. Featuring high reliability, superior safety and low failure rate, it is widely used in industrial scenarios with stringent equipment safety‑interlock requirements such as power generation and heavy‑industry automated production lines, and is commonly applied as original matching part as well as replacement spare part.
2. Functions and Working Principle
Core Functions: The GDB021BEV1 gate‑control module is mainly responsible for status monitoring and logic control of industrial‑equipment safety doors, protective compartment doors and cabinet interlock doors. It collects real‑time open‑close status signals of door bodies and lock feedback signals, and executes pre‑defined safety interlock logic. It realizes key functions including equipment startup prohibition with incompletely‑closed doors, emergency shutdown upon abnormal door opening, real‑time upload of gate‑control status, and fault self‑locking alarm. It also provides loop self‑check, signal verification and abnormal‑locking capabilities to prevent equipment safety accidents and production risks caused by unauthorized door opening or loose door bodies.
Working Principle: After power‑on, the module continuously acquires digital status signals from on‑site gate‑control sensors and door‑lock switches. After internal signal filtering, shaping and logic verification, the signals are compared against pre‑set safety interlock thresholds and control logic of the system. Under normal closed‑door conditions, the module outputs an unlock signal permitting equipment operation to ensure normal startup, shutdown and running of process equipment. When detecting door opening, door‑lock disengagement, circuit abnormality and other conditions, it immediately triggers safety interlock logic, locks equipment operation authority, outputs shutdown interlock signals, and uploads fault status to the central control system synchronously. The module conducts real‑time self‑check on gate‑control loop continuity, signal anomalies and module operating faults throughout operation. It automatically locks to safe status under abnormal conditions to avoid mis‑action, and safeguards industrial‑equipment and personal safety at hardware level.
3. Technical Features
Specialized Safety‑Gate Interlock Design: Developed for interlock of industrial‑equipment protective safety doors, it delivers precise logic and fast response. It strictly manages door‑body status and equipment operation authority, and eliminates safety risks arising from on‑site mis‑operation and unauthorized door opening from the source.
Full‑range Fault Self‑diagnosis: Real‑time detection for open‑circuit, short‑circuit and signal anomalies of gate‑control loops as well as module operating faults. It pinpoints fault points and uploads information to the system, supports fault self‑locking and alarm prompting, and greatly reduces troubleshooting workload for maintenance.
Adaptability to Harsh Industrial Conditions: Built with rugged PCB hardware technology, it exhibits excellent EMC anti‑interference, vibration resistance and tolerance to temperature‑humidity fluctuations. It adapts to complex electromagnetic environments and long‑term non‑stop operation of industrial plants with outstanding stability.
Compact High‑integration Design: It integrates gate‑control acquisition, logic operation, interlock output and fault diagnosis into one unit. Compact in size, it occupies little cabinet space and simplifies wiring, effectively reducing external fault points.
- High‑safety Fault‑tolerant Performance: It automatically locks into safe shutdown status upon faults to prevent equipment operation with abnormal door conditions. Compliant with industrial‑equipment safety specifications, it meets safety‑interlock requirements for high‑risk production scenarios.
4. Specifications
Basic Parameters
Product Model: HIEE300766R1 GDB021BEV1 Brand Manufacturer: ABB Product Type: Industrial Safety Gate‑Control Interlock Module Core Application: Interlock control and status monitoring for industrial‑equipment protective doors and cabinet safety doors
Electrical Parameters
Operating Voltage: 20 VDC industrial control voltage Rated Operating Current: 500 mA Signal Type: Digital discrete signal acquisition and interlock output Operating Mode: Real‑time status monitoring, logic interlock, fault self‑locking protection
Environmental Parameters
Operating Temperature: ‑20 ℃ ~ +70 ℃ Storage Temperature: ‑40 ℃ ~ +85 ℃ Operating Humidity: 5 %‑95 %RH, non‑condensing Environmental Characteristics: Industrial‑grade EMC anti‑interference, mechanical‑vibration resistance, suitable for long‑term indoor cabinet‑based operation
Physical & Structural Parameters
Overall Dimensions: 206 mm(W) × 276 mm(D) × 37 mm(H) Net Weight: 0.42 kg Hardware Technology: Industrial‑grade rugged PCB, corrosion‑resistant and anti‑aging Mounting Method: Embedded installation in standard industrial cabinets
5. Application Scenarios
The ABB HIEE300766R1 GDB021BEV1 gate‑interlock module targets industrial‑equipment safety‑protection interlock‑control scenarios. It is widely adopted in power generation, heavy‑duty machinery, automated production lines, energy & petrochemical industries, intelligent warehousing, tunnel infrastructure and other industrial sectors.
Typical application scenarios include: interlock control of protective safety doors for large‑scale industrial equipment, monitoring and interlock of safety access for electrical control cabinets, safety management of protective compartment doors on automated production lines, status monitoring of access doors for warehousing‑logistics systems, safety protection for power‑equipment compartment doors, and linkage shutdown protection for high‑risk process‑equipment door bodies. Through accurate door‑status monitoring and safety interlock logic, it ensures compliance of industrial‑equipment operations, avoids equipment damage and safety incidents caused by personnel mis‑operation and abnormal door opening, and serves as an essential core component of industrial‑automation safety‑protection systems.
