1. Product Overview

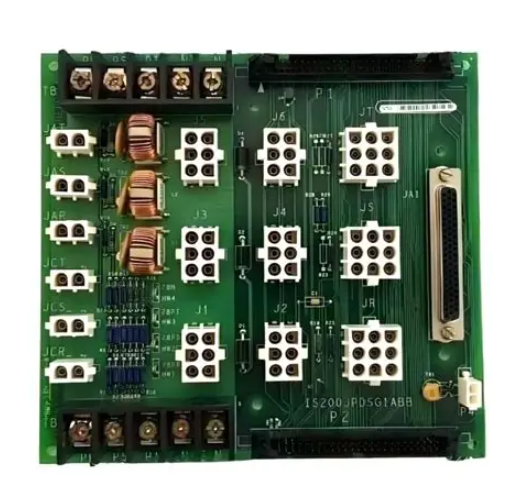

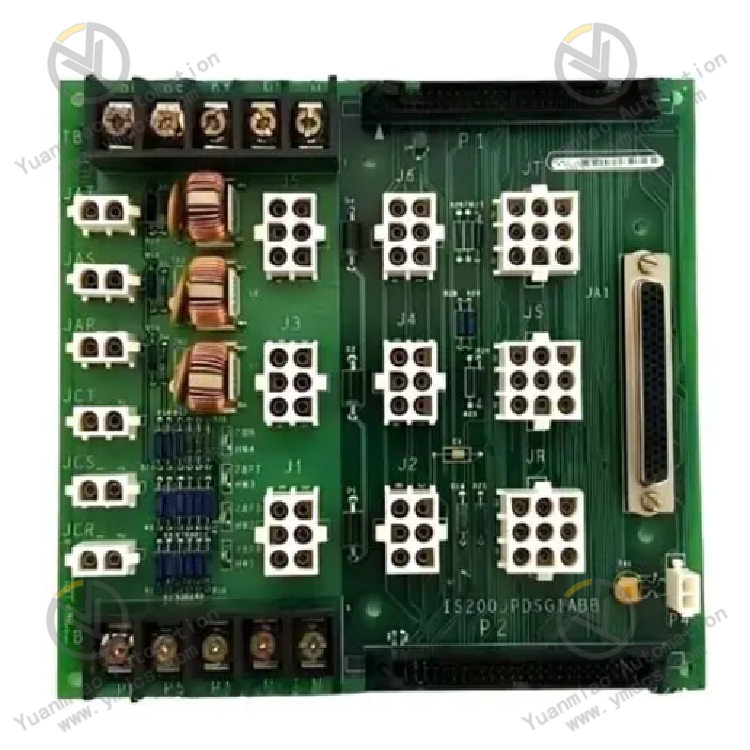

Part Number: IS200JPDSG1ACB
Manufacturer: General Electric (GE)Compatible System: Designed exclusively for GE Mark VI turbine control standard rack. It serves as an integrated baseboard for DC power distribution and feedback signal acquisition, fully backward compatible with JPDE, JPDF, JPDB sub distribution boards on the same platform, and mates with IS220PPDA I/O processing module. It supplies centralized DC power to main control, protection, excitation, servo valve drive and other functional boards inside the rack, meanwhile collecting bus voltage, ground fault and trip feedback signals to upload to upper system SCADA, widely applied in combined-cycle thermal power units, industrial drive turbines and large compressor control systems.
2. Hardware Structure & Six Functional Units
2.1 28VDC Input & Multi-Branch Power Distribution Unit
The board receives 28VDC main bus input, equipped with 4 varistors and 3 filter inductors to form anti-surge filter array. The main power is split into multiple independent output branches for protection loops, trip logic, excitation control and I/O terminal boards. Each branch features independent current limiting, so short-circuit on one branch will not cut off the entire main power supply, realizing partitioned fault tolerance for power supply.
2.2 Dual P1/P2 Feedback Signal Diagnostic Acquisition Unit
Two vertical 50-pin ribbon cable interfaces P1 and P2 are reserved to connect feedback harnesses of JPDF, JPDE, JPDB sub-boards. It aggregates branch voltage, circuit continuity and fault alarm signals, transmits packaged data to rack CPU via backplane bus, enabling maintenance staff to pinpoint abnormal power branches directly via upper software without on-site line-by-line inspection.
2.3 JA1 Standard DC Multi-Pin Backbone Interface Unit
A vertical female DC-62 multi-pin connector marked JA1 is preinstalled, natively compatible with input port of IS220PPDA I/O pack. It establishes hardware-level data exchange between distribution board and core I/O unit for command transmission, status feedback and interlock trip hardwire linkage, forming the standard connection channel between power layer and control layer of Mark VI system.
2.4 Hardware Surge & Short-Circuit Protection Unit
Three-layer protection architecture including TVS surge clamping, common-mode inductance filtering and per-branch current limiting is implemented. In case of grid spike, wiring short or cable earth leakage, the faulty branch is locked with fault report without damaging downstream boards and main controller. Galvanic separation between power and signal circuits avoids interference crosstalk causing system spurious action.
2.5 Backplane Bus & Rack Configuration Identification Unit
Rear gold-finger edge connector plugs into Mark VI standard rack backplane. It automatically executes rack address recognition, firmware verification and bus handshake upon power-up. Redundant dual power input is supported to switch to backup supply seamlessly upon main power loss, ensuring uninterrupted power for critical trip and protection loops and meeting SIL2~SIL3 safety integrity level.
2.6 Industrial Reinforced PCB & Conformal Coating Protection Unit
Multi-layer gold-plated FR-4 industrial PCB fully coated with moisture-proof, anti-corrosion and salt-spray resistant conformal coating. Fanless passive cooling via rack air duct enables stable long-term operation under high cabinet temperature, continuous turbine base vibration and humid coastal salt fog environments, supporting 24/7 non-stop operation for power plants.
3. Detailed Technical Specifications
(1) Core Distribution & Interface Parameters
| Item | Specification |
|---|---|
| Model | IS200JPDSG1ACB Mark VI DC Distribution & Signal Board (JPDS) |
| Platform | GE Speedtronic Mark VI Gas & Steam Turbine Control System |
| Main Input Power | 28VDC DC bus |
| Key Interfaces | 2×50-pin feedback ports P1/P2; JA1 DC-62 multi-pin connector; rack backplane gold finger |
| Compatible Devices | IS220PPDA, JPDF, JPDE, JPDB Mark VI sub distribution boards |
| Protection Components | 4 varistors, 3 filter inductors, independent short-circuit protection per branch |
| Core Functions | Multi-channel DC power distribution, power loop fault collection, ground/overvoltage/open-circuit signal upload, redundant power switching |
| Fault Logic | Single channel fault triggers independent alarm without affecting other output branches |
(2) Electrical Power & Consumption Parameters
- Rated Input Voltage: 28VDC, allowable fluctuation 24~32VDC
- Typical Power Consumption: ≤18W with low heat generation via multi-branch shunting design
- Bus Protocol: Native Mark VI parallel backplane bus with no extra protocol conversion
- Ground Monitoring: Onboard insulation detection circuit for DC bus single-point earth fault identification
- Hot Swap Restriction: Hot plugging while rack is energized is strictly prohibited, which will cause backplane arcing and permanent breakdown of PCB traces and communication chips.
(3) Environmental Operating Parameters
- Operating Temperature: -20℃ ~ +65℃
- Storage & Transport Temperature: -40℃ ~ +70℃
- Humidity: 5%~95%RH non-condensing, no strong corrosive acid gas or salt fog deposition
- Ingress Rating: IP20 for installation inside sealed industrial control cabinets only
(4) Mechanical Mounting Dimensions
- Mounting Method: Horizontal plug-in snap-on installation into single slot of standard Mark VI rack
- Overall Dimension: 165.1mm × 178mm (L × W), standard rack thickness
- Net Weight: Approx. 0.6kg
- PCB Finish: Anti-oxidation gold-plated contact traces with wear-resistant plug terminals for repeated maintenance disassembly.
4. Product Advantages
- Centralized power distribution architecture reduces cabinet wiring hierarchy and intermediate terminal blocks, minimizing loose connection and short-circuit fault nodes and simplifying standardized cabinet assembly.
- Hierarchical fault diagnosis uploads loop status to upper system, enabling direct fault location without power-off wiring inspection and greatly shortening unit outage troubleshooting time.
- Redundant power input ensures automatic switchover upon main supply failure, preventing power loss of ETS emergency trip and flame protection loops and eliminating major risks of unplanned unit shutdown.
- Triple anti-interference protection (inductive filtering + surge absorption + per-branch current limiting) suppresses grid pulse interference from VFD and excitation systems to avoid spurious logic triggering and signal fluctuation.
- Full native compatibility with Mark VI platform allows drop-in replacement with no rack address or program modification required, cutting maintenance downtime during equipment overhaul.
- Wear-free integrated PCB structure requires no disassembly maintenance during unit overhaul cycles, with only annual terminal torque inspection needed to minimize routine maintenance workload.
5. Application Scenarios
Combined-Cycle Thermal Power Generation
Core power distribution baseboard for GE Mark VI gas turbine main control system, supplying 28V DC power to CPU main controller, BMS burner management system, ETS trip system, servo valve cards and excitation modules, while monitoring bus insulation and loop faults of the entire rack.
Petrochemical Process Power Equipment
Control system power supply and loop monitoring for cracking gas compressors and process drive turbines in refineries, ensuring stable control system operation for continuous chemical production.
Legacy System Retrofit & Spare Part Inventory
In-situ replacement for aging JPDS boards suffering from contact oxidation, open PCB traces and lost feedback signals; capacity expansion for additional I/O racks; preventive spare part stocking for annual plant automation asset management.
